NSN 4730-00-588-4423 00-588-4423, 005884423
Product Details | SEDIMENT STRAINER ELEMENT
4730-00-588-4423 A replaceable device designed to remove solid particles from flowing liquids. The removal of particles is accomplished by porous material (metallic or non-metallic), wire mesh, perforated metal, or the like, constructed so the liquid can flow through the device while the solid particles are retained. It is designed to fit into a STRAINER, SEDIMENT (or similar cavity). It may have a reinforcement to prevent collapsing, distorting or rupturing. The degree of particles removed must be nominally rated at 50 microns, or more, or absolutely rated at 75 microns, or more. See also FILTER ELEMENT, FLUID.
Part Alternates: 4730-00-588-4423, 00-588-4423, 4730005884423, 005884423
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 00-588-4423 | 18347 ( STRAINER ELEMENT, SEDIMENT ) |
Drawings & Photos | NSN 4730-00-588-4423
Cross Reference | NSN 4730-00-588-4423
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0W352 | 10988 | CNH INDUSTRIAL AMERICA LLC |
| 0W352 | 14180 | LULL CORP |
| 0W352 | 15586 | CUSHMAN INC A RANSOM CO |
| 0W352 | 28835 | HOBART BROS CO |
| 0W352 | 35301 | DRESSER INDUSTRIES INC LEROI DIV |
| 0W352 | 53496 | SCHRAMM INC. |
| 0W352 | 66289 | WISCONSIN MOTORS LLC |
| 0W352 | 81381 | STEWART & STEVENSON POWER PRODUCTS LLC |
| 0W352 | 96152 | BORG-WARNER CORP MARVEL-SCHEBLER/TILLOTSON DIV |
| 0W352M | 37562 | MACLEOD INC |
| 1000278 | 55207 | ARROW-MASTER, INCORPORATED |
| 1000278 | 96152 | BORG-WARNER CORP MARVEL-SCHEBLER/TILLOTSON DIV |
| 15P12 | 81240 | WHITE FARM EQUIPMENT CO SUB OF TIC INVESTMENT INC |
| 169973 | 27996 | HEIL ENVIRONMENTAL INDUSTRIES |
| 1BS5307A | 93343 | WHITE FARM EQUIPMENT CO SUB OF TIC INVESTMENT CORP |
| 1J5307 | 93343 | WHITE FARM EQUIPMENT CO SUB OF TIC INVESTMENT CORP |
| 253W0 | 36024 | LIBBY POWER SYSTEMS LLC |
| 3-18-0W352-233 | 17624 | ASPHALT EQUIPMENT CO INC |
| 3-18-0W352-90 | 17624 | ASPHALT EQUIPMENT CO INC |
| 49923D | 10988 | CNH INDUSTRIAL AMERICA LLC |
| 49923D | 29510 | KOMATSU AMERICAN INTL CO |
| 49923D | 31007 | NAVISTAR INTL CORP |
| 49923D | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 56110 | 96046 | CRANE PUMPS & SYSTEMS, INC. |
| 609891 | 0EXU3 | AQUA-CHEM, INC. |
| 609891 | 12793 | AQUA-CHEM INC CLEAVER-BROOKS DIV |
| 62477 | 08645 | BRIGGS AND STRATTON CORP |
| 95-192 | 96152 | BORG-WARNER CORP MARVEL-SCHEBLER/TILLOTSON DIV |
| 9N9161 | 57526 | FORD MOTOR CO |
| A11211 | 10988 | CNH INDUSTRIAL AMERICA LLC |
| BK725 | 34161 | KOEHRING CO |
| BK725 | 8E499 | KOEHRING CRANES AND EXCAVATORS INC SUB OF NORTHWEST ENGINEERING CO |
| DW2028 | 28835 | HOBART BROS CO |
| E525 | 07281 | CONCRETE MACHINERY INC |
| JHP33-332 | 02032 | HOLLINGSWORTH JOHN R CO |
| WPP253 | 79172 | SIEMENS WATER TECHNOLOGIES CORP. DIV WALLACE & TIERNAN PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-588-4423
Technical Data | NSN 4730-00-588-4423
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| FILTERING MEDIA DESIGN | MESH |
| MESH SIZE | 108.0 |
| WIRE DIAMETER | 0.00003 INCHES NOMINAL |

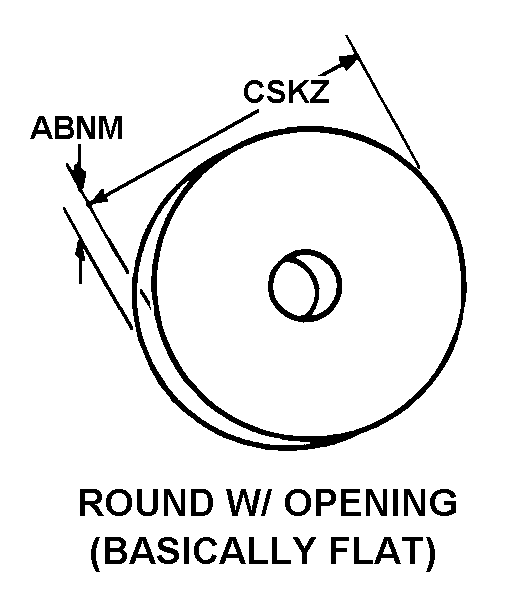

| STYLE DESIGNATOR | A8 ROUND W/ OPENING |
| THICKNESS | 0.005 INCHES NOMINAL |
| ELEMENT OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4730-00-588-4423
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
