NSN 4730-00-585-8769 AN929A6, AN929A6D, AS4841

Product Details | TUBE CAP

4730-00-585-8769 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.

Part Alternates: AN929A6, AN929A6D, AS4841, MILF5509, MIL-F-5509, 10108425 , 454 299, 454299, 6530703044, 65307-03044, 65307-03044-101, 6C, 7301756, 730175-6, 7M626A6D, 818806, 81880-6, 946.29.15.805, 9462915805, 4730-00-585-8769, 00-585-8769, 6530703044101, 4730005858769, 005858769

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-585-8769	06074 ( CAP, TUBE )

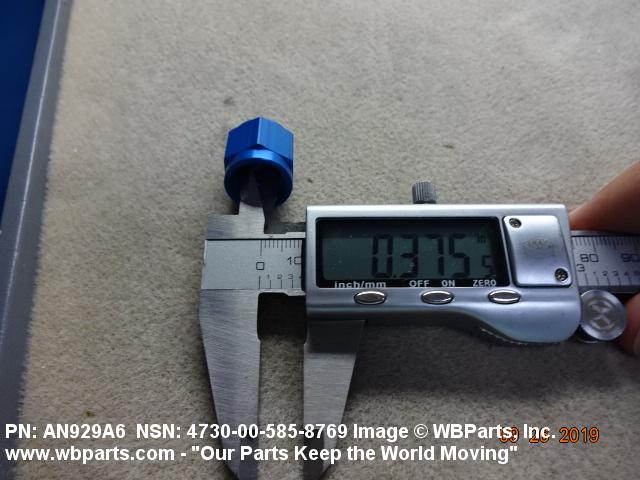

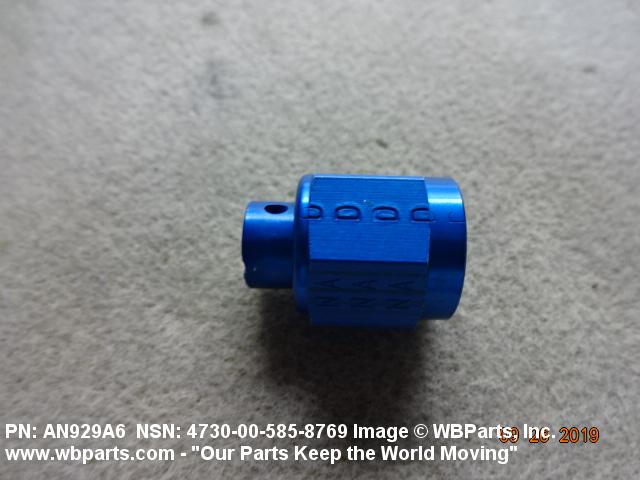

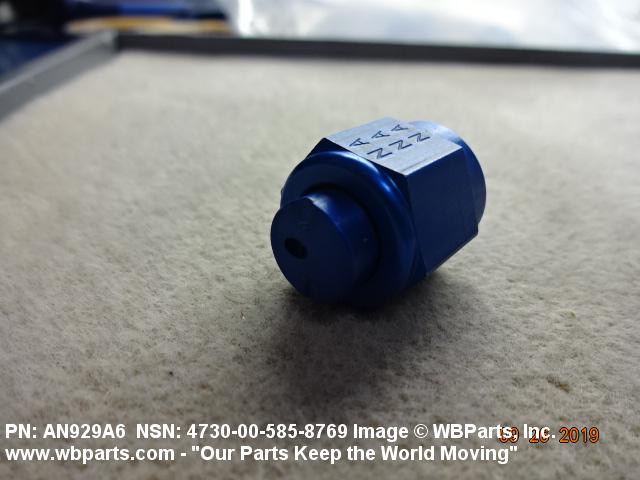

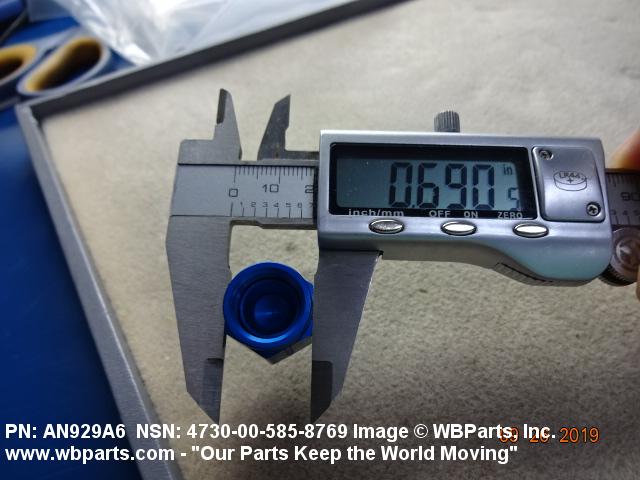

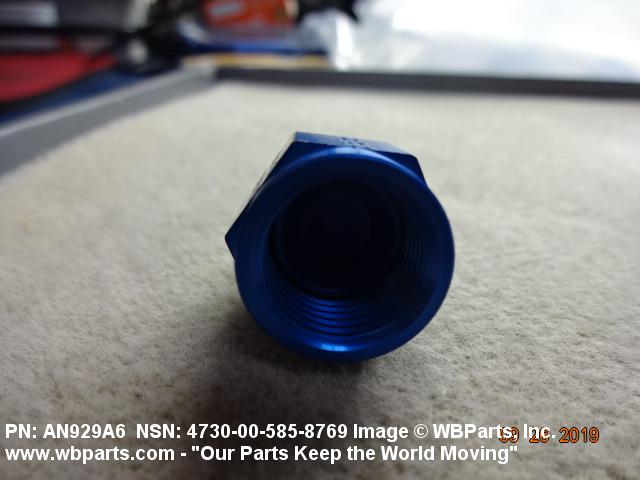

Drawings & Photos | NSN 4730-00-585-8769

Part Number	Request Date	QTY	Origin
4730-00-585-8769	2023-06-172	1	US
4730-00-585-8769	2023-06-172	10	US
4730-00-585-8769	2021-03-81	2	US
4730-00-585-8769	2019-11-309	10	United States
4730-00-585-8769	2019-11-309	12	United States
4730-00-585-8769	2019-09-266	10	United States
4730-00-585-8769	2019-02-50	20884	DIBBS
4730-00-585-8769	2018-11-333	13352	DIBBS
4730-00-585-8769	2018-09-249	6898	DIBBS
MILF5509	2018-07-201	6	United States
4730-00-585-8769	2018-01-07	18559	DIBBS
4730-00-585-8769	2017-10-295	1626	DIBBS
4730-00-585-8769	2017-10-282	5551	DIBBS
4730-00-585-8769	2017-08-243	3477	DIBBS
AN929A6	2017-07-187	2	us
AN929A6	2017-06-178	7	United States
4730-00-585-8769	2015-05-133	12	United States
4730-00-585-8769	2012-09-272	1	RO
AS4841	2011-03-69	8
AN929A6	2010-10-287	1	Hong Kong
MILF5509	2009-10-301	1	PK
MILF5509	2009-02-55	100	US

Cross Reference | NSN 4730-00-585-8769

Part Number	Cage Code	Manufacturer
454 299	77294	PIPER AIRCRAFT INC.
65307-03044	78286	SIKORSKY AIRCRAFT CORPORATION
65307-03044-101	78286	SIKORSKY AIRCRAFT CORPORATION
6C	81904	G T I CORP CLOVER INDUSTRIES DIV
730175-6	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
7M626A6D	76301	BOEING COMPANY, THE DBA BOEING
81880-6	86768	TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC
946.29.15.805	S4080	PILATUS AIRCRAFT LTD
AN929A6	00624	EATON CORPORATION DBA AEROSPACE DIV
AN929A6	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
AN929A6	0TP31	CURTIS PRESTON ENTERPRISES, INC. DBA ATLAS SPECIALTY PRODUCTS
AN929A6	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
AN929A6	22995	CROWN FITTING CO INC
AN929A6	32382	ARLINGTON AIR PARTS INC
AN929A6	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN929A6	8N202	TRI-FITTING MFG COMPANY DBA TRI-FITTING MFG
AN929A6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
AN929A6	R1120	SATAIR A/S
AN929A6D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS4841	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-F-5509	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-585-8769

Compare

Related Products | NSN 4730-00-585-8769

4730-00-585-8770, 4730-00-585-8771, 4730-00-585-8785, 4730-00-585-8788, 4730-00-585-8797

Technical Data | NSN 4730-00-585-8769

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 2024 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/4,T6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-225/6,T6 FED SPEC 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	A12 CAP, TUBE, FLARED
CONNECTION STYLE	G5 PRESSURE SEAL FLARED
THREAD SERIES DESIGNATOR	UNF INTERNAL
NOMINAL THREAD SIZE	0.562 INCHES INTERNAL
THREAD CLASS	3B INTERNAL
THREAD DIRECTION	RIGHT-HAND INTERNAL
SEAT ANGLE	37.0 DEGREES
TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED	0.375 INCHES NOMINAL
SPECIAL FEATURES	CAP DRILLEDFOR SAFETY CHAIN
SPECIFICATION/STANDARD DATA	88044-AN929 GOVERNMENT STANDARD AND 81343-AS4841 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
III END ITEM IDENTIFICATION	USED ON SIKORSKY CARGO TRANSPORT HELICOPTER, CH-54A AND CH-54B, ALSO USED ON F-18 AIRCRAFT
(NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED	3000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID
(NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED	225.0 DEG FAHRENHEIT HYDRAULIC FLUID
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN929A6

Restrictions/Controls & Freight Information | NSN 4730-00-585-8769

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-585-8769

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
