Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-585-6645 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: MS219448H, MS21944-8H, 4730-00-585-6645, 00-585-6645, 4730005856645, 005856645
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-585-6645 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
Drawings & Photos | NSN 4730-00-585-6645
Cross Reference | NSN 4730-00-585-6645
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21944-8H | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-585-6645
Related Products | NSN 4730-00-585-6645
Technical Data | NSN 4730-00-585-6645
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED, MIL-A-8625 |

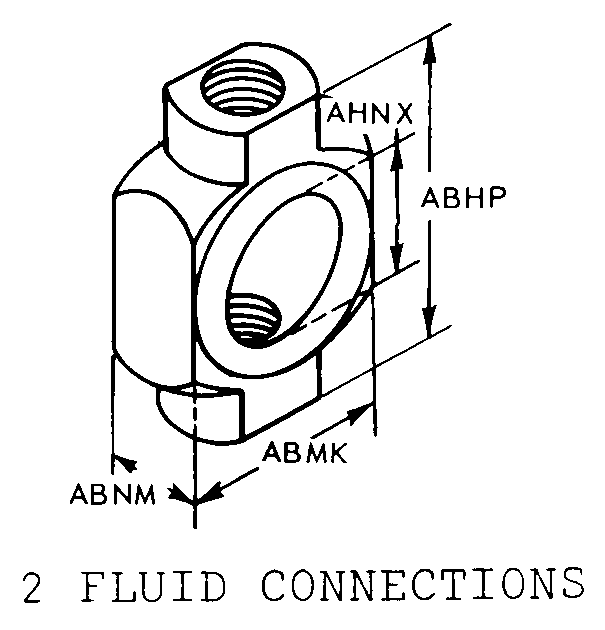

| STYLE DESIGNATOR | D2 2 FLUID CONNECTIONS |
| OVERALL LENGTH | 2.938 INCHES NOMINAL |
| OVERALL WIDTH | 1.813 INCHES NOMINAL |
| THICKNESS | 1.188 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.813 INCHES NOMINAL |
| FLUID CONNECTION QUANTITY | 2 |
| CONNECTION STYLE | G24 FLARELESS |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 1/2 IN. OD |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 3/4 IN. -16 |
| SCREW THREAD SERIES DESIGNATOR | UNJF |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | INCLUDED |
| SEAT ANGLE IN DEG | 12.0 |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21944-8H |
