NSN 4730-00-542-5102 M1183/3-03A, M1183/3-03-G, M1183303A
Product Details | PIPE COUPLING
4730-00-542-5102 A straight fitting 12 inches (304 mm) long or under having the same or different type pipe connection of the same size on both ends. It is designed to join a pipe or pipe fitting to another pipe or pipe fitting. Excludes fittings with threaded external connections on both ends. See also NIPPLE, PIPE.
Part Alternates: M1183/3-03A, M1183/3-03-G, M1183303A, M1183303G, CS47300121A04GLPQ, CS4730-0121A04GLPQ, MILF1183, MILF1183H, MIL-F-1183H, 4730-00-542-5102, 00-542-5102, 4730005425102, 005425102
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-542-5102 | 06076 ( COUPLING, PIPE ) |

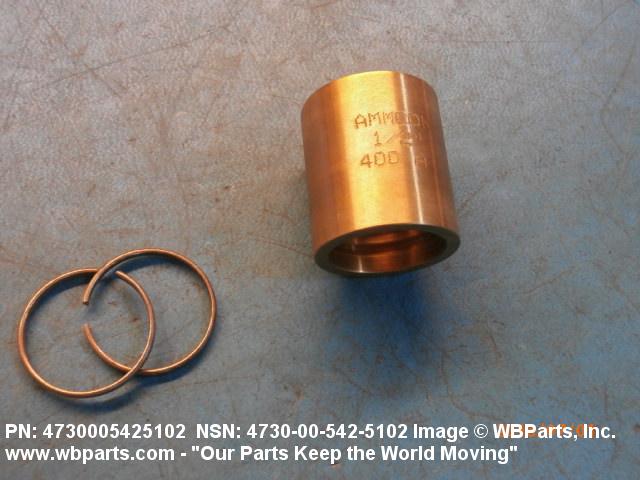

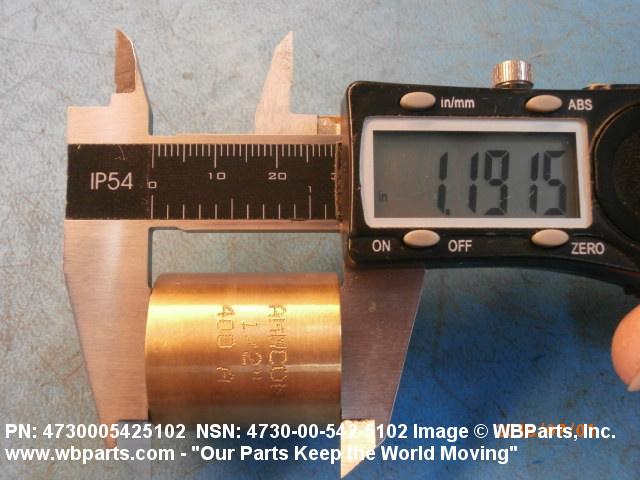

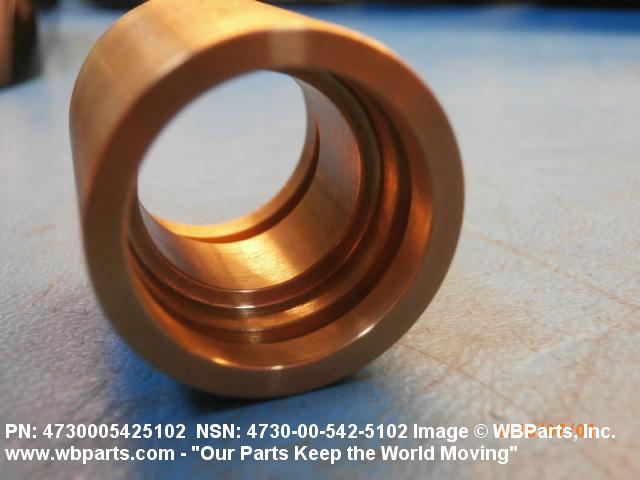

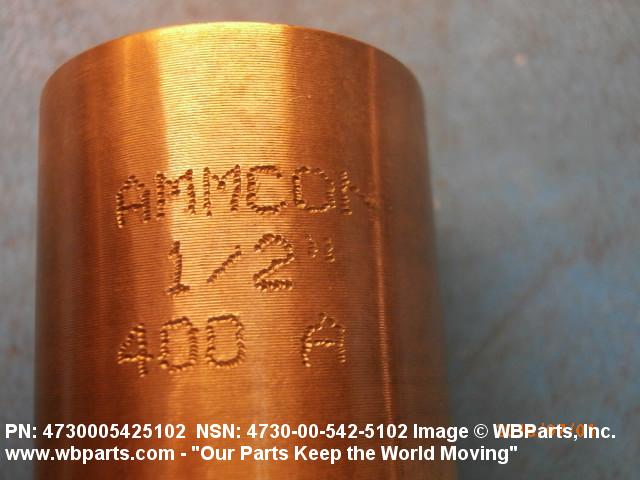

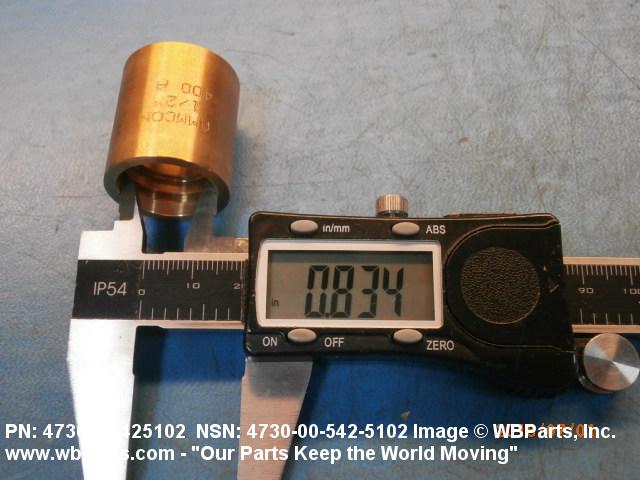

Drawings & Photos | NSN 4730-00-542-5102
Demand History | NSN 4730-00-542-5102
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-542-5102 | 2024-10-289 | 1130 | DIBBS |
| 4730-00-542-5102 | 2024-10-277 | 1130 | DIBBS |
| 4730-00-542-5102 | 2024-08-241 | 45 | DIBBS |
| 4730-00-542-5102 | 2024-02-32 | 1 | United States |
| 4730-00-542-5102 | 2022-10-298 | 705 | DIBBS |
| 4730-00-542-5102 | 2022-09-263 | 705 | DIBBS |
| 4730-00-542-5102 | 2022-07-187 | 1 | United States |
| 4730-00-542-5102 | 2021-07-207 | 2 | US |
| M1183303A | 2021-02-36 | 1 | United States |
| MILF1183 | 2019-03-63 | 8 | US |
| 4730-00-542-5102 | 2018-06-177 | 1 | us |
| 4730-00-542-5102 | 2017-09-264 | 1700 | DIBBS |
| MILF1183 | 2017-05-137 | 1 | United States |
| 4730-00-542-5102 | 2016-06-171 | 1851 | DIBBS |
| 4730-00-542-5102 | 2015-10-287 | 416 | DIBBS |
| 4730-00-542-5102 | 2015-06-153 | 1110 | DIBBS |
| 4730-00-542-5102 | 2014-08-227 | 920 | DIBBS |
| 4730-00-542-5102 | 2014-08-216 | 920 | DIBBS |
| 4730-00-542-5102 | 2014-06-167 | 2 | US |
| MILF1183 | 2010-11-329 | 100 | FR |
| 4730-00-542-5102 | 2010-10-302 | 1000 | DIBBS |
| 4730-00-542-5102 | 2010-03-60 | 767 | DIBBS |
| 4730-00-542-5102 | 2009-09-252 | 460 | DIBBS |
Cross Reference | NSN 4730-00-542-5102
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CS4730-0121A04GLPQ | 16236 | DLA LAND AND MARITIME |
| M1183/3-03-G | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M1183/3-03A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-1183H | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILF1183 | 03958 | MINDECO CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-542-5102
Related Products | NSN 4730-00-542-5102
Technical Data | NSN 4730-00-542-5102
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 903 OR COPPER ALLOY 922 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-390 FED SPEC 1ST MATERIAL RESPONSE OR ASTM-B61 ASSN STD 2ND MATERIAL RESPONSE OR ASTM-B62 ASSN STD 3RD MATERIAL RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | STEAM 1ST RESPONSE WATER-OIL-GAS 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 200.0 POUNDS PER SQUARE INCH 1ST RESPONSE 400.0 POUNDS PER SQUARE INCH 2ND RESPONSE |
| MAXIMUM OPERATING TEMP | 425.0 DEG FAHRENHEIT 1ST RESPONSE 150.0 DEG FAHRENHEIT 2ND RESPONSE |
| STYLE DESIGNATOR | A25 PLAIN W/CONCAVE SIDES |
| CONNECTION TYPE | UNTHREADED INTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | B31B STREAMLINED W/ONE BRAZING RING ALL ENDS |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.500 INCHES ALL ENDS |
| PIPE WALL THICKNESS DESIGNATION FOR WHICH DESIGNED | STANDARD ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.290 INCHES |

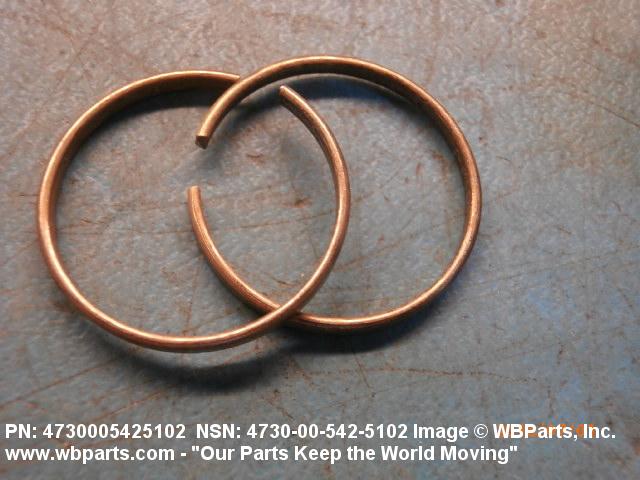

| FURNISHED ITEMS AND QUANTITY | 2 BRAZING RING |
| SPECIAL FEATURES | GROOVED W/BRAZING RINGS PACKAGED SEPARATELY |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-1183 GOVERNMENT SPECIFICATION |
| III END ITEM IDENTIFICATION | 23N SHIP, OHIO CLASS SSN (TRIDENT) |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-1183H |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M1183/3-03A |
Restrictions/Controls & Freight Information | NSN 4730-00-542-5102
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-542-5102
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
