NSN 4730-00-542-3284 AN81644, AN816-4-4, AN816C4R

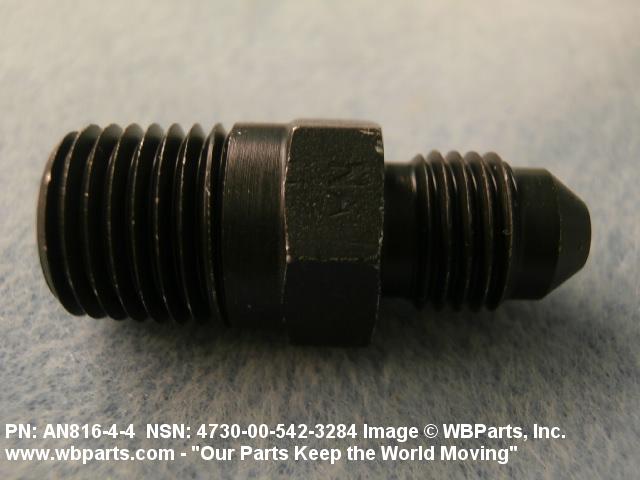

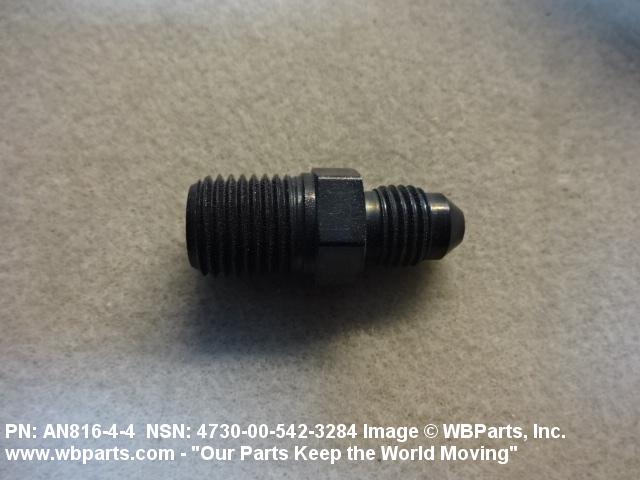

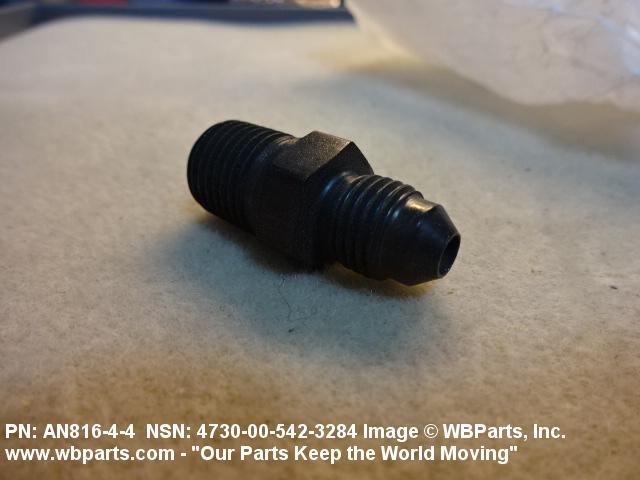

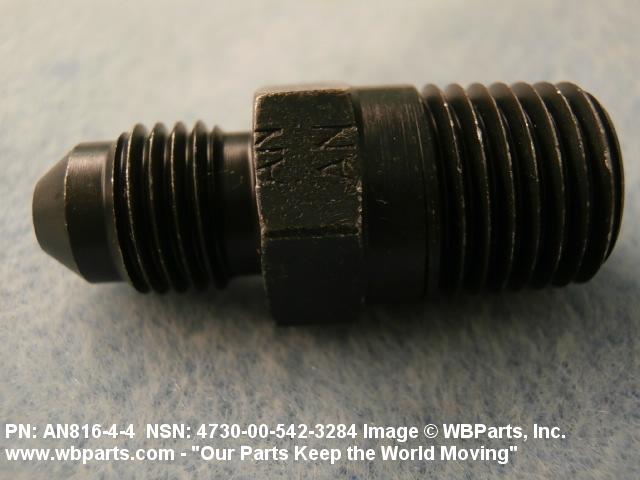

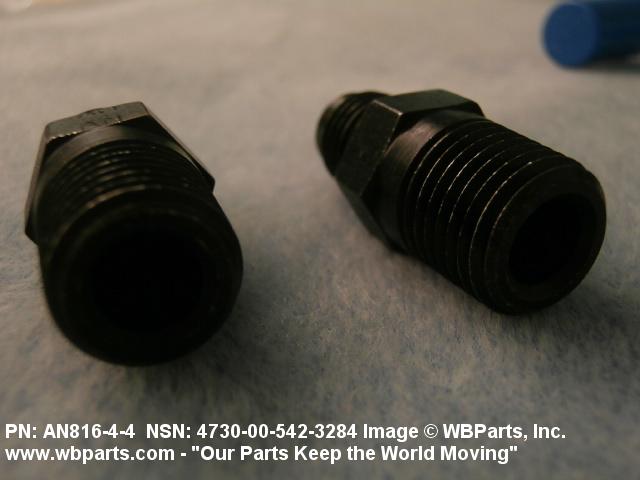

Product Details | PIPE TO TUBE STRAIGHT ADAPTER
4730-00-542-3284 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It is designed to join a pipe or pipe fitting to a tube or tube fitting in a straight line.
Part Alternates: AN81644, AN816-4-4, AN816C4R, AN8186, AN818-6, AS4842/1, AS48421, MILF5509, MIL-F-5509, 100001-005, 2449003600, 244-9003-600, 7347982, 4730-00-542-3284, 00-542-3284, 4730005423284 , 100001005, 005423284
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-542-3284 | 03776 ( ADAPTER, STRAIGHT, PIPE TO TUBE ) |

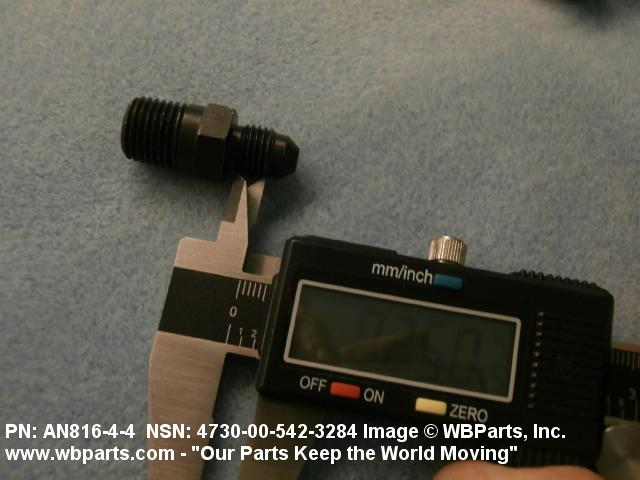

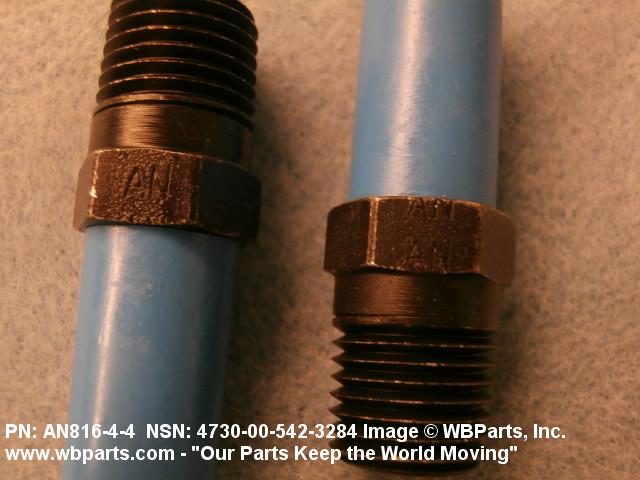

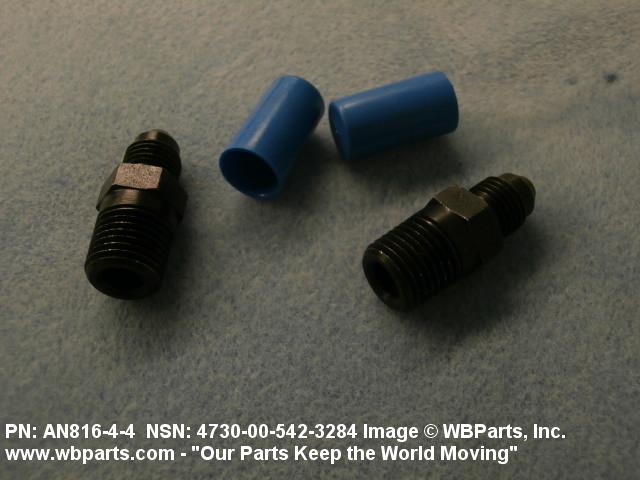

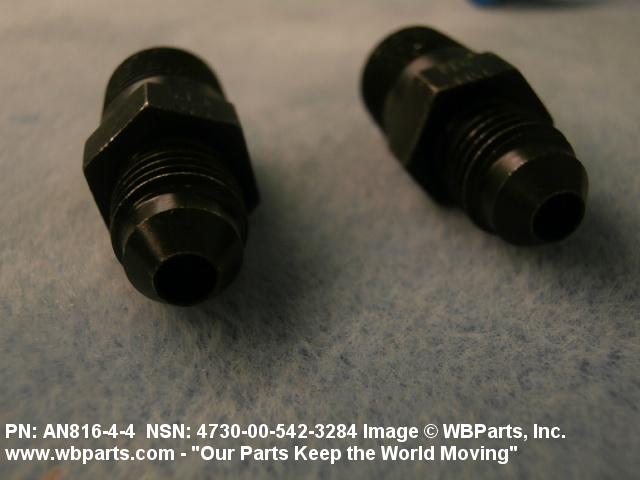

Drawings & Photos | NSN 4730-00-542-3284
Demand History | NSN 4730-00-542-3284
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN81644 | 2022-01-03 | 50 | United States |
| 4730-00-542-3284 | 2021-11-322 | 14 | United States |
| AN8186 | 2019-02-42 | 320 | United States |
| AN8186 | 2018-12-353 | 50 | United States |
| AN8186 | 2018-12-338 | 100 | United States |
| AN816-4-4 | 2018-11-324 | 4 | |
| MILF5509 | 2018-07-201 | 6 | United States |
| AN8186 | 2018-06-176 | 6 | US |
| AN81644 | 2016-08-223 | 24 | United States |
| AS48421 | 2015-05-132 | 1 | CA |
| AN81644 | 2014-06-164 | 477 | United States |
| AN8186 | 2013-07-206 | 2 | United States |
| 4730-00-542-3284 | 2011-05-122 | 150 | Singapore |
| AN8186 | 2011-03-63 | 500 | US |
| AN8186 | 2010-12-350 | 110 | United States |
| AN8186 | 2009-12-350 | 8 | United States |
| 4730-00-542-3284 | 2009-11-313 | 24 | UM |
| MILF5509 | 2009-10-301 | 1 | PK |
| AN8186 | 2009-06-166 | 6 | us |
| MILF5509 | 2009-02-55 | 100 | US |
Cross Reference | NSN 4730-00-542-3284
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100001-005 | 54933 | AERO SYSTEMS ENGINEERING, INC. DBA ASE |
| 244-9003-600 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 4730005423284 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7347982 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| AN816-4-4 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN816-4-4 | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN816-4-4 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN816-4-4 | 14397 | FABER ENTERPRISES, INC. |
| AN816-4-4 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN816-4-4 | 22995 | CROWN FITTING CO INC |
| AN816-4-4 | 30974 | AEROFIT, LLC |
| AN816-4-4 | 34724 | ACRA AEROSPACE INC |
| AN816-4-4 | 71563 | COLLINS ENGINEERING CORP |
| AN816-4-4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN816C4R | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN818-6 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4842/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-542-3284
Related Products | NSN 4730-00-542-3284
Technical Data | NSN 4730-00-542-3284
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B67B PLAIN 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |

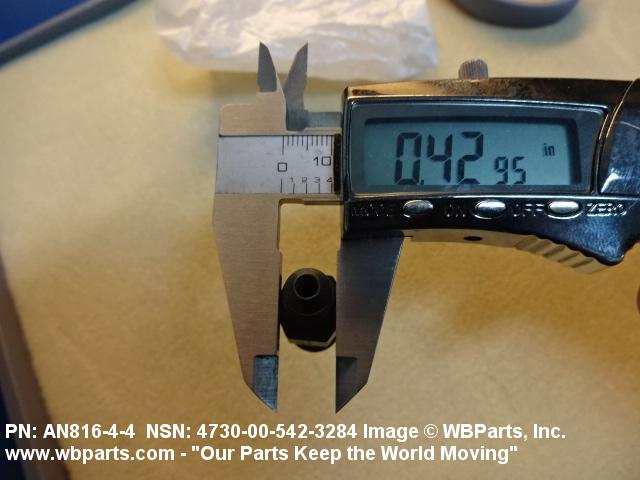

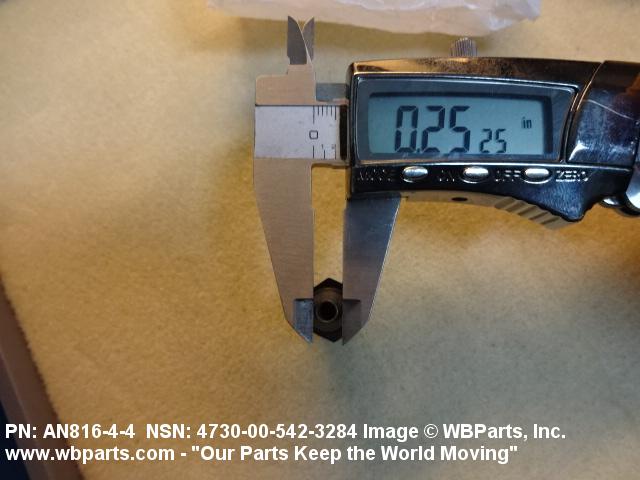

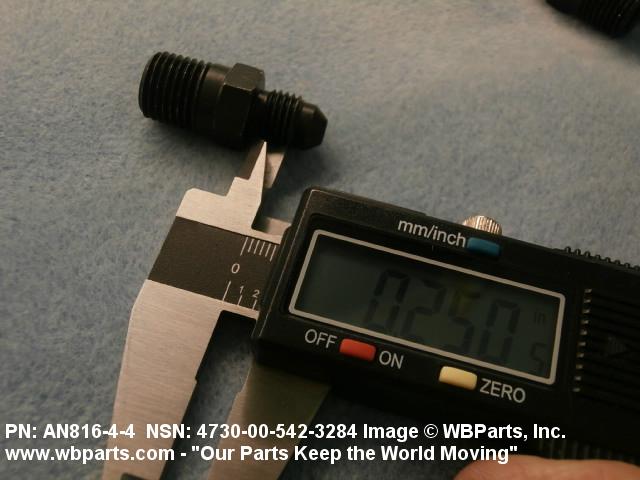

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END |

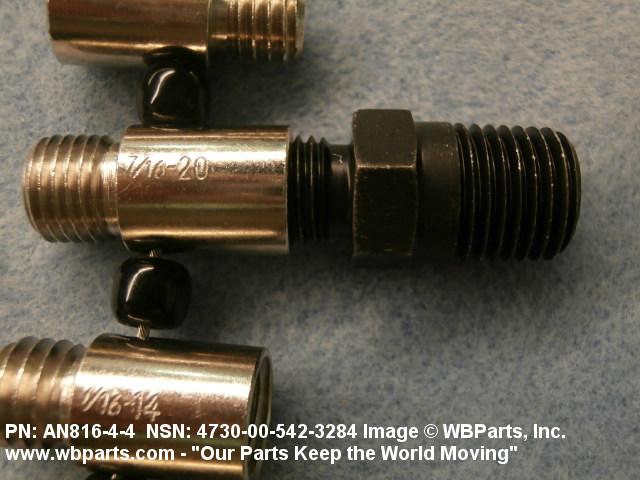

| THREAD SERIES DESIGNATOR | UNJF 1ST END NPTF 2ND END |

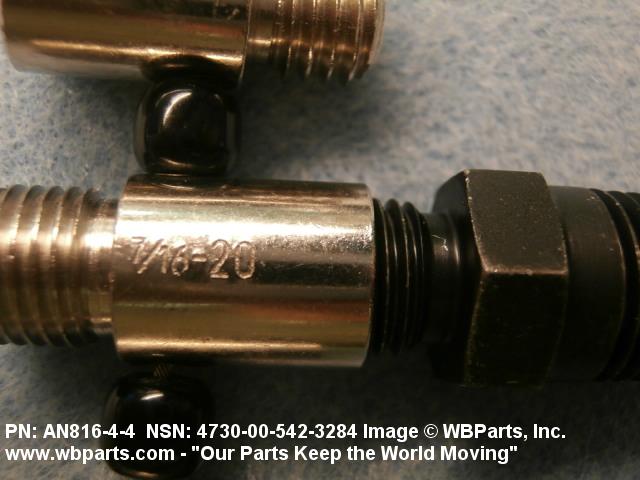

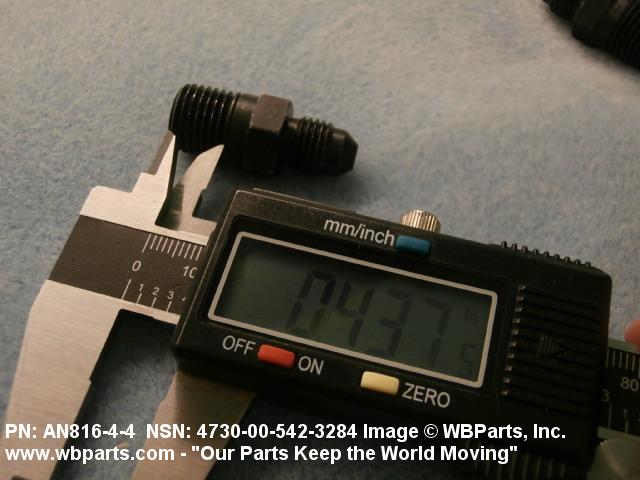

| NOMINAL THREAD SIZE | 0.437 INCHES 1ST END 0.250 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END |

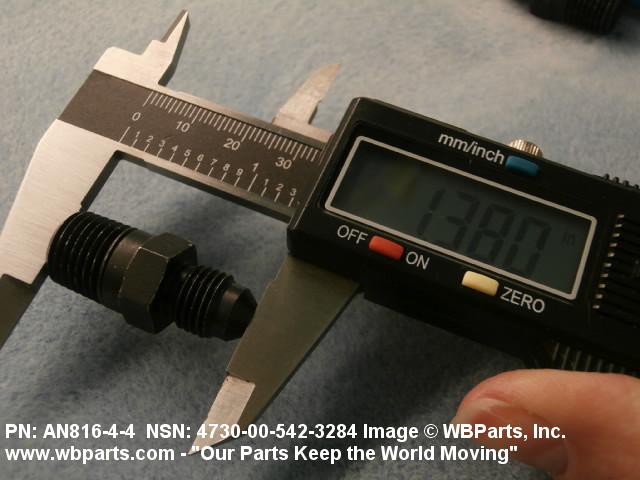

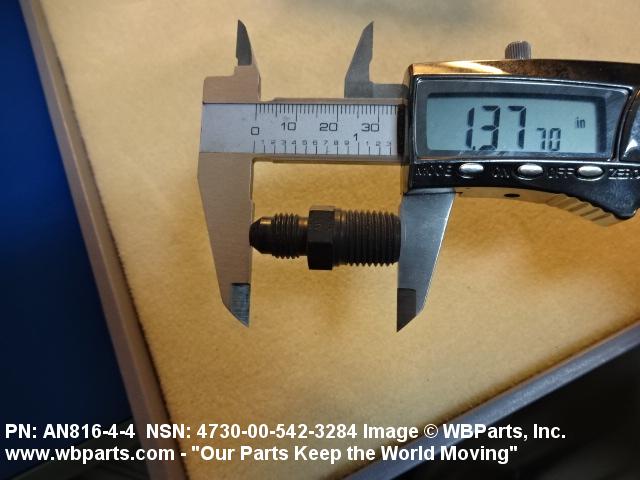

| NOMINAL OVERALL LENGTH | 1.375 INCHES |
| FURNISHED ITEMS AND QUANTITY | 1 PREFORMED PACKING |
| SPECIFICATION/STANDARD DATA | 81343-AS4842/1 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD AND 88044-AN816 GOVERNMENT STANDARD AND 81349-MIL-F-5509 GOVERNMENT SPECIFICATION |
| III END ITEM IDENTIFICATION | 25F AIRCRAFT, AWACS, E-3A |
