NSN 4730-00-541-1969 5855081714482PCF2BASKETSH10, 585-508-1714482PCF2BASKETSH10, 5868001717824PC578
Product Details | SEDIMENT STRAINER ELEMENT
4730-00-541-1969 A replaceable device designed to remove solid particles from flowing liquids. The removal of particles is accomplished by porous material (metallic or non-metallic), wire mesh, perforated metal, or the like, constructed so the liquid can flow through the device while the solid particles are retained. It is designed to fit into a STRAINER, SEDIMENT (or similar cavity). It may have a reinforcement to prevent collapsing, distorting or rupturing. The degree of particles removed must be nominally rated at 50 microns, or more, or absolutely rated at 75 microns, or more. See also FILTER ELEMENT, FLUID.
Part Alternates: 5855081714482PCF2BASKETSH10, 585-508-1714482PCF2BASKETSH10, 5868001717824PC578, 586-800-1717824PC5-7-8, 5868001717824REVCPC578, 586-800-1717824REVCPC5-7-8, 8565019PCF2BASKETSH10, 8565-019PCF2BASKETSH10, 8600085RCPCASSYB, 8600-085RCPCASSYB, 8600085REVCPC578, 8600-085REVCPC5-7-8, 4730-00-541-1969, 00-541-1969, 4730005411969, 005411969
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 00-541-1969 | 18347 ( STRAINER ELEMENT, SEDIMENT ) |
Drawings & Photos | NSN 4730-00-541-1969
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-541-1969
Technical Data | NSN 4730-00-541-1969
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY AND STEEL |
| FILTERING MEDIA DESIGN | PERFORATED |
| PERFORATION DIAMETER | 0.344 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| PERFORATION QUANTITY | 4.0 PER SQUARE INCH |

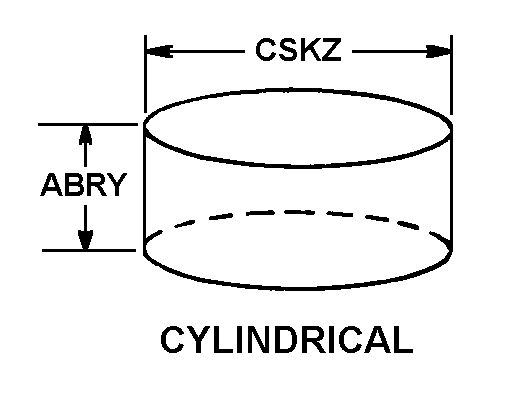

| STYLE DESIGNATOR | A1 CYLINDRICAL |
| SECOND END FLANGE THICKNESS | 0.350 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| LENGTH | 6.850 INCHES MINIMUM AND 6.920 INCHES MAXIMUM |
| ELEMENT OUTSIDE DIAMETER | 2.964 INCHES MINIMUM AND 3.012 INCHES MAXIMUM |
| END CONNECTION TYPE | PLAIN 1ST END FLANGE W/BAIL 2ND END |
| III END ITEM IDENTIFICATION | SGN STRAINERS |
Restrictions/Controls & Freight Information | NSN 4730-00-541-1969
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
