NSN 4730-00-541-1206 AN9298C, AN929-8C, AN9298J

Product Details | TUBE CAP

4730-00-541-1206 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.

Part Alternates: AN9298C, AN929-8C, AN9298J, AN929-8J, AS4841, S84958C, S8495-8C, MILF5509, MIL-F-5509, 10108406 , 6420361, 8491221, 4730-00-541-1206, 00-541-1206, 4730005411206, 005411206

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-541-1206	06074 ( CAP, TUBE )

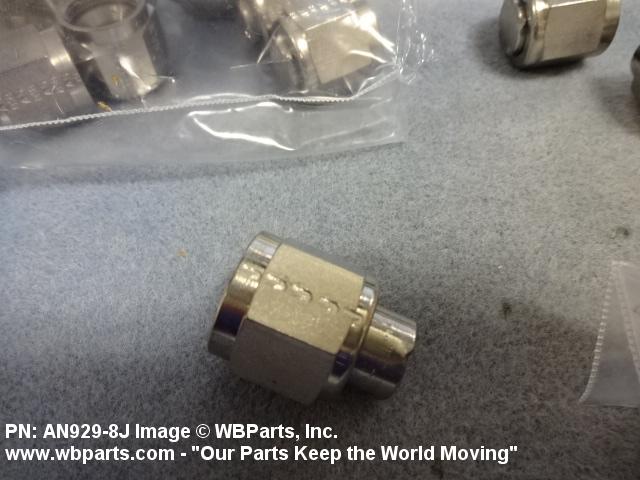

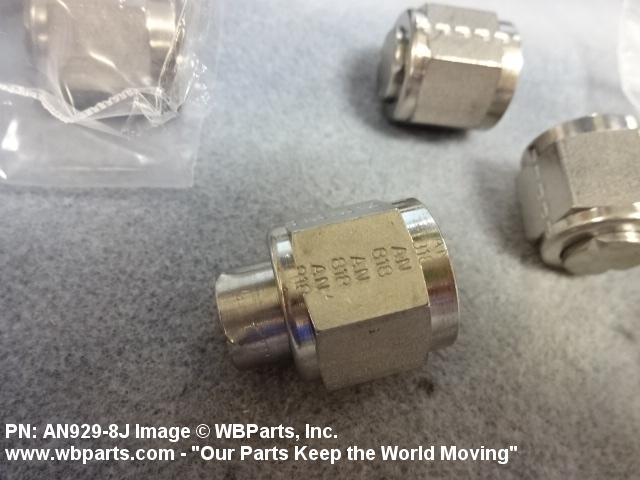

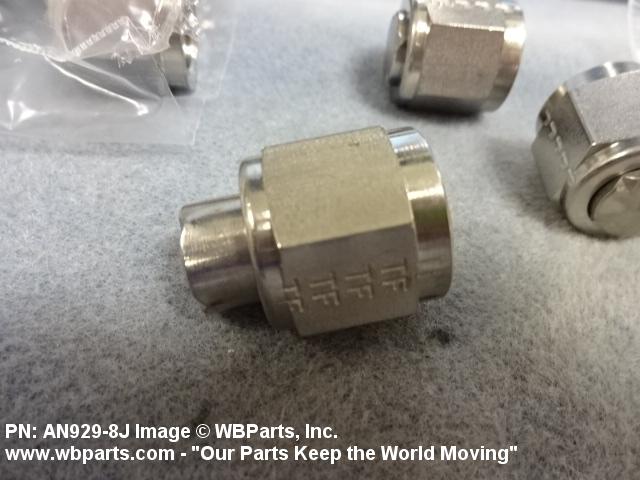

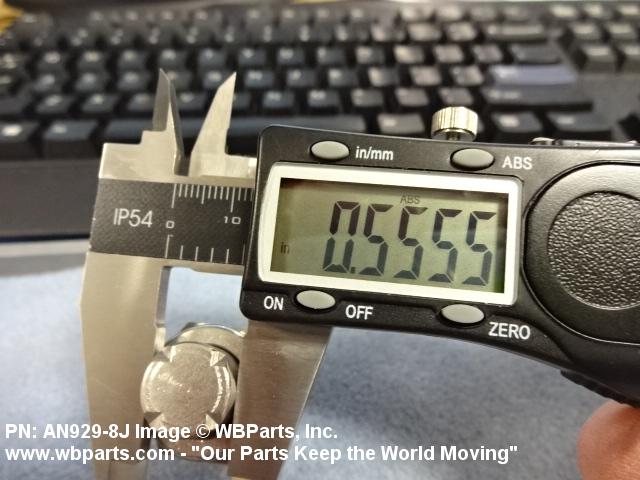

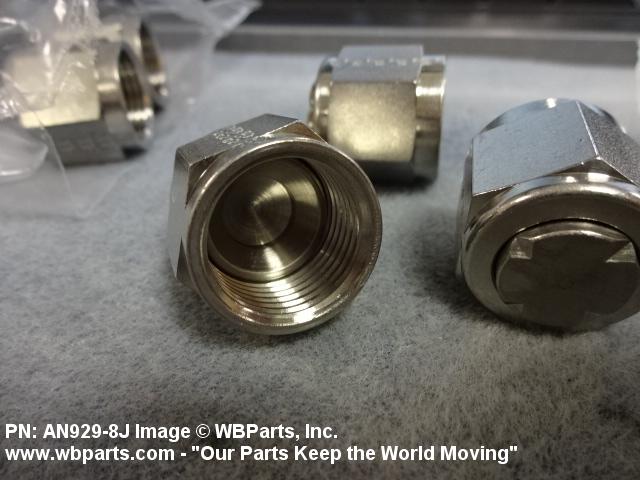

Drawings & Photos | NSN 4730-00-541-1206

Part Number	Request Date	QTY	Origin
AN9298J	2024-07-185	50	United States
AN9298J	2024-06-159	50	United States
4730-00-541-1206	2022-10-286	641	DIBBS
4730-00-541-1206	2022-05-139	65	us
AN9298J	2021-08-216	150	United States
4730-00-541-1206	2019-11-317	920	DIBBS
MILF5509	2018-07-201	6	United States
4730-00-541-1206	2018-02-50	349	DIBBS
AN9298J	2017-02-47	1	United States
AN9298J	2016-09-273	25	United States
AN9298J	2016-09-271	25	United States
AN9298J	2016-03-74	2	United States
AN9298J	2014-10-302	2	United States
AN9298J	2013-10-301	3	United States
4730-00-541-1206	2012-11-309	1127	DIBBS
AN9298J	2012-09-271	35	Italy
4730-00-541-1206	2012-09-262	641	DIBBS
4730-00-541-1206	2012-06-159	503	DIBBS
AS4841	2011-03-69	8
MILF5509	2009-10-301	1	PK
MILF5509	2009-02-55	100	US
4730-00-541-1206	2008-11-318	1330	DIBBS

Cross Reference | NSN 4730-00-541-1206

Part Number	Cage Code	Manufacturer
6420361	001JK	EMBRAER S/A
6420361	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
8491221	18876	U S ARMY AVIATION AND MISSILE COMMAND
AN929-8C	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN929-8J	00624	EATON CORPORATION DBA AEROSPACE DIV
AN929-8J	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
AN929-8J	06957	AIR WORLD MFG
AN929-8J	14397	FABER ENTERPRISES, INC.
AN929-8J	14728	PRECISION FORM RIVET INC
AN929-8J	22995	CROWN FITTING CO INC
AN929-8J	30974	AEROFIT, LLC
AN929-8J	71563	COLLINS ENGINEERING CORP
AN929-8J	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS4841	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-F-5509	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
S8495-8C	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-541-1206

Compare

Related Products | NSN 4730-00-541-1206

4730-00-541-1207, 4730-00-541-1208, 4730-00-541-1209, 4730-00-541-1215, 4730-00-541-1216

Technical Data | NSN 4730-00-541-1206

Characteristic	Specifications
MATERIAL	STEEL COMP 304 CAP STEEL COMP 304 NUT
MATERIAL DOCUMENT AND CLASSIFICATION	FED STD66 FED STD SINGLE MATERIAL RESPONSE CAP FED STD66 FED STD ALL MATERIAL RESPONSES NUT
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35,TYPE 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	A14 CAP, TUBE, FLARELESS
CONNECTION STYLE	G5 PRESSURE SEAL FLARED
THREAD SERIES DESIGNATOR	UNF INTERNAL
NOMINAL THREAD SIZE	0.750 INCHES INTERNAL
THREAD CLASS	3B INTERNAL
THREAD DIRECTION	RIGHT-HAND INTERNAL
SEAT ANGLE	37.0 DEGREES
TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED	0.500 INCHES NOMINAL
SPECIFICATION/STANDARD DATA	88044-AN929 GOVERNMENT STANDARD AND 81343-AS4841 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
(NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED	3000.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN929-8J

Restrictions/Controls & Freight Information | NSN 4730-00-541-1206

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-541-1206

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
