NSN 4730-00-540-2584 AN8203, AN820-3, AN8203S

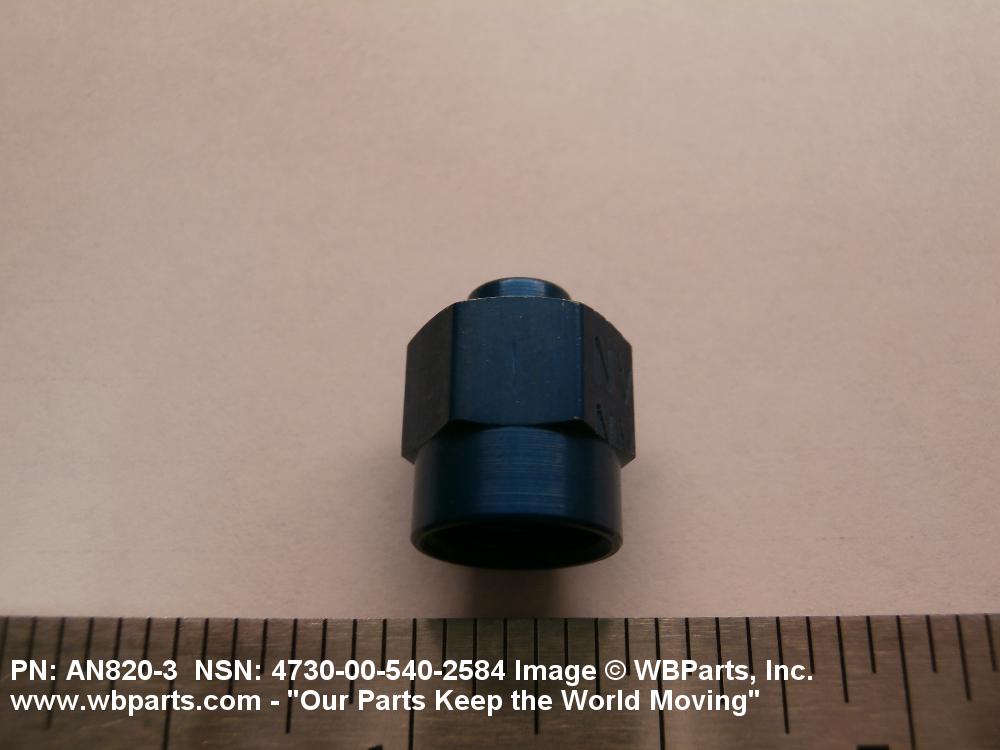

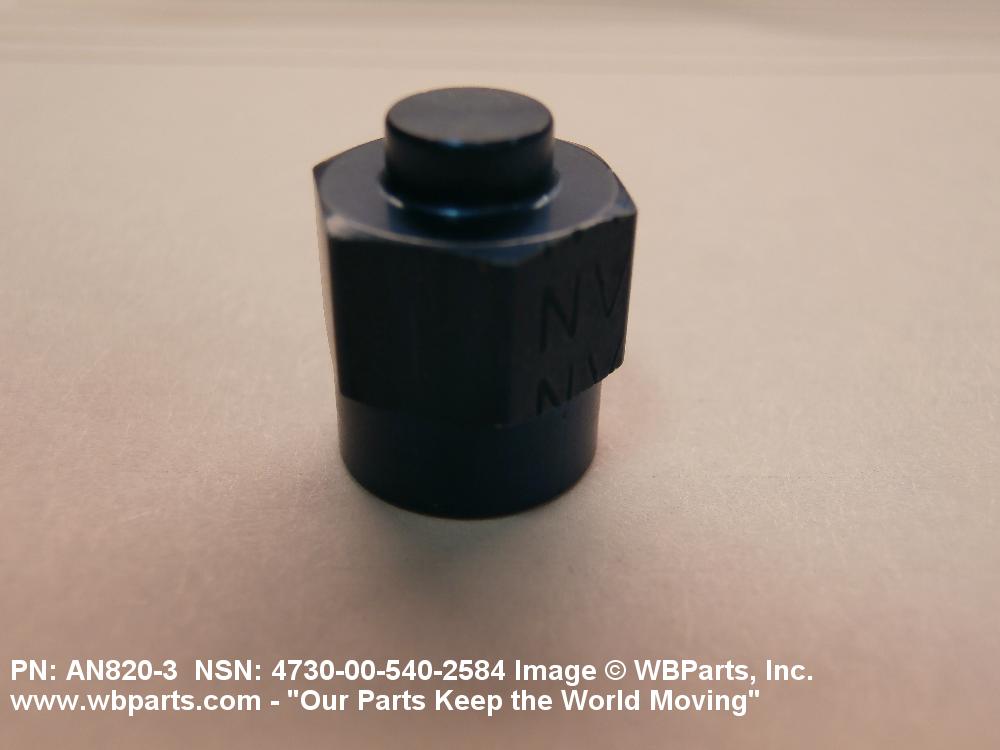

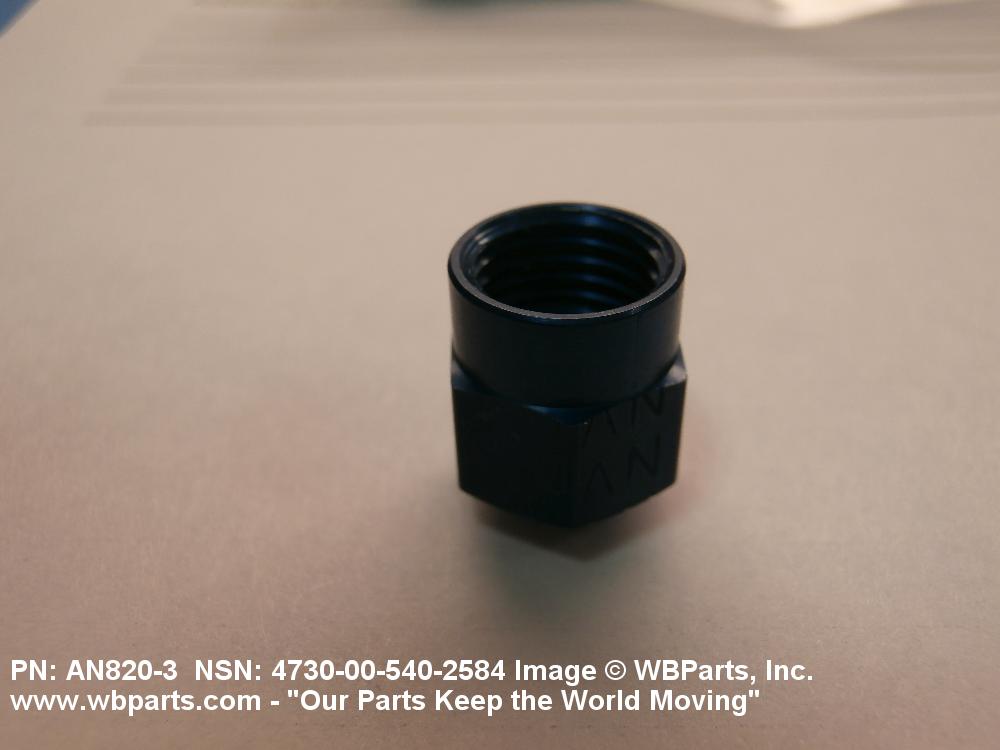

Product Details | TUBE CAP
4730-00-540-2584 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: AN8203, AN820-3, AN8203S, AN820-3S, AN9293S, AN929-3S, AS4841, MILF5509, MIL-F-5509, 4730-00-540-2584, 00-540-2584, 4730005402584, 005402584
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-540-2584 | 06074 ( CAP, TUBE ) |
Drawings & Photos | NSN 4730-00-540-2584
Demand History | NSN 4730-00-540-2584
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILF5509 | 2018-07-201 | 6 | United States |
| AN9293S | 2013-01-18 | 290 | United States |
| AN9293S | 2012-11-317 | 300 | United States |
| 4730-00-540-2584 | 2012-08-222 | 50 | United States |
| AS4841 | 2011-03-69 | 8 | |
| MILF5509 | 2009-10-301 | 1 | PK |
| MILF5509 | 2009-02-55 | 100 | US |
Cross Reference | NSN 4730-00-540-2584
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN820-3 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN820-3S | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN929-3S | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN929-3S | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN929-3S | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN929-3S | 14397 | FABER ENTERPRISES, INC. |
| AN929-3S | 14728 | PRECISION FORM RIVET INC |
| AN929-3S | 22995 | CROWN FITTING CO INC |
| AN929-3S | 30974 | AEROFIT, LLC |
| AN929-3S | 71563 | COLLINS ENGINEERING CORP |
| AN929-3S | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
