NSN 4730-00-491-4944 1021, 00-491-4944, 004914944
Product Details | BLIND PIPE FLANGE
4730-00-491-4944 An item used for covering or closing the end of a flanged pipe fitting. The face may be drilled for connecting bolts or studs. Excludes FLANGE, PIPE.
Part Alternates: 1021, 4730-00-491-4944, 00-491-4944, 4730004914944, 004914944
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 13 JUN 1969 | 00-491-4944 | 03793 ( FLANGE, PIPE, BLIND ) |
Drawings & Photos | NSN 4730-00-491-4944
Cross Reference | NSN 4730-00-491-4944
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1021 | 72000 | DRESSER INDUSTRIES INC DRESSER MFG DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-491-4944
Technical Data | NSN 4730-00-491-4944
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 13.000 INCHES NOMINAL |
| FLANGE DIAMETER | 15.000 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 1.000 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 12 |

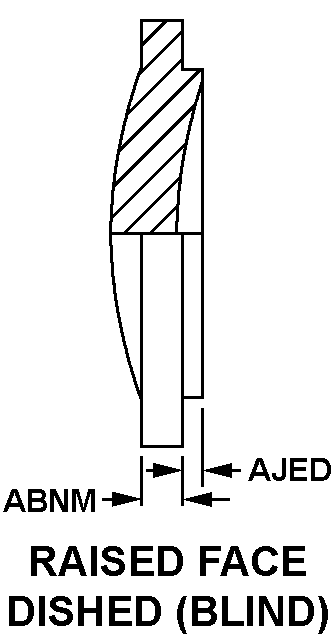

| FLANGE SECTION STYLE | 25 RAISED FACE, DISHED |
| THICKNESS | 1.562 INCHES NOMINAL |
| RAISED FACE HEIGHT | 0.062 INCHES NOMINAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 8.000 INCHES |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 250.0 POUNDS PER SQUARE INCH GAS AND 250.0 POUNDS PER SQUARE INCH OIL AND 250.0 POUNDS PER SQUARE INCH WATER |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 150.0 DEG FAHRENHEIT GAS AND 150.0 DEG FAHRENHEIT OIL AND 150.0 DEG FAHRENHEIT WATER |
| FACE SEATING SURFACE CONDITION | UNFINISHED |
Restrictions/Controls & Freight Information | NSN 4730-00-491-4944
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
