NSN 4730-00-481-6682 65BREGULAR2IN, 00-481-6682, 004816682
Product Details | SLIP JOINT PIPE COUPLING
4730-00-481-6682 A straight fitting having external threads on both ends. Each end is equipped with an internally threaded nut having an unthreaded reduced size opening which contains a gasket and other necessary parts. It is designed to join an unthreaded pipe to another unthreaded pipe in a straight line. It forms a tight fluid seal by the compression slip joint method. It may have a pipe stop.
Part Alternates: 65BREGULAR2IN, 4730-00-481-6682, 00-481-6682, 4730004816682, 004816682
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 SEP 1970 | 00-481-6682 | 20983 ( COUPLING, PIPE, SLIP JOINT ) |

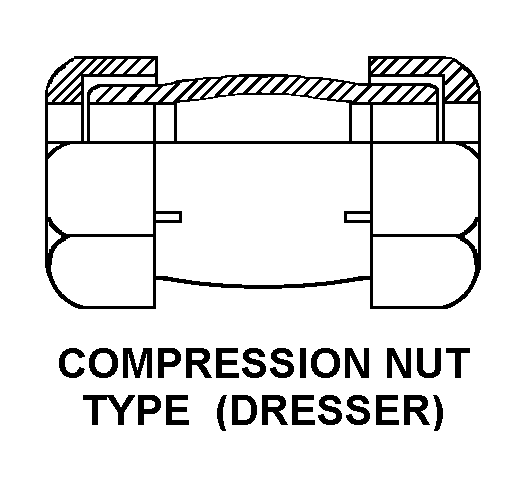

Drawings & Photos | NSN 4730-00-481-6682
Cross Reference | NSN 4730-00-481-6682
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65BREGULAR2IN | 72000 | DRESSER INDUSTRIES INC DRESSER MFG DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-481-6682
Technical Data | NSN 4730-00-481-6682
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY IRON NUT |
| STYLE DESIGNATOR | A20 COMPRESSION NUT TYPE |
| CONNECTION TYPE | UNTHREADED INTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | B47B CLAMPED W/GASKET SEAL ALL ENDS |
| NOMINAL PIPE SIZE ACCOMMODATED | 2.000 INCHES ALL ENDS |
| NOMINAL OVERALL LENGTH | 3.875 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-00-481-6682
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-00-481-6682
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
