NSN 4730-00-469-4982 NAS1236A6, NAS1236A6H, 00-469-4982

Product Details | FLUID PASSAGE BOLT

4730-00-469-4982 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.

Part Alternates: NAS1236A6, NAS1236A6H, 4730-00-469-4982, 00-469-4982, 4730004694982, 004694982

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	30 JAN 1970	00-469-4982	18683 ( BOLT, FLUID PASSAGE )

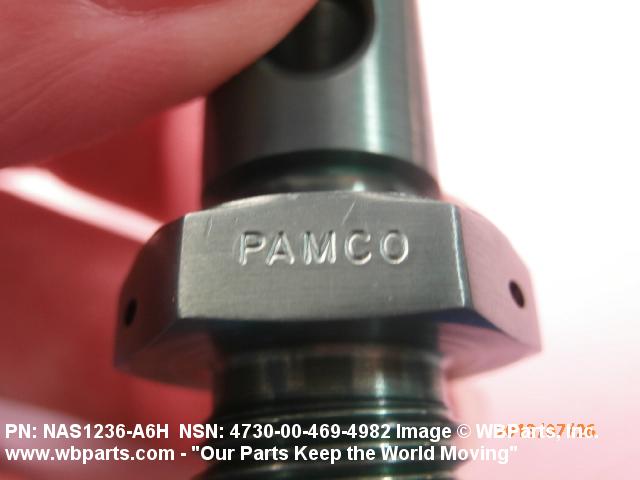

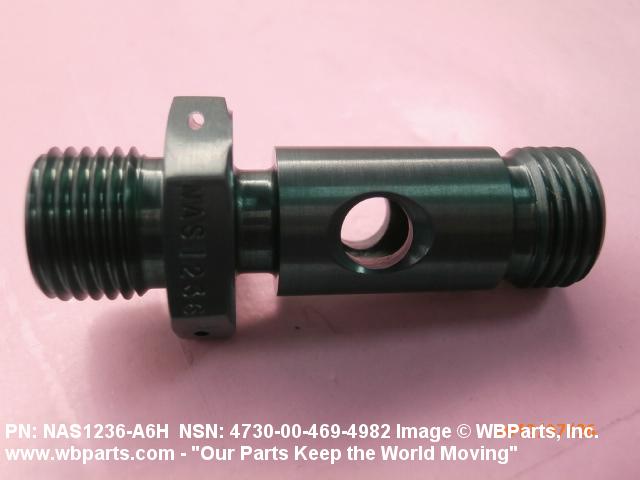

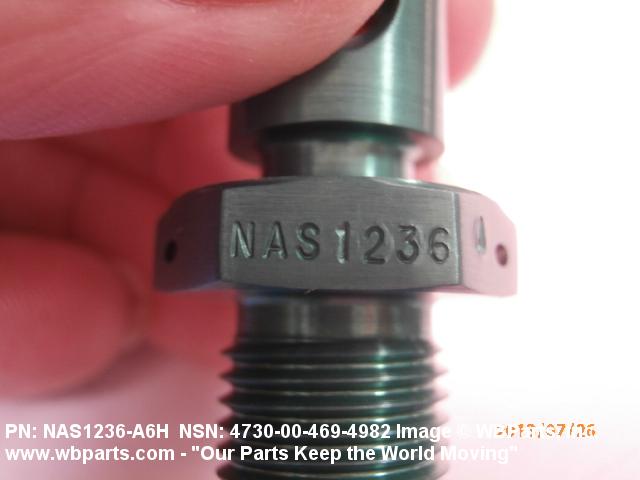

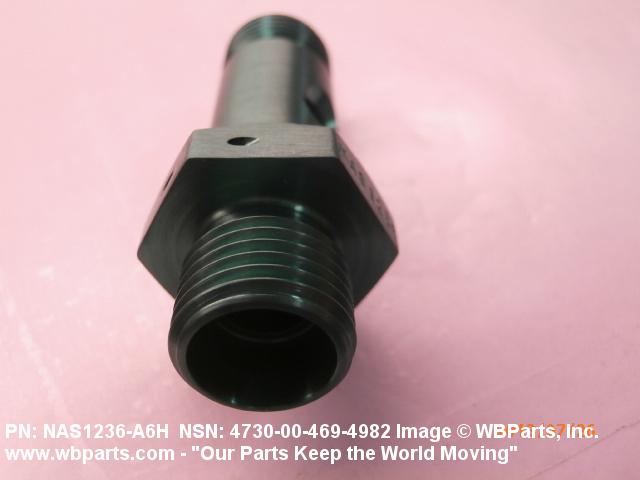

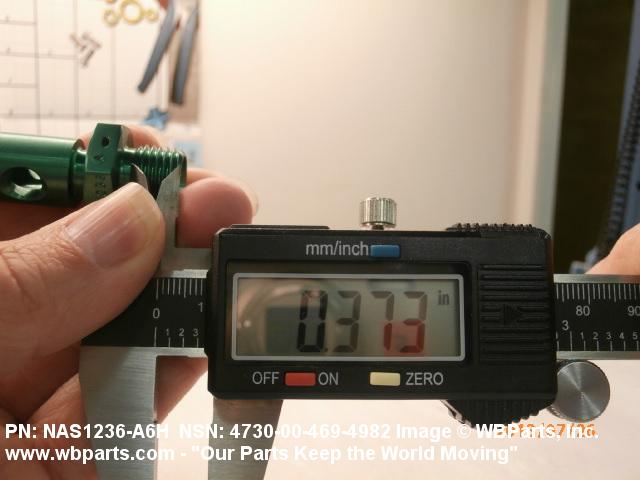

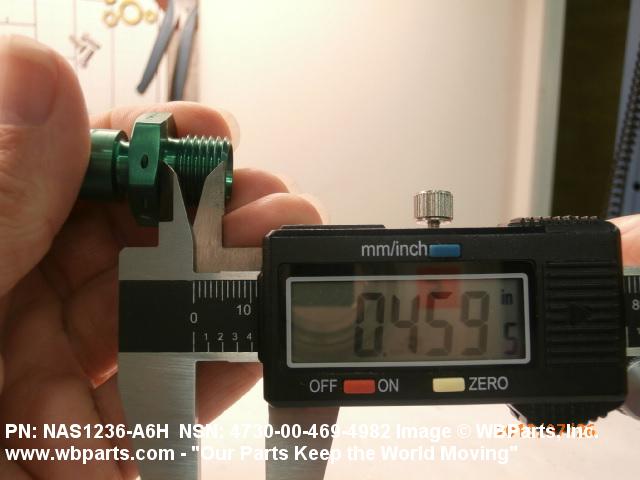

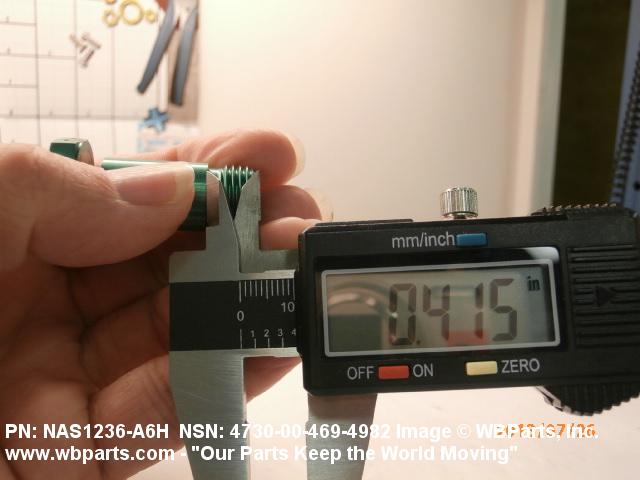

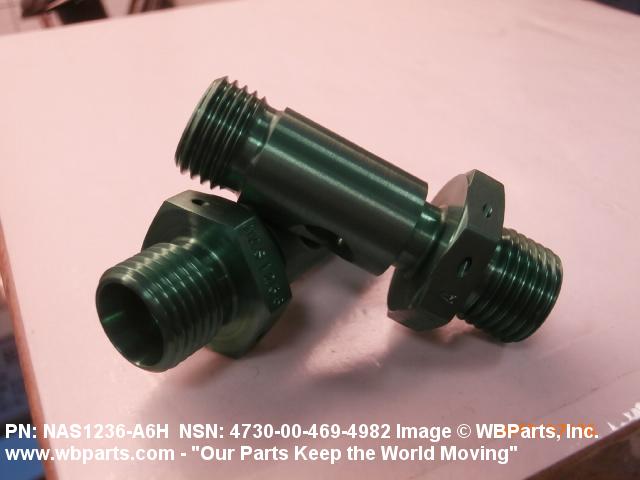

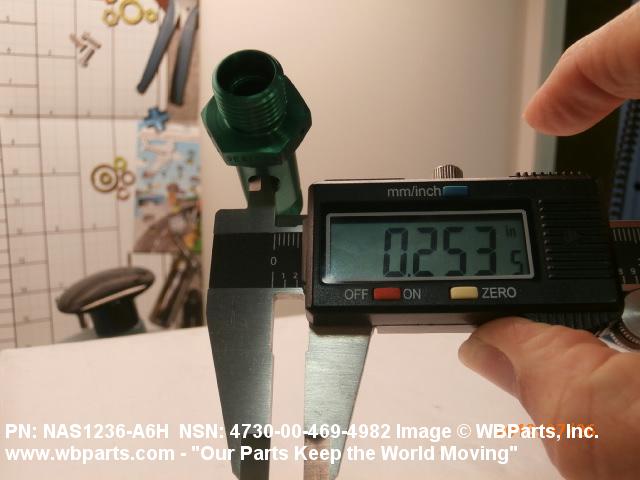

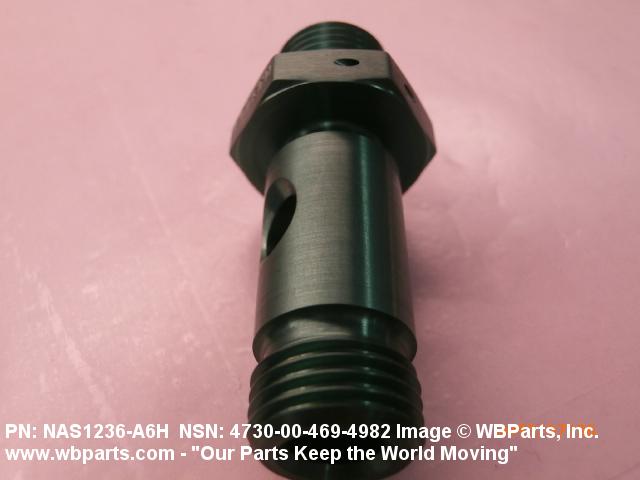

Drawings & Photos | NSN 4730-00-469-4982

Part Number	Request Date	QTY	Origin
4730-00-469-4982	2024-08-232	57	DIBBS
4730-00-469-4982	2024-08-220	57	DIBBS
4730-00-469-4982	2022-06-153	23	DIBBS
NAS1236A6H	2021-05-125	353	United States
NAS1236A6H	2021-04-119	353	United States
NAS1236A6H	2020-05-149	50	United States
NAS1236A6H	2018-05-145	10	United States
NAS1236A6H	2018-05-145	25	United States
NAS1236A6H	2018-05-145	50	United States
4730-00-469-4982	2017-11-306	109	DIBBS
NAS1236A6H	2016-12-342	10	United States
NAS1236A6H	2016-12-342	25	United States
NAS1236A6H	2016-12-342	50	United States
4730-00-469-4982	2016-11-329	83	DIBBS
NAS1236A6H	2016-01-18	10	United States
NAS1236A6H	2016-01-18	25	United States
NAS1236A6H	2013-07-193	50	United States
4730-00-469-4982	2013-06-156	255	DIBBS
4730-00-469-4982	2013-05-141	255	DIBBS

Cross Reference | NSN 4730-00-469-4982

Part Number	Cage Code	Manufacturer
NAS1236A6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1236A6H	13899	HYDRO FITTING MANUFACTURING CORPORATION
NAS1236A6H	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-469-4982

Compare

Related Products | NSN 4730-00-469-4982

4730-00-469-5170, 4730-00-469-5428, 4730-00-469-5429, 4730-00-469-6605, 4730-00-469-6608

Technical Data | NSN 4730-00-469-4982

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/4,T6 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6,T6 FED SPEC SINGLE MATERIAL RESPONSE
SURFACE TREATMENT	ANODIZE

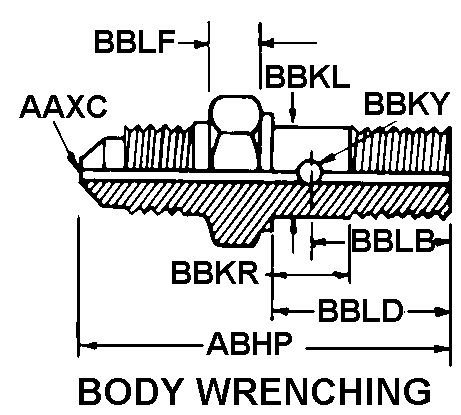

BODY STYLE	9 BODY WRENCHING

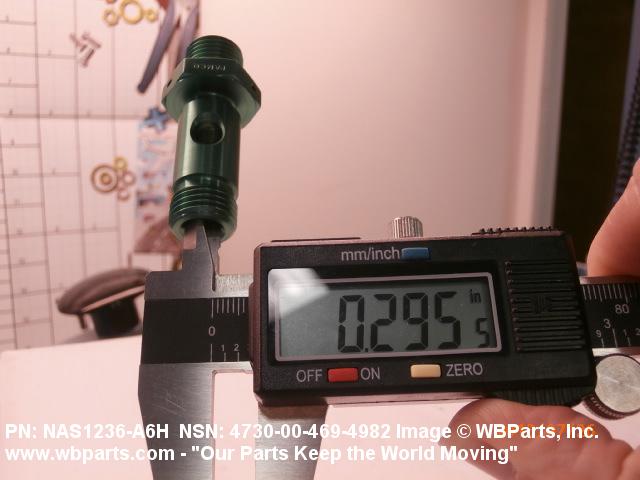

CONCENTRIC HOLE DIAMETER	0.287 INCHES MINIMUM AND 0.307 INCHES MAXIMUM

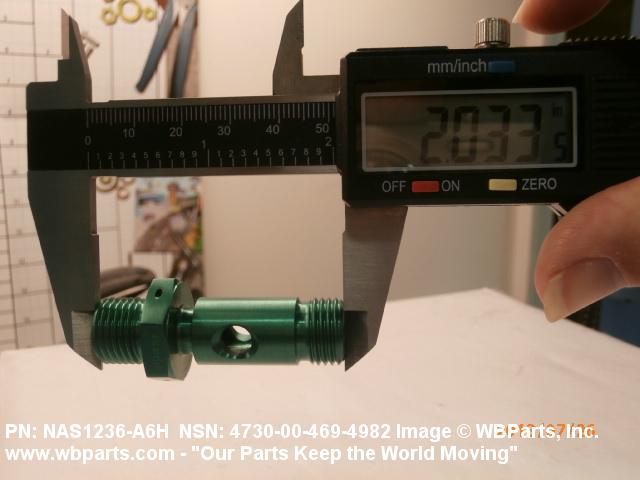

OVERALL LENGTH	2.031 INCHES NOMINAL

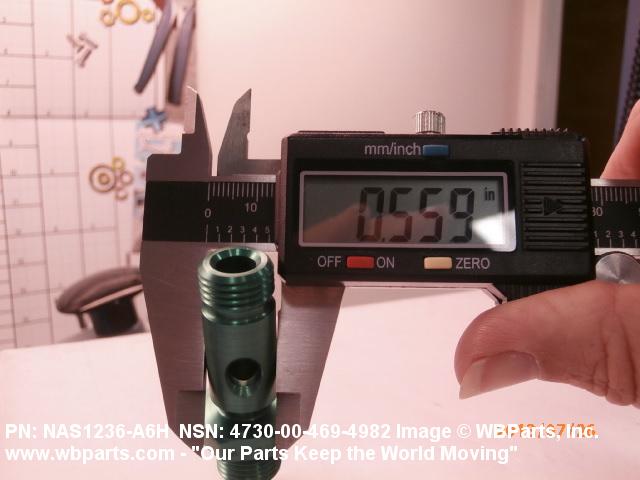

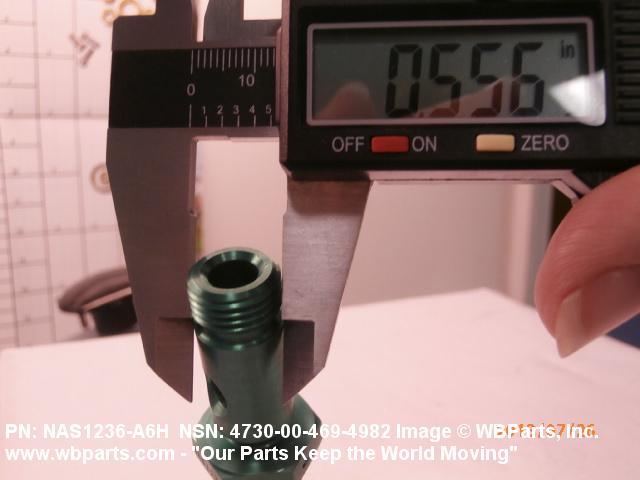

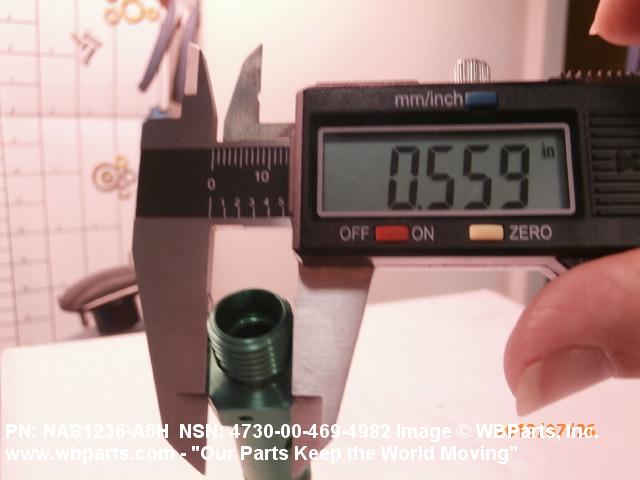

FIRST DIAMETER FROM WRENCHING FEATURE	0.559 INCHES MINIMUM AND 0.560 INCHES MAXIMUM

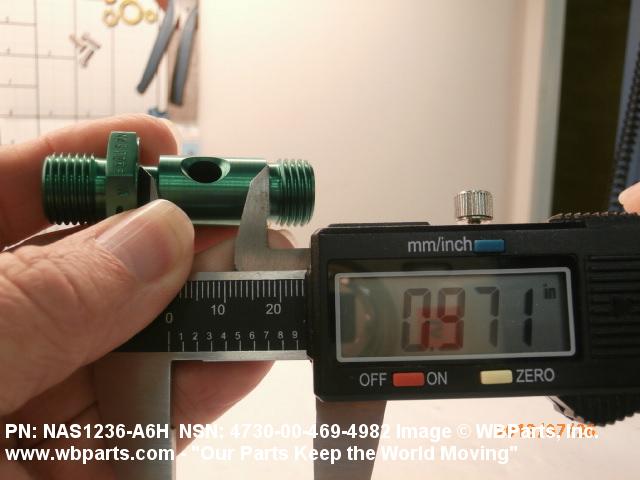

LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER	0.963 INCHES MINIMUM AND 0.973 INCHES MAXIMUM
FIRST RADIAL FLUID HOLE DIAMETER	0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM
DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT	0.844 INCHES MINIMUM AND 0.864 INCHES MAXIMUM
LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END	1.333 INCHES MINIMUM AND 1.353 INCHES MAXIMUM
WRENCHING FEATURE HEIGHT	0.199 INCHES MINIMUM AND 0.239 INCHES MAXIMUM
FIRST END CONNECTION TYPE	THREADED EXTERNAL TUBE
FIRST END STYLE DESIGNATOR	C6 PLAIN
FIRST END THREAD SERIES DESIGNATOR	UNF
FIRST END NOMINAL THREAD SIZE	0.562 INCHES
FIRST END THREAD CLASS	3A
FIRST END THREAD DIRECTION	RIGHT-HAND
FIRST END THREAD LENGTH	0.360 INCHES MINIMUM AND 0.390 INCHES MAXIMUM
SECOND END CONNECTION TYPE	THREADED EXTERNAL TUBE
SECOND END STYLE DESIGNATOR	C5 FLARELESS
SECOND END SEAT ANGLE	12.0 DEGREES NOMINAL
SECOND END THREAD SERIES DESIGNATOR	UNF
SECOND END NOMINAL THREAD SIZE	0.562 INCHES
SECOND END THREAD CLASS	3A
SECOND END THREAD DIRECTION	RIGHT-HAND
SECOND END THREAD LENGTH	0.469 INCHES NOMINAL
WRENCHING FEATURE STYLE	1 HEXAGON

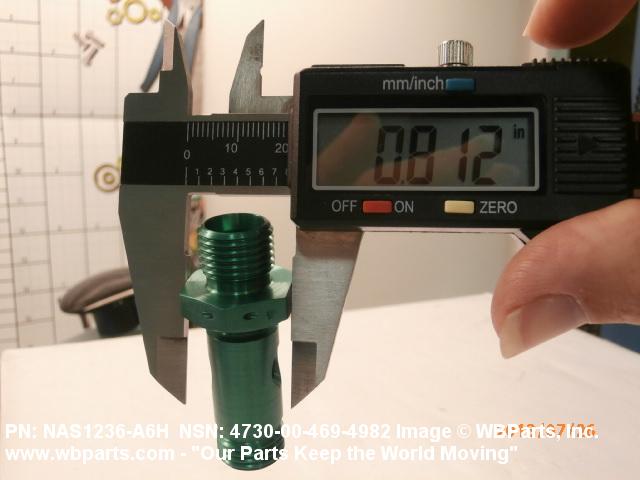

WIDTH ACROSS FLATS	0.797 INCHES MINIMUM AND 0.829 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA	80205-NAS1236 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 4730-00-469-4982

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013280	ALUM BOLTS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-469-4982

Army
Air Force

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
