NSN 4730-00-469-1436 BA5000514, BA50005-14, 99-6041390
Product Details | PIPE CLAMP COUPLING
4730-00-469-1436 A device of two or more bolted segments of housing and a gasket, designed to connect grooved or plain end pipe or tube (or fittings) and which creates a fluid tight joint.
Part Alternates: BA5000514, BA50005-14, 99-6041390, 4730-00-469-1436, 00-469-1436, 4730004691436, 996041390, 004691436
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 MAY 1970 | 00-469-1436 | 17503 ( COUPLING, CLAMP, PIPE ) |

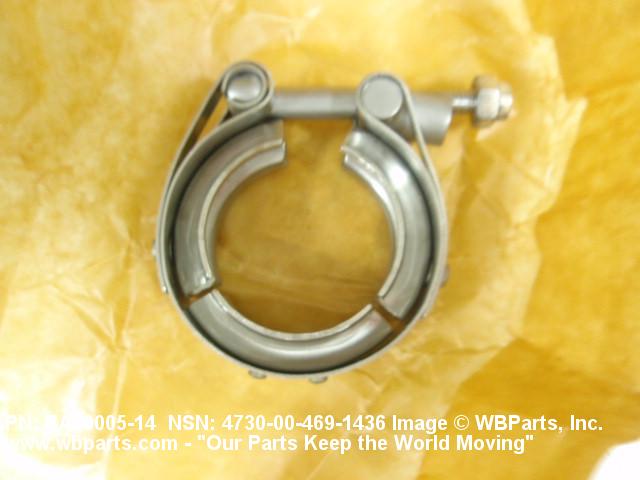

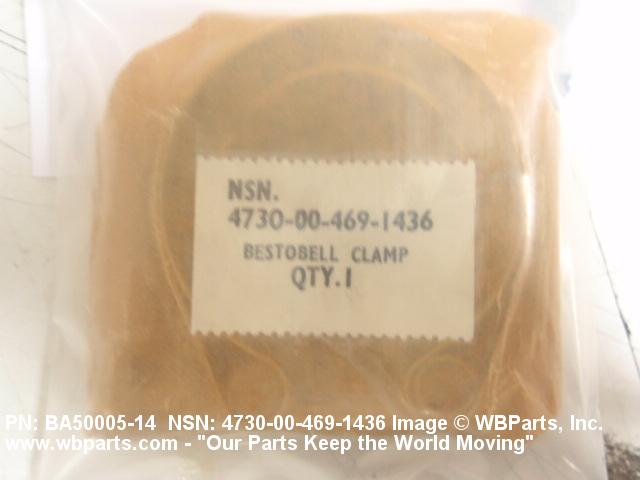

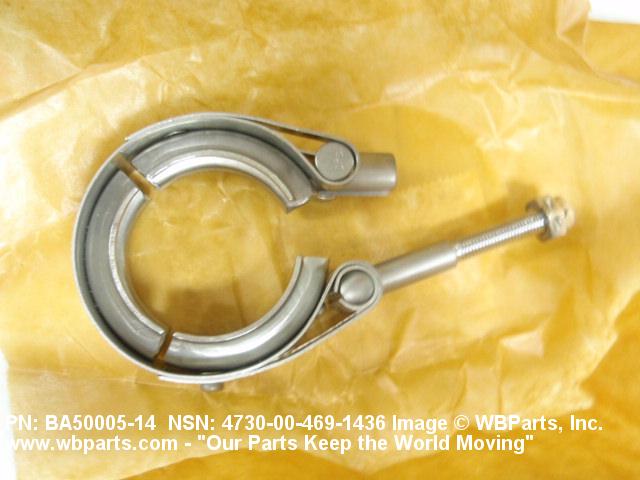

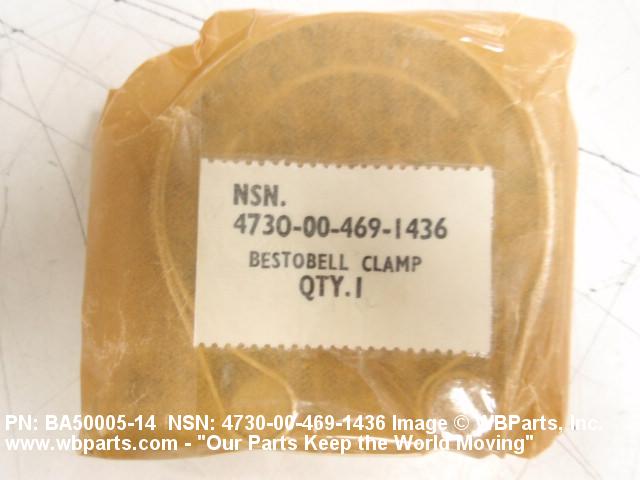

Drawings & Photos | NSN 4730-00-469-1436
Demand History | NSN 4730-00-469-1436
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BA5000514 | 2009-12-336 | 10 | India |
Cross Reference | NSN 4730-00-469-1436
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BA50005-14 | U1901 | MEGGITT AEROSPACE LTD T/A MEGGITTPOLYMERS AND COMPOSITES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-469-1436
Related Products | NSN 4730-00-469-1436
Technical Data | NSN 4730-00-469-1436
| Characteristic | Specifications |
|---|---|
| END TYPE FOR WHICH DESIGNED | GROOVED |
| HOUSING MATERIAL | STEEL, CORROSION RESISTING OR STEEL |
| GASKET MATERIAL | STEEL, CORROSION RESISTING |
| SEGMENT QUANTITY | 3 |
| PIPE SIZE ACCOMMODATED | 1.250 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.500 INCHES NOMINAL |
| WORKING PRESSURE RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 4730-00-469-1436
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | 98 | DLIS-LFF Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-469-1436
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
