NSN 4730-00-468-4437 T30C62225S, T30C62-225S, 32062225S
Product Details | HOSE CLAMP
4730-00-468-4437 A clamp in which the body (band or wire) completely encircles an item and distributes a relatively even amount of pressure throughout the entire 360 degrees (6.282 radians) of the periphery of the item to be compressed. Its compression quality is dependent upon an integral screw mechanism, (screw, bolt spring compression and the like mechanical fasteners), or it may be applied by a device not integral with the clamp itself. It is specifically designed to prevent leakage between a hose and its attaching connection(s) when the body of the clamp is round or circular. For square, rectangular, or irregularly shaped items, see CLAMP, HOSE, SPECIAL-SHAPED. Excludes CLAMP, ELECTRICAL; CLAMP, LOOP; CLAMP, FIRE HOSE, SHUTOFF; FERRULE (as modified); and HAND SCREW.
Part Alternates: T30C62225S, T30C62-225S, 32062225S, 320-62-225S, 320C62225S, 320C62-225S, 4730-00-468-4437, 00-468-4437, 4730004684437, 004684437
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 19 AUG 1970 | 00-468-4437 | 13566 ( CLAMP, HOSE ) |

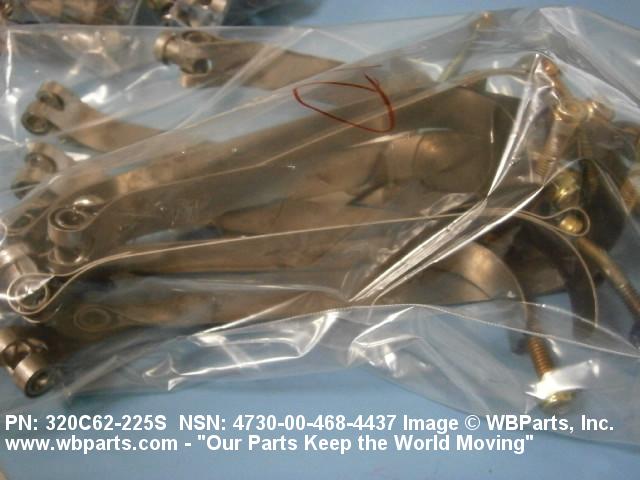

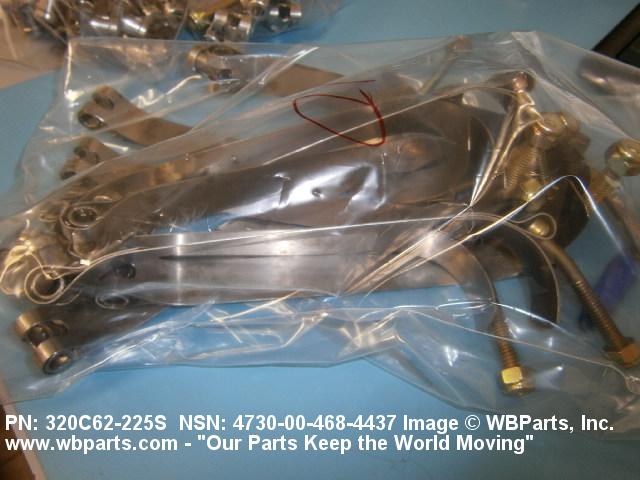

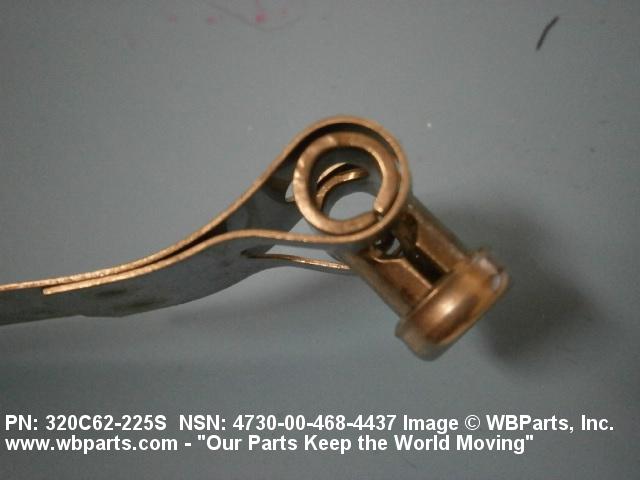

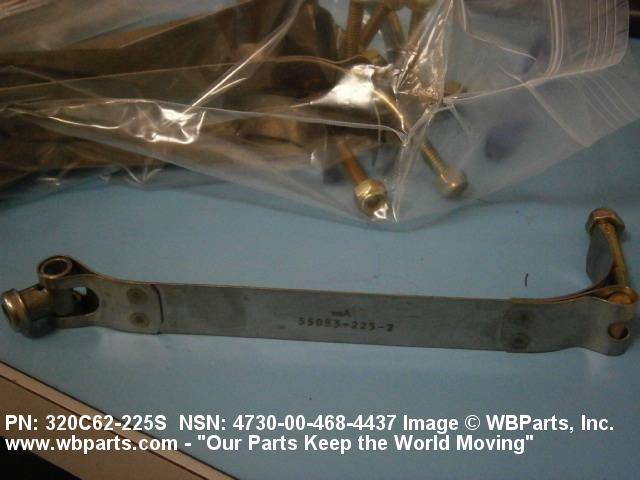

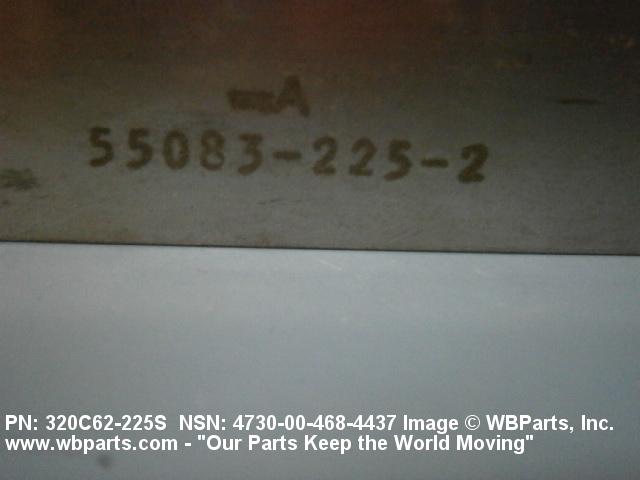

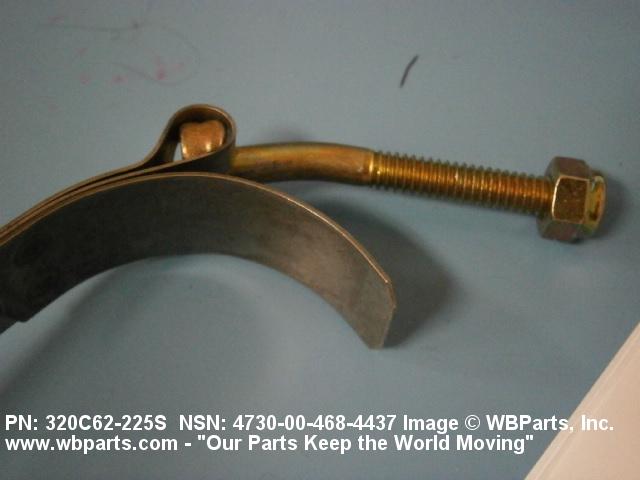

Drawings & Photos | NSN 4730-00-468-4437
Demand History | NSN 4730-00-468-4437
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-468-4437 | 2015-07-211 | 10 | Malaysia |
| 32062225S | 2012-07-192 | 60 | United States |
| 32062225S | 2012-03-81 | 5 | United States |
| 32062225S | 2012-01-05 | 11 | United States |
| 32062225S | 2011-11-319 | 25 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-468-4437
Technical Data | NSN 4730-00-468-4437
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 301 BAND STEEL NUT STEEL BOLT |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE BAND |
| SURFACE TREATMENT | CADMIUM NUT CADMIUM BOLT |
| STYLE DESIGNATOR | C10 BAND |
| INSIDE DIAMETER | 2.250 INCHES NOMINAL |
| OVERALL WIDTH | 0.625 INCHES NOMINAL |
| FASTENING DEVICE TYPE | SELF-LOCKING HEXAGON NUT |
| TEMP RATING | 250.0 DEG FAHRENHEIT |
| SPECIAL FEATURES | 125/145,000 PSI,USED ON AIR,OIL,WATER AND OTHER TYPES OF FLUID LINES; USED WITH THE ASSEMBLY OF HOSE,DUCT WORK OR PRODUCTS THAT ARE SELDOM DISCONNECTED |
| MANUFACTURERS CODE | 00624 |
| DESIGN CONTROL REFERENCE | 320C62-225S |
Restrictions/Controls & Freight Information | NSN 4730-00-468-4437
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-468-4437
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
