NSN 4730-00-465-6842 F668264L, F66826-4L, 660244
Product Details | TUBE TO HOSE STRAIGHT ADAPTER
4730-00-465-6842 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a tube or tube fitting to a hose or hose fitting.
Part Alternates: F668264L, F66826-4L, 660244, 66024-4, 4730-00-465-6842, 00-465-6842, 4730004656842, 004656842
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 28 JAN 1970 | 00-465-6842 | 03777 ( ADAPTER, STRAIGHT, TUBE TO HOSE ) |

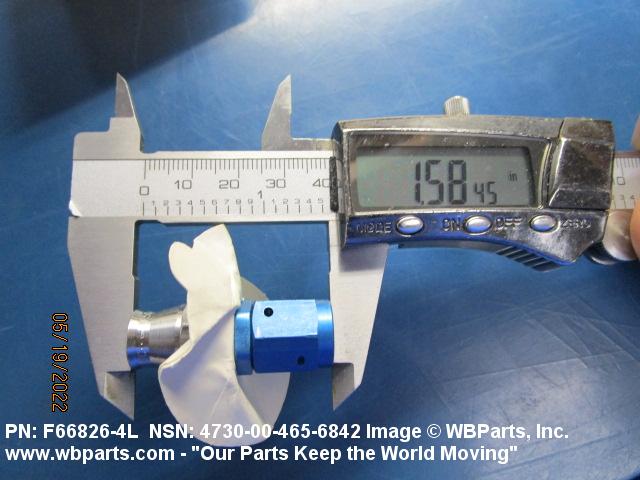

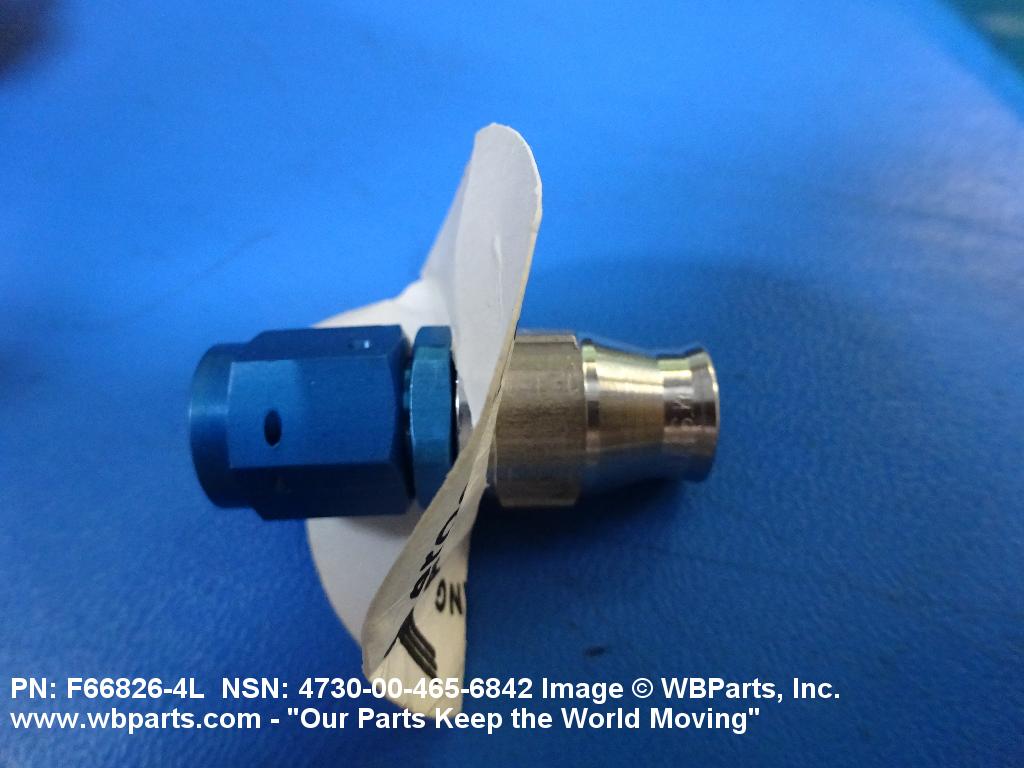

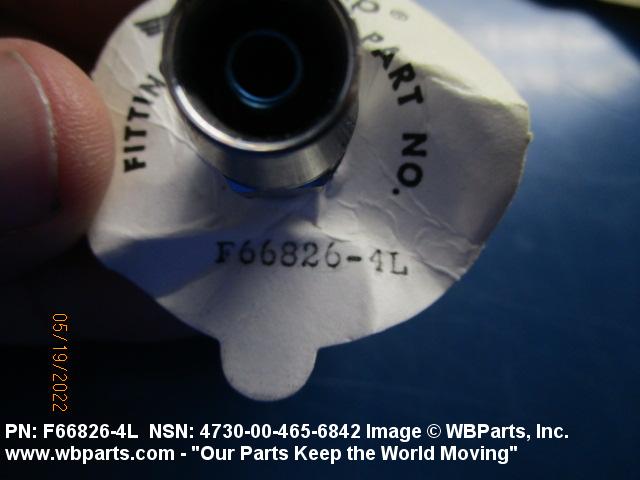

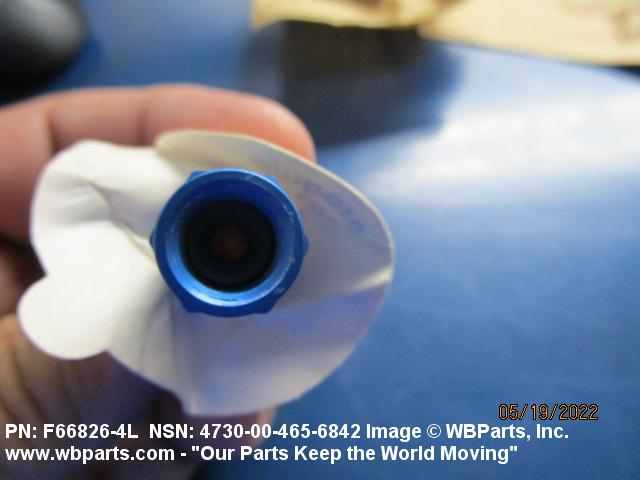

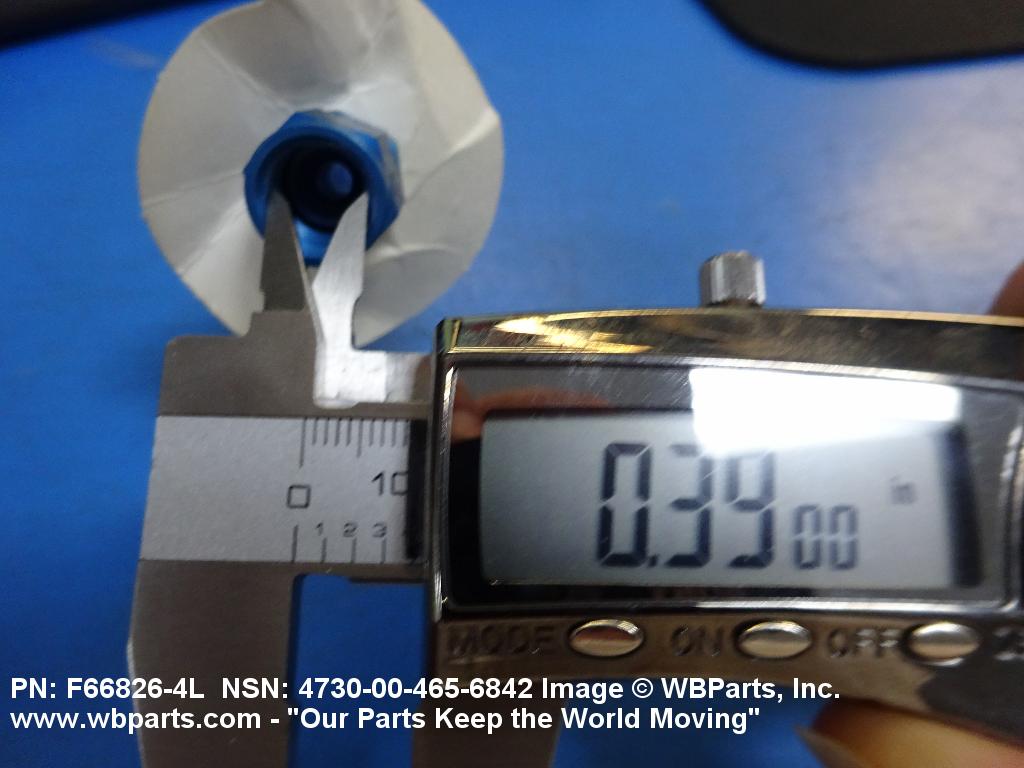

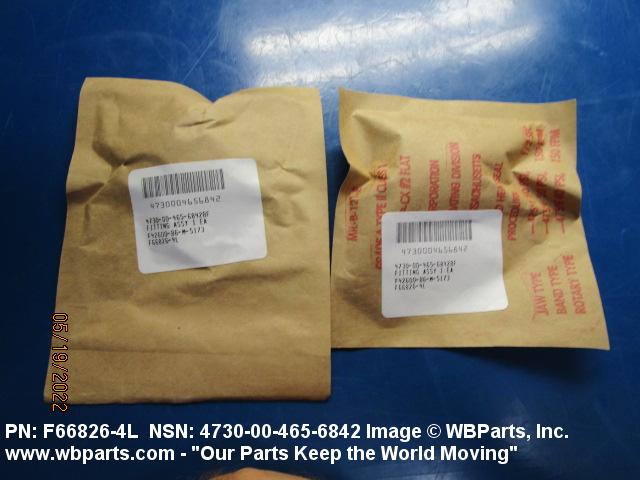

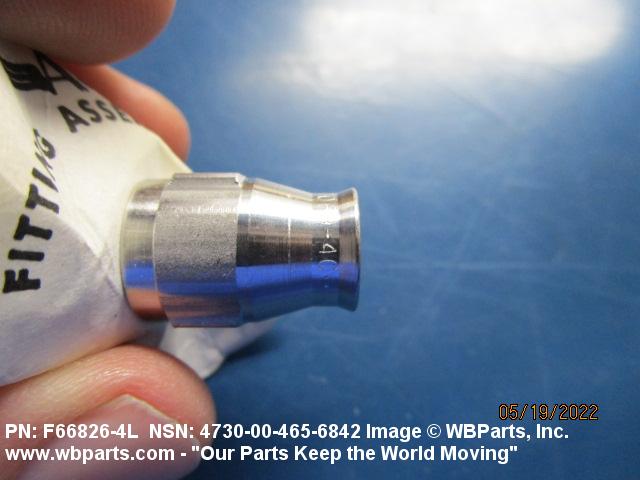

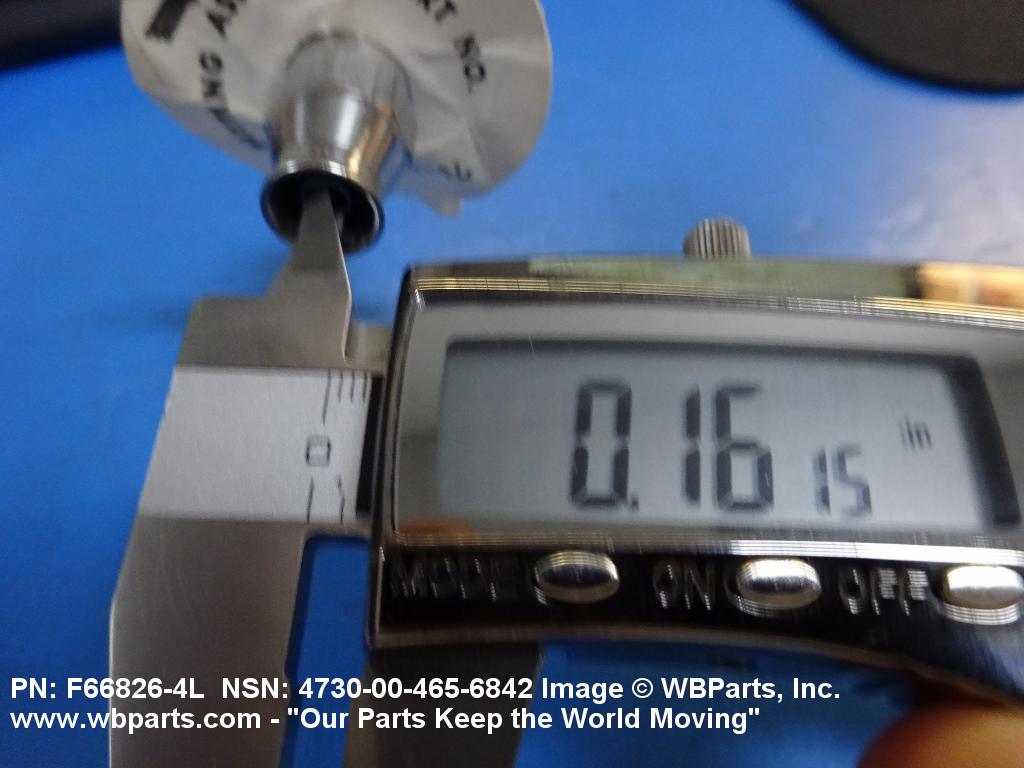

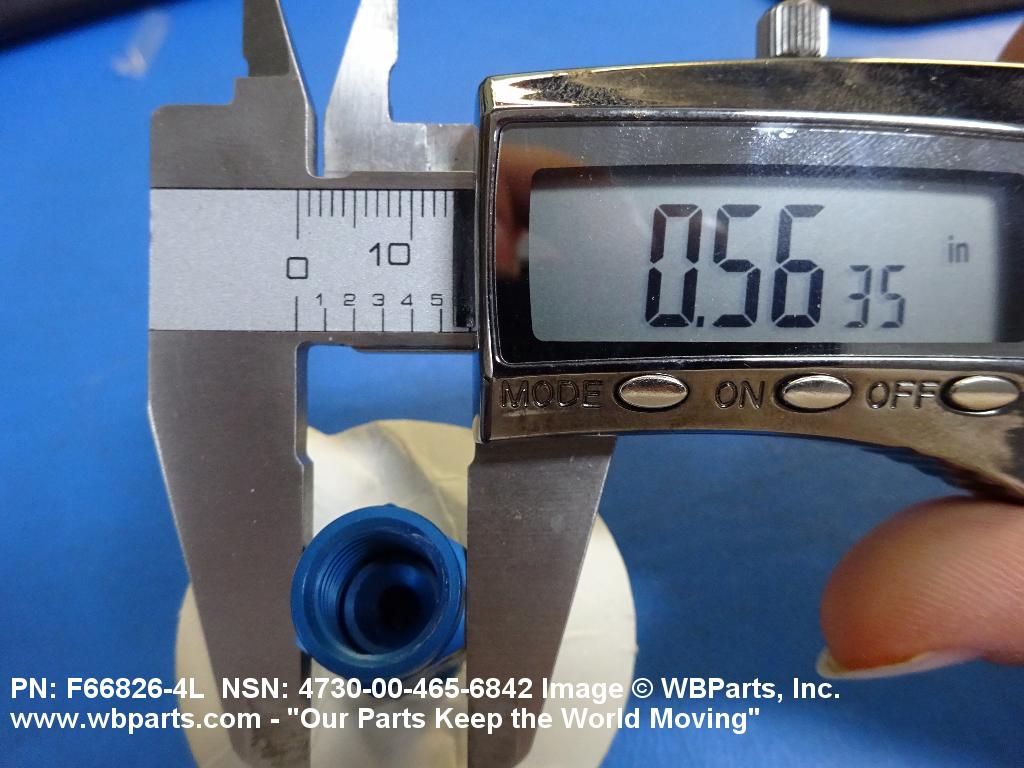

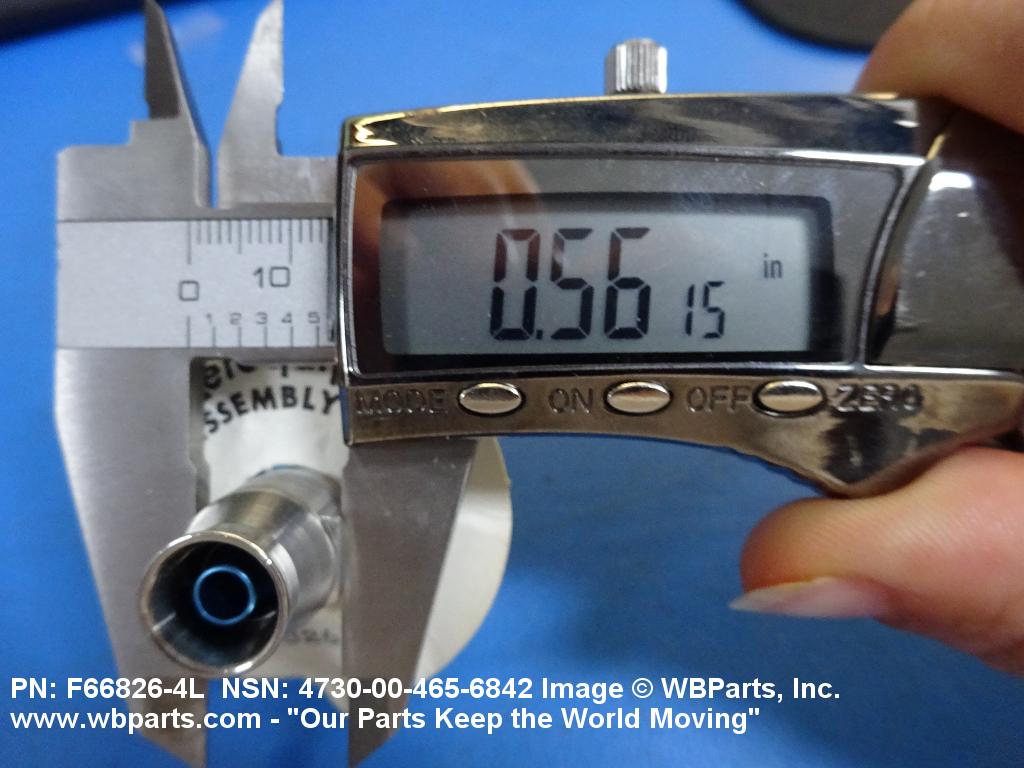

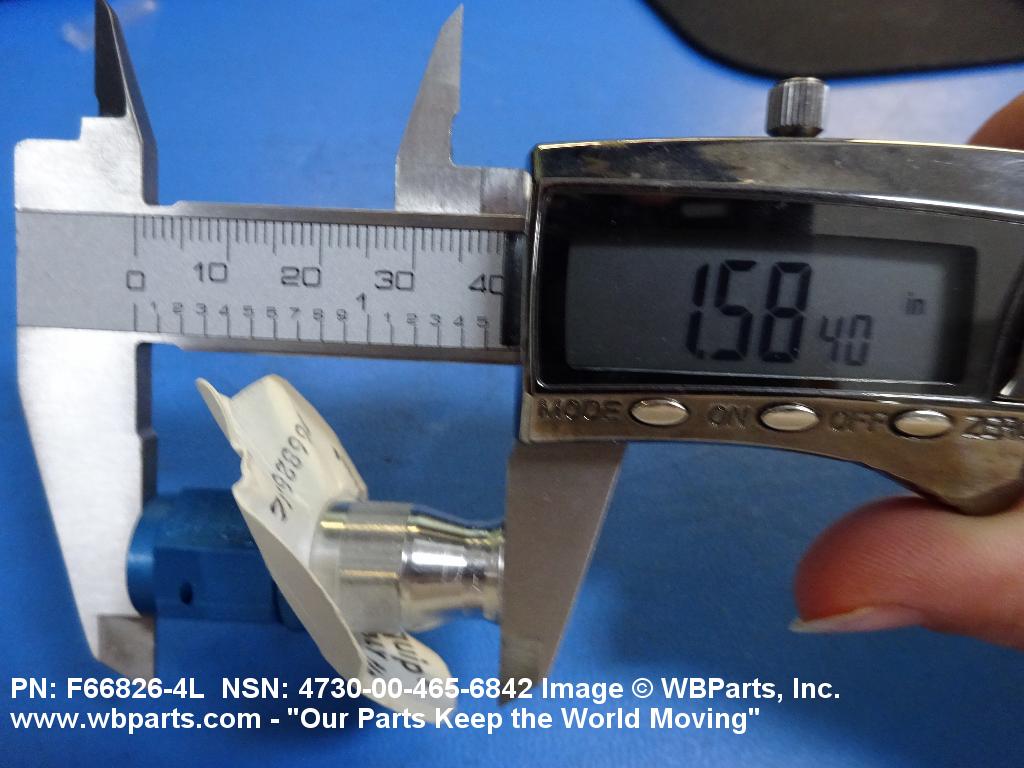

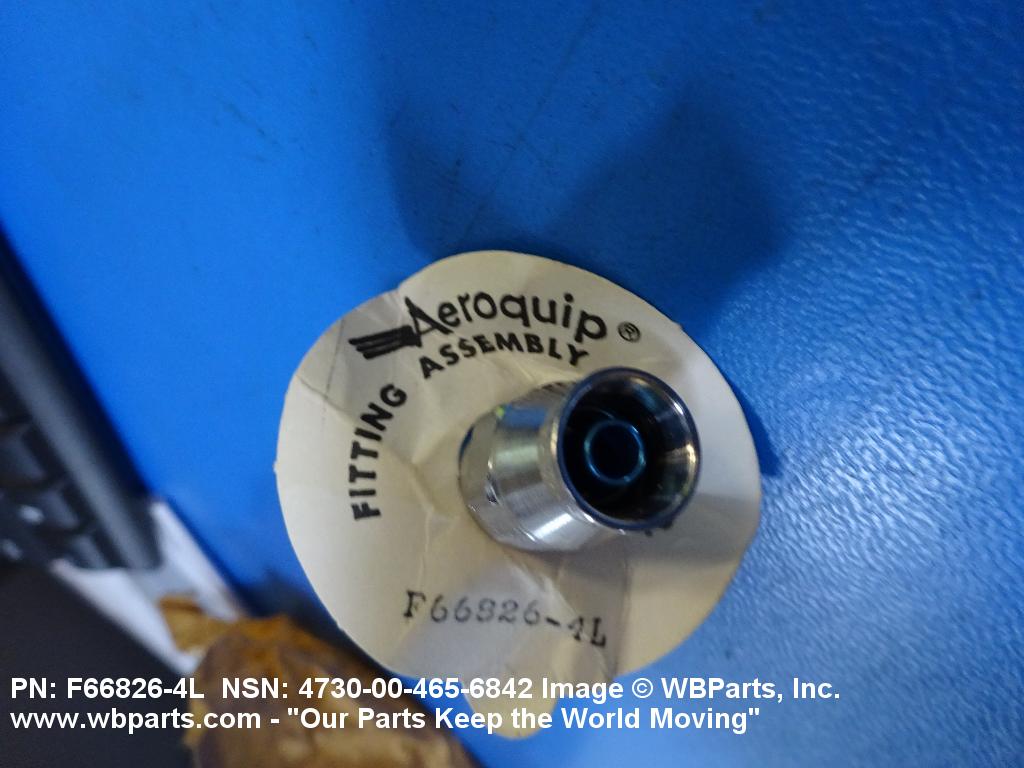

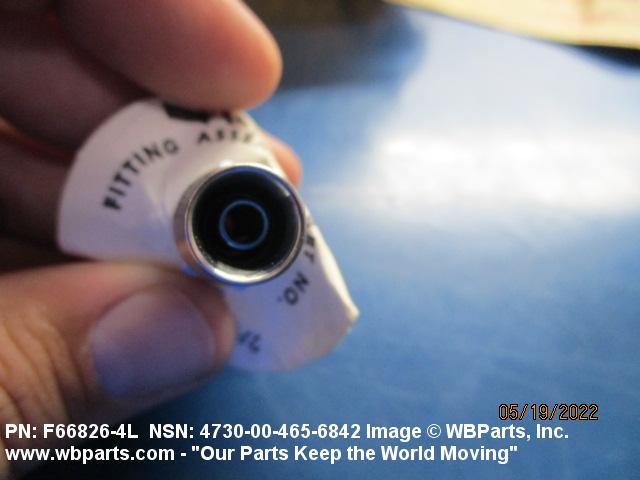

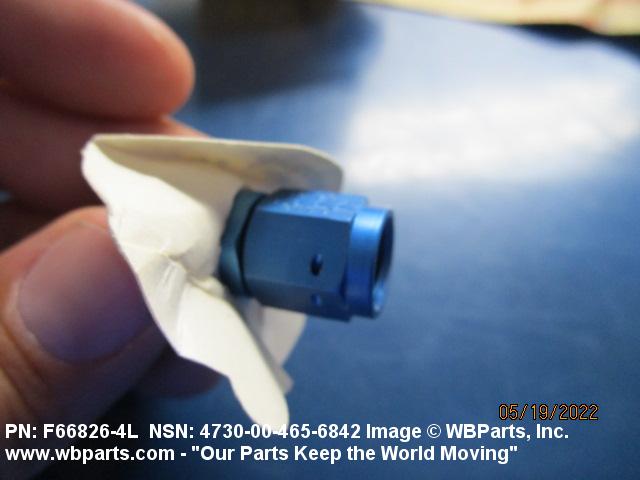

Drawings & Photos | NSN 4730-00-465-6842
Demand History | NSN 4730-00-465-6842
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F66826-4L | 2022-02-45 | 1 | DIBBS |
| 4730-00-465-6842 | 2022-02-33 | 3 | Germany |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-465-6842
Related Products | NSN 4730-00-465-6842
Technical Data | NSN 4730-00-465-6842
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 BODY ALUMINUM ALLOY 2024 NUT STEEL SLEEVE ALUMINUM ALLOY SOCKET |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8 FED SPEC 1ST MATERIAL RESPONSE BODY QQ-A-225/6 FED SPEC 2ND MATERIAL RESPONSE NUT AMS5643 ASSN STD 3RD MATERIAL RESPONSE SLEEVE QQ-A-225/6 FED SPEC 4TH MATERIAL RESPONSE SOCKET |
| SURFACE TREATMENT | ANODIZE BODY ANODIZE NUT PASSIVATE SLEEVE ANODIZE SOCKET |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 1 MIL SPEC SINGLE TREATMENT RESPONSE BODY MIL-A-8625,TYPE 1 MIL SPEC SINGLE TREATMENT RESPONSE NUT MIL-A-8625,TYPE 1 MIL SPEC SINGLE TREATMENT RESPONSE SOCKET |
| CONNECTION TYPE | THREADED EXTERNAL HOSE 2ND END |
| CONNECTION STYLE | B3 SWIVEL NUT, FLARE 1ST END B61 GRIPPING NIPPLE 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END |
| FURNISHED ITEMS AND QUANTITY | 1 HOSE COUPLING SLEEVE AND 1 HOSE COUPLING NUT |
| SPECIAL FEATURES | U/O F4C/E/D/G ACFT |
| MANUFACTURERS CODE | 00624 |
| DESIGN CONTROL REFERENCE | F66826-4L |
Restrictions/Controls & Freight Information | NSN 4730-00-465-6842
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-465-6842
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | BF | SU:F-4 (PHANTOM II) |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
