NSN 4730-00-462-0250 AN91912C, AN919-12C, AN91912J
Product Details | BOSS REDUCER

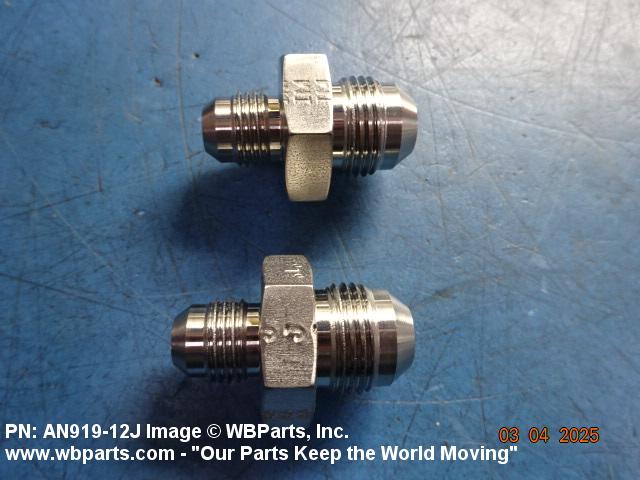

4730-00-462-0250 A straight fitting having a boss connection of a different size at each end. Both connections have external or internal machine threads (straight threads other than pipe or hose series) and are designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. Excludes BUSHING (as modified).
Part Alternates: AN91912C, AN919-12C, AN91912J, AN919-12J, R44238P5, Z00.N7730063250, Z00N7730063250, 4730-00-462-0250, 00-462-0250, 4730004620250, 004620250
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 14 MAY 1969 | 00-462-0250 | 23541 ( REDUCER, BOSS ) |
Demand History | NSN 4730-00-462-0250
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN91912J | 2024-11-324 | 20 | Japan |
| AN91912J | 2021-08-229 | 250 | United States |
| AN91912J | 2021-08-229 | 400 | United States |
| AN91912J | 2021-08-229 | 450 | United States |
| AN91912J | 2020-11-316 | 2 | United States |
| 4730-00-462-0250 | 2019-12-345 | 10 | Sweden |
| AN91912J | 2018-05-122 | 10 | United States |
| AN91912J | 2013-11-315 | 8 | United States |
| AN91912J | 2012-09-264 | 1 | United States |
Cross Reference | NSN 4730-00-462-0250
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN919-12C | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN919-12J | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN919-12J | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN919-12J | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN919-12J | 14397 | FABER ENTERPRISES, INC. |
| AN919-12J | 14728 | PRECISION FORM RIVET INC |
| AN919-12J | 22995 | CROWN FITTING CO INC |
| AN919-12J | 30974 | AEROFIT, LLC |
| AN919-12J | 71563 | COLLINS ENGINEERING CORP |
| AN919-12J | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN919-12J | R1120 | SATAIR A/S |
| R44238P5 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| Z00.N7730063250 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-462-0250
Related Products | NSN 4730-00-462-0250
Technical Data | NSN 4730-00-462-0250
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 275.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | B81 FLARED W/GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF 1ST END UNF 2ND END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END 0.562 INCHES 2ND END |
| THREAD CLASS | 3A ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.531 INCHES |
| REDUCER TYPE | CONCENTRIC |
| SPECIFICATION/STANDARD DATA | 88044-AN917 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | GRUMMAN AEROSPACE CORP A10 AIRCRAFT; 16N AIRCRAFT, VIKING S-3A |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN919-12J |
Restrictions/Controls & Freight Information | NSN 4730-00-462-0250
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-462-0250
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
