Product Details | PIPE FLANGE
4730-00-451-1791 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 2584501, 4730-00-451-1791, 00-451-1791, 4730004511791, 004511791
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
47 | 12 MAY 1971 | 00-451-1791 | 03798 ( FLANGE, PIPE ) |
Demand History | NSN 4730-00-451-1791
Part Number | Request Date | QTY | Origin |
---|---|---|---|
4730-00-451-1791 | 2022-08-22 | 5 | DIBBS |
4730-00-451-1791 | 2022-08-11 | 5 | DIBBS |
4730-00-451-1791 | 2022-04-11 | 5 | DIBBS |
4730-00-451-1791 | 2022-03-31 | 5 | DIBBS |
4730-00-451-1791 | 2021-05-22 | 3 | DIBBS |
4730-00-451-1791 | 2021-05-09 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-451-1791
Related Products | NSN 4730-00-451-1791
Technical Data | NSN 4730-00-451-1791
Characteristic | Specifications |
---|---|
MATERIAL | STEEL |
SURFACE TREATMENT | CADMIUM |
STYLE DESIGNATOR | 2 ROUND, TWO BOLT HOLE CIRCLES |
FLANGE DIAMETER | 7.775 INCHES NOMINAL |
OUTER BOLT CIRCLE DIAMETER | 5.774 INCHES NOMINAL |
INNER BOLT CIRCLE DIAMETER | 5.120 INCHES NOMINAL |
OUTER BOLT CIRCLE HOLE DIAMETER | 0.800 INCHES MINIMUM AND 0.830 INCHES MAXIMUM |
INNER BOLT CIRCLE HOLE DIAMETER | 0.498 INCHES MINIMUM AND 0.499 INCHES MAXIMUM |
OUTER BOLT CIRCLE HOLE QUANTITY | 8 |
INNER BOLT CIRCLE HOLE QUANTITY | 1 |

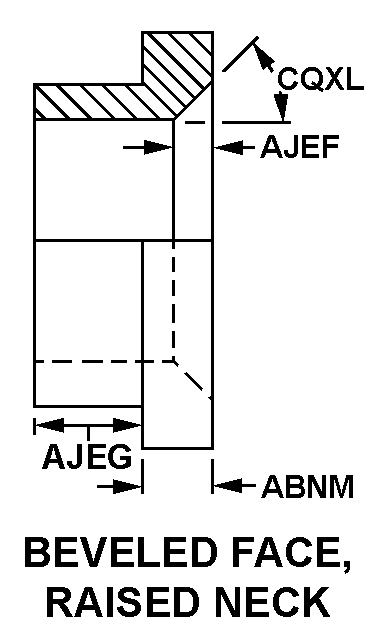

FLANGE SECTION STYLE | 36 BEVELED FACE, RAISED NECK |
THICKNESS | 0.115 INCHES MINIMUM AND 0.120 INCHES MAXIMUM |
BEVEL DEPTH | 0.062 INCHES NOMINAL |
NECK HEIGHT | 0.635 INCHES NOMINAL |
FACE BEVEL ANGLE | ANY ACCEPTABLE |
REDUCER FLANGE HOLE TYPE | ECCENTRIC |
FACE SEATING SURFACE CONDITION | GROUND |
