NSN 4730-00-447-1423 A218275, A575031, A5750-31

Product Details | PIPE TO HOSE ELBOW

4730-00-447-1423 A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. One connecting end has standard pipe threads or is unthreaded and designed to accommodate a pipe. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It may have side or heel inlet(s). See also ELBOW, HOSE; ELBOW, PIPE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: A218275, A575031, A5750-31, A575031B, A5750-31B, SK2043C, FI 202821, FI202821, 4730-00-447-1423, 00-447-1423, 4730004471423, 004471423

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-447-1423	03769 ( ELBOW, PIPE TO HOSE )

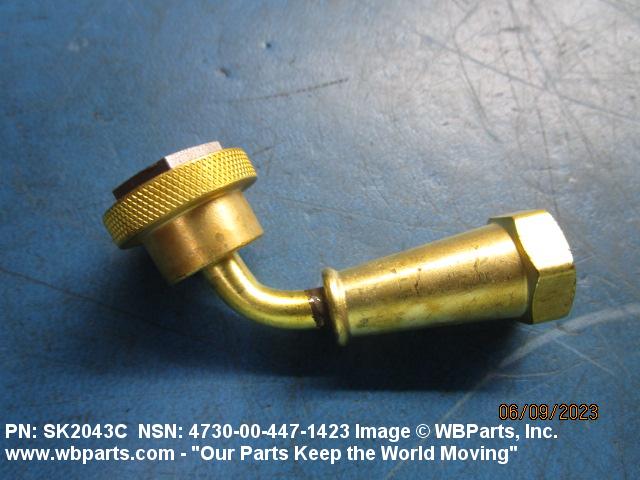

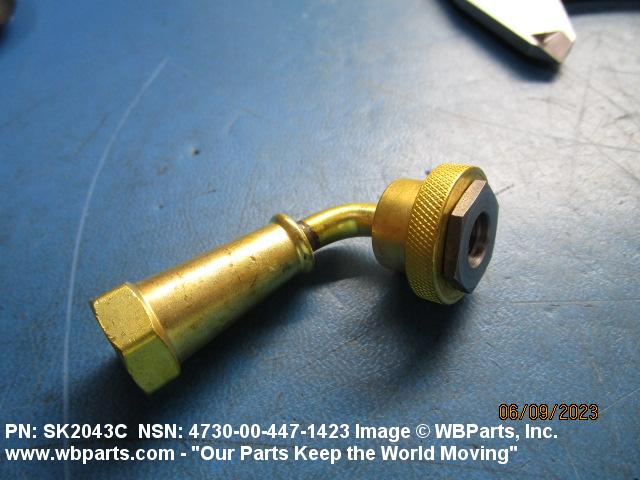

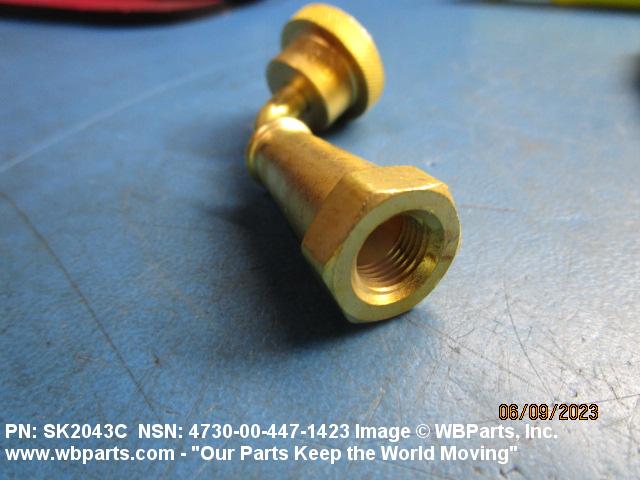

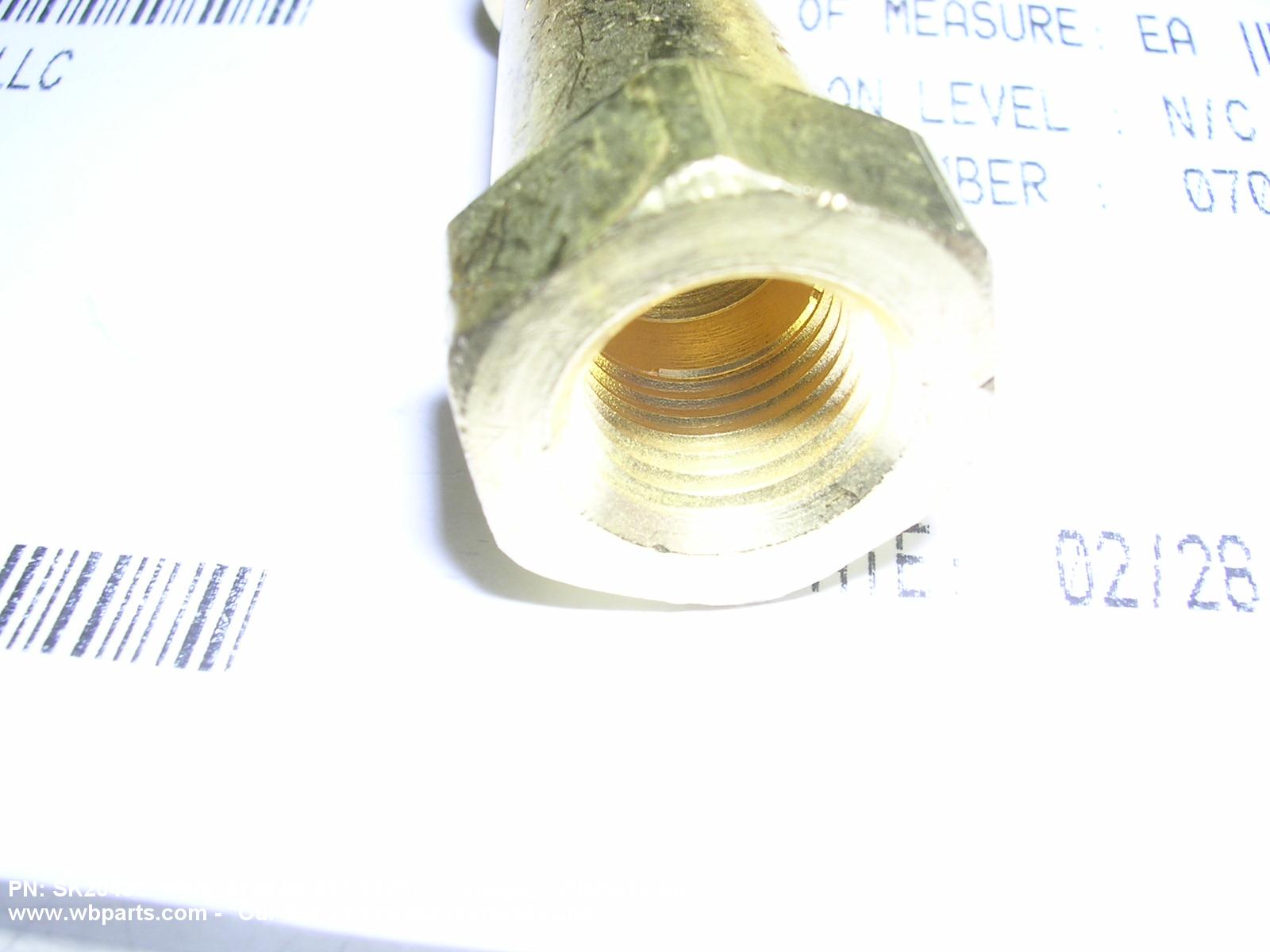

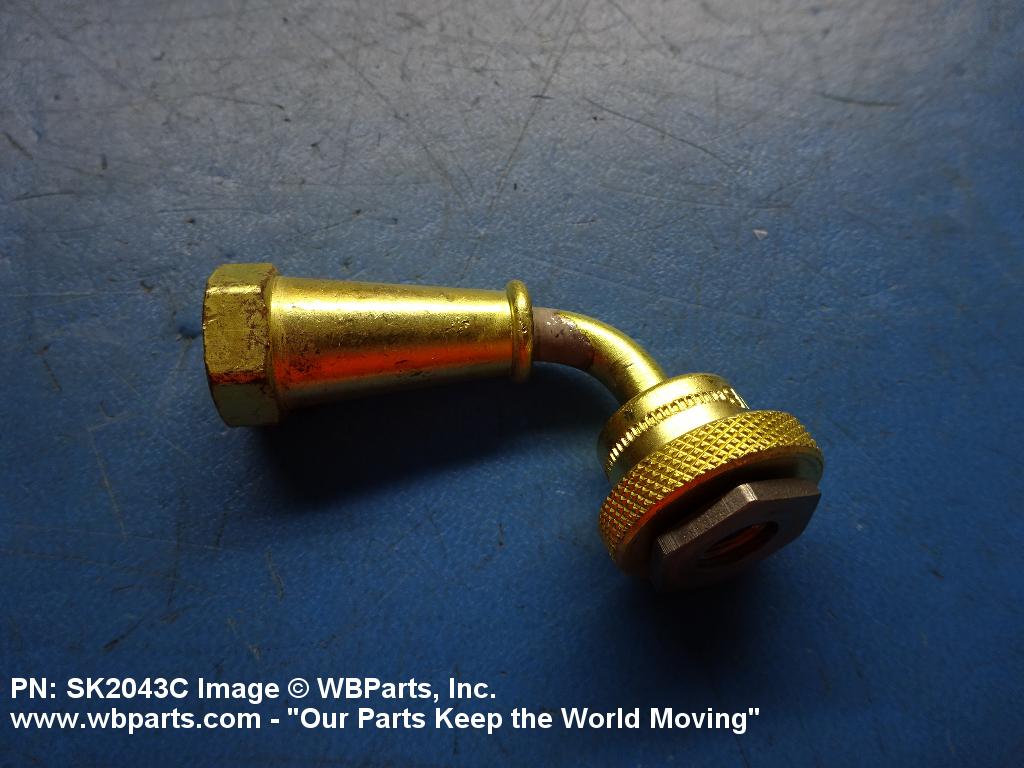

Drawings & Photos | NSN 4730-00-447-1423

Part Number	Request Date	QTY	Origin
SK2043C	2024-05-137	1	SA
SK2043C	2023-05-136	20	Germany
SK2043C	2022-11-321	308	DIBBS
4730-00-447-1423	2022-03-84	20	Germany
4730-00-447-1423	2021-11-321	20	DE
4730-00-447-1423	2021-04-96	1	United States
4730-00-447-1423	2021-04-96	3	United States
4730-00-447-1423	2021-04-96	5	United States
SK2043C	2020-10-282	372	DIBBS
A575031B	2019-06-177	5	United States
SK2043C	2019-06-177	5	United States
4730-00-447-1423	2014-11-324	1	Italy
4730-00-447-1423	2014-07-212	562	DIBBS
4730-00-447-1423	2014-03-79	395	DIBBS
4730-00-447-1423	2013-06-156	310	DIBBS
4730-00-447-1423	2013-03-73	1	US
4730-00-447-1423	2012-05-137	375	DIBBS
4730-00-447-1423	2012-03-61	573	DIBBS
SK2043C	2011-10-284	14	US
SK2043C	2011-02-38	1	US
SK2043C	2010-12-341	1	US
4730-00-447-1423	2010-03-75	132	DIBBS
4730-00-447-1423	2010-03-75	270	DIBBS
4730-00-447-1423	2009-04-118	715	DIBBS
SK2043C	2008-09-259	9	US
A575031B	2008-03-86	10	Italy
A575031	2008-02-51	10	United States

Cross Reference | NSN 4730-00-447-1423

Part Number	Cage Code	Manufacturer
A218275	32537	JOY TECHNOLOGIES INC. DBA MINING JOY MACHINERY
A5750-31	13002	GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION
A5750-31B	13002	GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION
FI 202821	01843	AMBAC INTERNATIONAL CORPORATION
FI202821	07988	AUTOMOTIVE INC FLUID POWER SYSTEMS COMPONENTS DIV
FI202821	0RK88	KOCSIS TECHNOLOGIES, INC.
SK2043C	17875	EATON CORPORATION DBA AIR CONTROLS DIVISION DIV AIR
SK2043C	39BV2	DILL AIR CONTROLS PRODUCTS, LLC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-447-1423

Compare

Related Products | NSN 4730-00-447-1423

4730-00-447-1762, 4730-00-447-2450, 4730-00-447-2470, 4730-00-447-3550, 4730-00-447-3996

Technical Data | NSN 4730-00-447-1423

Characteristic	Specifications
MATERIAL	COPPER ALLOY OVERALL
CONNECTION TYPE	THREADED INTERNAL PIPE 1ST END THREADED INTERNAL HOSE 2ND END
CONNECTION STYLE	B14A PLAIN 1ST END B6C SWIVEL NUT, GASKET SEAL 2ND END
NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED	0.625 INCHES 2ND END
NOMINAL PIPE SIZE ACCOMMODATED	0.125 INCHES 1ST END
THREAD SERIES DESIGNATOR	NPT 1ST END UNEF 2ND END
NOMINAL THREAD SIZE	0.125 INCHES 1ST END 0.312 INCHES 2ND END
THREAD CLASS	3B 2ND END

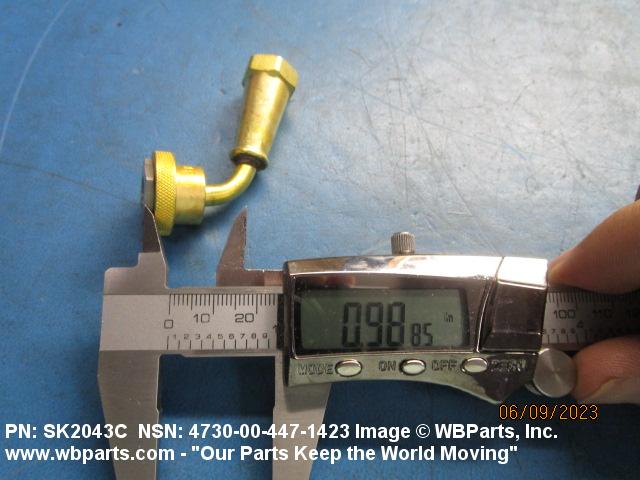

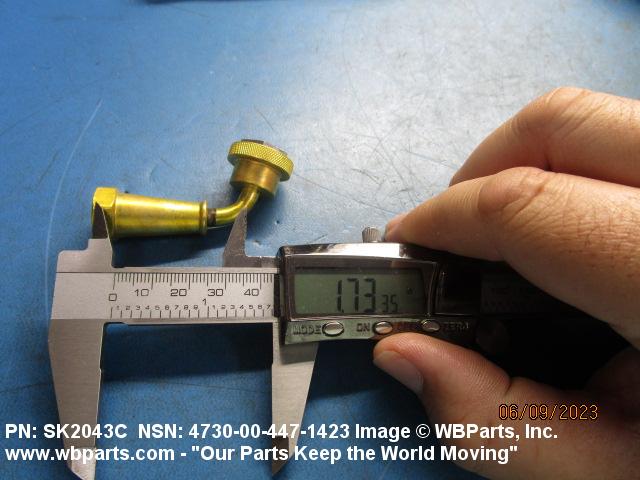

LEG LENGTH	1.730 INCHES MINIMUM AND 1.770 INCHES MAXIMUM 1ST END 0.980 INCHES MINIMUM AND 1.020 INCHES MAXIMUM 2ND END
FLOW ANGLE	70.0 DEGREES
SPECIAL FEATURES	WEAPON SYSTEM ESSENTIAL
CRITICALITY CODE JUSTIFICATION	FEAT
III END ITEM IDENTIFICATION	F/A-18 HORNET, A-6E INTRUDER, S-3B VIKING AIRCRAFT. LOW ALTITUDE NAVIGATION & TARGETING INFRARED SYSTEM (LANTRIN). B-52 AIRCRAFT SUPPORT EQUIPMENT. VIRGINIA CLASS CGN (41). INTERCEPT GUIDED MISSLE.

Restrictions/Controls & Freight Information | NSN 4730-00-447-1423

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052185	PIPE,TUBING,OR PIPE OR TUBING FIT
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-447-1423

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
