NSN 4730-00-431-3807 2595516, 00-431-3807, 004313807
Product Details | LUBRICANT PRESSURE RELIEF FITTING
4730-00-431-3807 A spring loaded device designed to relieve excessive oil and grease pressure from gear box housings and such items as bearings, kingpins and universal joints. Excludes FITTING, LUBRICATION.
Part Alternates: 2595516, 4730-00-431-3807, 00-431-3807, 4730004313807, 004313807
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 23 APR 1971 | 00-431-3807 | 20483 ( FITTING, LUBRICANT PRESSURE RELIEF ) |
Drawings & Photos | NSN 4730-00-431-3807
Demand History | NSN 4730-00-431-3807
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-431-3807 | 2021-03-69 | 2 | DIBBS |
| 4730-00-431-3807 | 2021-03-69 | 4 | DIBBS |
| 4730-00-431-3807 | 2021-01-31 | 2 | DIBBS |
| 4730-00-431-3807 | 2021-01-31 | 4 | DIBBS |
| 4730-00-431-3807 | 2018-12-343 | 2 | DIBBS |
| 4730-00-431-3807 | 2017-10-289 | 4 | DIBBS |
| 4730-00-431-3807 | 2017-10-289 | 3 | DIBBS |
| 4730-00-431-3807 | 2017-10-276 | 3 | DIBBS |
| 4730-00-431-3807 | 2017-10-276 | 4 | DIBBS |
Cross Reference | NSN 4730-00-431-3807
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2595516 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-431-3807
Related Products | NSN 4730-00-431-3807
Technical Data | NSN 4730-00-431-3807
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND ZINC OVERALL |

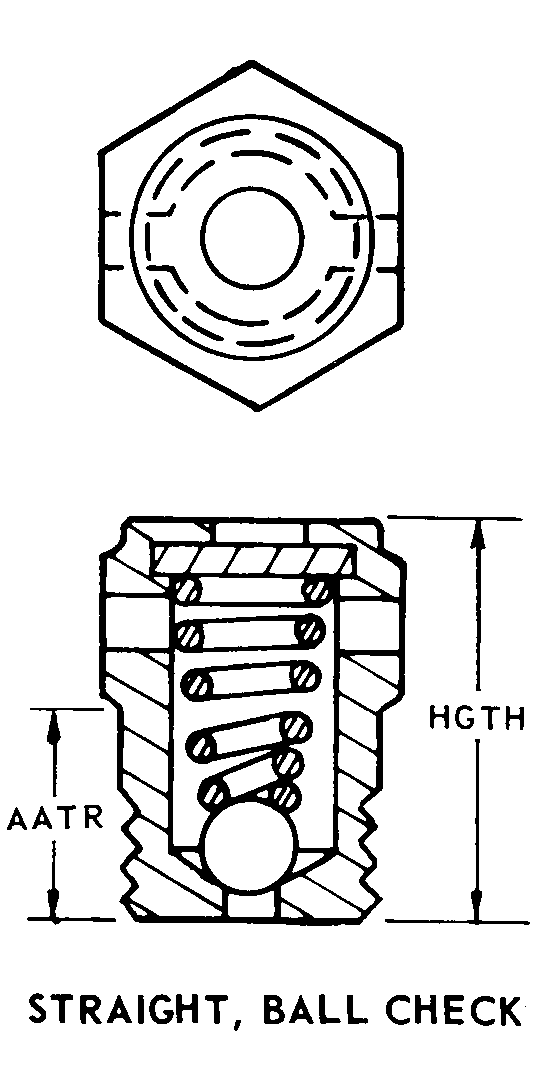

| STYLE DESIGNATOR | K2 STRAIGHT, BALL CHECK |
| SHANK LENGTH | 0.265 INCHES NOMINAL |
| HEIGHT | 0.500 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| PRESSURE RELIEF METHOD | PORT END |
| BYPASS RELIEF VALVE SETTING RANGE | 7.5 TO 15.0 POUNDS PER SQUARE INCH |
| WIDTH ACROSS FLATS | 0.438 INCHES NOMINAL |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 2595516 |
Restrictions/Controls & Freight Information | NSN 4730-00-431-3807
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 124520 | LUBRICATORS/GREASE CUPS NOI AUT |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-431-3807
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
