NSN 4730-00-427-8491 5102, 51SIZE4, 00-427-8491
Product Details | PIPE FLANGE
4730-00-427-8491 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 5102, 51SIZE4, 4730-00-427-8491, 00-427-8491, 4730004278491, 004278491
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-427-8491 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-00-427-8491
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-427-8491
Technical Data | NSN 4730-00-427-8491
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 7.875 INCHES NOMINAL |
| FLANGE DIAMETER | 10.000 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.875 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 8 |

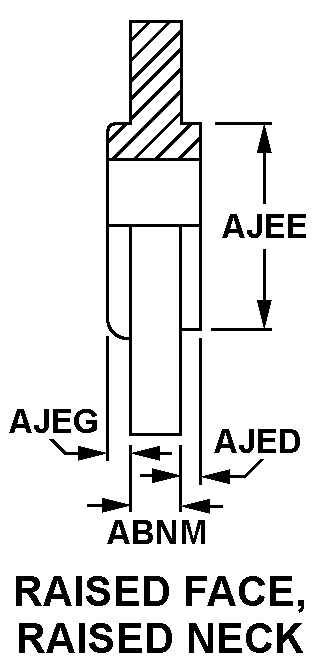

| FLANGE SECTION STYLE | 1 RAISED FACE, RAISED NECK |
| THICKNESS | 1.187 INCHES NOMINAL |
| RAISED FACE HEIGHT | 0.062 INCHES NOMINAL |
| RAISED FACE DIAMETER | 6.187 INCHES NOMINAL |
| NECK HEIGHT | 0.625 INCHES NOMINAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 4.000 INCHES |
| FACE SEATING SURFACE CONDITION | SERRATED |
Restrictions/Controls & Freight Information | NSN 4730-00-427-8491
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
