NSN 4730-00-418-0361 C21020AD, T1038200, T1038-200
Product Details | TUBE COUPLING BODY
4730-00-418-0361 An incomplete fitting which, when installed is designed to join together in a straight line two tubes and/or tube fittings of the same size. The item may have a complete connection on one end; the other end always requires an additional nut, sleeve, ferrule or the like to make a complete end connection.
Part Alternates: C21020AD, T1038200, T1038-200, 4730-00-418-0361, 00-418-0361, 4730004180361, 004180361
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-418-0361 | 32835 ( COUPLING BODY, TUBE ) |

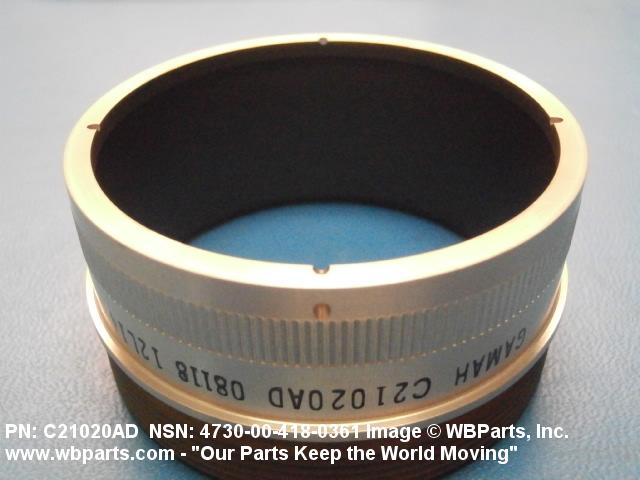

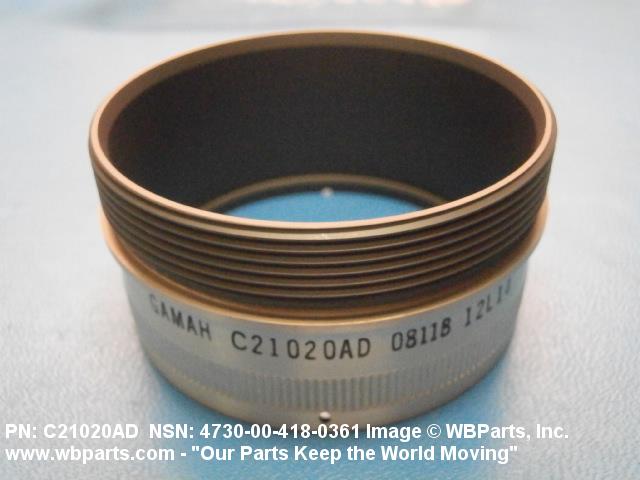

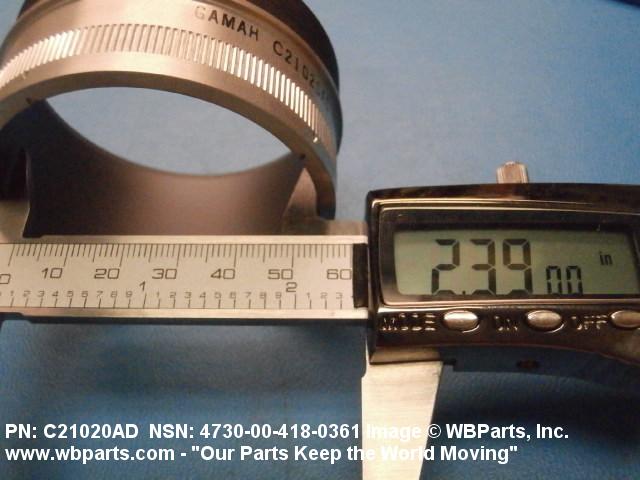

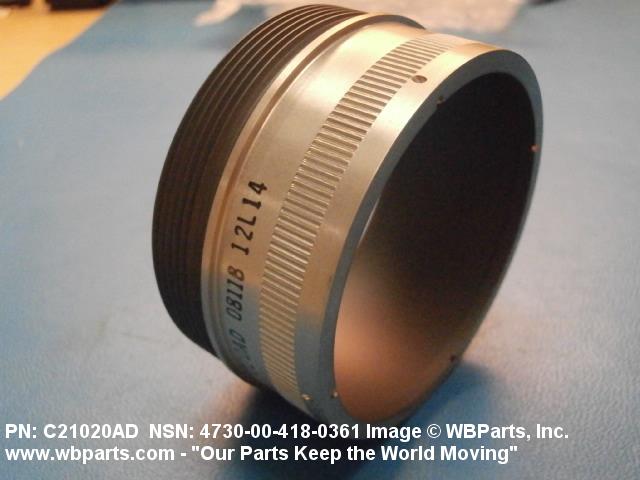

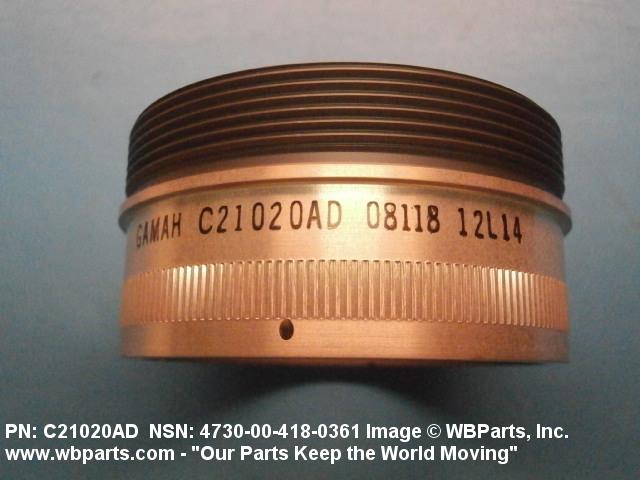

Drawings & Photos | NSN 4730-00-418-0361
Demand History | NSN 4730-00-418-0361
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-418-0361 | 2024-12-348 | 5 | United States |
| C21020AD | 2024-10-289 | 5 | United States |
| C21020AD | 2024-06-173 | 5 | US |
| C21020AD | 2023-10-296 | 5 | United States |
| C21020AD | 2023-09-250 | 5 | United States |
| C21020AD | 2023-01-12 | 3 | United States |
| C21020AD | 2021-10-293 | 20 | US |
| C21020AD | 2020-12-345 | 5 | United States |
| 4730-00-418-0361 | 2016-04-108 | 54 | DIBBS |
| 4730-00-418-0361 | 2015-12-364 | 23 | DIBBS |
| 4730-00-418-0361 | 2015-12-344 | 15 | United States |
| 4730-00-418-0361 | 2015-10-302 | 22 | DIBBS |
| 4730-00-418-0361 | 2015-10-288 | 17 | DIBBS |
| 4730-00-418-0361 | 2015-09-267 | 8 | DIBBS |
| 4730-00-418-0361 | 2015-08-228 | 7 | DIBBS |
| 4730-00-418-0361 | 2015-06-181 | 15 | United States |
| 4730-00-418-0361 | 2015-06-181 | 15 | United States |
| 4730-00-418-0361 | 2015-05-140 | 11 | DIBBS |
| 4730-00-418-0361 | 2015-05-127 | 5 | United States |
| 4730-00-418-0361 | 2014-03-64 | 20 | DIBBS |
| 4730-00-418-0361 | 2009-09-260 | 25 | DIBBS |
| 4730-00-418-0361 | 2009-09-247 | 11 | DIBBS |
| 4730-00-418-0361 | 2009-04-105 | 11 | DIBBS |
| 4730-00-418-0361 | 2008-11-317 | 30 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-418-0361
Related Products | NSN 4730-00-418-0361
Technical Data | NSN 4730-00-418-0361
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED |
| STYLE DESIGNATOR | U4 FLEXIBLE COUPLING BODY |

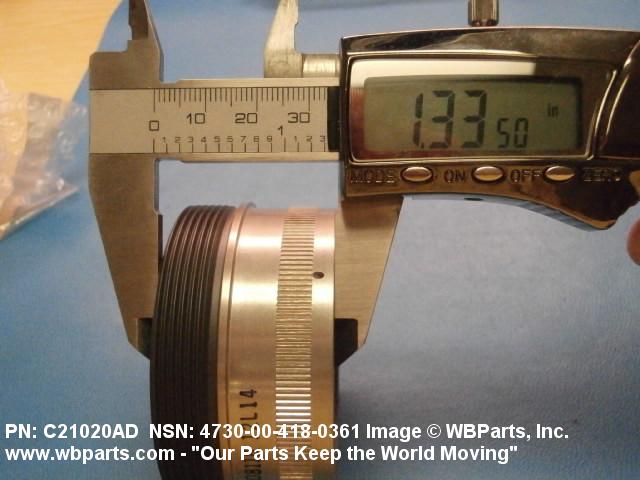

| OVERALL LENGTH | 1.335 INCHES NOMINAL |

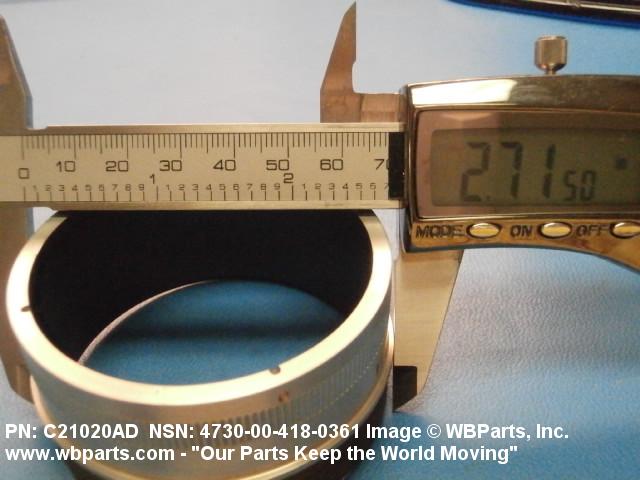

| OUTSIDE DIAMETER | 2.750 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 2.000 INCHES NOMINAL |
| THREAD SIZE | 2.659-16 |
| SCREW THREAD SERIES DESIGNATOR | UNS |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| WORKING PRESSURE AND SERVICE TYPE | NOT RATED |
| WORKING TEMP AND SERVICE TYPE | NOT RATED |
Restrictions/Controls & Freight Information | NSN 4730-00-418-0361
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
