NSN 4730-00-413-3295 MS2192616S, MS21926-16S, MS21926K16
Product Details | TUBE ELBOW
4730-00-413-3295 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS2192616S, MS21926-16S, MS21926K16, AS18280, AS21926, 4730-00-413-3295, 00-413-3295, 4730004133295, 004133295, 137651169
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 MAY 1970 | 00-413-3295 | 03771 ( ELBOW, TUBE ) |

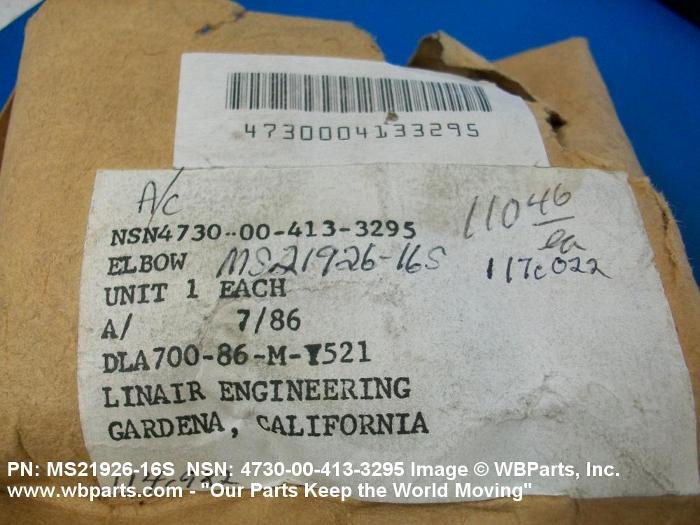

Drawings & Photos | NSN 4730-00-413-3295
Demand History | NSN 4730-00-413-3295
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-413-3295 | 2022-11-326 | 15 | United States |
| 4730-00-413-3295 | 2022-07-209 | 31 | DIBBS |
| 4730-00-413-3295 | 2021-08-220 | 13 | DIBBS |
| MS2192616S | 2021-06-172 | 20 | United States |
| 4730-00-413-3295 | 2020-05-132 | 4 | DIBBS |
| 4730-00-413-3295 | 2020-04-119 | 4 | DIBBS |
| MS21926K16 | 2020-02-44 | 18 | IT |
| 4730-00-413-3295 | 2017-09-247 | 16 | DIBBS |
| 4730-00-413-3295 | 2017-04-106 | 9 | DIBBS |
| 4730-00-413-3295 | 2015-06-153 | 11 | DIBBS |
| AS18280 | 2014-10-280 | 1 | US |
| 4730-00-413-3295 | 2013-05-133 | 6 | United States |
| 4730-00-413-3295 | 2013-01-08 | 3 | DIBBS |
| 4730-00-413-3295 | 2012-10-279 | 8 | DIBBS |
| 4730-00-413-3295 | 2011-07-201 | 1 | US |
| MS2192616S | 2011-07-201 | 1 | United States |
| MS2192616S | 2009-10-288 | 10 | US |
| MS21926K16 | 2007-05-143 | 10 | United Kingdom |
Cross Reference | NSN 4730-00-413-3295
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-413-3295
Related Products | NSN 4730-00-413-3295
Technical Data | NSN 4730-00-413-3295
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-F-14072,E300,TY2 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| MAXIMUM OPERATING PRESSURE | 1500.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 274.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS THREADED EXTERNAL TUBE 1ST END BULKHEAD |
| CONNECTION STYLE | B66 FLARELESS ALL ENDS |
| SEAT ANGLE | 12.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES ALL ENDS 1.000 INCHES 1ST END BULKHEAD |
| THREAD SERIES DESIGNATOR | UNJ ALL ENDS UNJ 1ST END BULKHEAD |
| NOMINAL THREAD SIZE | 1.312 INCHES ALL ENDS 1.312 INCHES 1ST END BULKHEAD |
| THREAD QUANTITY PER INCH | 12 ALL ENDS 12 1ST END BULKHEAD |
| THREAD CLASS | 3A ALL ENDS 3A 1ST END BULKHEAD |
| LEG LENGTH | 2.000 INCHES NOMINAL 1ST END 1.720 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| SPECIFICATION/STANDARD DATA | 96906-MS21926 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | AIRCRAFT APPLICATION |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21926K16 |
Restrictions/Controls & Freight Information | NSN 4730-00-413-3295
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-413-3295
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
