NSN 4730-00-412-2354 1534833, 00-412-2354, 004122354
Product Details | UNION NUT
4730-00-412-2354 An internally threaded nut which has an internal seat or shoulder designed to engage the nut retaining flange of a union tailpiece. The threaded portion is used to engage the thread piece of a union, union elbor or the like. Excludes NUT (1), TUBE COUPLING.202109000004730000000
Part Alternates: 1534833, 4730-00-412-2354, 00-412-2354, 4730004122354, 004122354
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 20 SEP 1972 | 00-412-2354 | 19964 ( NUT, UNION ) |

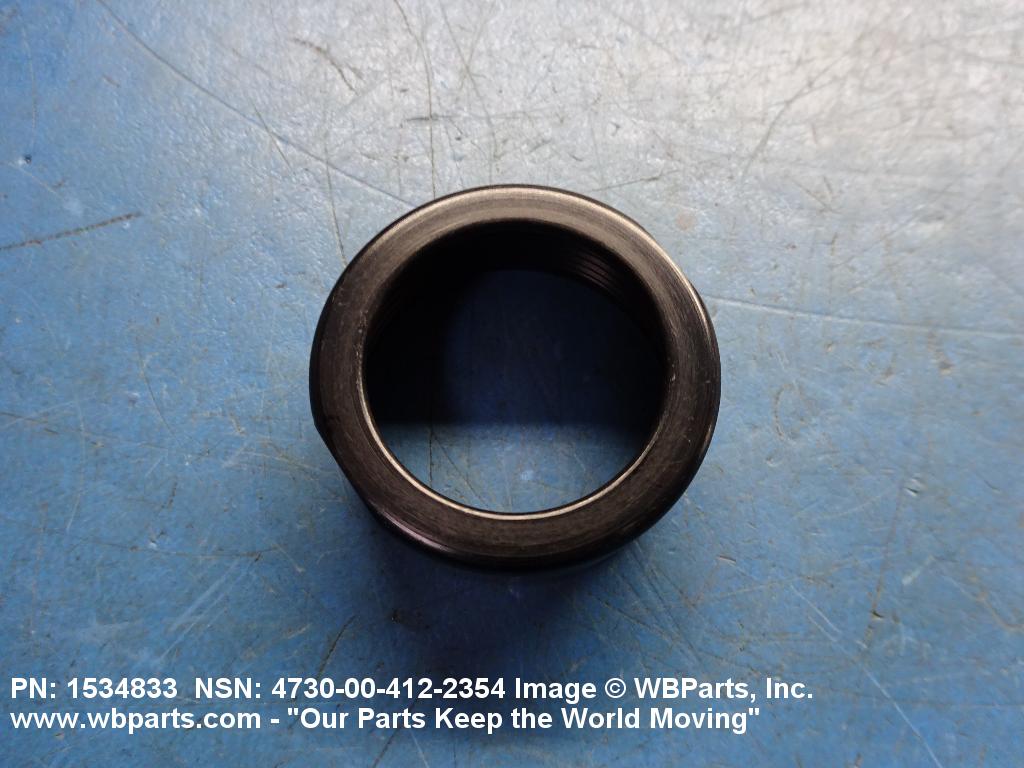

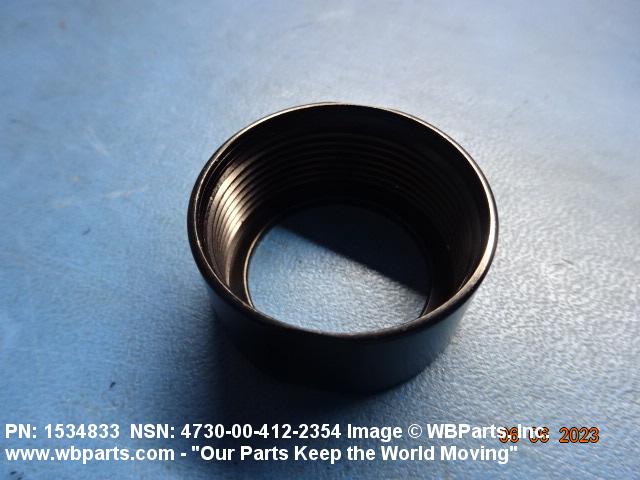

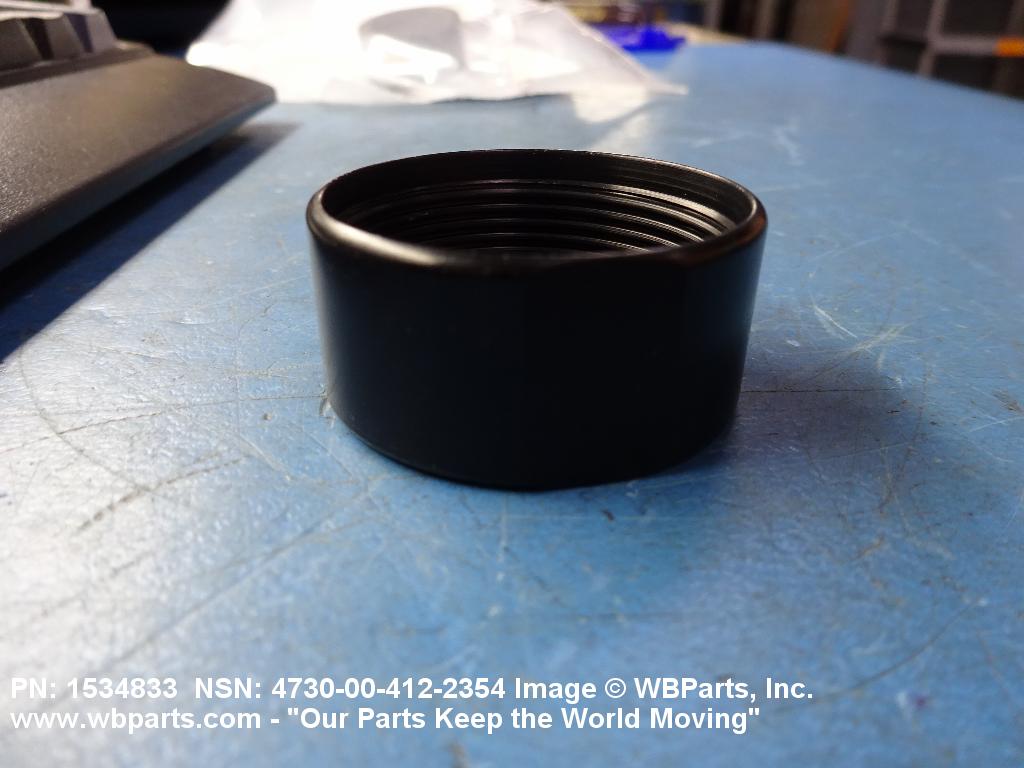

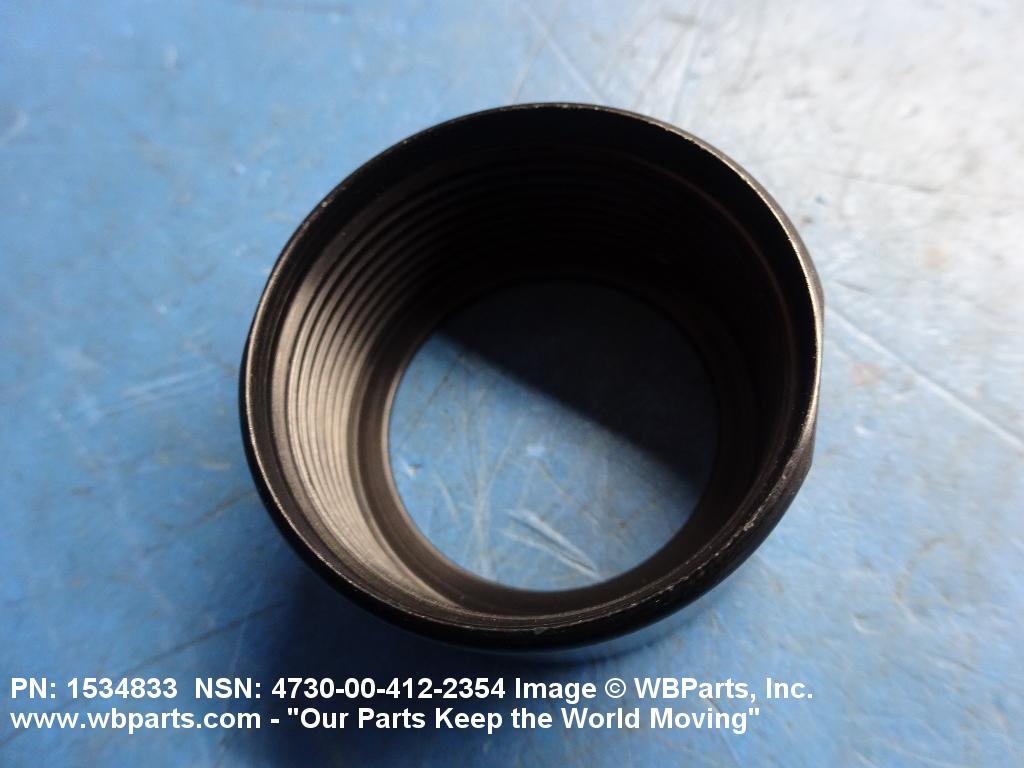

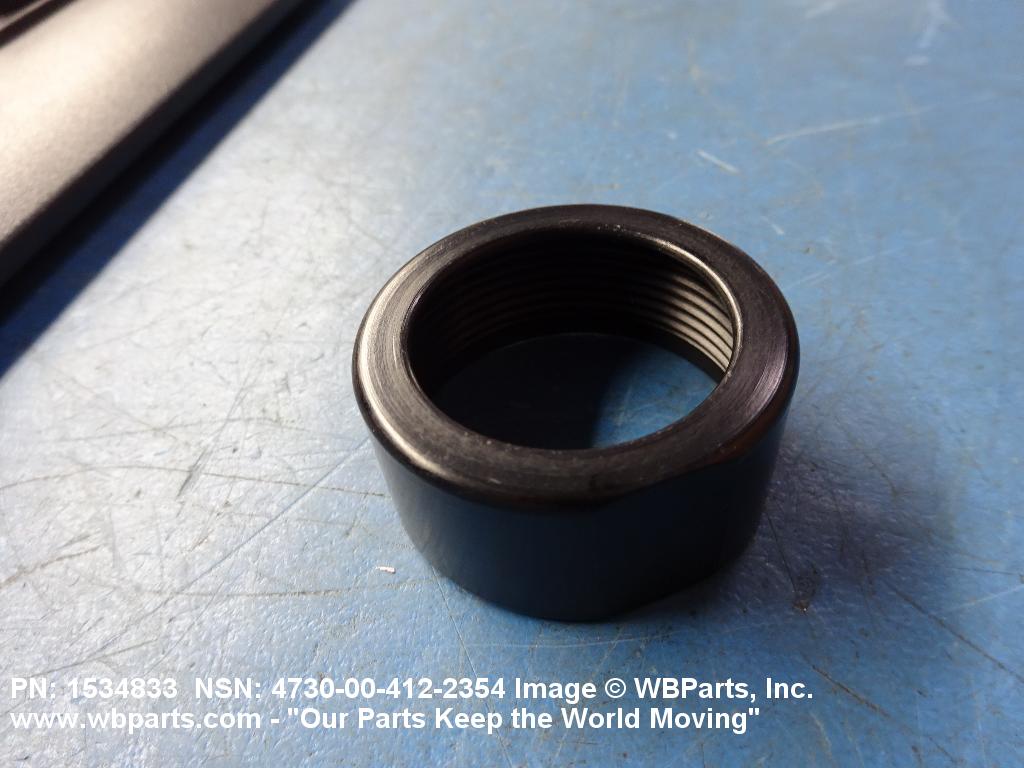

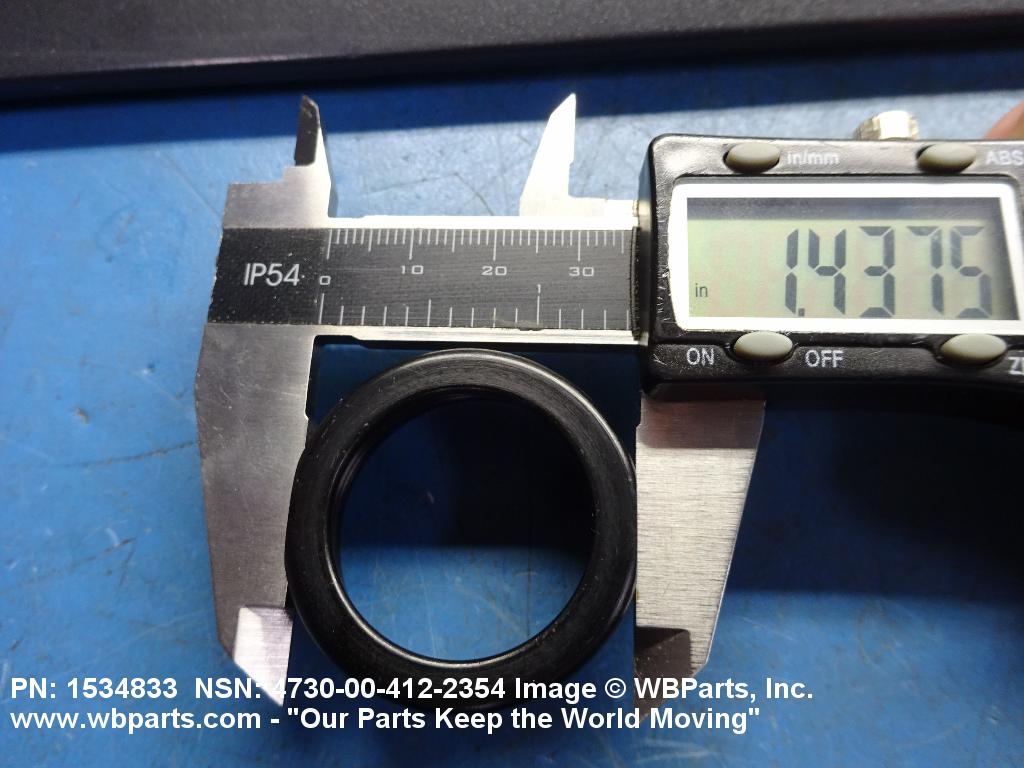

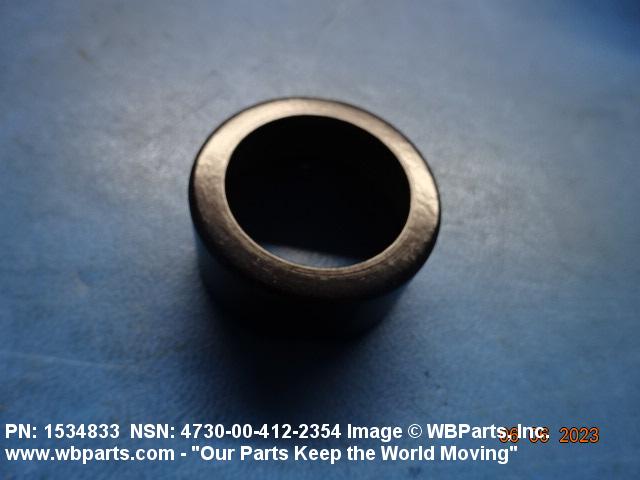

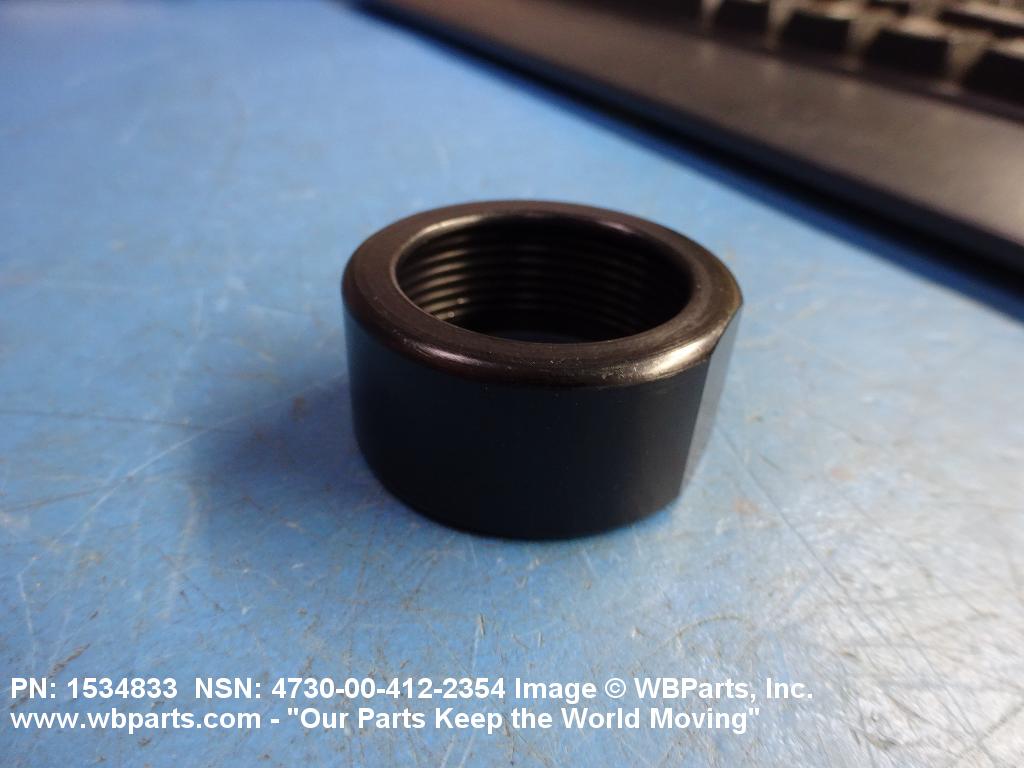

Drawings & Photos | NSN 4730-00-412-2354
Demand History | NSN 4730-00-412-2354
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-412-2354 | 2023-10-293 | 2 | United States |
| 4730-00-412-2354 | 2023-05-132 | 1 | us |
| 4730-00-412-2354 | 2022-08-222 | 4 | United States |
| 4730-00-412-2354 | 2021-04-104 | 2 | US |
| 1534833 | 2021-04-99 | 5 | United States |
| 4730-00-412-2354 | 2020-01-21 | 2 | US |
| 4730-00-412-2354 | 2015-03-82 | 81 | DIBBS |
| 4730-00-412-2354 | 2014-08-215 | 20 | DIBBS |
| 4730-00-412-2354 | 2014-04-117 | 22 | DIBBS |
| 4730-00-412-2354 | 2013-01-25 | 11 | DIBBS |
| 1534833 | 2012-12-348 | 11 | United States |
| 4730-00-412-2354 | 2012-05-130 | 10 | United States |
Cross Reference | NSN 4730-00-412-2354
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1534833 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-412-2354
Related Products | NSN 4730-00-412-2354
Technical Data | NSN 4730-00-412-2354
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UN |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | A371 HEXAGON |

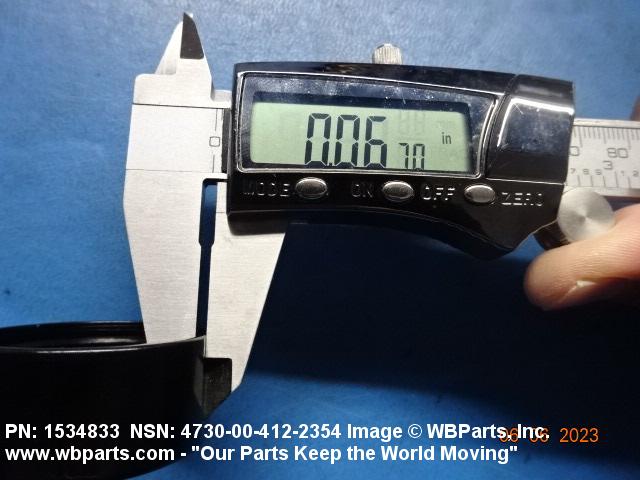

| SHOULDER WIDTH | 0.062 INCHES NOMINAL |

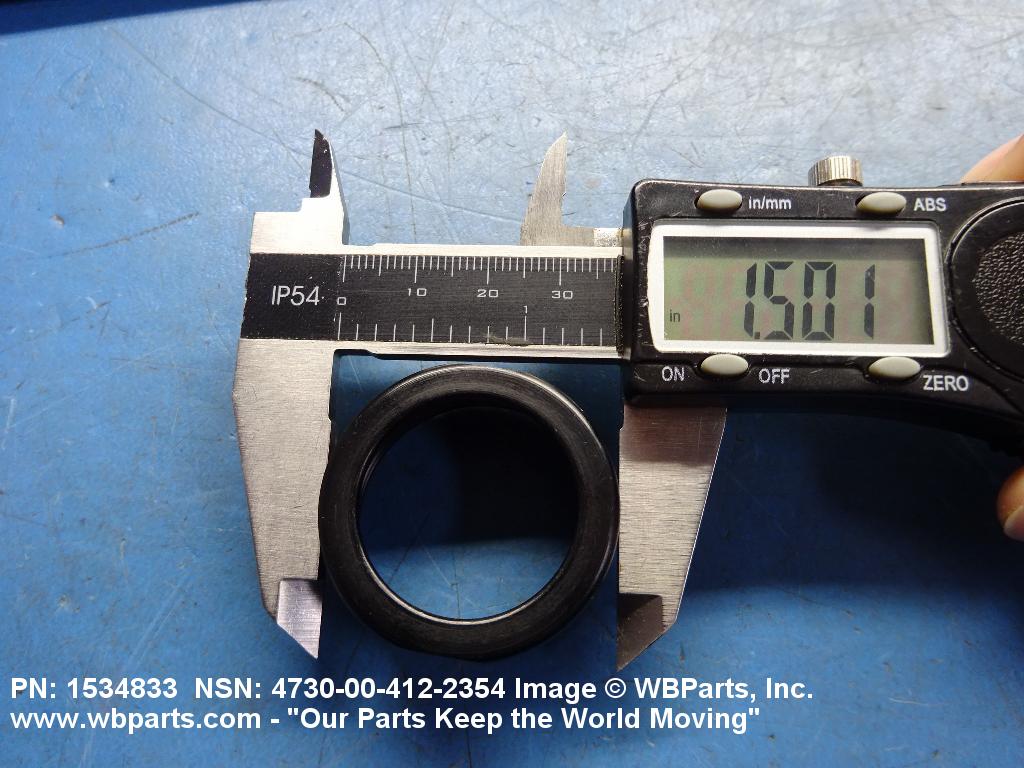

| NUT DIAMETER | 1.500 INCHES NOMINAL |

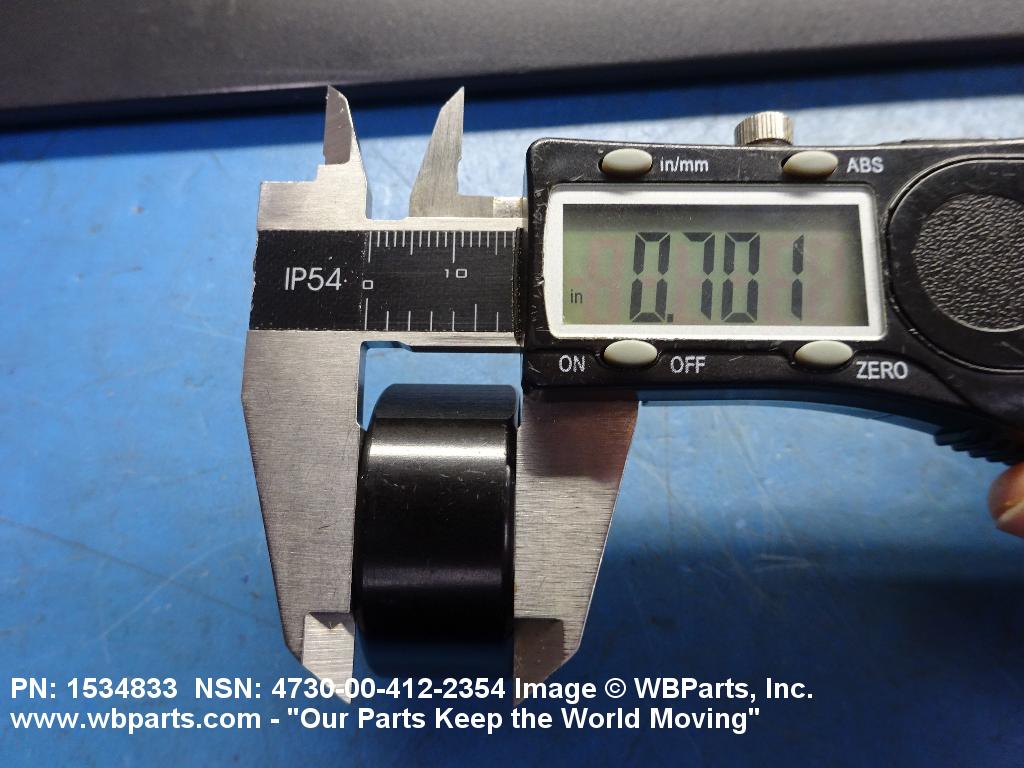

| NUT HEIGHT | 0.703 INCHES NOMINAL |

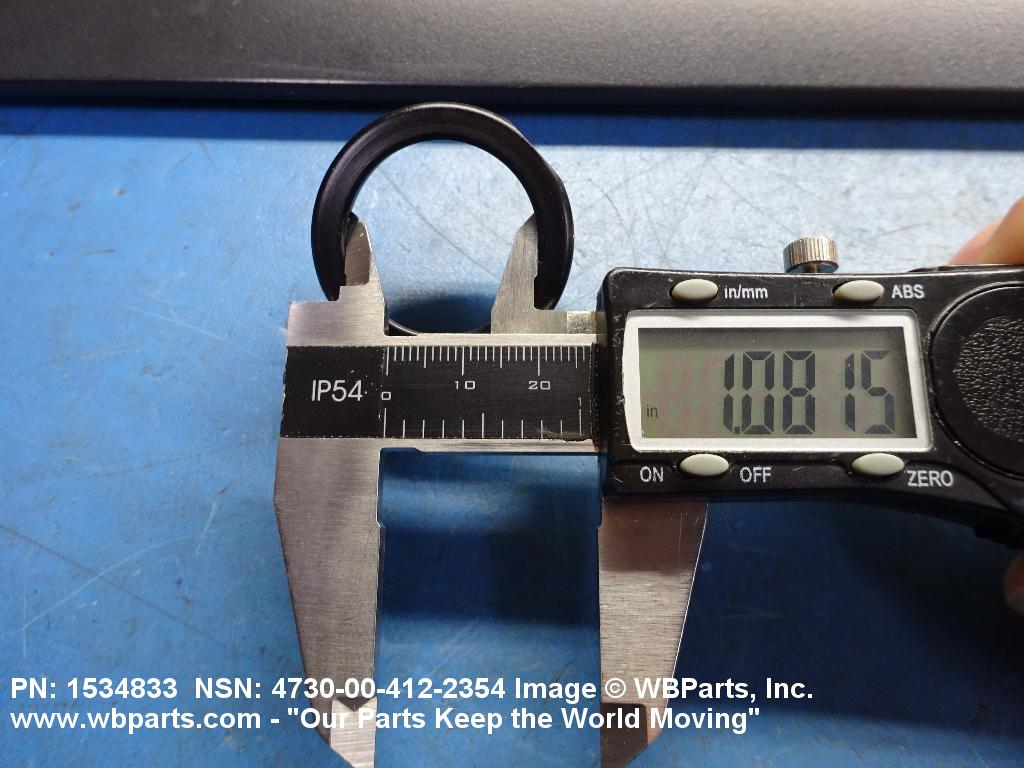

| SMALLEST INSIDE DIAMETER | 1.080 INCHES NOMINAL |
| SHOULDER STEP WIDTH | 0.063 INCHES NOMINAL |

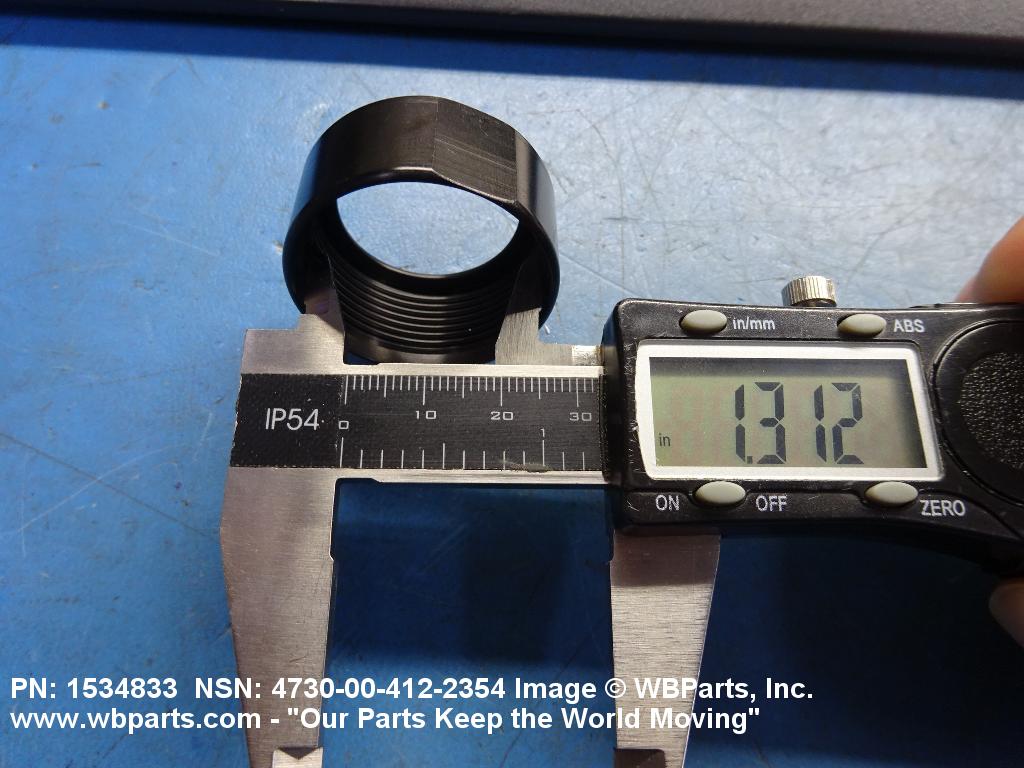

| SHOULDER SEAT DIAMETER | 1.311 INCHES NOMINAL |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 1534833 |
Restrictions/Controls & Freight Information | NSN 4730-00-412-2354
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-412-2354
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
