NSN 4730-00-403-4358 MS2191554, MS21915-5-4, AS18280
Product Details | BOSS REDUCER
4730-00-403-4358 A straight fitting having a boss connection of a different size at each end. Both connections have external or internal machine threads (straight threads other than pipe or hose series) and are designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. Excludes BUSHING (as modified).
Part Alternates: MS2191554, MS21915-5-4, AS18280, AS21915, 4730-00-403-4358, 00-403-4358, 4730004034358, 004034358
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 JUN 1970 | 00-403-4358 | 23541 ( REDUCER, BOSS ) |

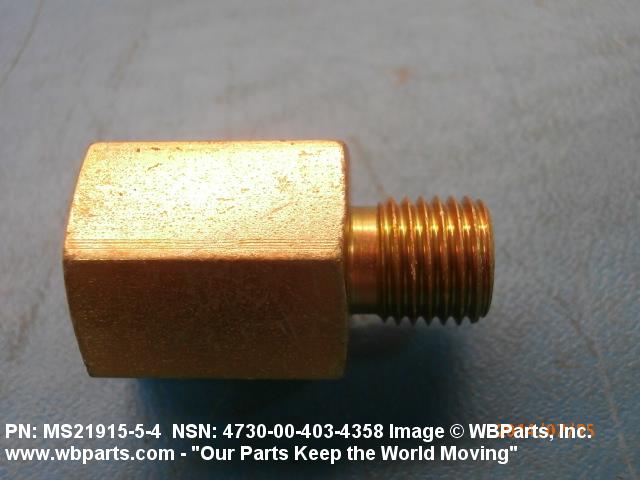

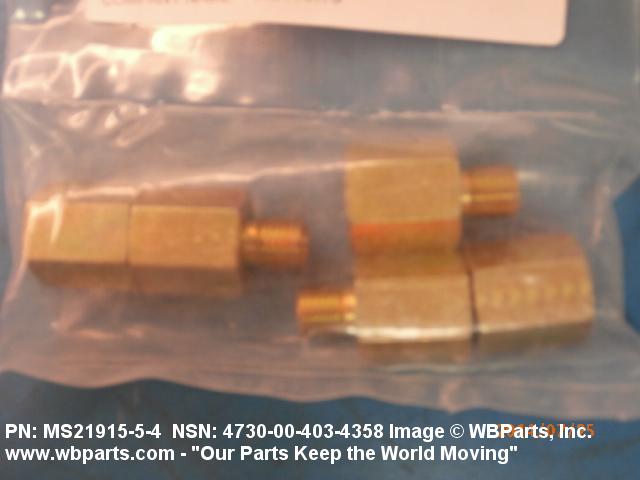

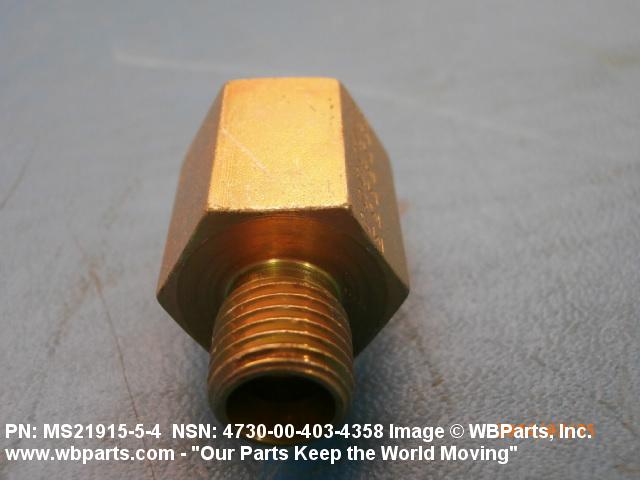

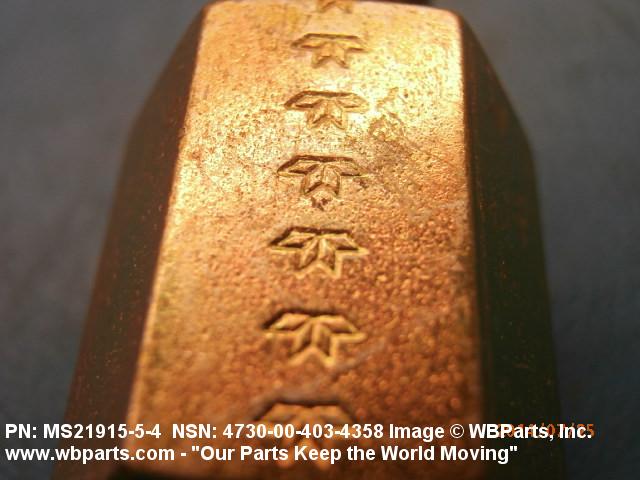

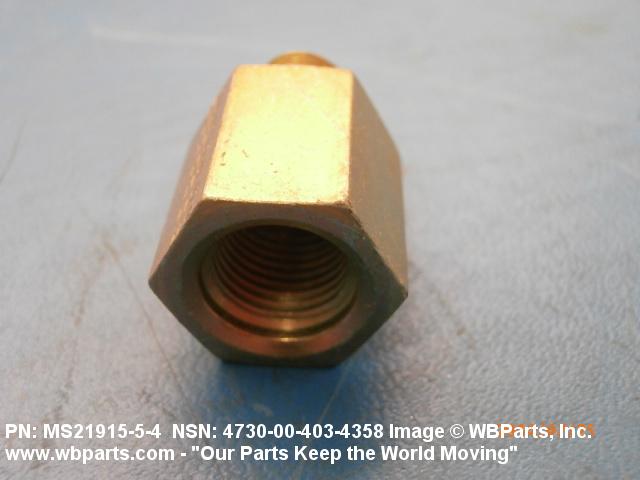

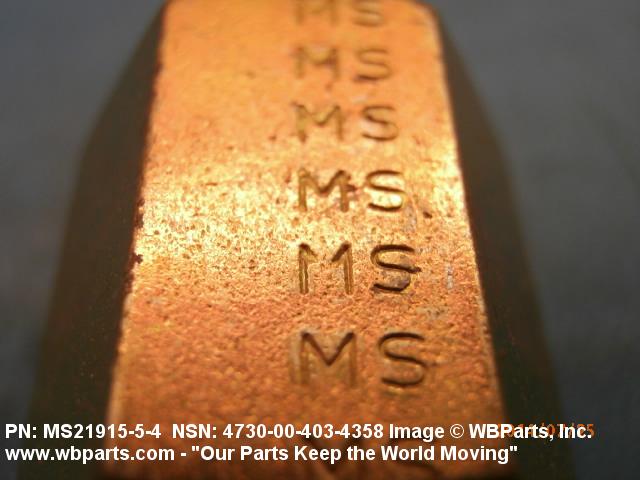

Drawings & Photos | NSN 4730-00-403-4358
Demand History | NSN 4730-00-403-4358
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-403-4358 | 2023-07-192 | 10 | us |
| 4730-00-403-4358 | 2021-01-06 | 1 | TW |
| AS18280 | 2014-10-280 | 1 | US |
| MS2191554 | 2014-07-198 | 2 | United States |
Cross Reference | NSN 4730-00-403-4358
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-403-4358
Technical Data | NSN 4730-00-403-4358
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1137 OR STEEL COMP 1141 OR STEEL COMP 4130 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637 FED SPEC 1ST MATERIAL RESPONSE AND QQ-S-637 FED SPEC 2ND MATERIAL RESPONSE AND MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE AND MIL-S-5626 MIL SPEC 4TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM INSIDE CADMIUM OUTSIDE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE INSIDE QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| CONNECTION TYPE | THREADED INTERNAL BOSS 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B9 GASKET SEAL 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |

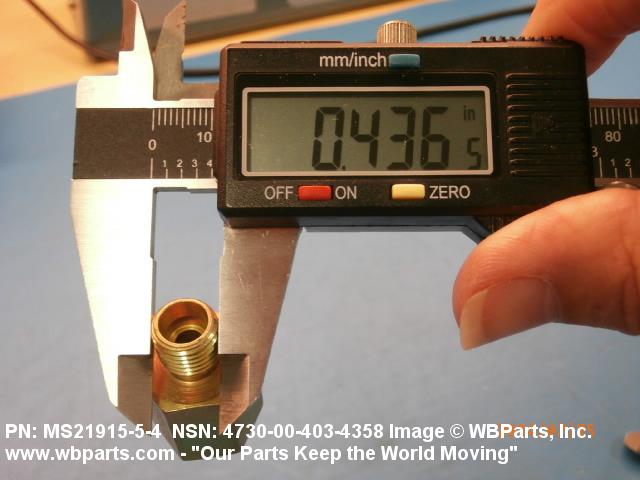

| NOMINAL THREAD SIZE | 0.500 INCHES 1ST END 0.438 INCHES 2ND END |
| THREAD CLASS | 3B 1ST END |

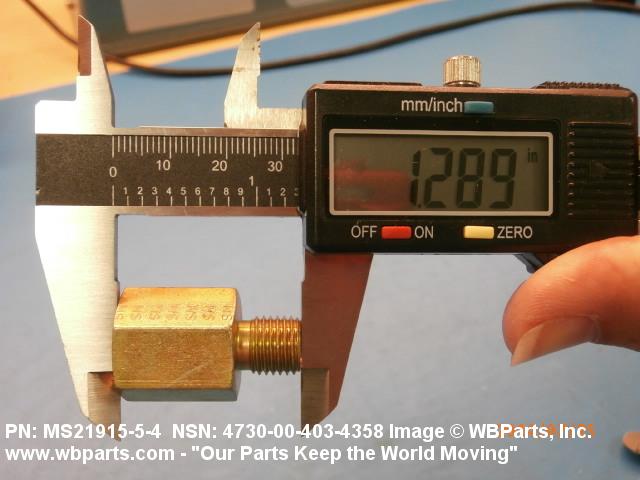

| NOMINAL OVERALL LENGTH | 1.281 INCHES |
| REDUCER TYPE | CONCENTRIC |
Restrictions/Controls & Freight Information | NSN 4730-00-403-4358
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-403-4358
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
