Product Details | FLANGE TO BOSS ELBOW

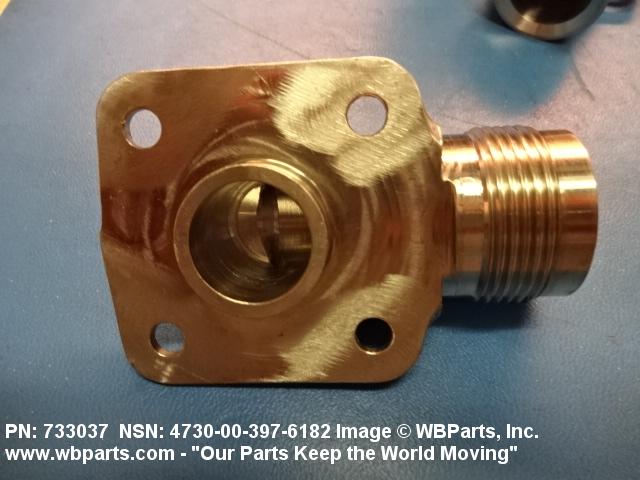

4730-00-397-6182 A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. It has a flange connection on one end designed to connect with another flange connection, or a compression type mounting pad. The other end has external and/or internal machine threads (straight threads other than pipe or hose series), and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side and/or heel inlet(s).
Part Alternates: 733037, 4730-00-397-6182, 00-397-6182, 4730003976182, 003976182
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 APR 1974 | 00-397-6182 | 29665 ( ELBOW, FLANGE TO BOSS ) |
Drawings & Photos | NSN 4730-00-397-6182

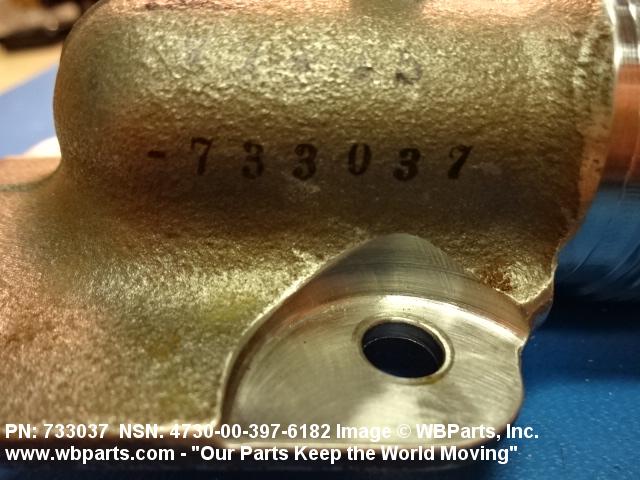

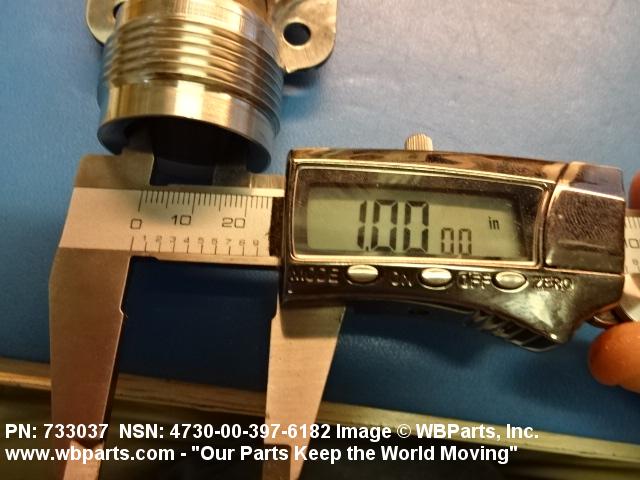

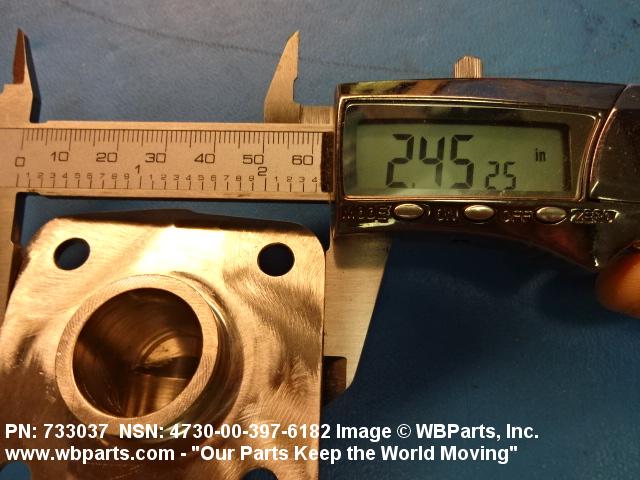

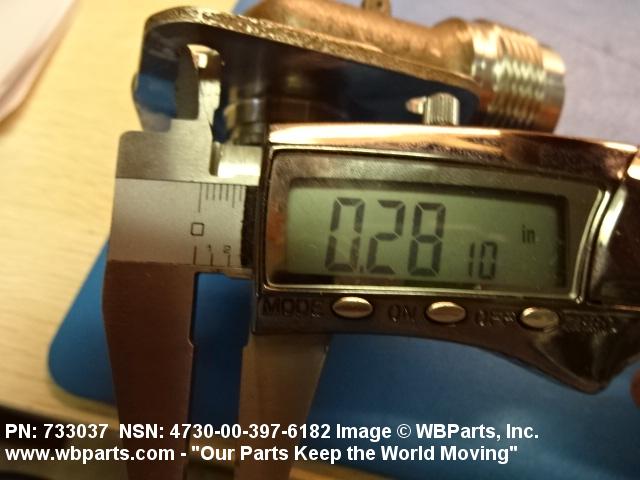

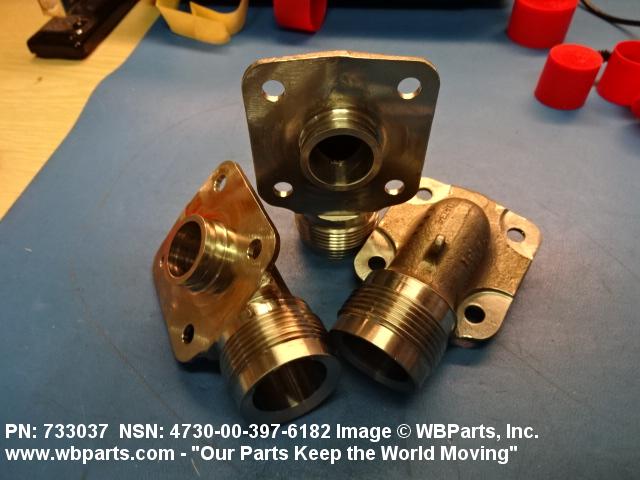

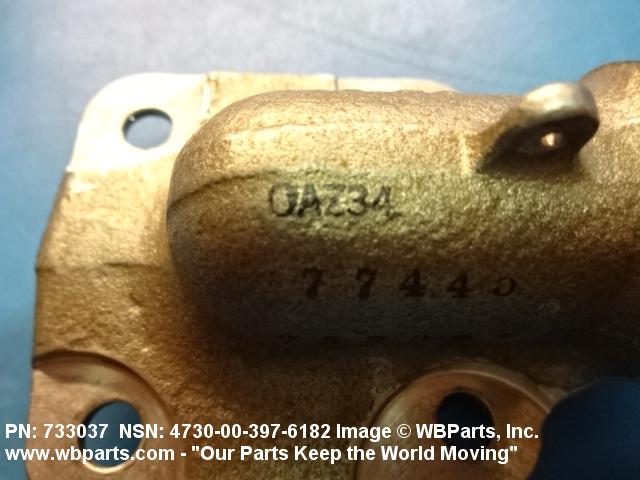

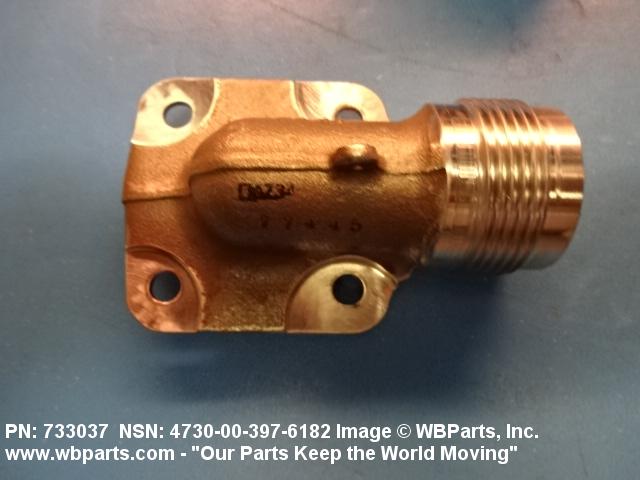

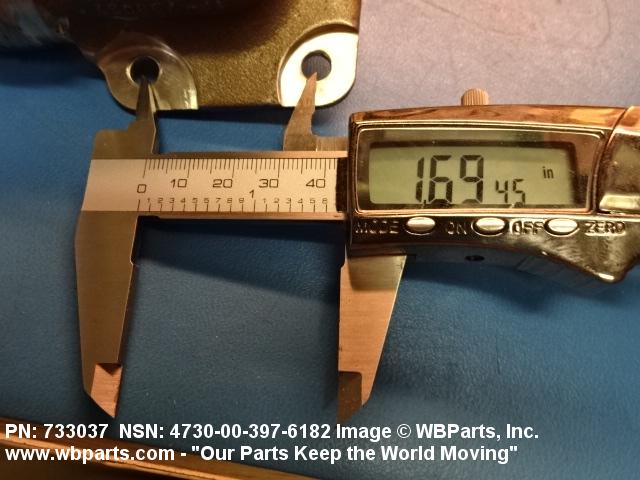

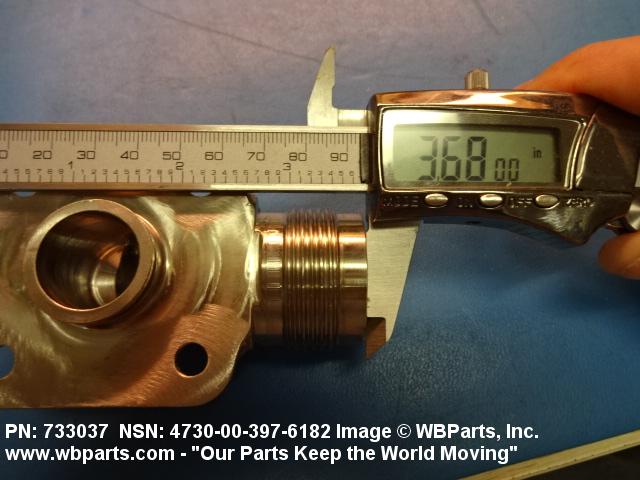

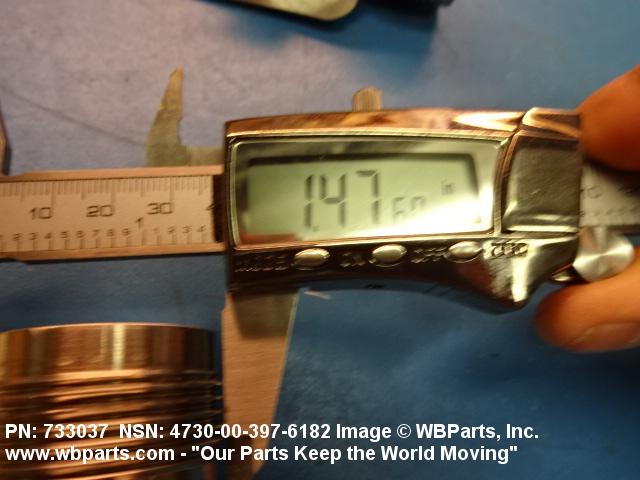

Demand History | NSN 4730-00-397-6182
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 733037 | 2023-05-137 | 6 | DIBBS |
| 4730-00-397-6182 | 2018-03-64 | 24 | DIBBS |
| 4730-00-397-6182 | 2018-02-38 | 3 | United States |
| 4730-00-397-6182 | 2017-12-346 | 3 | DIBBS |
| 4730-00-397-6182 | 2017-11-333 | 3 | DIBBS |
Cross Reference | NSN 4730-00-397-6182
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 733037 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-397-6182
Related Products | NSN 4730-00-397-6182
Technical Data | NSN 4730-00-397-6182
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 347 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5646 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE INSIDE PASSIVATE OUTSIDE |
| CONNECTION TYPE | FLANGE 1ST END THREADED EXTERNAL BOSS 2ND END |
| FLANGE SHAPE | RECTANGULAR WITH HOLES 1ST END |
| NOMINAL LENGTH | 2.396 INCHES 1ST END |
| NOMINAL WIDTH | 2.396 INCHES 1ST END |
| BOLT HOLE QUANTITY | 4 1ST END |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.656 INCHES 1ST END |
| FLANGE FACE DESIGN | RAISED STRAIGHT 1ST END |
| THREAD SERIES DESIGNATOR | UNS 2ND END |
| NOMINAL THREAD SIZE | 1.500 INCHES 2ND END |
| THREAD CLASS | 3A 2ND END |
| LEG LENGTH | 1.019 INCHES MINIMUM AND 1.049 INCHES MAXIMUM 1ST END 2.440 INCHES MINIMUM AND 2.460 INCHES MAXIMUM 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 733037 |
Restrictions/Controls & Freight Information | NSN 4730-00-397-6182
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
