Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR

4730-00-389-8169 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).

Part Alternates: F3048, F3048G, F63048, FC3048G, 10876018, 1750199, 1750-199, 2032764, 423253, 467J, 69326, 9902730, 9958647, 4730-00-389-8169, 00-389-8169, 4730003898169, 003898169

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 01 JAN 1963 00-389-8169

Drawings & Photos | NSN 4730-00-389-8169


Demand History | NSN 4730-00-389-8169

Part Number Request Date QTY Origin
4730-00-389-8169 2012-05-143 33 MANUAL

Cross Reference | NSN 4730-00-389-8169

Part Number Cage Code Manufacturer
10876018 23382 FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP
1750-199 93568 HARSCO CORP BMY-COMBAT SYSTEMS DIV
2032764 14414 EATON CORP FORESTRY AND CONSTRUCTION EQUIPMENT DIV BATAVIA PLANT
423253 00447 WABCO CONSTRUCTION AND MINING EQUIPMENT GROUP INDIANAPOLIS PLANT
467J 45152 OSHKOSH CORPORATION
467J 75Q65 OSHKOSH DEFENSE, LLC
69326 13841 TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
9902730 63734 KAITLIN CORP
9958647 00447 WABCO CONSTRUCTION AND MINING EQUIPMENT GROUP INDIANAPOLIS PLANT
9958647 18876 U S ARMY AVIATION AND MISSILE COMMAND
9958647 63477 FEDERAL MOGUL CORP SUB WAGNER BRAKE
F3048 63477 FEDERAL MOGUL CORP SUB WAGNER BRAKE
F3048G 63477 FEDERAL MOGUL CORP SUB WAGNER BRAKE
F63048 63477 FEDERAL MOGUL CORP SUB WAGNER BRAKE
FC3048G 63477 FEDERAL MOGUL CORP SUB WAGNER BRAKE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-389-8169

Technical Data | NSN 4730-00-389-8169

Characteristic Specifications
MATERIAL BRASS

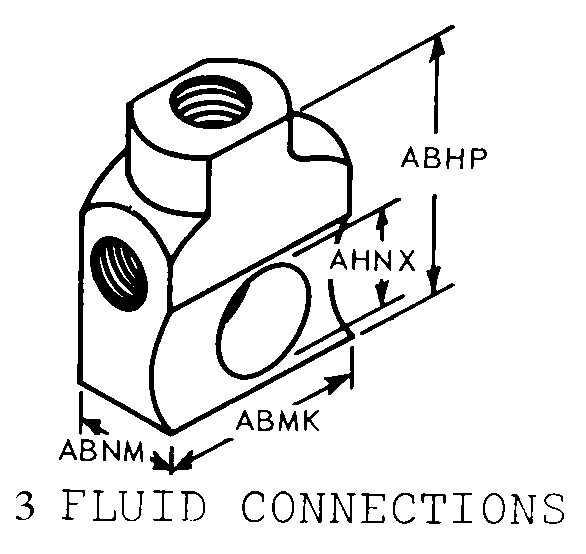

STYLE DESIGNATOR D37 3 FLUID CONNECTIONS
OVERALL LENGTH 1.625 INCHES NOMINAL
OVERALL WIDTH 0.875 INCHES NOMINAL
THICKNESS 0.602 INCHES NOMINAL
BOLT HOLE DIAMETER 0.469 INCHES NOMINAL
FLUID CONNECTION QUANTITY 1 2
CONNECTION STYLE E2 INVERTED FLARE
FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED 1/4 IN. OD TUBE,ALL CONNECTIONS
THREAD PROVISION THREADED
THREAD SIZE 7/16 IN.-24 7/16 IN.-20 7/16 IN.24
SCREW THREAD SERIES DESIGNATOR UNS UNF UNS
THREAD CLASS 2A 2A
THREAD DIRECTION RIGHT-HAND RIGHT-HAND
SEAT INCLUDED
SEAT ANGLE IN DEG 42.0 42.0 42.0
BOLT HOLE FLATS SERRATIONS NOT PROVIDED
BOLT HOLE FLUID PASSAGE NOT PROVIDED

Restrictions/Controls & Freight Information | NSN 4730-00-389-8169

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 052185 PIPE,TUBING,OR PIPE OR TUBING FIT
Less than car load rating P 77.5
Less than truck load rating W Rating Variable
Water commodity Code 576 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4730-00-389-8169

Category Code Description
Cognizance Codes9CNavy-owned stocks of defense construction material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9CDefense Supply Center Columbus
Columbus, OH 43215
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
