NSN 4730-00-348-5335 725992, 00-348-5335, 003485335
Product Details | FLUID PASSAGE BOLT
4730-00-348-5335 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 725992, 4730-00-348-5335, 00-348-5335, 4730003485335, 003485335
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-348-5335 | 18683 ( BOLT, FLUID PASSAGE ) |

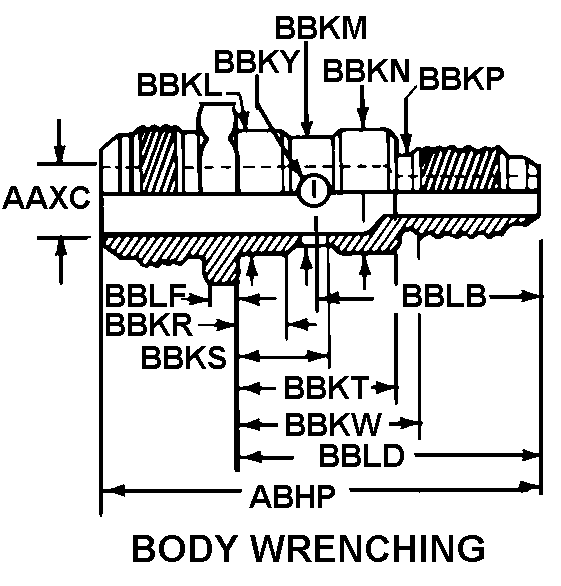

Drawings & Photos | NSN 4730-00-348-5335
Cross Reference | NSN 4730-00-348-5335
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 725992 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-348-5335
Related Products | NSN 4730-00-348-5335
Technical Data | NSN 4730-00-348-5335
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303S OR STEEL COMP 303SE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7720 MIL SPEC SINGLE MATERIAL RESPONSE |
| BODY STYLE | 18 BODY WRENCHING |
| CONCENTRIC HOLE DEPTH | 1.320 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.206 INCHES NOMINAL |
| OVERALL LENGTH | 1.906 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.560 INCHES NOMINAL |
| SECOND DIAMETER FROM WRENCHING FEATURE | 0.386 INCHES NOMINAL |
| THIRD DIAMETER FROM WRENCHING FEATURE | 0.560 INCHES NOMINAL |
| FOURTH DIAMETER FROM WRENCHING FEATURE | 0.386 INCHES NOMINAL |
| FIFTH DIAMETER FROM WRENCHING FEATURE | 0.560 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.191 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF SECOND DIAMETER | 0.332 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF THIRD DIAMETER | 0.379 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FOURTH DIAMETER | 0.579 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIFTH DIAMETER | 0.626 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.200 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 1.106 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 1.278 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.188 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C6 PLAIN |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.190 INCHES |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.325 INCHES NOMINAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL BOSS |
| SECOND END STYLE DESIGNATOR | C9 EXTERNAL SEAT FOR GASKET SEAL |
| SECOND END THREAD SERIES DESIGNATOR | UNJF |
| SECOND END NOMINAL THREAD SIZE | 0.437 INCHES |
| SECOND END THREAD CLASS | 3A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END THREAD LENGTH | 0.378 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | 1 HEXAGON |
| WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL |
| SPECIAL FEATURES | SIXTH DIA FROM WRENCHING FEATURE 0.386 IN.;LG FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF SIXTH DIA 0.767 IN.;SEVENTHE DIA FROM WRENCHING FEATURE 0.560 IN.;LG FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF |
Restrictions/Controls & Freight Information | NSN 4730-00-348-5335
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-348-5335
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
