NSN 4730-00-343-7024 N190A12INCH, N190A1-2INCH, B35844
Product Details | STEAM TRAP
4730-00-343-7024 A device for allowing the passage of condensate, or of air and condensate, and for preventing the passage of steam.
Part Alternates: N190A12INCH, N190A1-2INCH, B35844, C21212TH201, C2-1212-TH201, J456SIZE12INCH, J456SIZE1-2INCH, 4730-00-343-7024, 00-343-7024, 4730003437024, 003437024
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-343-7024 | 04853 ( TRAP, STEAM ) |

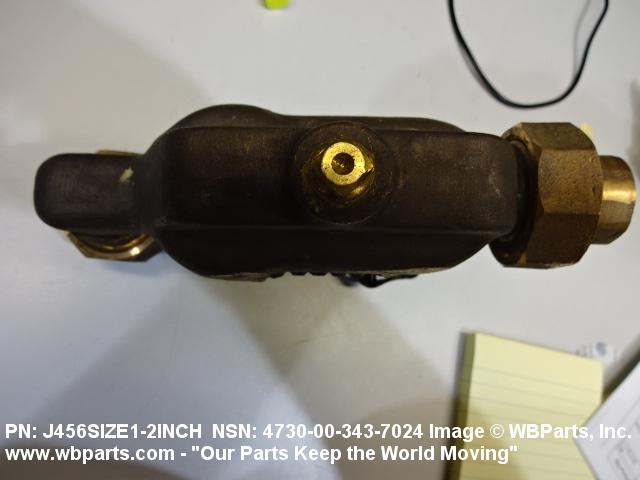

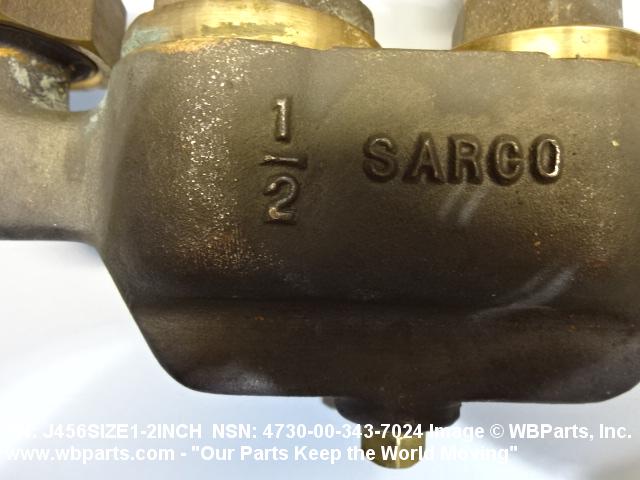

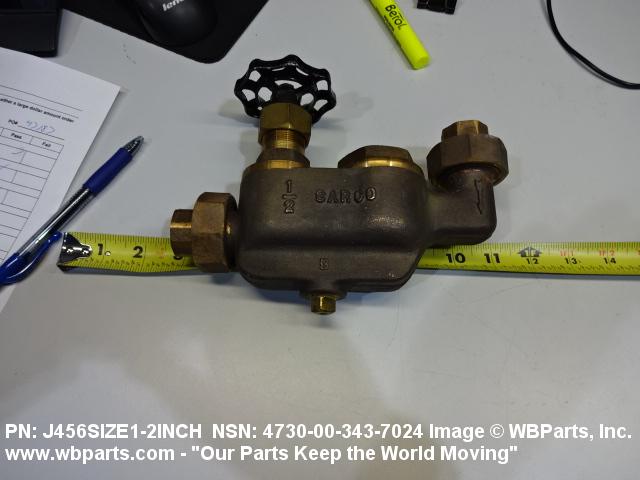

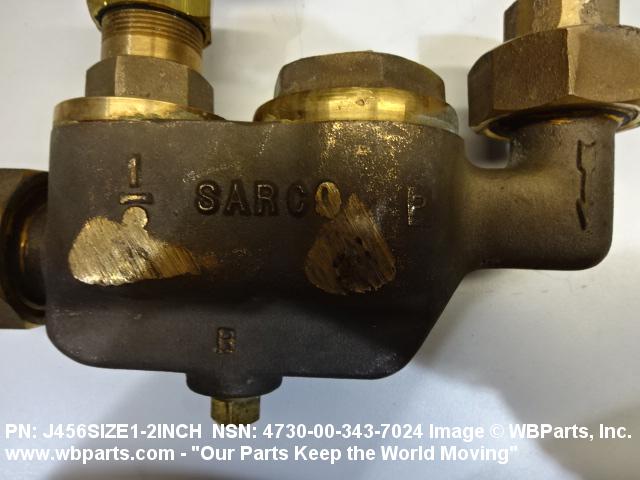

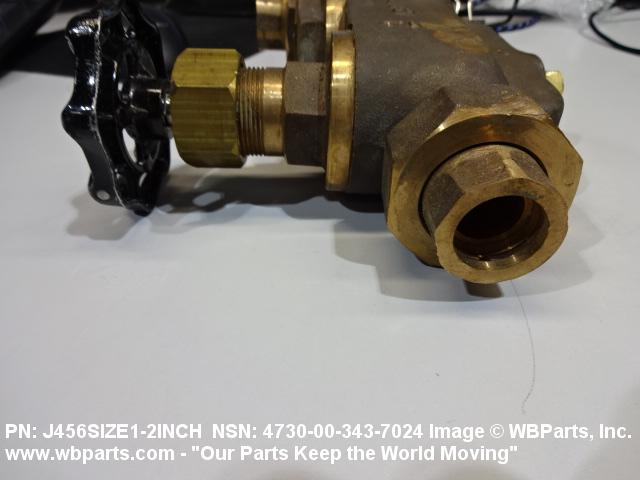

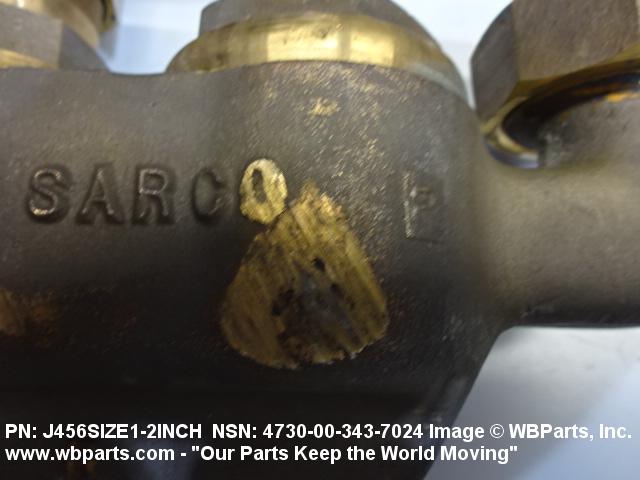

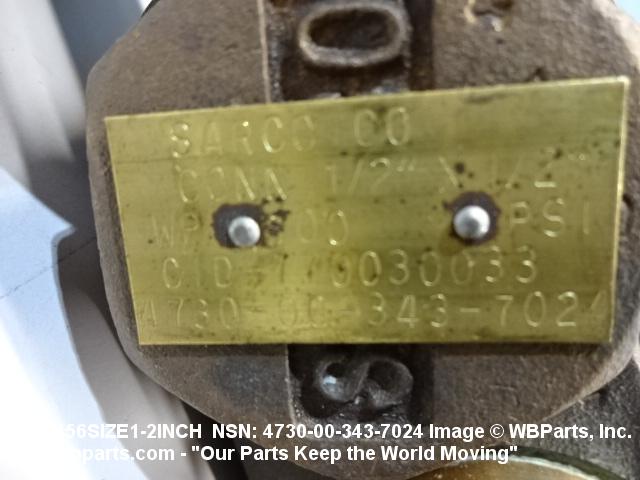

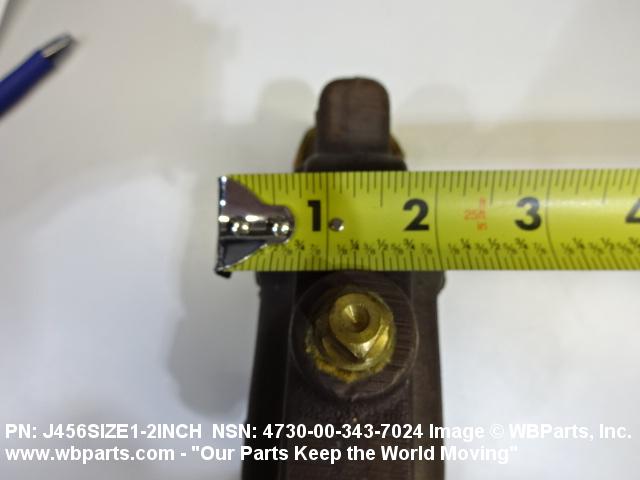

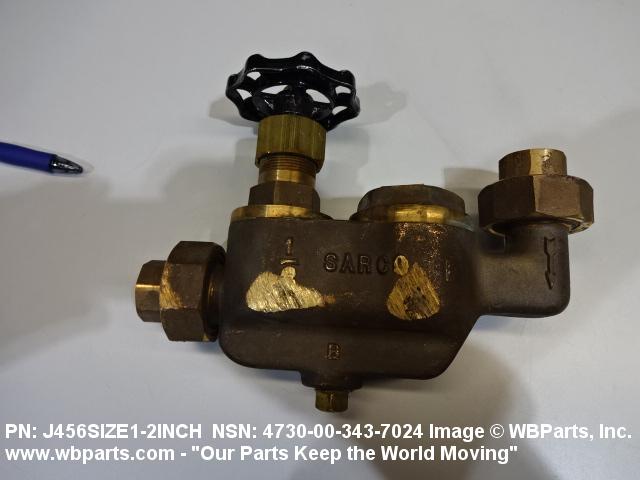

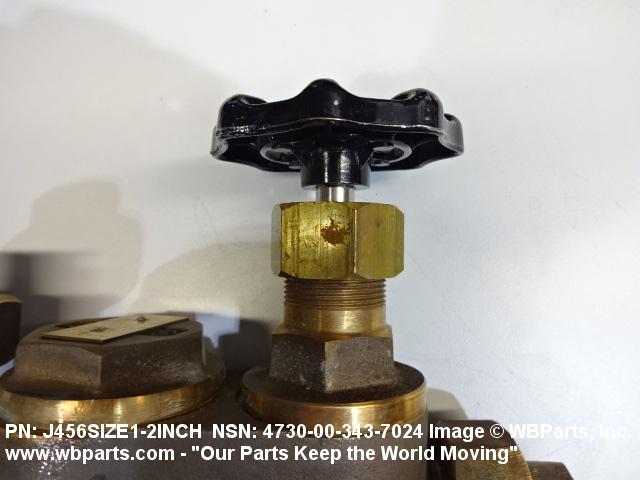

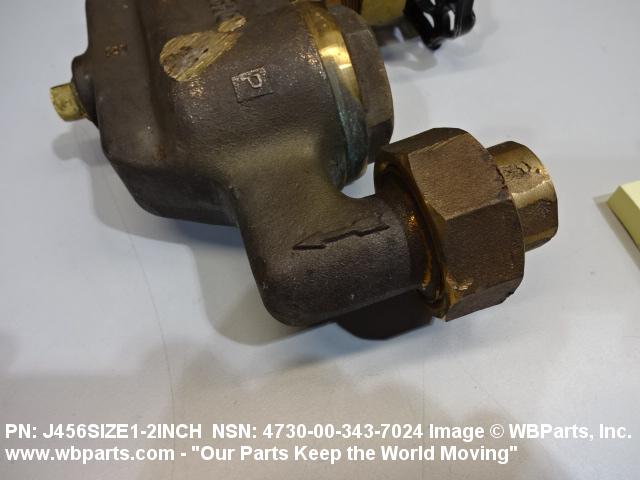

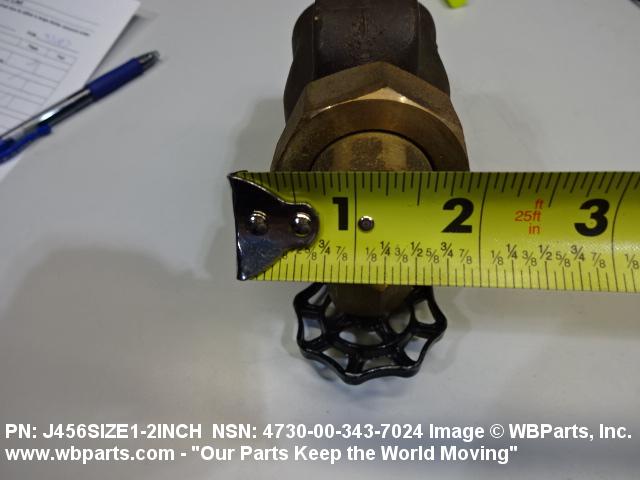

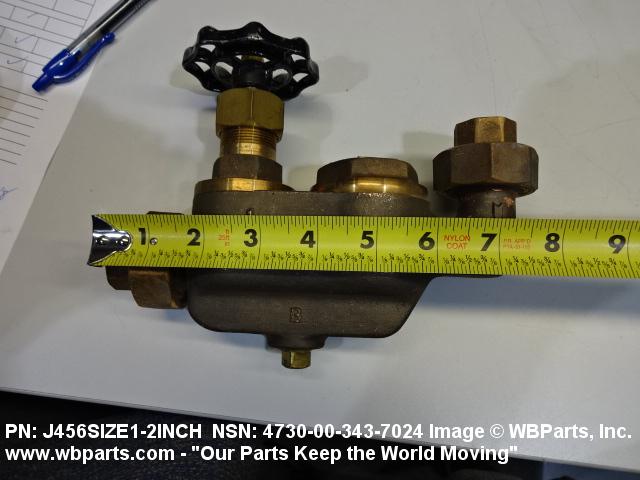

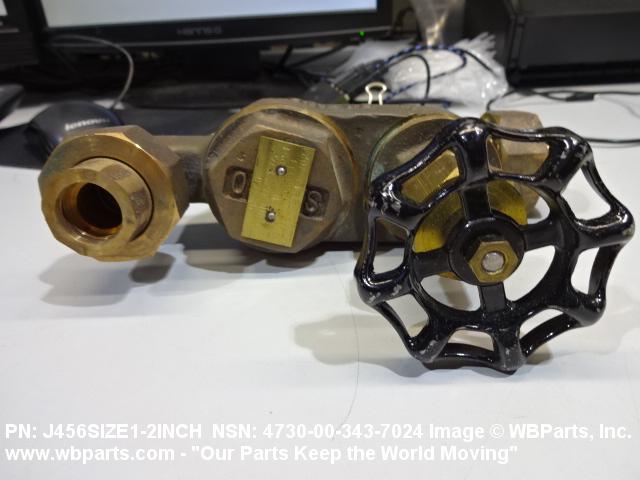

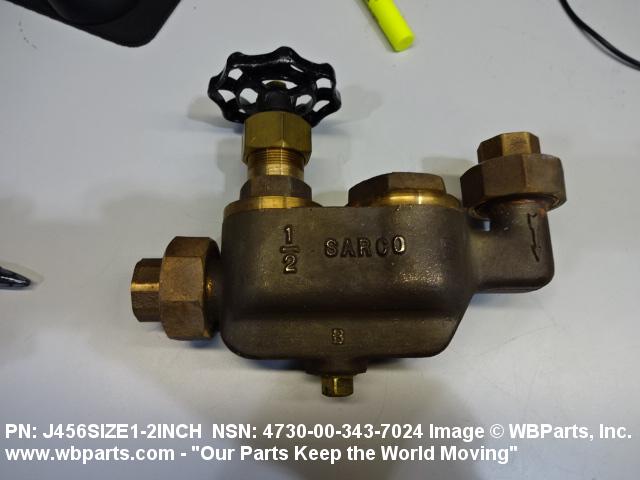

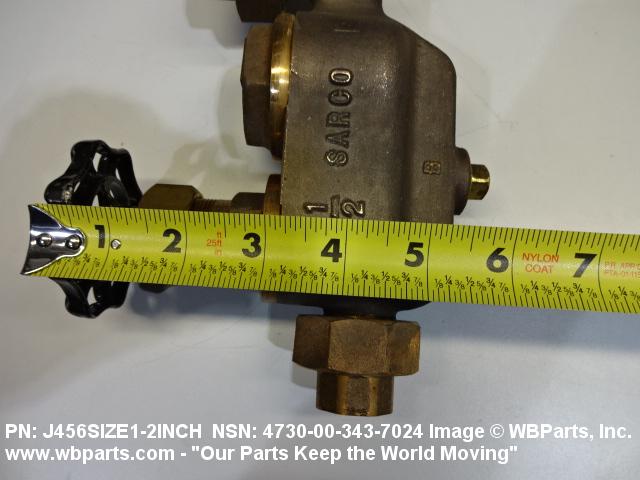

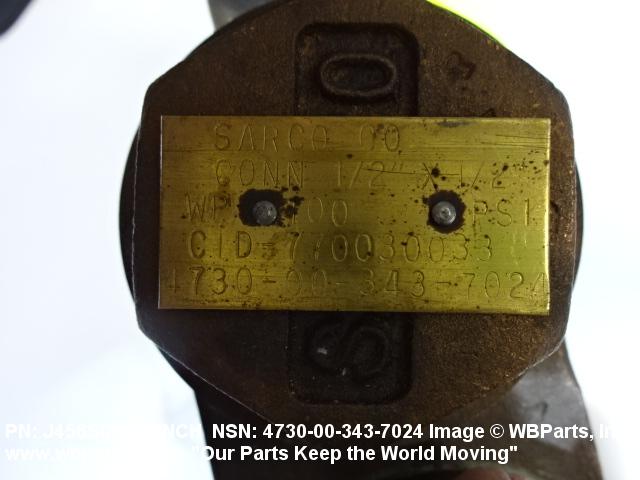

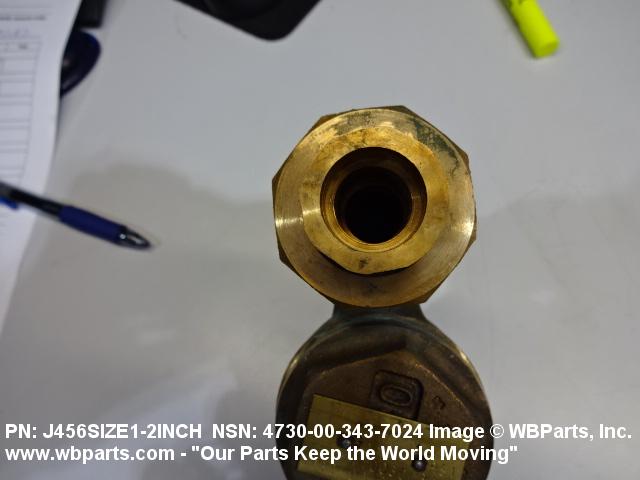

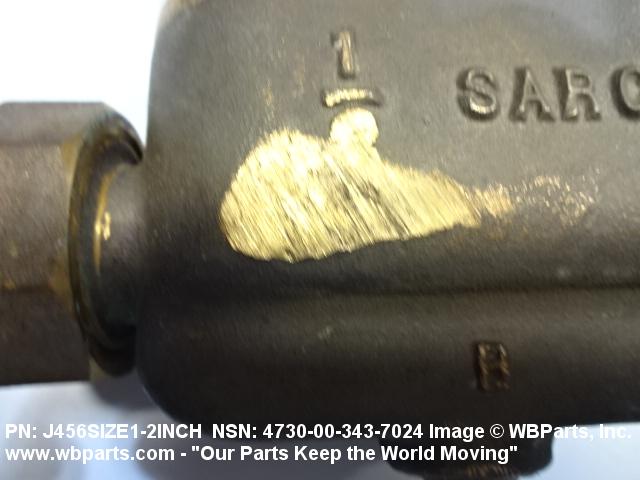

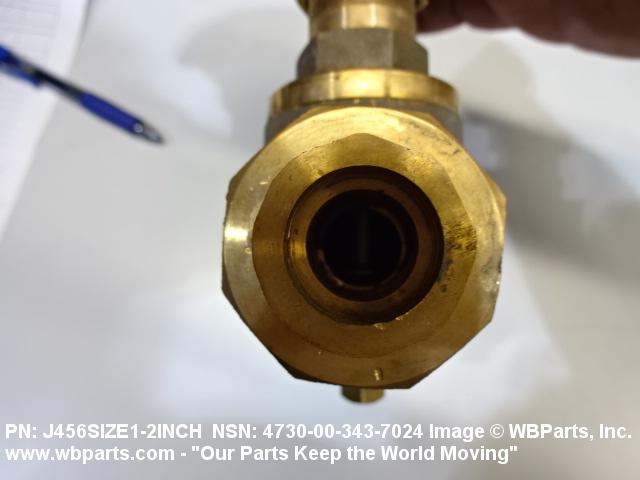

Drawings & Photos | NSN 4730-00-343-7024
Demand History | NSN 4730-00-343-7024
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-343-7024 | 2022-04-112 | 6 | Taiwan |
| B35844 | 2019-11-317 | 44 | DIBBS |
| 4730-00-343-7024 | 2019-09-268 | 13 | US |
| 4730-00-343-7024 | 2019-02-56 | 9 | Taiwan |
| 4730-00-343-7024 | 2018-07-206 | 42 | us |
| 4730-00-343-7024 | 2018-06-162 | 42 | DIBBS |
| 4730-00-343-7024 | 2018-05-144 | 33 | DIBBS |
| 4730-00-343-7024 | 2016-08-224 | 14 | DIBBS |
| 4730-00-343-7024 | 2016-07-213 | 14 | DIBBS |
| 4730-00-343-7024 | 2016-04-102 | 6 | DIBBS |
| 4730-00-343-7024 | 2016-04-102 | 7 | DIBBS |
| 4730-00-343-7024 | 2016-03-89 | 18 | DIBBS |
| 4730-00-343-7024 | 2016-03-89 | 6 | DIBBS |
| 4730-00-343-7024 | 2016-03-89 | 7 | DIBBS |
| 4730-00-343-7024 | 2015-08-236 | 25 | DIBBS |
| 4730-00-343-7024 | 2015-02-58 | 20 | DIBBS |
| 4730-00-343-7024 | 2015-02-47 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-343-7024
Related Products | NSN 4730-00-343-7024
Technical Data | NSN 4730-00-343-7024
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | BRONZE BODY BRONZE CAP BRASS STRAINER STEEL, CORROSION RESISTING VALVE HEAD GUNMETAL WORKING PARTS |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| DESIGN TYPE | THERMOSTATIC |
| BODY DESIGN | ANGLE PATTERN |
| MAXIMUM STEAM WORKING PRESSURE | 100.0 POUNDS PER SQUARE INCH |
| RATED CAPACITY AT MAXIMUM WORKING PRESSURE | 1175.000 POUNDS OF WATER PER HOUR |
| INLET/OUTLET CONNECTION SIMILARITY | IDENTICAL |
| INLET/OUTLET CONNECTION NOMINAL PIPE SIZE | 0.500 INCHES |
| INLET/OUTLET CONNECTION TYPE | TAILPIECE W/UNION NUT |
| INLET/OUTLET CONNECTION THREAD PROVISION | UNTHREADED |
| INLET LOCATION IN RELATION TO INSTALLED POSITION | TOP END |
| OUTLET LOCATION IN RELATION TO INSTALLED POSITION | END |
| STRAINER | NOT INCLUDED |
| GAGE GLASS | NOT INCLUDED |
| SPECIAL FEATURES | SHUT-OFF VALVE INCX |
| III FSC APPLICATION DATA | HEATING EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 4730-00-343-7024
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 130430 | MACHINERY:STEAM TRAPS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-343-7024
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
