NSN 4730-00-337-6753 M157422, M15742-2, MILP15742
Product Details | TUBE REPAIR PLUG

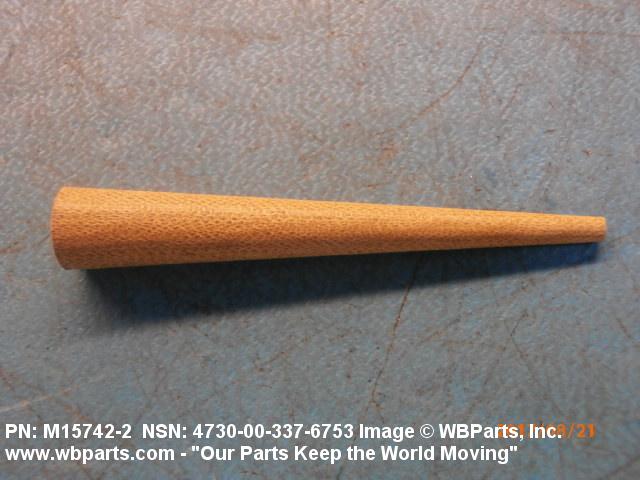

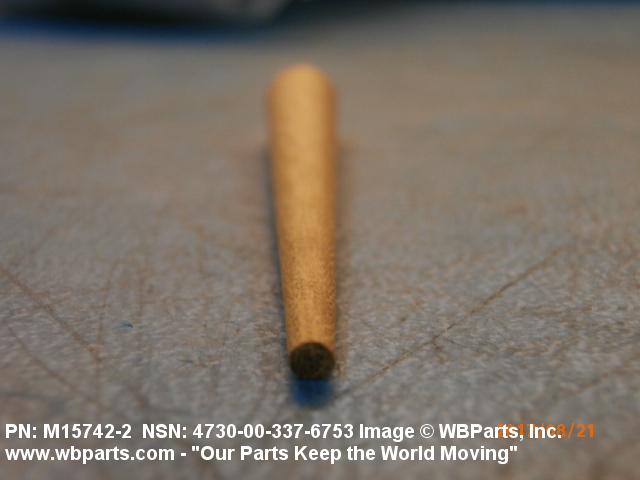

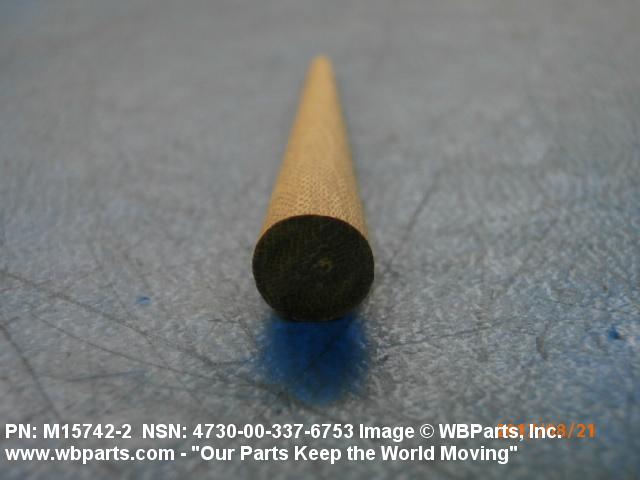

4730-00-337-6753 A tapered item designed to plug temporarily, the end of a leaking boiler tube(s), condenser tube(s), and the like. Excludes PLUG, TUBE REPAIR, EXPANDING. See also CAP-PLUG, RADIATOR TESTING and PLUG, RADIATOR TEST.
Part Alternates: M157422, M15742-2, MILP15742, MIL-P-15742, P37516GJSS, P-375-16GJSS, 50360402600, 5-036-04-026-00 , 52644550, 5-26445-50, 00526445050, 005-26445-050, 125829, 29Y4R221, 3255890, 37M3012A30PCPG, 37M301-2A30PCPG, 4730-00-337-6753, 00-337-6753, 4730003376753, 003376753
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-337-6753 | 13095 ( PLUG, TUBE REPAIR ) |
Drawings & Photos | NSN 4730-00-337-6753
Demand History | NSN 4730-00-337-6753
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-337-6753 | 2024-05-137 | 1184 | DIBBS |
| 4730-00-337-6753 | 2024-03-79 | 6 | United States |
| 4730-00-337-6753 | 2023-11-319 | 1003 | DIBBS |
| 4730-00-337-6753 | 2023-08-214 | 100 | DIBBS |
| 4730-00-337-6753 | 2022-03-83 | 352 | DIBBS |
| 4730-00-337-6753 | 2021-07-196 | 350 | DIBBS |
| MILP15742 | 2019-09-273 | 400 | US |
| M157422 | 2019-03-65 | 1 | United States |
| 4730-00-337-6753 | 2018-05-144 | 657 | DIBBS |
| 4730-00-337-6753 | 2018-04-95 | 807 | DIBBS |
| 4730-00-337-6753 | 2017-08-220 | 50 | United States |
| 4730-00-337-6753 | 2017-07-192 | 370 | DIBBS |
| 4730-00-337-6753 | 2015-10-288 | 456 | DIBBS |
| 4730-00-337-6753 | 2015-08-238 | 355 | DIBBS |
| 4730-00-337-6753 | 2015-06-165 | 286 | DIBBS |
| 4730-00-337-6753 | 2014-08-223 | 1 | DIBBS |
| 4730-00-337-6753 | 2014-07-212 | 199 | DIBBS |
Cross Reference | NSN 4730-00-337-6753
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 005-26445-050 | 09647 | AQUA-CHEM INC. |
| 125829 | 67049 | YOUNG TOUCHSTONE COMPANY DIV YOUNG TOUCHSTONE |
| 29Y4R221 | 95989 | KEWANEE BOILER CORP |
| 3255890 | 55380 | HATCH & KIRK, INC. DIV HATCH & KIRK INC |
| 3255890 | 72915 | GENERAL MOTORS CORP ELECTRO-MOTIVE DIV |
| 3255890 | 95989 | KEWANEE BOILER CORP |
| 37M301-2A30PCPG | 51900 | ITT CORPORATION DBA ITT STANDARD |
| 37M301-2A30PCPG | 6LE50 | FLUID HANDLING, LLC DBA STANDARD XCHANGE |
| 5-036-04-026-00 | 51900 | ITT CORPORATION DBA ITT STANDARD |
| 5-036-04-026-00 | 6LE50 | FLUID HANDLING, LLC DBA STANDARD XCHANGE |
| 5-26445-50 | 09647 | AQUA-CHEM INC. |
| M15742-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-P-15742 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| P-375-16GJSS | 3W327 | JAMES S SCROGGINS CO DBA JAMES S SCROGGINS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-337-6753
Related Products | NSN 4730-00-337-6753
Technical Data | NSN 4730-00-337-6753
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |

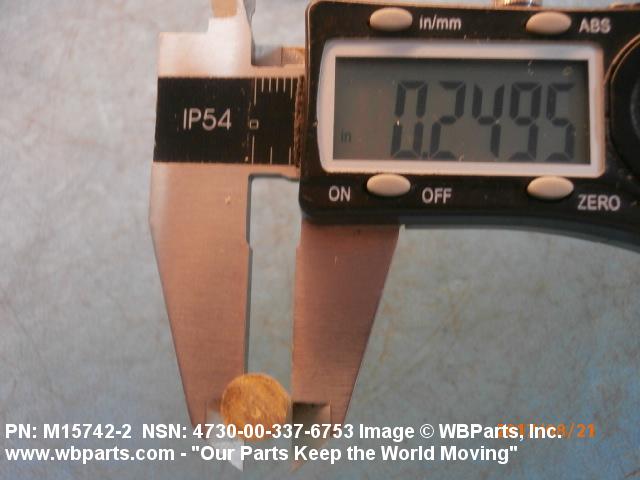

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES |
| NOMINAL OVERALL LENGTH | 2.000 INCHES |

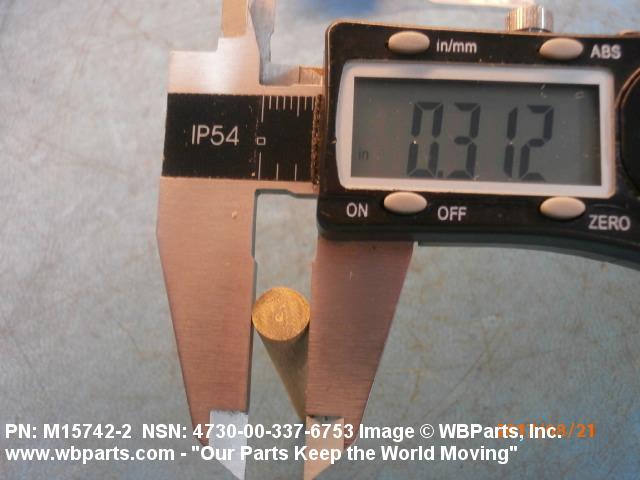

| MAJOR DIAMETER | 0.312 INCHES NOMINAL |

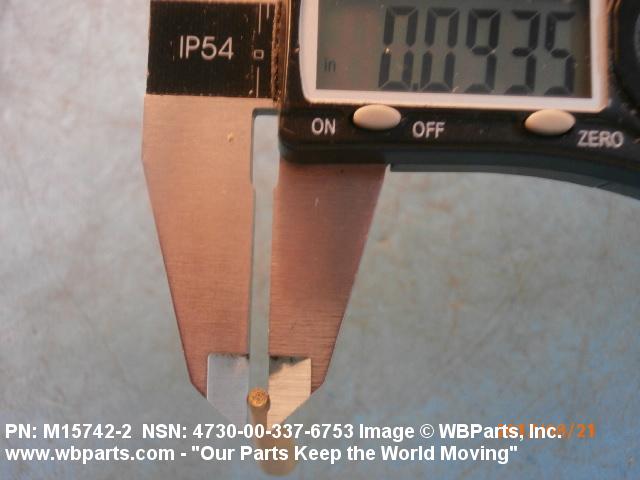

| MINOR DIAMETER | 0.094 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-P-15742 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M15742-2 |
Restrictions/Controls & Freight Information | NSN 4730-00-337-6753
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-337-6753
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
