NSN 4730-00-327-1580 2726046069, 272-6046069, 00-327-1580
Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-327-1580 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: 2726046069, 272-6046069, 4730-00-327-1580, 00-327-1580, 4730003271580, 003271580
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-327-1580 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |

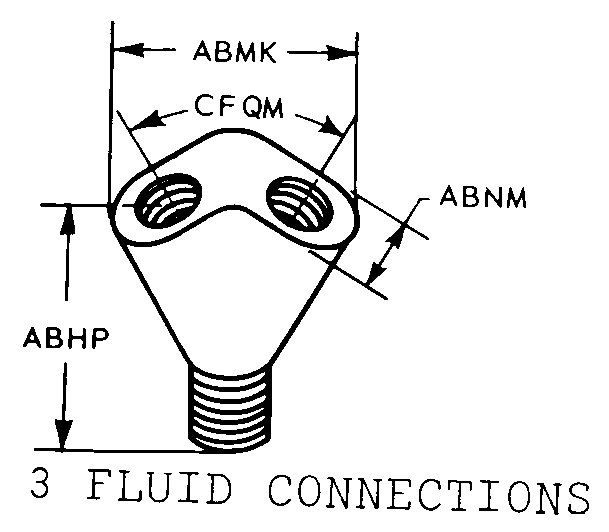

Drawings & Photos | NSN 4730-00-327-1580
Cross Reference | NSN 4730-00-327-1580
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 272-6046069 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-327-1580
Related Products | NSN 4730-00-327-1580
Technical Data | NSN 4730-00-327-1580
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED OR ZINC CHROMATE |
| STYLE DESIGNATOR | D23 3 FLUID CONNECTIONS |
| OVERALL WIDTH | 1.740 INCHES MINIMUM AND 1.760 INCHES MAXIMUM |
| THICKNESS | 0.875 INCHES NOMINAL |
| FLUID CONNECTION QUANTITY | 1 1 1 |
| CONNECTION STYLE | E3 GASKET SEAL G19 FLARED E5 PLAIN |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 1/4 IN. OD TUBE,1/4 IN. ID BOSS,3/16 IN. OD TUBE |
| THREAD PROVISION | THREADED THREADED THREADED |
| THREAD SIZE | 7/16 IN-20 7/16 IN-20 1/2 IN-20 |
| SCREW THREAD SERIES DESIGNATOR | UNF UNF UNF |
| THREAD CLASS | 3B 3A 2B |
| THREAD DIRECTION | RIGHT-HAND RIGHT-HAND RIGHT-HAND |
| SEAT | INCLUDED INCLUDED |
| SEAT ANGLE IN DEG | 60.0 37.0 |
| MANUFACTURERS CODE | 38597 |
| DESIGN CONTROL REFERENCE | 272-6046069 |
Restrictions/Controls & Freight Information | NSN 4730-00-327-1580
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-327-1580
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | KC | SJ:B-57 CANBERRA |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
