NSN 4730-00-311-1156 M8506124A, M85061-24A , MILC85061
Product Details | FLEXIBLE TUBE COUPLING ASSEMBLY
4730-00-311-1156 A multipiece gasket sealed item specifically designed for joining plain end ferruled tubing or beaded end tubing that will accommodate angular misalignment, axial motion and permits expansion and contraction of the tubing. It may be disconnected for seal replacement without disturbing the rest of the line. The seals are not normally furnished with the item. For rigid type items see COUPLING, TUBE; and UNION, TUBE.
Part Alternates: M8506124A, M85061-24A , MILC85061, MIL-C-85061, 745563-105 , 3605243, 3605-24-3, 360524D, 3605-24D, 50031732, 6365120D, 63651-20D , 4730-00-311-1156, 00-311-1156, 4730003111156, 745563105, 003111156
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-311-1156 | 32834 ( COUPLING ASSEMBLY, TUBE, FLEXIBLE ) |

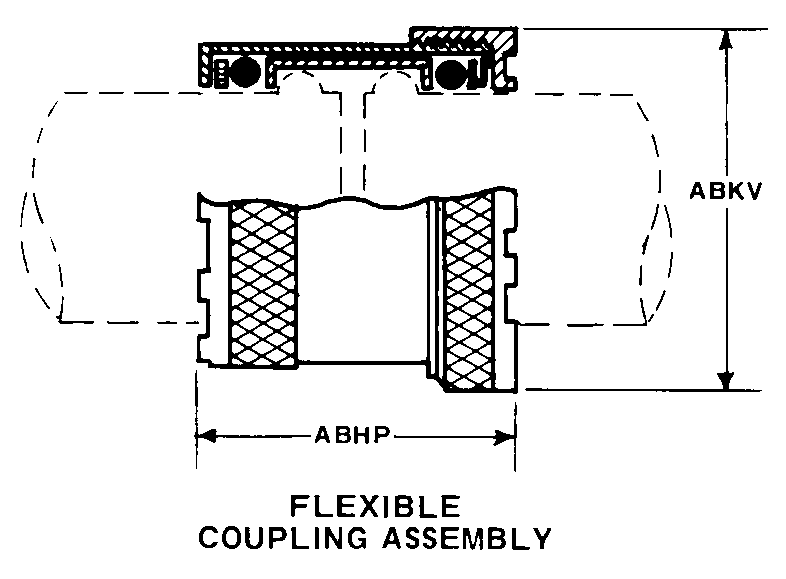

Drawings & Photos | NSN 4730-00-311-1156
Demand History | NSN 4730-00-311-1156
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M85061-24A | 2024-09-263 | 1873 | DIBBS |
| M85061-24A | 2024-08-233 | 1338 | DIBBS |
| M85061-24A | 2024-05-141 | 246 | DIBBS |
| M85061-24A | 2024-03-79 | 289 | DIBBS |
| M85061-24A | 2024-02-52 | 766 | DIBBS |
| M85061-24A | 2023-09-250 | 289 | DIBBS |
| M85061-24A | 2023-08-220 | 1338 | DIBBS |
| M85061-24A | 2023-07-204 | 401 | DIBBS |
| M85061-24A | 2023-01-09 | 147 | DIBBS |
| M85061-24A | 2022-12-341 | 493 | DIBBS |
| M85061-24A | 2022-10-293 | 147 | DIBBS |
| M85061-24A | 2022-05-136 | 133 | DIBBS |
| M85061-24A | 2022-02-53 | 213 | DIBBS |
| M85061-24A | 2021-10-291 | 234 | DIBBS |
| M85061-24A | 2021-06-173 | 145 | DIBBS |
| M85061-24A | 2019-10-287 | 307 | DIBBS |
| M85061-24A | 2019-07-192 | 361 | DIBBS |
| 4730-00-311-1156 | 2019-06-157 | 1000 | US |
| M85061-24A | 2019-05-135 | 310 | DIBBS |
| M85061-24A | 2019-04-100 | 217 | DIBBS |
| 4730-00-311-1156 | 2019-03-88 | 200 | US |
| M85061-24A | 2019-02-59 | 230 | DIBBS |
| 4730-00-311-1156 | 2019-01-28 | 1 | DIBBS-RFPs |
| 4730-00-311-1156 | 2019-01-01 | 670 | DIBBS |
| 4730-00-311-1156 | 2018-11-332 | 213 | DIBBS |
| 4730-00-311-1156 | 2018-11-311 | 235 | DIBBS |
| 4730-00-311-1156 | 2018-10-283 | 222 | DIBBS |
| 4730-00-311-1156 | 2017-12-340 | 330 | DIBBS |
| 4730-00-311-1156 | 2017-07-201 | 214 | DIBBS |
| 4730-00-311-1156 | 2017-05-138 | 212 | DIBBS |
| 4730-00-311-1156 | 2017-02-47 | 210 | DIBBS |
| 4730-00-311-1156 | 2016-05-152 | 868 | DIBBS |
| 4730-00-311-1156 | 2016-04-103 | 445 | DIBBS |
| 4730-00-311-1156 | 2016-01-18 | 424 | DIBBS |
| 4730-00-311-1156 | 2015-12-344 | 216 | DIBBS |
| 4730-00-311-1156 | 2015-09-263 | 357 | DIBBS |
| 360524D | 2014-07-198 | 1 | United States |
| 4730-00-311-1156 | 2014-04-104 | 10 | US |
| 4730-00-311-1156 | 2013-07-186 | 1 | DIBBS-RFPs |
| 4730-00-311-1156 | 2013-02-44 | 257 | DIBBS |
| 4730-00-311-1156 | 2012-11-318 | 100 | DIBBS |
| 3605-24D | 2012-11-310 | 5 | |
| 360524D | 2012-02-54 | 2 | US |
| 4730-00-311-1156 | 2010-12-336 | 784 | DIBBS |
| 4730-00-311-1156 | 2010-08-230 | 595 | DIBBS |
| 4730-00-311-1156 | 2010-07-208 | 354 | DIBBS |
| 4730-00-311-1156 | 2010-06-154 | 66 | DIBBS |
| 4730-00-311-1156 | 2010-06-154 | 94 | DIBBS |
| 4730-00-311-1156 | 2010-06-154 | 172 | DIBBS |
| 4730-00-311-1156 | 2010-06-154 | 375 | DIBBS |
| 360524D | 2009-09-258 | 16 | US |
| 4730-00-311-1156 | 2009-07-194 | 375 | DIBBS |
| 4730-00-311-1156 | 2008-12-366 | 375 | DIBBS |
Cross Reference | NSN 4730-00-311-1156
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3605-24-3 | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
| 3605-24D | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
| M85061-24A | 14963 | MIDDLETON ENTERPRISES, INC DIV AERO TUBE & CONNECTOR DIV. |
| M85061-24A | 24984 | HYDRAFLOW |
| M85061-24A | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
| M85061-24A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-85061 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
