NSN 4730-00-289-8634 MS219148, MS21914-8, AS18280
Product Details | TUBE CAP
4730-00-289-8634 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: MS219148, MS21914-8, AS18280, AS21914, MILF18280, MIL-F-18280, 4730-00-289-8634, 00-289-8634, 4730002898634, 002898634
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-289-8634 | 06074 ( CAP, TUBE ) |

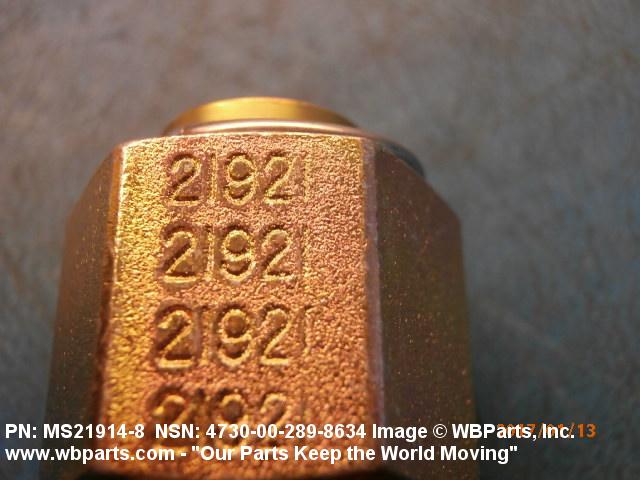

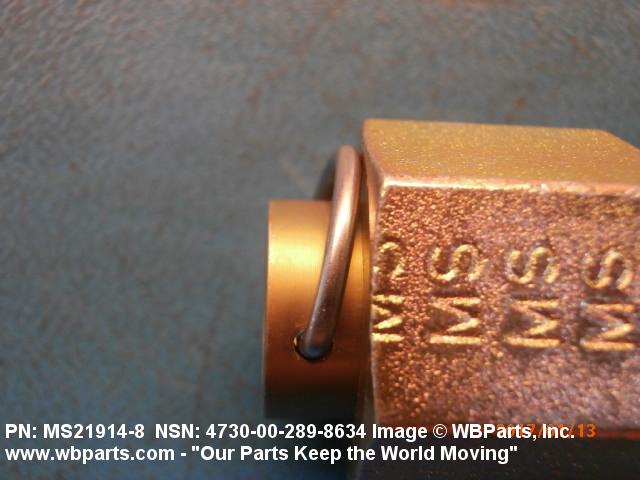

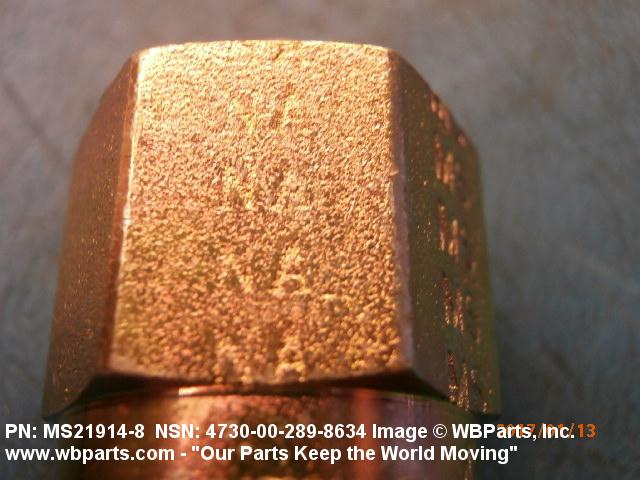

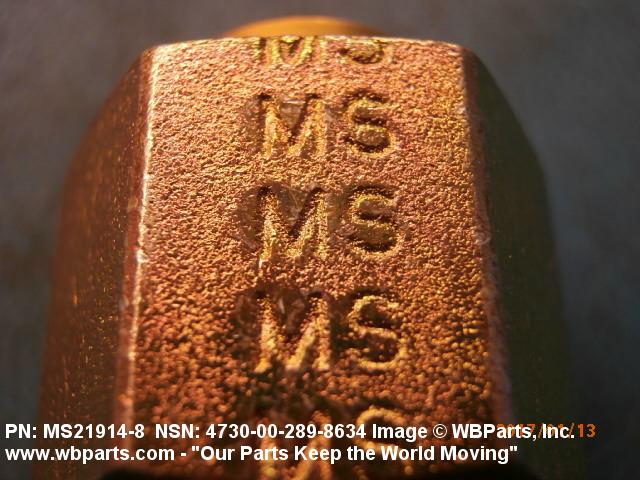

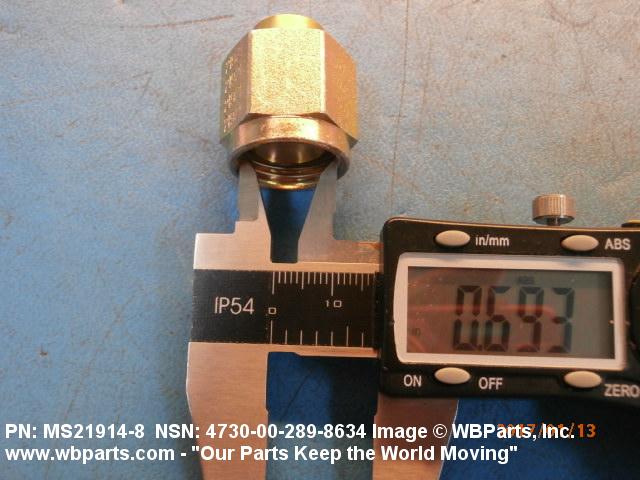

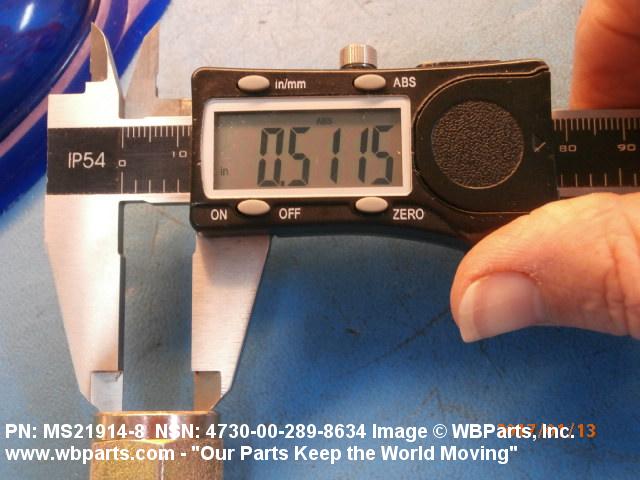

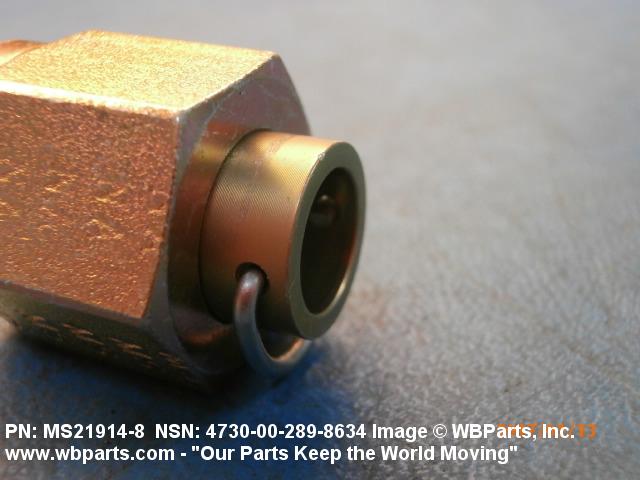

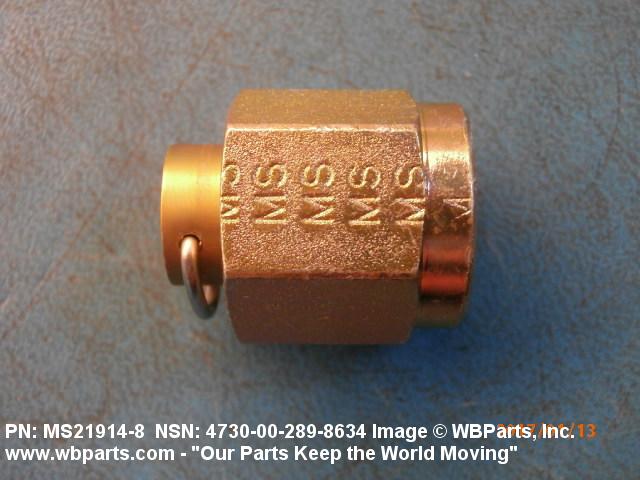

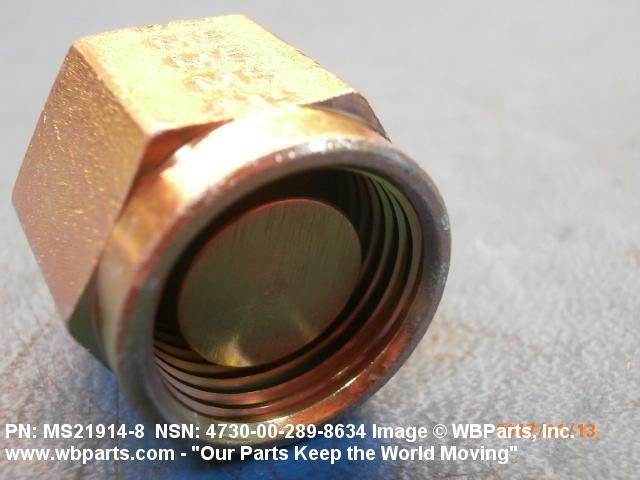

Drawings & Photos | NSN 4730-00-289-8634
Demand History | NSN 4730-00-289-8634
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS219148 | 2024-09-268 | 3 | Spain |
| MS219148 | 2024-09-268 | 3 | Spain |
| MS219148 | 2024-08-218 | 2 | Spain |
| 4730-00-289-8634 | 2024-06-164 | 1 | Germany |
| 4730-00-289-8634 | 2020-03-69 | 80 | US |
| MS219148 | 2020-03-66 | 2 | US |
| 4730-00-289-8634 | 2020-02-55 | 4 | US |
| MS219148 | 2017-01-11 | 12 | United States |
| 4730-00-289-8634 | 2016-11-307 | 2 | United States |
| 4730-00-289-8634 | 2016-04-95 | 2 | United States |
| MS219148 | 2015-08-217 | 4 | US |
| AS18280 | 2014-10-280 | 1 | US |
| MS219148 | 2012-04-114 | 16 | United States |
| 4730-00-289-8634 | 2009-04-110 | 4 | US |
Cross Reference | NSN 4730-00-289-8634
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4730002898634 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21914 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-18280 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21914-8 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21914-8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-289-8634
Related Products | NSN 4730-00-289-8634
Technical Data | NSN 4730-00-289-8634
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1213 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | A14 CAP, TUBE, FLARELESS |
| CONNECTION STYLE | G6 PRESSURE SEAL FLARELESS |
| THREAD SERIES DESIGNATOR | UNJF INTERNAL |
| NOMINAL THREAD SIZE | 0.750 INCHES INTERNAL |
| THREAD CLASS | 3B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| SEAT NOMINAL RADIUS | 0.0225 INCHES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES NOMINAL |
| SPECIAL FEATURES | WITH HOLDING DEVICE;WEAPON SYSTEM ESSENTIAL |
| SPECIFICATION/STANDARD DATA | 96906-MS21914 GOVERNMENT STANDARD |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | GRUMMAN AEROSPACE INC SUPPORTS A10 AIRCRAFT;AIRCRAFT, F-16 |
| (NON-CORE DATA) SAFETY WIRE HOLE QUANTITY | 2 |
Restrictions/Controls & Freight Information | NSN 4730-00-289-8634
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 040500 | CAP/PLUG (PROTECTOR) |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-289-8634
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
