NSN 4730-00-289-8124 B1651961, B16-5-1961, B165SCHEDULE80
Product Details | PIPE FLANGE
4730-00-289-8124 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: B1651961, B16-5-1961, B165SCHEDULE80, B16-5SCHEDULE80, 4730-00-289-8124, 00-289-8124, 4730002898124, 002898124
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-289-8124 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-00-289-8124
Demand History | NSN 4730-00-289-8124
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-289-8124 | 2017-05-135 | 2 | DIBBS |
| 4730-00-289-8124 | 2016-09-250 | 3 | DIBBS |
| 4730-00-289-8124 | 2016-08-237 | 3 | DIBBS |
| 4730-00-289-8124 | 2012-04-96 | 18 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-289-8124
Technical Data | NSN 4730-00-289-8124
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-18410,CLASS A MIL SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 4.875 INCHES NOMINAL |
| FLANGE DIAMETER | 7.000 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 1.125 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |

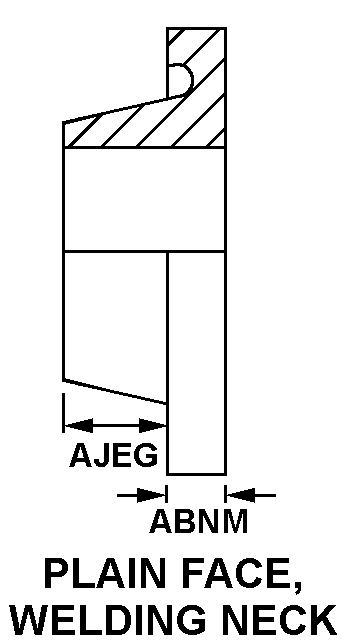

| FLANGE SECTION STYLE | 12 PLAIN FACE, WELDING NECK |
| THICKNESS | 1.250 INCHES NOMINAL |
| RAISED FACE HEIGHT | 0.250 INCHES NOMINAL |
| RAISED FACE DIAMETER | 2.875 INCHES NOMINAL |
| NECK HEIGHT | 2.000 INCHES NOMINAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 1.500 INCHES |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 1500.0 POUNDS PER SQUARE INCH STEAM |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 975.0 DEG FAHRENHEIT STEAM |
| FACE SEATING SURFACE CONDITION | MACHINED |
| NONDEFINITIVE SPEC/STD DATA | 28 TABLE AND 29 TABLE |
| DEPARTURE FROM CITED DESIGNATOR | ASMODIFIED BY MATERIAL,BORED FOR USE WITH SCHEDULE 80 PIPE |
