NSN 4730-00-287-3699 AN9171D, AN917-1D, AS4857D01
Product Details | PIPE TEE

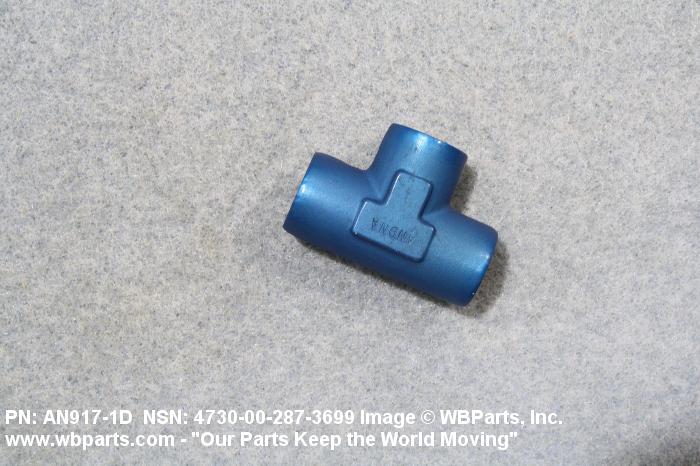

4730-00-287-3699 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have standard pipe threads or 1s unthreaded and designed to accommodate a pipe. It may have side inlet(s). It is used as a junction at the intersection of pipe or pipe fittings.
Part Alternates: AN9171D, AN917-1D, AS4857D01, SAE AS4842, SAE AS4857, SAEAS4842, SAEAS4857, MILF5509, 488 474, 488474, 10180, 13303, 1N9171D, 1N917-1D, 2137591D, 213759-1D, 2721133P1, 272-1133P1, 4730-00-287-3699, 00-287-3699, 4730002873699, 002873699
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-287-3699 | 03805 ( TEE, PIPE ) |

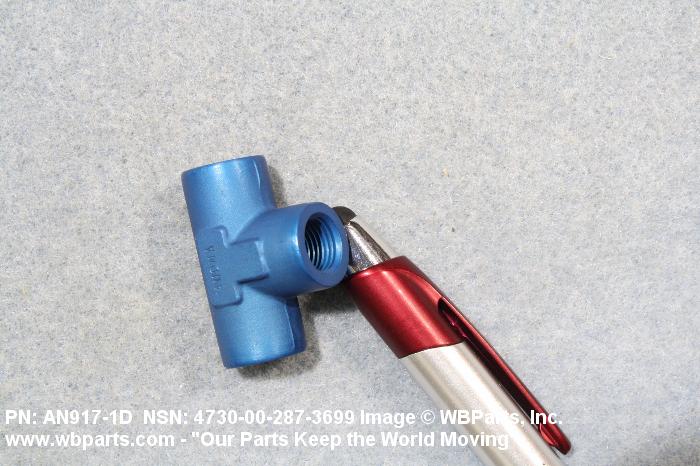

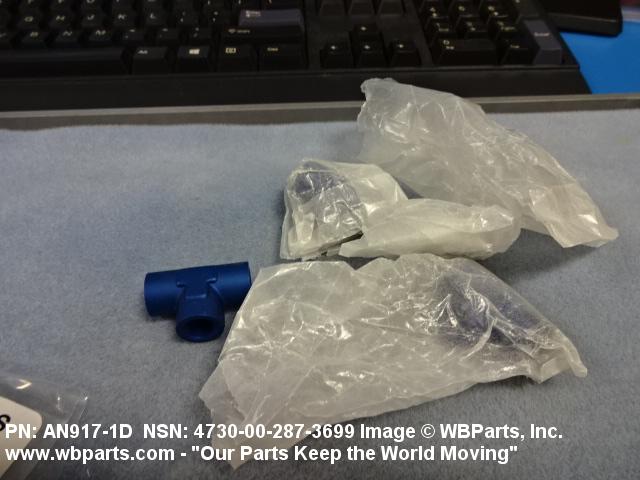

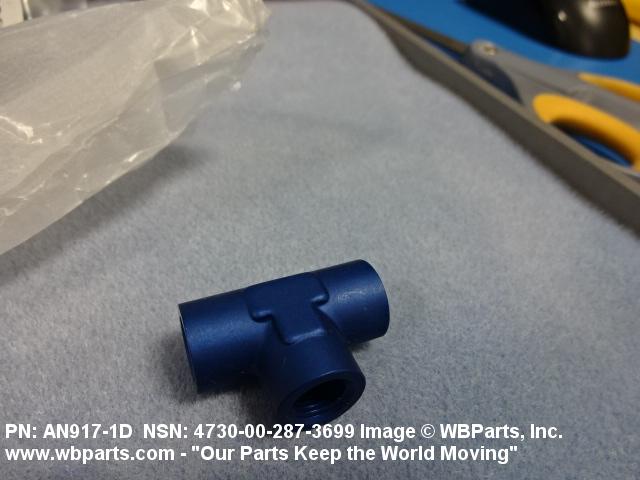

Drawings & Photos | NSN 4730-00-287-3699
Demand History | NSN 4730-00-287-3699
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN9171D | 2024-09-254 | 50 | United States |
| 10180 | 2021-07-187 | 1 | OM |
| AN9171D | 2020-12-342 | 5 | United States |
| MILF5509 | 2018-07-201 | 6 | United States |
| AN9171D | 2016-06-154 | 18 | United States |
| 4730-00-287-3699 | 2016-04-95 | 67 | DIBBS |
| 4730-00-287-3699 | 2015-07-186 | 210 | DIBBS |
| 4730-00-287-3699 | 2014-05-149 | 147 | DIBBS |
| 4730-00-287-3699 | 2014-05-131 | 23 | DIBBS |
| 4730-00-287-3699 | 2011-06-180 | 25 | DIBBS |
| MILF5509 | 2009-10-301 | 1 | PK |
| 4730-00-287-3699 | 2009-10-299 | 66 | DIBBS |
| MILF5509 | 2009-02-55 | 100 | US |
| 4730-00-287-3699 | 2008-12-337 | 58 | DIBBS |
| 4730-00-287-3699 | 2008-11-319 | 27 | DIBBS |
| 13303 | 2008-07-213 | 30 | US |
| AN9171D | 2006-06-165 | 11 | United States |
Cross Reference | NSN 4730-00-287-3699
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10180 | 11599 | TRIUMPH ENGINE CONTROL SYSTEMS, LLC |
| 13303 | 70188 | FRANKLIN ENGINE CO INC |
| 1N917-1D | 14397 | FABER ENTERPRISES, INC. |
| 213759-1D | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 272-1133P1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 488 474 | 77294 | PIPER AIRCRAFT INC. |
| AN917-1D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN917-1D | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN917-1D | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN917-1D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN917-1D | 22995 | CROWN FITTING CO INC |
| AN917-1D | 30974 | AEROFIT, LLC |
| AN917-1D | 71563 | COLLINS ENGINEERING CORP |
| AN917-1D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN917-1D | R1120 | SATAIR A/S |
| AS4857D01 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MILF5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SAE AS4842 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| SAE AS4857 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-287-3699
Related Products | NSN 4730-00-287-3699
Technical Data | NSN 4730-00-287-3699
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/4,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED INTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | B14A PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | ANPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.125 INCHES ALL ENDS |

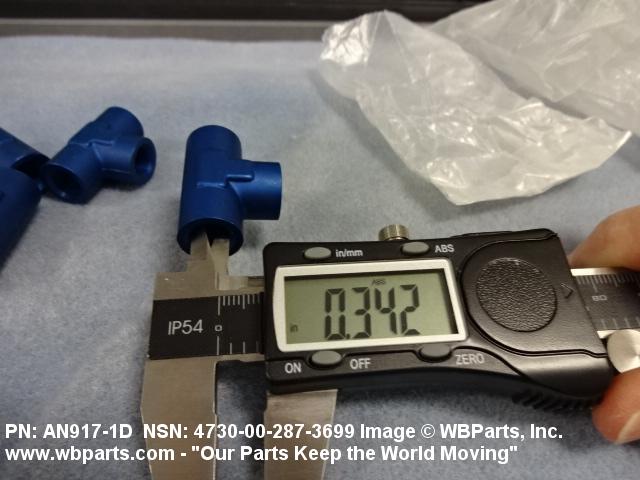

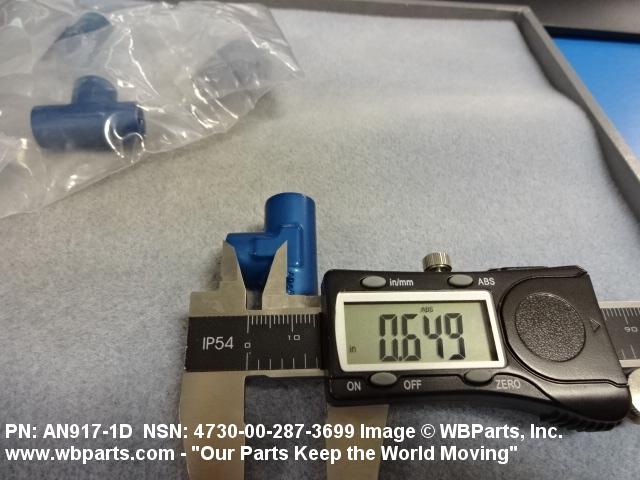

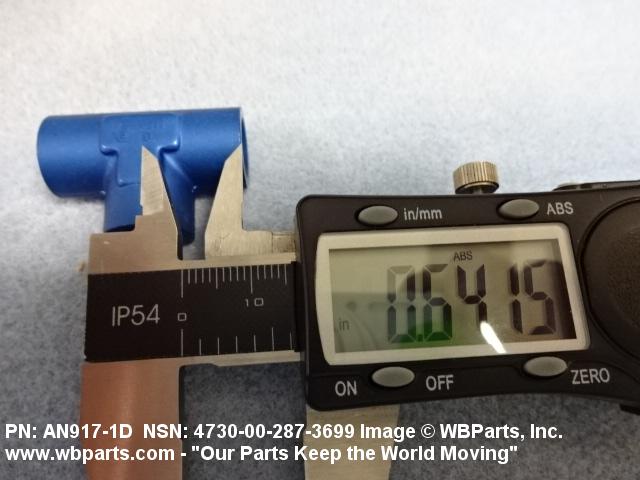

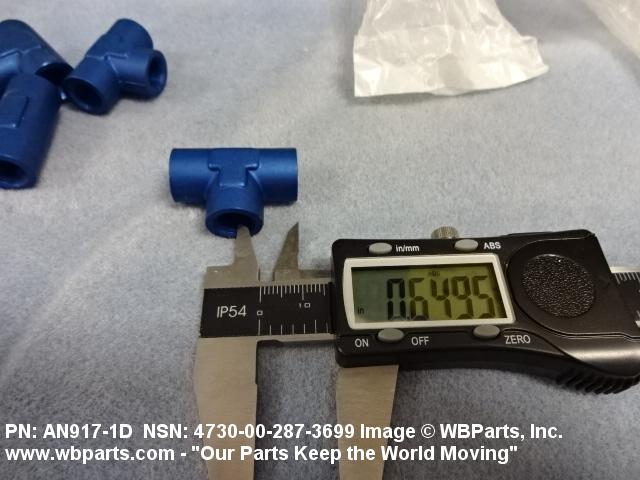

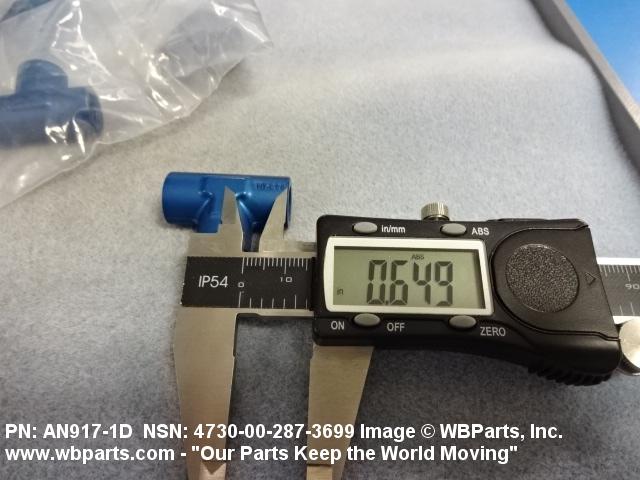

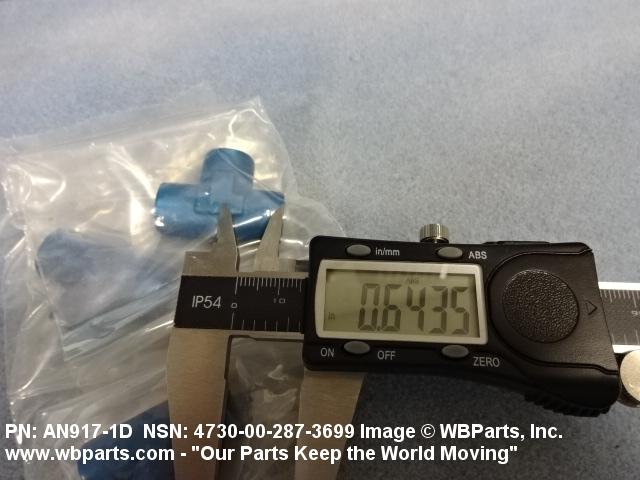

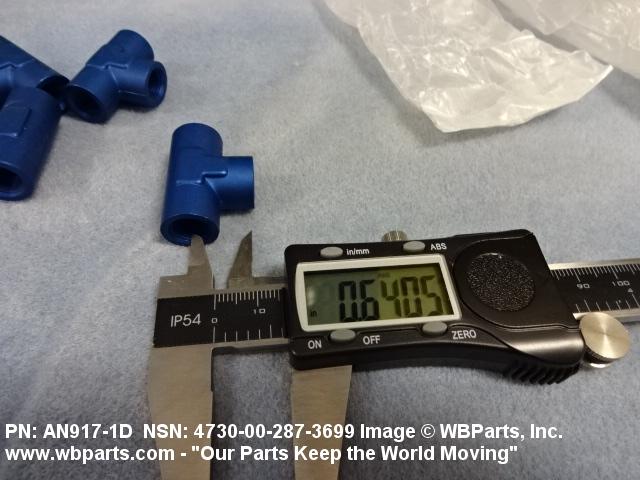

| LEG LENGTH | 0.641 INCHES NOMINAL ALL ENDS |
