NSN 4730-00-287-1363 MS208232, MS20823-2, AN8232
Product Details | PIPE TO TUBE ELBOW

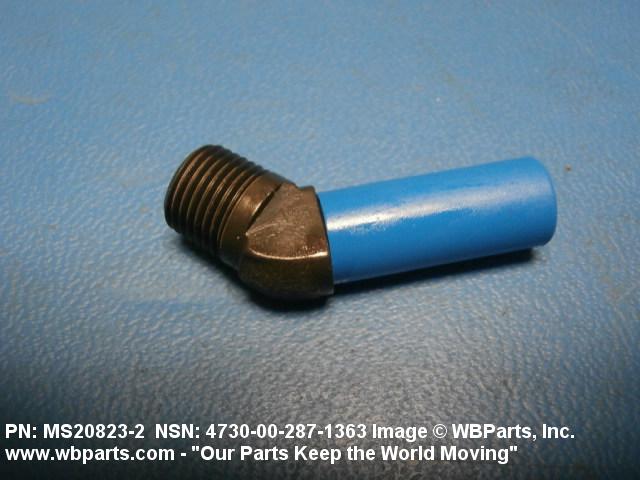

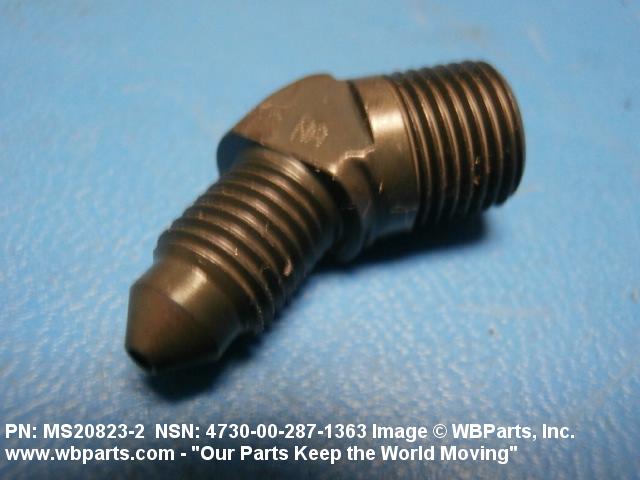

4730-00-287-1363 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS208232, MS20823-2, AN8232, AN823-2, AS4842/1, AS48421, AS5196, AS51960202, AS5196-0202, 4730-00-287-1363, 00-287-1363, 4730002871363, 002871363
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-287-1363 | 03770 ( ELBOW, PIPE TO TUBE ) |

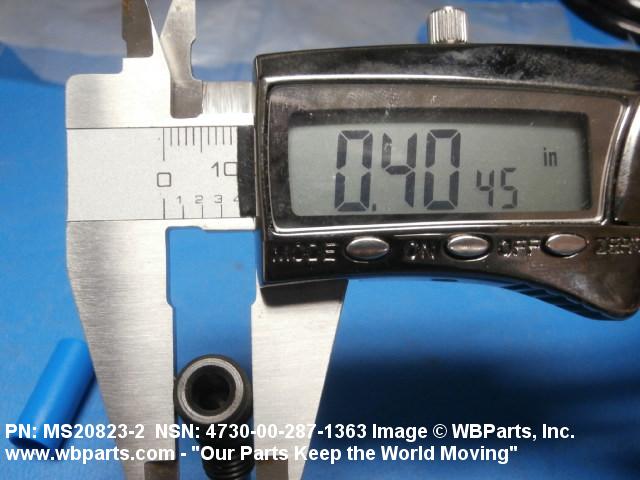

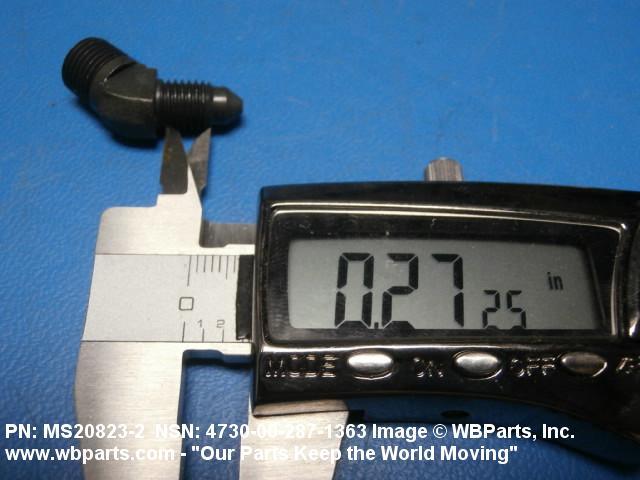

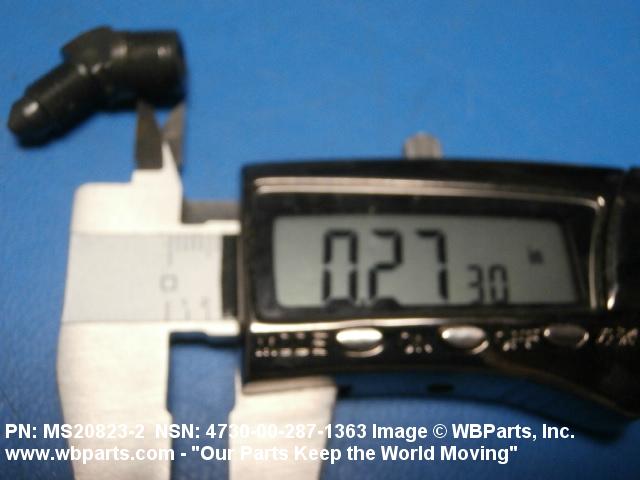

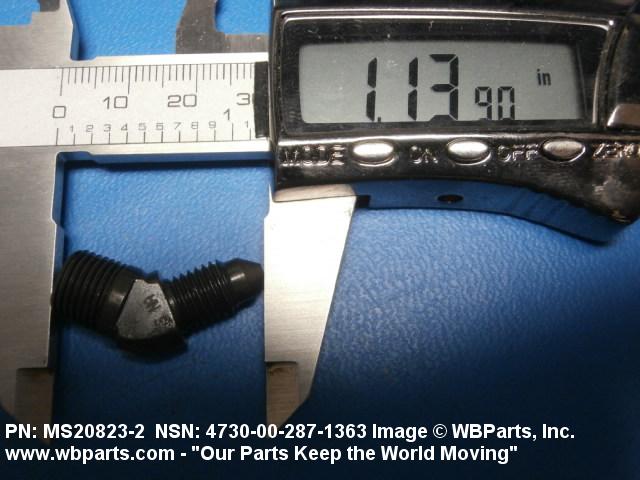

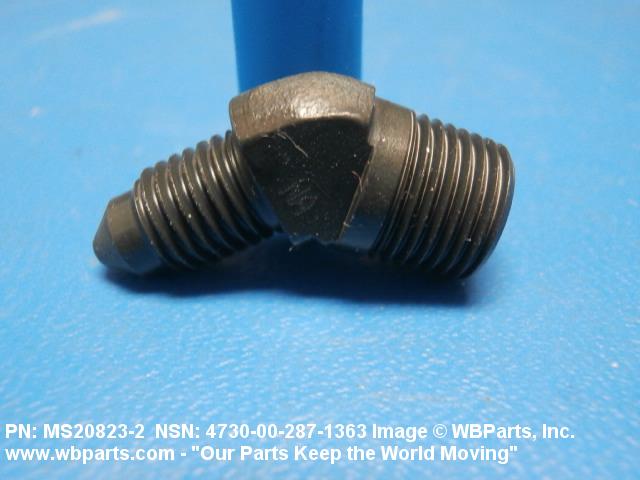

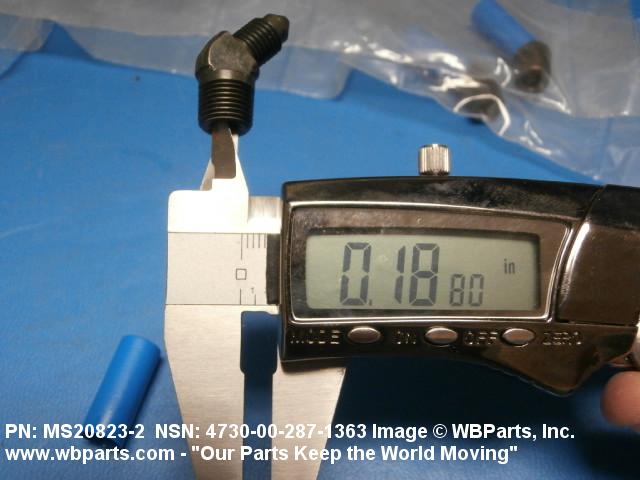

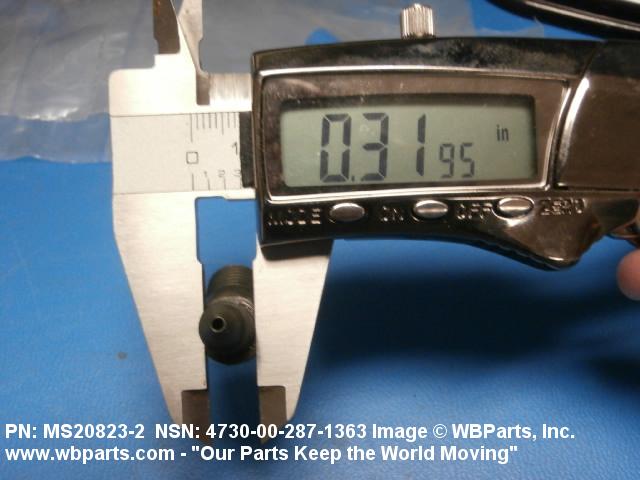

Drawings & Photos | NSN 4730-00-287-1363
Demand History | NSN 4730-00-287-1363
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-287-1363 | 2021-02-41 | 1 | FR |
| 4730-00-287-1363 | 2020-11-324 | 15 | Sweden |
| 4730-00-287-1363 | 2016-02-39 | 25 | DIBBS |
| 4730-00-287-1363 | 2016-01-19 | 5 | Sweden |
| AS48421 | 2015-05-132 | 1 | CA |
Cross Reference | NSN 4730-00-287-1363
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN823-2 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4842/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5196 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5196-0202 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS20823-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-287-1363
Related Products | NSN 4730-00-287-1363
Technical Data | NSN 4730-00-287-1363
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1137 OR STEEL COMP 1141 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66,AISI/SAE 1137 OR 1141 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND OIL OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC 1ST TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B63B INVERTED FLARE 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 30.0 DEGREES 2ND END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.125 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.125 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END NPT 2ND END |
| NOMINAL THREAD SIZE | 0.312 INCHES 1ST END 0.125 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END |
| LEG LENGTH | 0.609 INCHES MINIMUM AND 0.641 INCHES MAXIMUM 1ST END 0.500 INCHES MINIMUM AND 0.540 INCHES MAXIMUM 2ND END |
| FLOW ANGLE | 45.0 DEGREES |
| SPECIAL FEATURES | GRUMMAN A-10 AICRAFT |
| SPECIFICATION/STANDARD DATA | 96906-MS20823 GOVERNMENT STANDARD |
