NSN 4730-00-287-1027 MS2082212D, MS20822-12D, AN82212D
Product Details | PIPE TO TUBE ELBOW
4730-00-287-1027 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS2082212D, MS20822-12D, AN82212D, AN822-12D, AS5195, AS5195D1212, 74001, 7400-1, 4730-00-287-1027, 00-287-1027, 4730002871027, 002871027
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-287-1027 | 03770 ( ELBOW, PIPE TO TUBE ) |

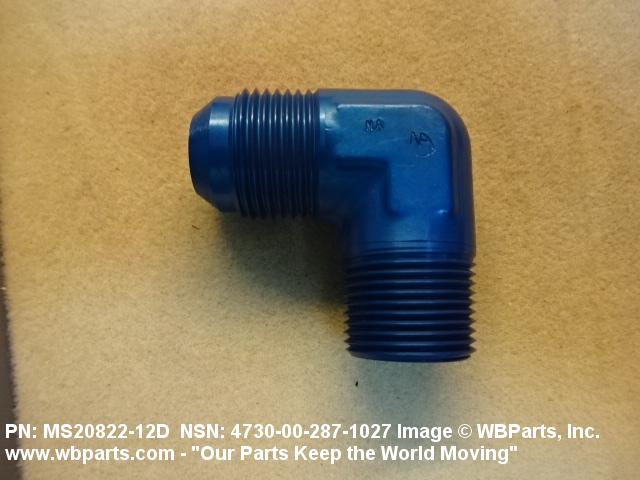

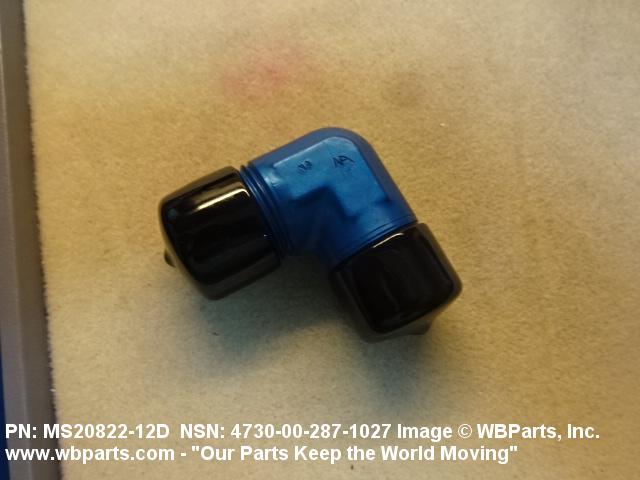

Drawings & Photos | NSN 4730-00-287-1027
Demand History | NSN 4730-00-287-1027
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-287-1027 | 2012-04-92 | 20 | Colombia |
| 4730-00-287-1027 | 2008-11-318 | 576 | US |
| 4730-00-287-1027 | 2008-11-316 | 576 | DIBBS |
Cross Reference | NSN 4730-00-287-1027
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7400-1 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 7400-1 | 79470 | DANA CORP WEATHERHEAD DIV |
| AN822-12D | 16058 | TELECTRO-MEK INC |
| AN822-12D | 71563 | COLLINS ENGINEERING CORP |
| AN822-12D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS5195 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5195D1212 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS20822-12D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS20822-12D | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| MS20822-12D | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| MS20822-12D | 14397 | FABER ENTERPRISES, INC. |
| MS20822-12D | 22995 | CROWN FITTING CO INC |
| MS20822-12D | 30974 | AEROFIT, LLC |
| MS20822-12D | 71563 | COLLINS ENGINEERING CORP |
| MS20822-12D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20822-12D | R1120 | SATAIR A/S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-287-1027
Related Products | NSN 4730-00-287-1027
Technical Data | NSN 4730-00-287-1027
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B67B PLAIN 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.750 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJ 1ST END ANPT 2ND END |

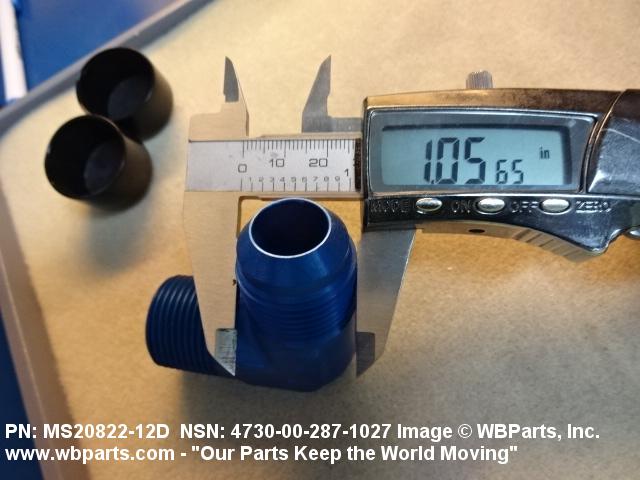

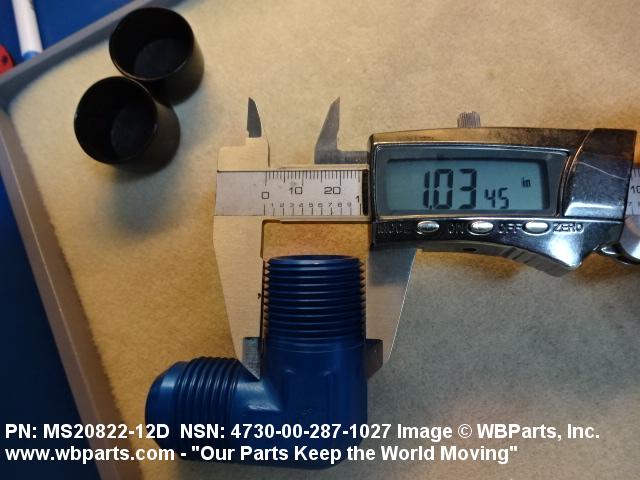

| NOMINAL THREAD SIZE | 1.062 INCHES 1ST END 0.750 INCHES 2ND END |

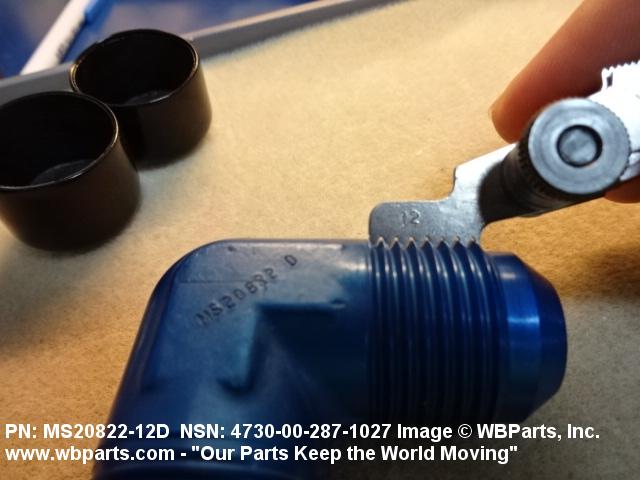

| THREAD QUANTITY PER INCH | 12 1ST END |
| THREAD CLASS | 3A 1ST END |

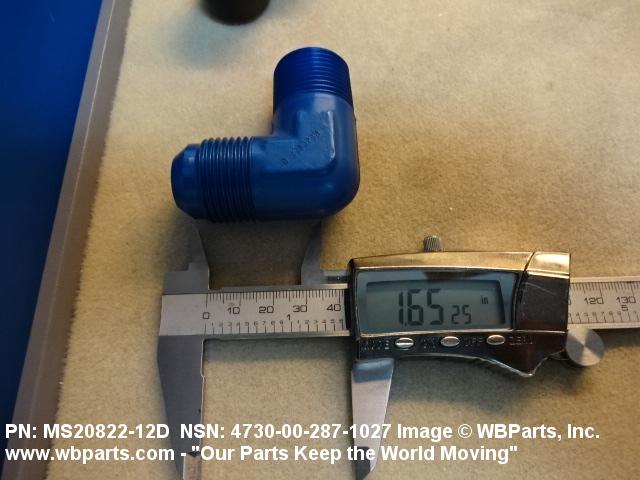

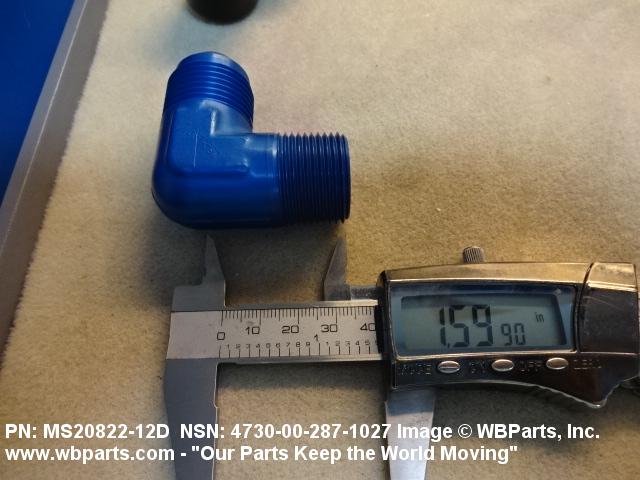

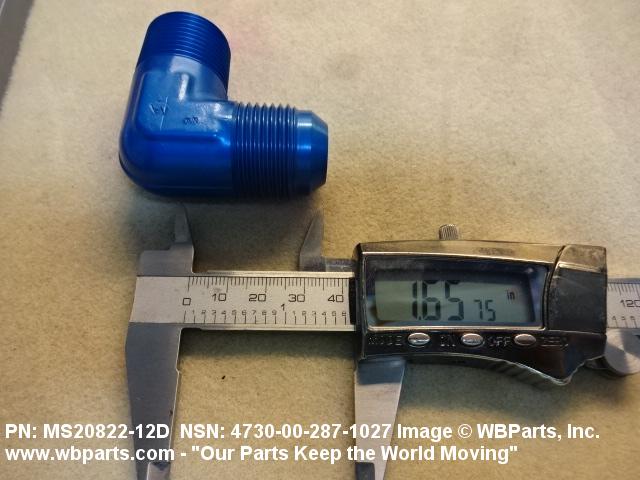

| LEG LENGTH | 1.656 INCHES NOMINAL 1ST END 1.594 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| SPECIAL FEATURES | GRUMMAN A-10 AIRCRAFT |
| SPECIFICATION/STANDARD DATA | 96906-MS20822 GOVERNMENT STANDARD AND 88044-AN822 GOVERNMENT STANDARD |
Restrictions/Controls & Freight Information | NSN 4730-00-287-1027
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-287-1027
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
