NSN 4730-00-278-8165 MS21907D6, MS21907W6, AN83916
Product Details | TUBE ELBOW
4730-00-278-8165 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS21907D6, MS21907W6, AN83916, AN839-16, AS18280, AS21907, AS21907D6, ER837D6, 4730-00-278-8165, 00-278-8165, 4730002788165, 002788165
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-278-8165 | 03771 ( ELBOW, TUBE ) |

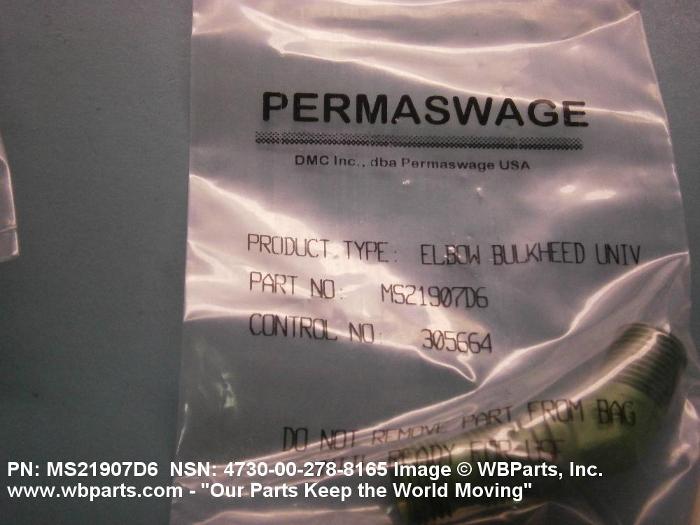

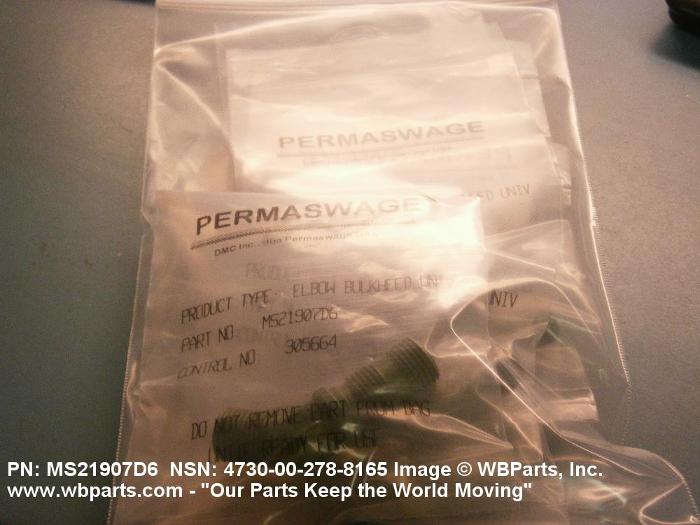

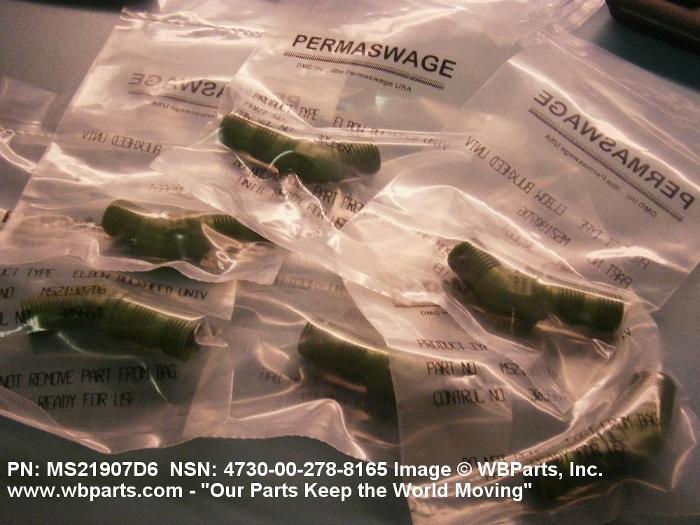

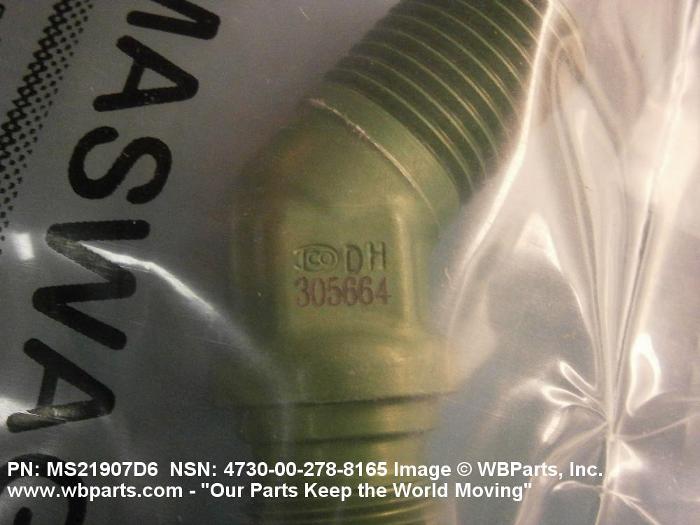

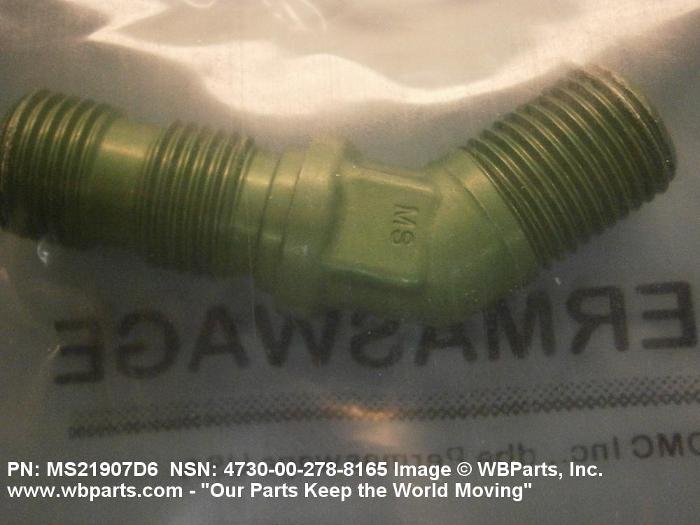

Drawings & Photos | NSN 4730-00-278-8165
Demand History | NSN 4730-00-278-8165
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21907D6 | 2021-10-286 | 3 | Philippines |
| 4730-00-278-8165 | 2018-02-32 | 417 | DIBBS |
| 4730-00-278-8165 | 2017-12-339 | 583 | DIBBS |
| 4730-00-278-8165 | 2017-06-152 | 442 | DIBBS |
| 4730-00-278-8165 | 2017-05-141 | 442 | DIBBS |
| MS21907W6 | 2015-02-47 | 3 | United States |
| AS18280 | 2014-10-280 | 1 | US |
| 4730-00-278-8165 | 2013-04-98 | 589 | DIBBS |
| MS21907D6 | 2012-07-207 | 6 | United States |
| MS21907D6 | 2012-07-185 | 6 | United States |
| 4730-00-278-8165 | 2011-05-123 | 231 | DIBBS |
| MS21907D6 | 2011-02-42 | 75 | HK |
| 4730-00-278-8165 | 2010-09-267 | 95 | DIBBS |
| 4730-00-278-8165 | 2010-09-267 | 95 | DIBBS |
| 4730-00-278-8165 | 2010-09-250 | 51 | DIBBS |
| 4730-00-278-8165 | 2010-08-232 | 71 | DIBBS |
| 4730-00-278-8165 | 2010-07-211 | 213 | DIBBS |
| 4730-00-278-8165 | 2007-03-67 | 21 | United Kingdom |
Cross Reference | NSN 4730-00-278-8165
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN839-16 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21907 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21907D6 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| ER837D6 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| ER837D6 | 79470 | DANA CORP WEATHERHEAD DIV |
| MS21907D6 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS21907D6 | 03647 | GLOBE AEROSPACE INC |
| MS21907D6 | 14397 | FABER ENTERPRISES, INC. |
| MS21907D6 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| MS21907D6 | 50948 | PARKER HANNIFIN CORP STRATOFLEX DIV AIRCRAFT FITTINGS OPN |
| MS21907D6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21907D6 | R1120 | SATAIR A/S |
| MS21907W6 | 59680 | B. & E. MANUFACTURING CO., INC. |
| MS21907W6 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-278-8165
Related Products | NSN 4730-00-278-8165
Technical Data | NSN 4730-00-278-8165
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 275.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END UNTHREADED EXTERNAL HOSE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B103 BEADED 2ND END |
| SEAT ANGLE | 12.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS UNJF 1ST END BULKHEAD |
| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS 0.562 INCHES 1ST END BULKHEAD |
| THREAD CLASS | 3A ALL ENDS 3A 1ST END BULKHEAD |
| LEG LENGTH | 1.562 INCHES NOMINAL 1ST END 0.812 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 45.0 DEGREES |
| SPECIAL FEATURES | USED ON GRUMMAN AIRCRAFT,MODEL A10 |
| SPECIFICATION/STANDARD DATA | 96906-MS21907 GOVERNMENT STANDARD |
Restrictions/Controls & Freight Information | NSN 4730-00-278-8165
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-278-8165
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
