NSN 4730-00-278-5554 WWP401, 00-278-5554, 002785554
Product Details | SOIL PIPE TEE
4730-00-278-5554 A fitting consisting of a run and a branch. The branch may be either curved or straight, but the axis of the end connection intersects the axis of the run at right angles. It may have side inlets.
Part Alternates: WWP401, 4730-00-278-5554, 00-278-5554, 4730002785554, 002785554
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-278-5554 | 03814 ( TEE, SOIL PIPE ) |
Drawings & Photos | NSN 4730-00-278-5554
Cross Reference | NSN 4730-00-278-5554
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WWP401 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-278-5554
Technical Data | NSN 4730-00-278-5554
| Characteristic | Specifications |
|---|---|

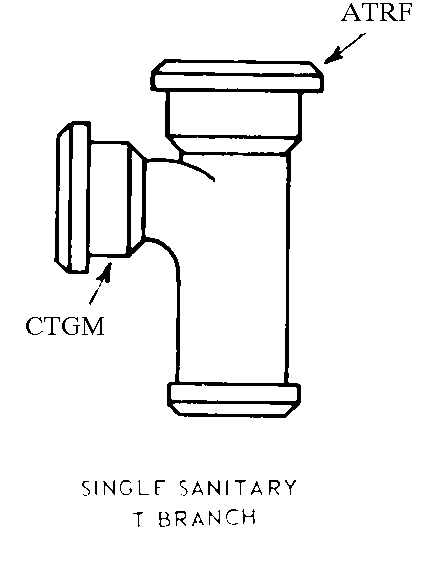

| STYLE DESIGNATOR | W12 SINGLE SANITARY T BRANCH |
| NOMINAL PIPE SIZE | 3.000 INCHES |
| BRANCH NOMINAL PIPE SIZE ACCOMMODATED | 3.000 INCHES |
| MATERIAL | IRON, CAST, QQ-I-652 |
| WALL THICKNESS DESIGNATION | EXTRA HEAVY WEIGHT |
| NONDEFINITIVE SPEC/STD DATA | XH CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WWP401 |
Restrictions/Controls & Freight Information | NSN 4730-00-278-5554
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
