Product Details | PIPE PLUG

4730-00-278-3011 A pipe fitting primarily designed for permanent installation during piping systems operations to fit into another pipe or pipe fitting for sealing. It usually is threaded.

Part Alternates: M1183/7-08, M1183708, CS4730D11908ADE, CS4730-D11908ADE, MILF183H, MIL-F-183H, 4730-00-278-3011, 00-278-3011, 4730002783011, 002783011

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 01 JAN 1961 00-278-3011

Drawings & Photos | NSN 4730-00-278-3011


Demand History | NSN 4730-00-278-3011

Part Number Request Date QTY Origin
4730-00-278-3011 2022-05-144 130 DIBBS
4730-00-278-3011 2022-05-125 130 DIBBS
4730-00-278-3011 2017-11-306 151 DIBBS
4730-00-278-3011 2015-03-89 103 DIBBS
4730-00-278-3011 2014-03-71 173 DIBBS
4730-00-278-3011 2014-02-56 173 DIBBS
4730-00-278-3011 2012-07-208 35 DIBBS
4730-00-278-3011 2012-06-166 34 DIBBS
4730-00-278-3011 2012-01-05 49 DIBBS
4730-00-278-3011 2011-12-339 12 DIBBS
4730-00-278-3011 2011-08-216 15 DIBBS
4730-00-278-3011 2010-03-69 38 DIBBS
4730-00-278-3011 2009-01-20 2 DIBBS
4730-00-278-3011 2008-08-219 65 DIBBS

Cross Reference | NSN 4730-00-278-3011

Part Number Cage Code Manufacturer
CS4730-D11908ADE 16236 DLA LAND AND MARITIME
M1183/7-08 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-F-183H 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-278-3011

Technical Data | NSN 4730-00-278-3011

Characteristic Specifications
MATERIAL COPPER ALLOY 922 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-C-390 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
DRIVE END STYLE 1 RAISED SQUARE

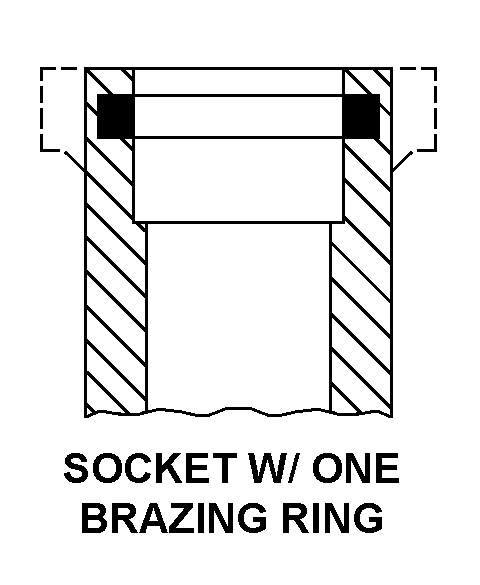

CONNECTION STYLE H6 SOCKET WITH ONE BRAZING RING
NOMINAL PIPE SIZE FOR WHICH DESIGNED 2.000 INCHES
HEAD TYPE SOLID
BODY TYPE CORED
BODY CORE DIAMETER 1.859 INCHES NOMINAL
CORE DEPTH 0.562 INCHES NOMINAL
NONDEFINITIVE SPEC/STD DATA 19 FIGURE
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-F-183H
MANUFACTURERS CODE 81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M1183/7-08

Restrictions/Controls & Freight Information | NSN 4730-00-278-3011

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 052185 PIPE,TUBING,OR PIPE OR TUBING FIT
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 576 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4730-00-278-3011

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
