NSN 4730-00-277-6836 MS24393D6, AA2750832D6, AA2750-832D6

Product Details | TUBE TO BOSS STRAIGHT ADAPTER

4730-00-277-6836 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.

Part Alternates: MS24393D6, AA2750832D6, AA2750-832D6, AN8286D, AN828-6D, AN8326D, AN832-6D, AS4841, AS5406, AS5406D06, C2750832D6, C2750-832D6, DACH50A506D, DACH50A50-6D, MILF5509, MIL-F-5509, Z00.N7730062093, Z00N7730062093, 101264D6, 1-01264D6, 10178917 , 3110103, 31500D6, 4120588996D6, 4120-588996D6, 47308052221, 4730-805-2221 , 5202D6, 6715874, 946.20.65.505, 9462065505, 4730-00-277-6836, 00-277-6836, 4730008052221 , 4730002776836, 002776836

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-277-6836	22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS )

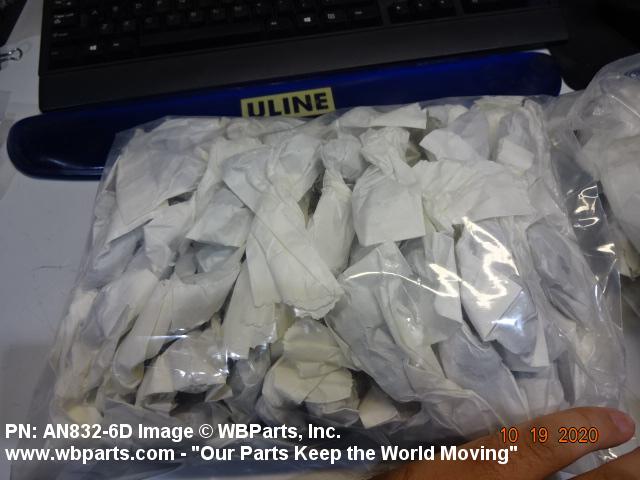

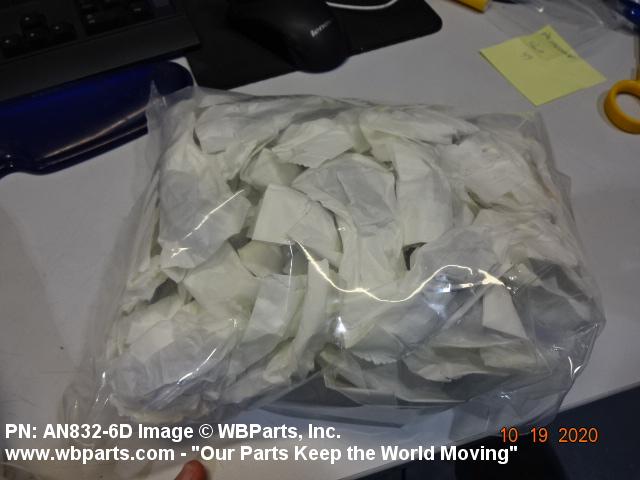

Drawings & Photos | NSN 4730-00-277-6836

Part Number	Request Date	QTY	Origin
AN8326D	2024-09-263	50	United States
AN8326D	2024-09-263	50	United States
AN8326D	2024-07-200	1000	US
AN8326D	2024-04-103	6	United States
AN8326D	2024-04-102	3	US
AN8326D	2023-10-298	4	Croatia
AN8326D	2023-09-272	20	United States
4730-00-277-6836	2023-09-264	539	DIBBS
AN8326D	2023-09-249	11	United States
4730-00-277-6836	2022-09-244	126	DIBBS
4730-00-277-6836	2021-02-54	126	DIBBS
4730-00-277-6836	2020-04-99	50	United States
4730-00-277-6836	2019-01-31	205	DIBBS
MILF5509	2018-07-201	6	United States
4730008052221	2018-03-78	10	US
4730-00-277-6836	2017-09-254	225	DIBBS
4730-00-277-6836	2017-09-249	801	DIBBS
AN8326D	2017-09-244	25	United States
AN8326D	2016-10-302	10	United States
MS24393D6	2016-10-284	6	Pakistan
4730-00-277-6836	2015-05-133	5	United States
AN832-6D	2014-03-71	23	United States
4730-00-277-6836	2013-06-156	1739	DIBBS
4730-00-277-6836	2012-12-348	941	DIBBS
AN832-6D	2012-07-184	1	United States
4730-00-277-6836	2012-01-25	969	DIBBS
AS4841	2011-03-69	8
4730-00-277-6836	2010-10-288	15	US
MILF5509	2009-10-301	1	PK
4730-00-277-6836	2009-04-97	1828	DIBBS
MILF5509	2009-02-55	100	US

Cross Reference | NSN 4730-00-277-6836

Part Number	Cage Code	Manufacturer
1-01264D6	00624	EATON CORPORATION DBA AEROSPACE DIV
3110103	001JK	EMBRAER S/A
3110103	FB459	EMBRAER AVIATION INTERNATIONAL
3110103	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
31500D6	14397	FABER ENTERPRISES, INC.
4120-588996D6	50948	PARKER HANNIFIN CORP STRATOFLEX DIV AIRCRAFT FITTINGS OPN
4120-588996D6	92003	PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
4730-805-2221	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
4730008052221	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5202D6	17341	TECH AERO INC
6715874	24617	GENERAL MOTORS CORP
946.20.65.505	S4080	PILATUS AIRCRAFT LTD
AA2750-832D6	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
AN828-6D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN832-6D	22995	CROWN FITTING CO INC
AN832-6D	33269	PARKER-HANNIFIN CORPORATION DBA PARKER HANNIFIN CORPORATION
AN832-6D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS4841	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5406	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5406D06	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
C2750-832D6	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
DACH50A50-6D	81205	THE BOEING COMPANY DBA BOEING
MIL-F-5509	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS24393D6	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
MS24393D6	13899	HYDRO FITTING MANUFACTURING CORPORATION
MS24393D6	30974	AEROFIT, LLC
MS24393D6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
Z00.N7730062093	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-277-6836

Compare

Related Products | NSN 4730-00-277-6836

4730-00-277-6837, 4730-00-277-6839, 4730-00-277-6841, 4730-00-277-6842, 4730-00-277-6843

Technical Data | NSN 4730-00-277-6836

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY OVERALL
SURFACE TREATMENT	ANODIZE INSIDE ANODIZE OUTSIDE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-A-8625,TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END
CONNECTION STYLE	B64 FLARED 1ST END B81 FLARED W/GASKET SEAL 2ND END
SEAT ANGLE	37.0 DEGREES 1ST END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.375 INCHES 1ST END
THREAD SERIES DESIGNATOR	UNJF ALL ENDS UNJF 1ST END BULKHEAD
NOMINAL THREAD SIZE	0.562 INCHES ALL ENDS 0.562 INCHES 1ST END BULKHEAD
THREAD CLASS	3A ALL ENDS 3A 1ST END BULKHEAD
NOMINAL OVERALL LENGTH	2.219 INCHES
SPECIFICATION/STANDARD DATA	81343-AS4841 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 4730-00-277-6836

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-277-6836

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
