NSN 4730-00-277-3330 5000S482364496, 5000S4823-64496, 64496
Product Details | PIPE FLANGE
4730-00-277-3330 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 5000S482364496, 5000S4823-64496, 64496, 4730-00-277-3330, 00-277-3330, 4730002773330, 002773330
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-277-3330 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-00-277-3330
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-277-3330
Technical Data | NSN 4730-00-277-3330
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-872 MIL SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 2.625 INCHES NOMINAL |
| FLANGE DIAMETER | 3.750 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.500 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |

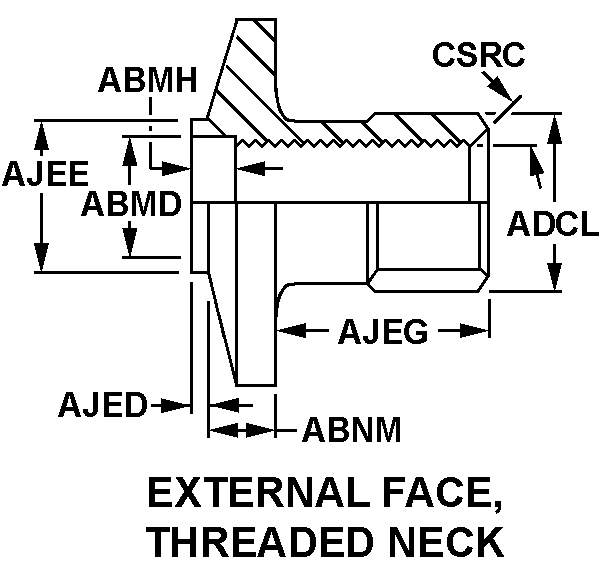

| FLANGE SECTION STYLE | 47 EXTERNAL FACE, THREADED NECK |
| RECESS DIAMETER | 0.493 INCHES NOMINAL |
| RECESS DEPTH | ANY ACCEPTABLE |
| THICKNESS | 0.562 INCHES NOMINAL |
| NECK DIAMETER | 0.840 INCHES NOMINAL |
| RAISED FACE HEIGHT | 0.250 INCHES NOMINAL |
| RAISED FACE DIAMETER | 2.000 INCHES NOMINAL |
| NECK HEIGHT | 5.188 INCHES NOMINAL |
| BOSS BEVEL ANGLE | ANY ACCEPTABLE |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 0.375 INCHES |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 600.0 POUNDS PER SQUARE INCH STEAM |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 850.0 DEG FAHRENHEIT STEAM |
| FACE SEATING SURFACE CONDITION | MACHINED |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY REPLY NO. 1 |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 5000S4823-64496 |
Restrictions/Controls & Freight Information | NSN 4730-00-277-3330
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-277-3330
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
