NSN 4730-00-277-2854 AN9152D, AN915-2D, AS4842
Product Details | PIPE ELBOW

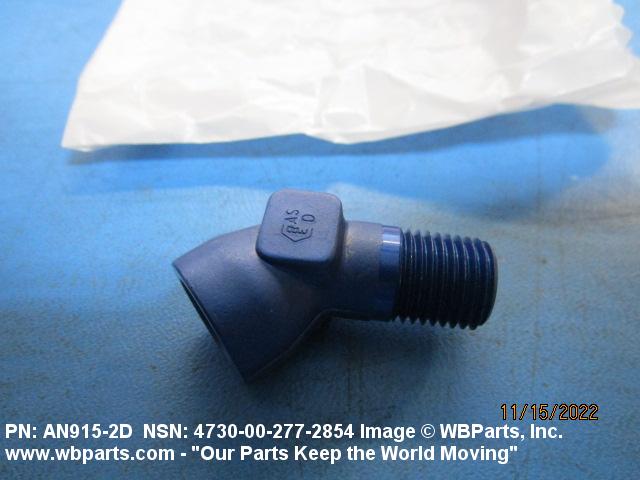

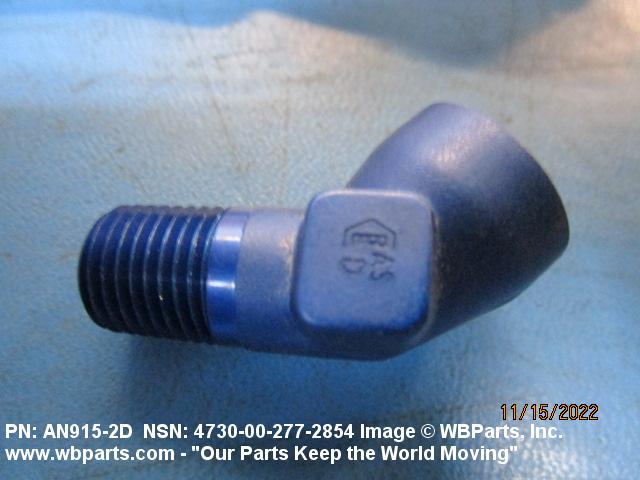

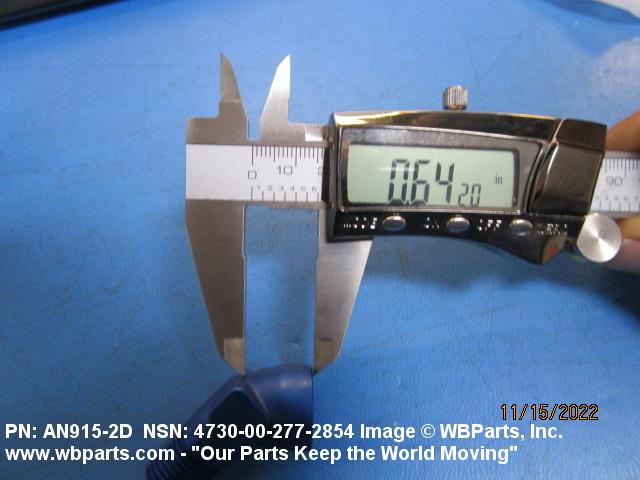

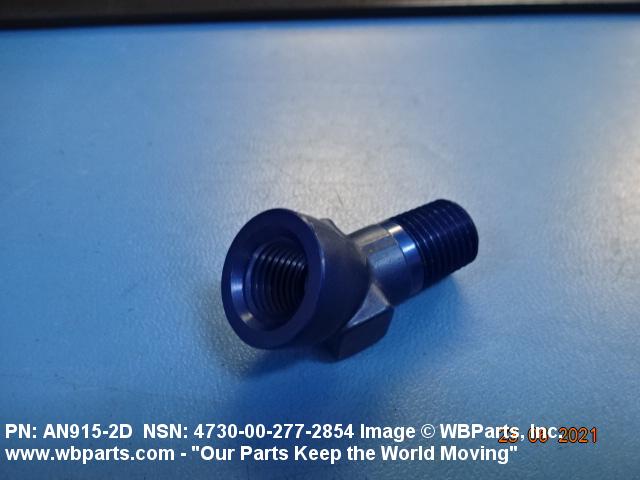

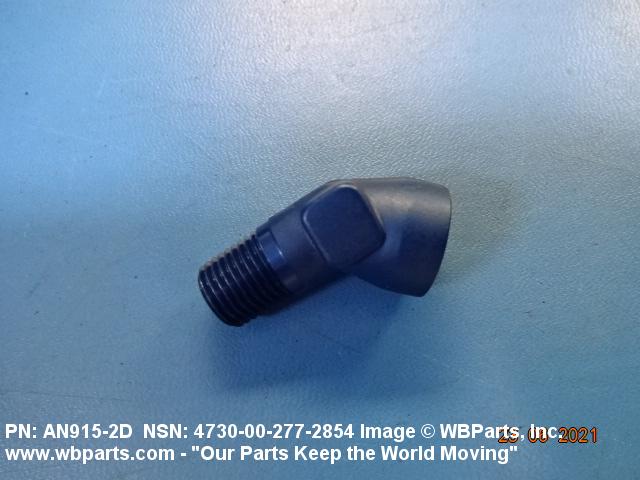

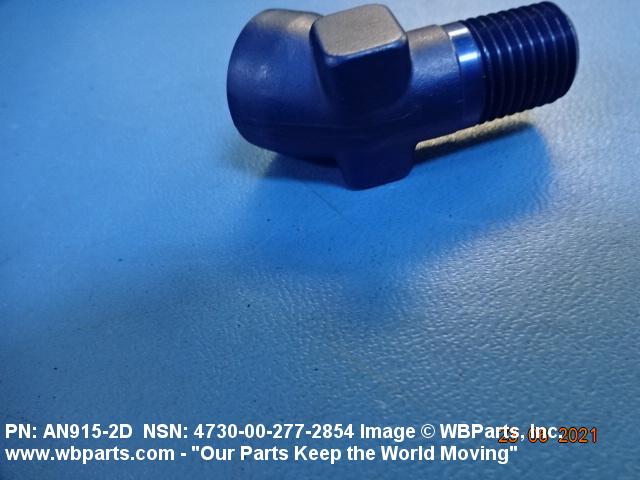

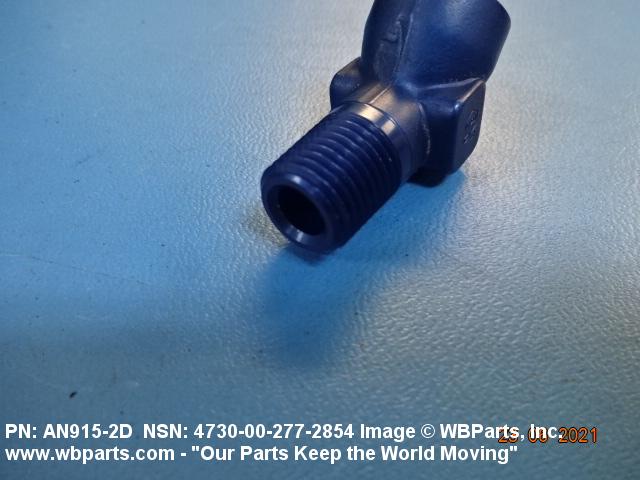

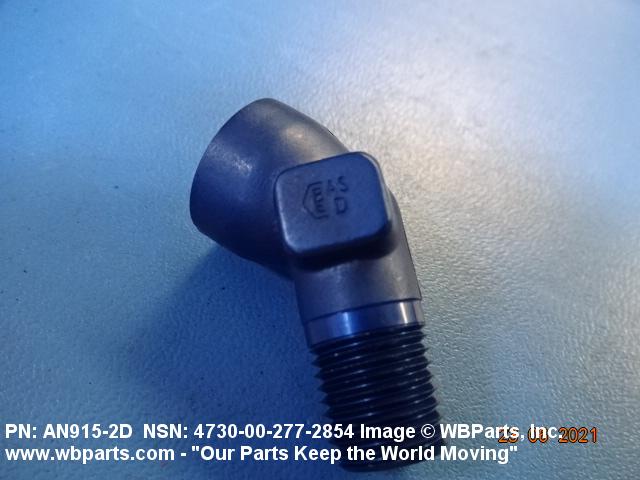

4730-00-277-2854 A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. Both connecting ends have standard pipe threads or are unthreaded and designed to accommodate a pipe. It may have side or heel inlet(s). See also ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. Excludes BEND, SOIL PIPE.
Part Alternates: AN9152D, AN915-2D, AS4842, AS4855, AS4855D02, NA9152D, NA915-2D, 14CD45DEGD, 1-4CD45DEGD, 1-4CD45DEG-D, 33504, 3350-4, 4730-00-277-2854, 00-277-2854, 4730002772854, 002772854
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-277-2854 | 03768 ( ELBOW, PIPE ) |

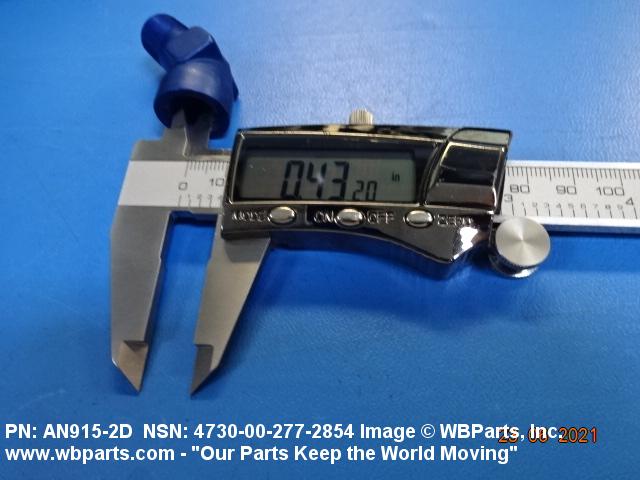

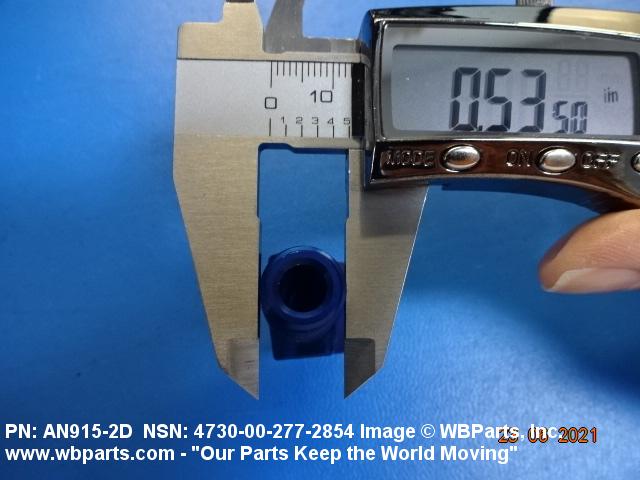

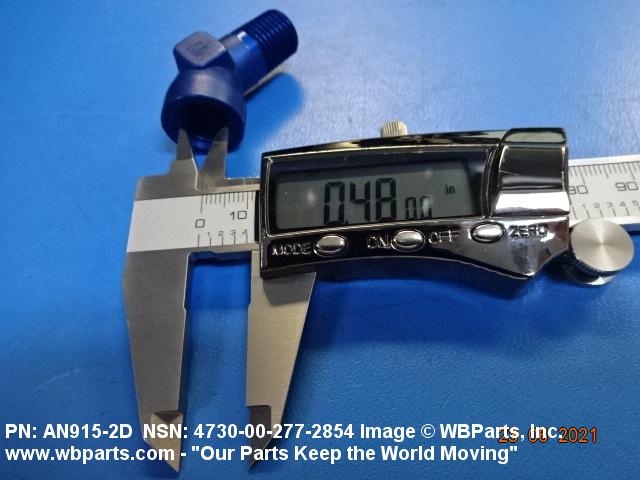

Drawings & Photos | NSN 4730-00-277-2854
Demand History | NSN 4730-00-277-2854
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN9152D | 2024-06-170 | 115 | United States |
| 4730-00-277-2854 | 2016-05-130 | 50 | DIBBS |
| 4730-00-277-2854 | 2016-04-117 | 50 | DIBBS |
Cross Reference | NSN 4730-00-277-2854
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-4CD45DEG-D | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 1-4CD45DEG-D | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 1-4CD45DEGD | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 3350-4 | 79470 | DANA CORP WEATHERHEAD DIV |
| AN915-2D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN915-2D | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN915-2D | 14397 | FABER ENTERPRISES, INC. |
| AN915-2D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN915-2D | 22995 | CROWN FITTING CO INC |
| AN915-2D | 30974 | AEROFIT, LLC |
| AN915-2D | 71563 | COLLINS ENGINEERING CORP |
| AN915-2D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN915-2D | R1120 | SATAIR A/S |
| AS4842 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS4855 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS4855D02 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| NA915-2D | 80310 | MGD GRAPHIC SYSTEMS GROUP ROCKWELL INTERNATIONAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-277-2854
Related Products | NSN 4730-00-277-2854
Technical Data | NSN 4730-00-277-2854
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 AND ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/4 FED SPEC SINGLE MATERIAL RESPONSE AND QQ-A-367 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| CONNECTION TYPE | THREADED INTERNAL PIPE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B14A PLAIN 1ST END B67B PLAIN 2ND END |
| THREAD SERIES DESIGNATOR | ANPT ALL ENDS |

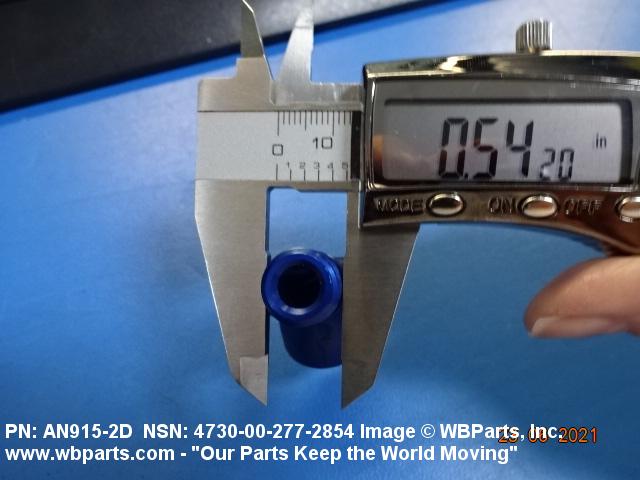

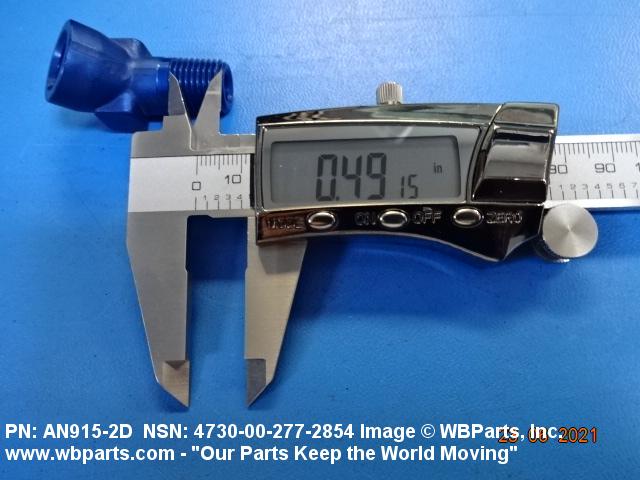

| NOMINAL THREAD SIZE | 0.250 INCHES ALL ENDS |

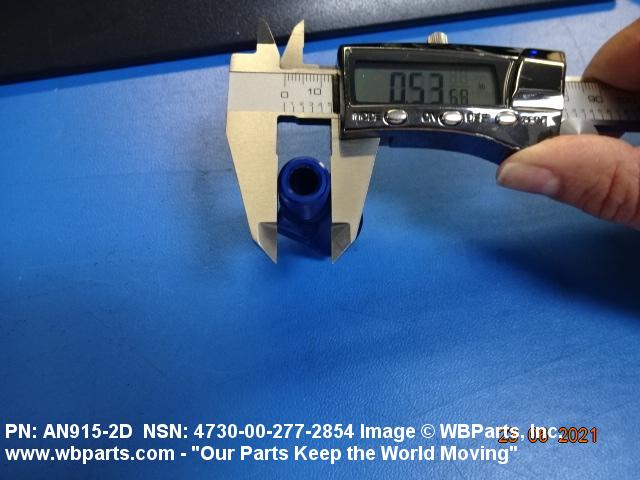

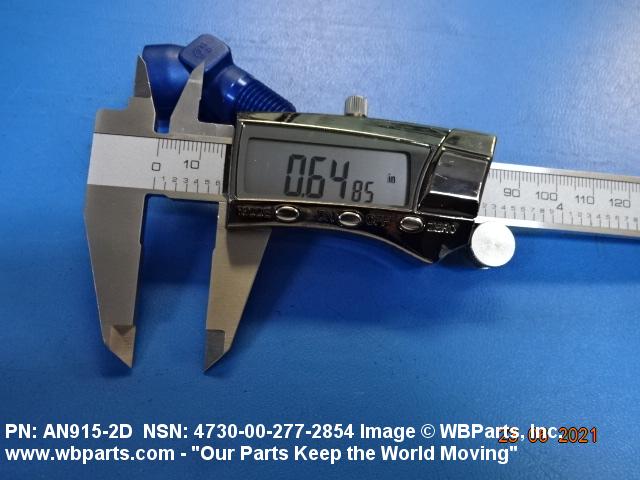

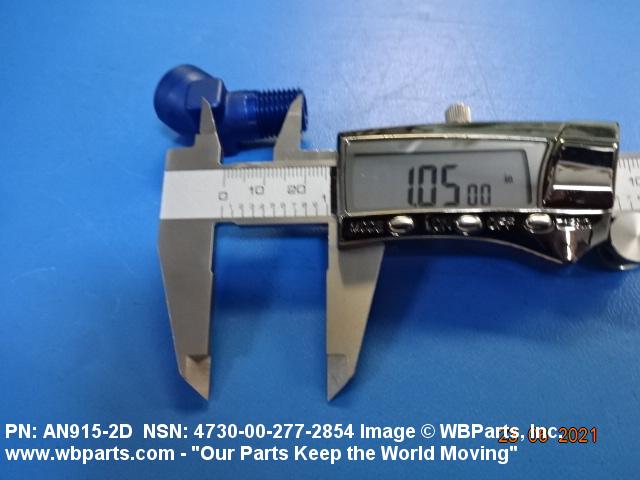

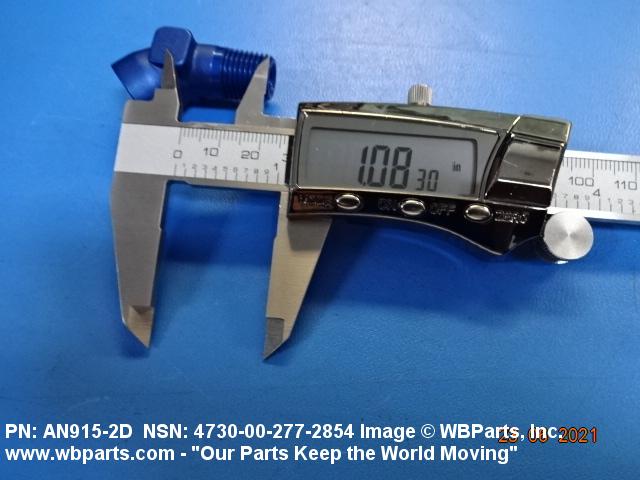

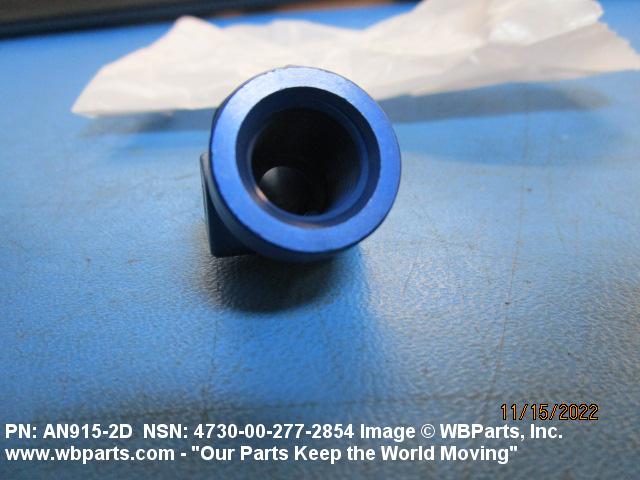

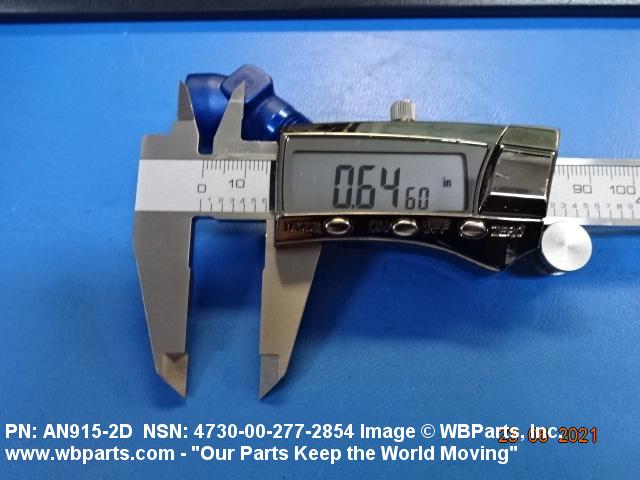

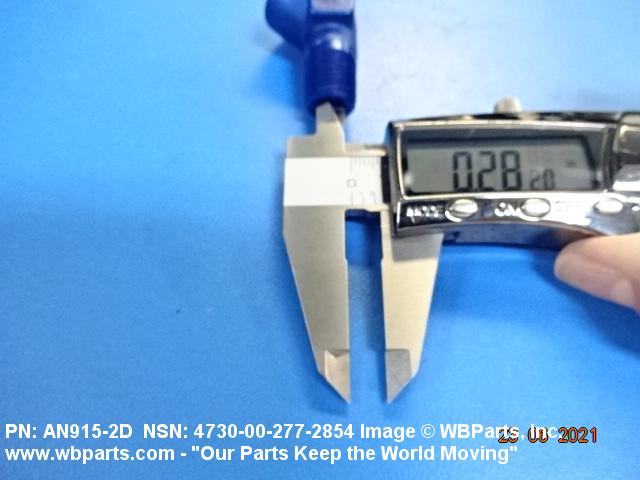

| LEG LENGTH | 0.625 INCHES MINIMUM AND 0.672 INCHES MAXIMUM 1ST END 1.047 INCHES MINIMUM AND 1.094 INCHES MAXIMUM 2ND END |
