Product Details | SOIL PIPE BEND

4730-00-277-2540 A fitting used to connect two or more sections of soil pipe to form a turn. This includes bends with side or heel inlets.

Part Alternates: WWP401, A32, 17, 2306, 4730-00-277-2540, 00-277-2540, 4730002772540, 002772540

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 01 JAN 1963 00-277-2540

Drawings & Photos | NSN 4730-00-277-2540


Cross Reference | NSN 4730-00-277-2540

Part Number Cage Code Manufacturer
17 07861 TYLER PIPE INDUSTRIES INC
2306 63686 THE WALWORTH COMPANY
A32 03639 MEAD CORP INDUSTRIAL PRODUCTS DIV
WWP401 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-277-2540

Technical Data | NSN 4730-00-277-2540

Characteristic Specifications

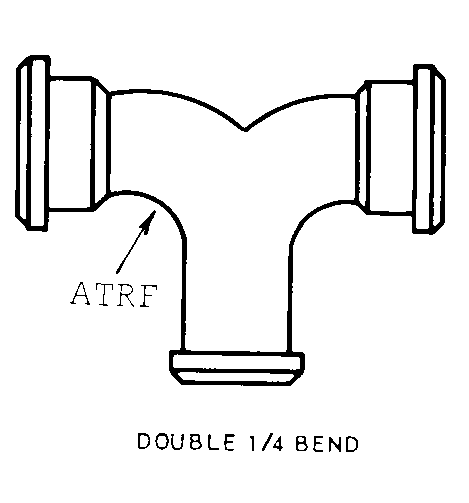

STYLE DESIGNATOR M13 DOUBLE 1/4 BEND
NOMINAL PIPE SIZE 4.000 INCHES
MATERIAL IRON, CAST
WALL THICKNESS DESIGNATION SERVICE WEIGHT
NONDEFINITIVE SPEC/STD DATA SV CLASS
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE WWP401

Restrictions/Controls & Freight Information | NSN 4730-00-277-2540

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 052190 PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 576 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4730-00-277-2540

Category Code Description
Cognizance Codes9CNavy-owned stocks of defense construction material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9CDefense Supply Center Columbus
Columbus, OH 43215
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
