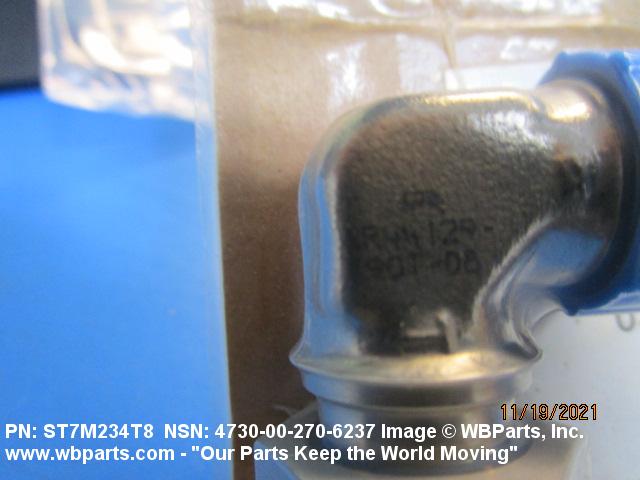

Product Details | TUBE ELBOW
4730-00-270-6237 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AE161858, AE16185-8, AE168238, AE16823-8, AFP2615T08, AP358T08, ST7M234, ST7M234T8, TF358T08, GE510BY08, R4412990T08, R44129-90T-08, 07A07408, 07A074-08, 10111317 , 7M965T8, 4730-00-270-6237, 00-270-6237, 4730002706237, 002706237
