NSN 4730-00-263-3125 MPD94845922, MPD9484-59-22, MPD957659224
Product Details | PIPE PLUG
4730-00-263-3125 A pipe fitting primarily designed for permanent installation during piping systems operations to fit into another pipe or pipe fitting for sealing. It usually is threaded.
Part Alternates: MPD94845922, MPD9484-59-22, MPD957659224, MPD9576-59-224, WWP471, X77T13, 0000625, 11321, 1132-1, 473JA3, 702406, 7024-06, 9012046, 901204-6, 4730-00-263-3125, 00-263-3125, 4730002633125, 002633125
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-263-3125 | 06077 ( PLUG, PIPE ) |
Drawings & Photos | NSN 4730-00-263-3125
Demand History | NSN 4730-00-263-3125
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| WWP471 | 2019-10-275 | 2 | United States |
| WWP471 | 2013-01-11 | 216 | US |
| WWP471 | 2007-08-240 | 19990 | us |
Cross Reference | NSN 4730-00-263-3125
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0000625 | 91340 | MET-PRO CORPORATION |
| 1132-1 | 63686 | THE WALWORTH COMPANY |
| 473JA3 | 30760 | INGERSOLL RAND CO |
| 7024-06 | 31245 | TEREX USA, LLC DBA CEDARAPIDS |
| 901204-6 | 89413 | SULLIVAN MACHINERY CO |
| MPD9484-59-22 | 91340 | MET-PRO CORPORATION |
| MPD9576-59-224 | 91340 | MET-PRO CORPORATION |
| WWP471 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| X77T13 | 30760 | INGERSOLL RAND CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-263-3125
Technical Data | NSN 4730-00-263-3125
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON OVERALL |

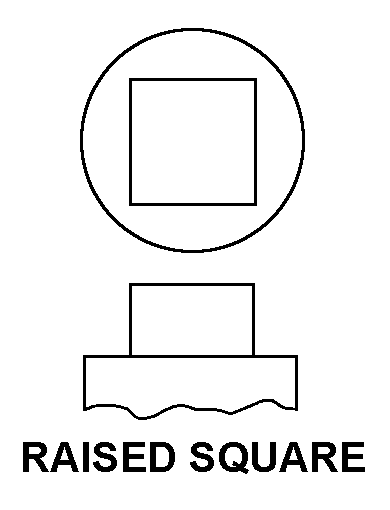

| DRIVE END STYLE | 1 RAISED SQUARE |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | NPT EXTERNAL |
| NOMINAL THREAD SIZE | 1.000 INCHES EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 1.000 INCHES |
| HEAD TYPE | SOLID |
| BODY TYPE | SOLID |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND A STYLE |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 150.000 POUNDS PER SQUARE INCH WATER-OIL-GAS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WWP471 |
Restrictions/Controls & Freight Information | NSN 4730-00-263-3125
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 040500 | CAP/PLUG (PROTECTOR) |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-263-3125
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
