NSN 4730-00-249-2029 M1003B, M-1003B, MPD94845528

Product Details | PIPE TEE

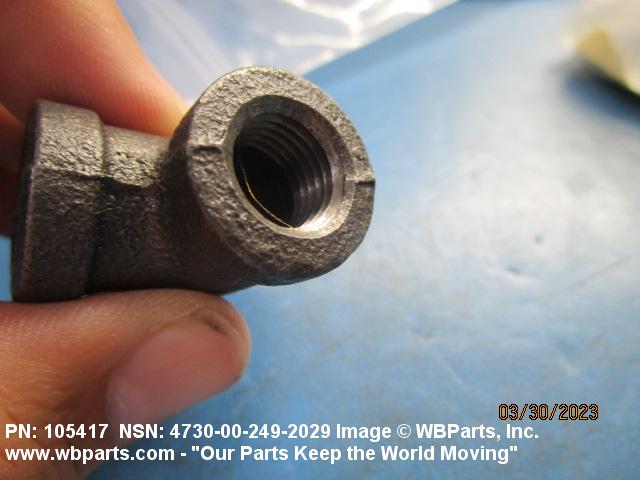

4730-00-249-2029 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have standard pipe threads or 1s unthreaded and designed to accommodate a pipe. It may have side inlet(s). It is used as a junction at the intersection of pipe or pipe fittings.

Part Alternates: M1003B, M-1003B, MPD94845528, MPD9484-55-28, B16.3, D94845528, D9484-5528, D9484-55-28, D9485427, D9485-42-7, FIG 631-1/4, FIG63114, TEE620, WWP521, X4T, S933, B163, 5000110, 5000-110, 513062, 51306-2, 6KP5, 801160, 1021040, 1021-040, 104714, 1047-14, 105417, 1105-1/4, 110514, 23D62, 2HB118, 4730-00-249-2029, 00-249-2029, 4730002492029, 002492029

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-249-2029	03805 ( TEE, PIPE )

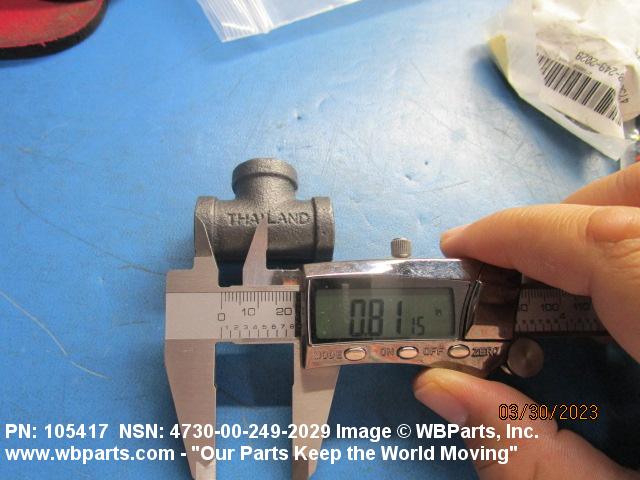

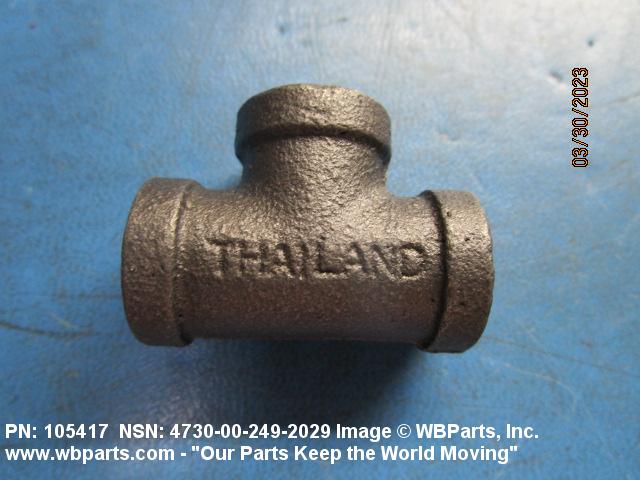

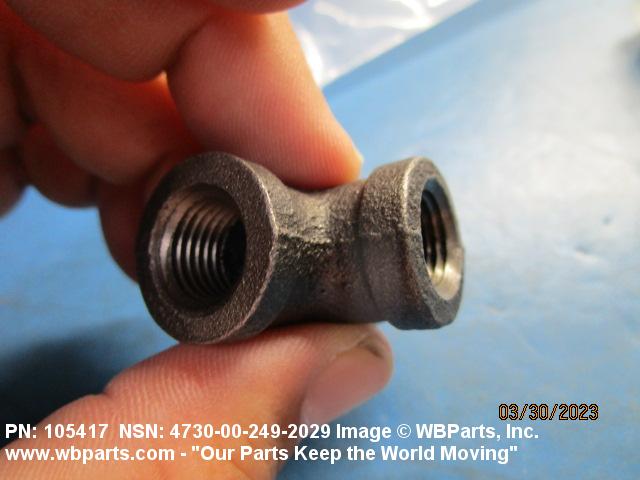

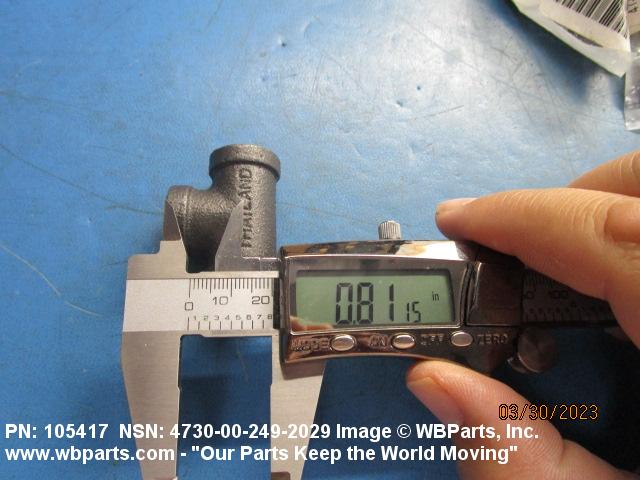

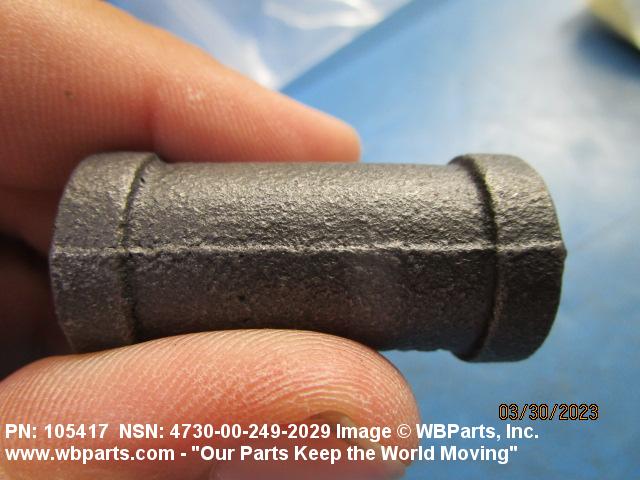

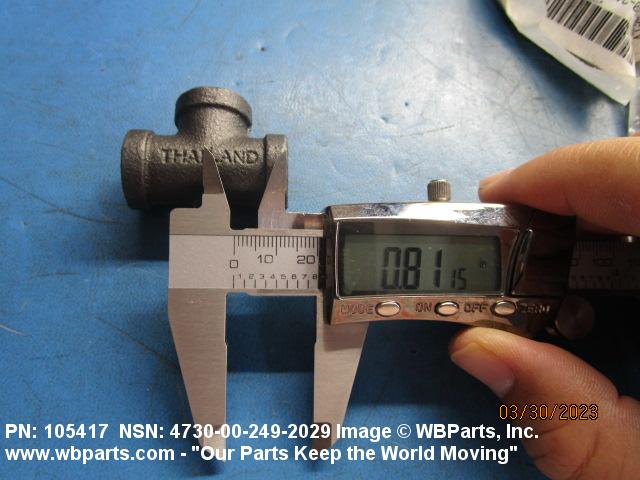

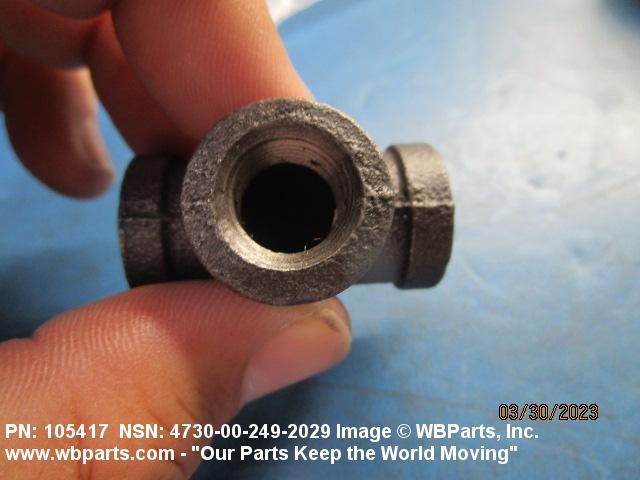

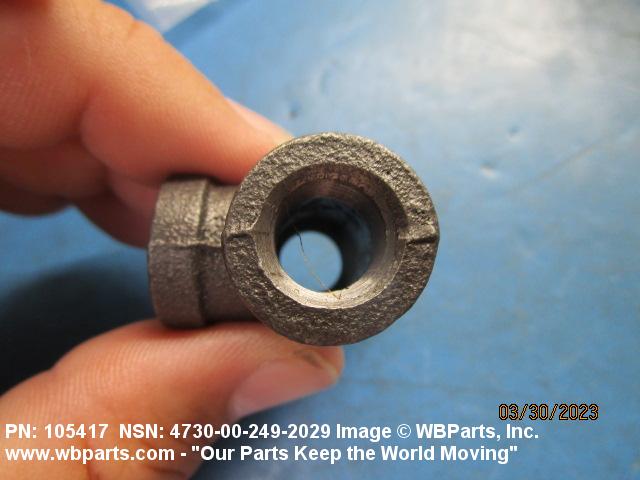

Drawings & Photos | NSN 4730-00-249-2029

Part Number	Request Date	QTY	Origin
4730-00-249-2029	2023-03-82	5	United States
4730-00-249-2029	2023-01-27	1	United States
4730-00-249-2029	2022-06-153	747	DIBBS
4730-00-249-2029	2022-05-142	747	DIBBS
4730-00-249-2029	2016-10-284	747	DIBBS
4730-00-249-2029	2016-05-126	747	DIBBS
4730-00-249-2029	2016-01-26	747	DIBBS
4730-00-249-2029	2013-02-58	322	DIBBS
4730-00-249-2029	2013-01-31	0	DIBBS
4730-00-249-2029	2013-01-16	1	United States
B163	2012-10-297	12	United States
4730-00-249-2029	2012-06-181	245	DIBBS
4730-00-249-2029	2012-06-169	1	DIBBS
4730-00-249-2029	2012-06-164	8	DIBBS
4730-00-249-2029	2012-06-154	4	DIBBS
4730-00-249-2029	2012-06-154	10	DIBBS
4730-00-249-2029	2012-05-139	1	DIBBS
4730-00-249-2029	2012-05-135	20	DIBBS
4730-00-249-2029	2012-04-106	25	DIBBS
4730-00-249-2029	2012-04-100	10	DIBBS
4730-00-249-2029	2012-02-58	25	DIBBS
4730-00-249-2029	2011-12-339	8	DIBBS
4730-00-249-2029	2011-09-268	3	DIBBS
4730-00-249-2029	2011-08-235	4	DIBBS
4730-00-249-2029	2011-08-230	6	DIBBS
4730-00-249-2029	2011-08-217	1	DIBBS
4730-00-249-2029	2011-08-217	2	DIBBS
4730-00-249-2029	2011-06-154	25	DIBBS
4730-00-249-2029	2011-05-146	1	DIBBS
4730-00-249-2029	2011-05-143	2	DIBBS
4730-00-249-2029	2011-05-133	3	DIBBS
4730-00-249-2029	2011-05-122	2	DIBBS
4730-00-249-2029	2011-03-80	3	DIBBS
4730-00-249-2029	2011-02-44	2	DIBBS
4730-00-249-2029	2011-01-15	25	DIBBS
4730-00-249-2029	2010-11-325	1	DIBBS
4730-00-249-2029	2010-10-303	10	DIBBS
4730-00-249-2029	2010-08-228	10	DIBBS
4730-00-249-2029	2010-08-214	1	DIBBS
4730-00-249-2029	2009-11-328	150	DIBBS

Cross Reference | NSN 4730-00-249-2029

Part Number	Cage Code	Manufacturer
1021-040	72423	FLAGG STANLEY G & CO INC DBA FLAGG BRASS
1047-14	04718	C&H DISTRIBUTORS LLC
1047-14	52432	RUNDLE-SPENCE MFG. CO. DIV RUNDLE-SPENCE
105417	0SAT8	KOMATSU AMERICA CORP.
105417	24617	GENERAL MOTORS CORP
105417	29510	KOMATSU AMERICAN INTL CO
105417	30379	EUCLID INC
105417	31007	NAVISTAR INTL CORP
105417	80195	E D ETNYRE & CO DBA EDETNYRE
105417	92679	NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION
105417	K4285	TEREX EQUIPMENT LTD
1105-1/4	54578	GRINNELL CORP SUB OF TYCO INTL US INC
23D62	05643	BARBER-GREENE CO
23D62	0MKW7	MINNPAR, LLC DBA MINNPAR
2HB118	45152	OSHKOSH CORPORATION
5000-110	61796	CEMEN TECH, INC.
51306-2	5RQL2	DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S
51306-2	94833	KECO INDUSTRIES INC.
6KP5	45152	OSHKOSH CORPORATION
801160	02280	AMERICAN HOIST AND DERRICK CO
B16.3	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
D9484-55-28	91340	MET-PRO CORPORATION
D9484-5528	91340	MET-PRO CORPORATION
D9485-42-7	91340	MET-PRO CORPORATION
FIG 631-1/4	82666	STOCKHAM VALVES AND FITTINGS INC
M-1003B	11568	GARDNER DENVER INC.
MPD9484-55-28	91340	MET-PRO CORPORATION
S933	15434	CUMMINS INC.
TEE620	93236	DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN
WWP521	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
X4T	80195	E D ETNYRE & CO DBA EDETNYRE
