NSN 4730-00-234-3904 MS21908W8, AS21908, AS21908W8
Product Details | TUBE ELBOW
4730-00-234-3904 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS21908W8, AS21908, AS21908W8, 4730-00-234-3904, 00-234-3904, 4730002343904, 002343904
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 00-234-3904 | 03771 ( ELBOW, TUBE ) |

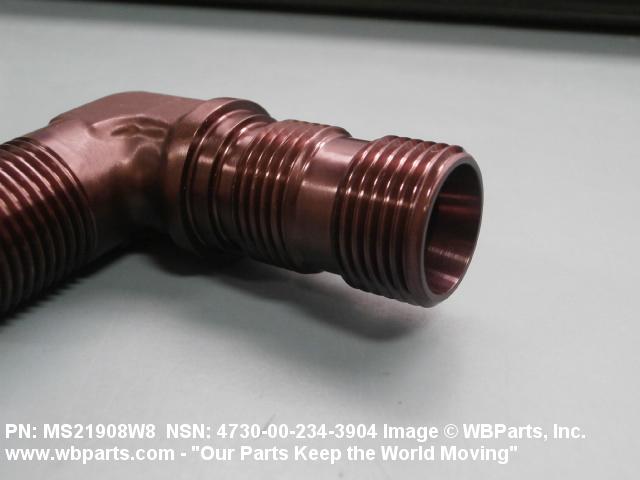

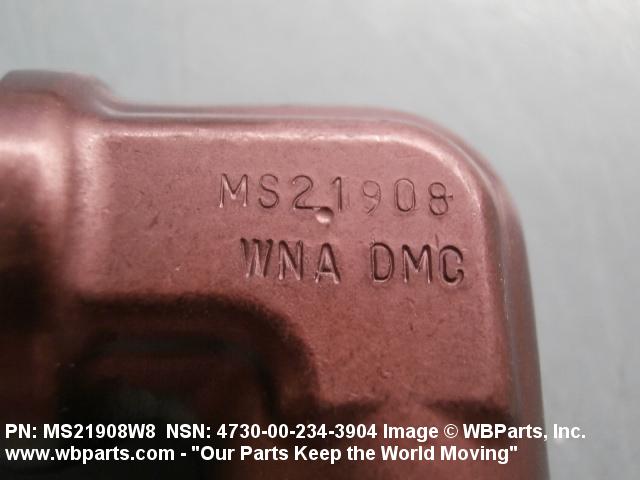

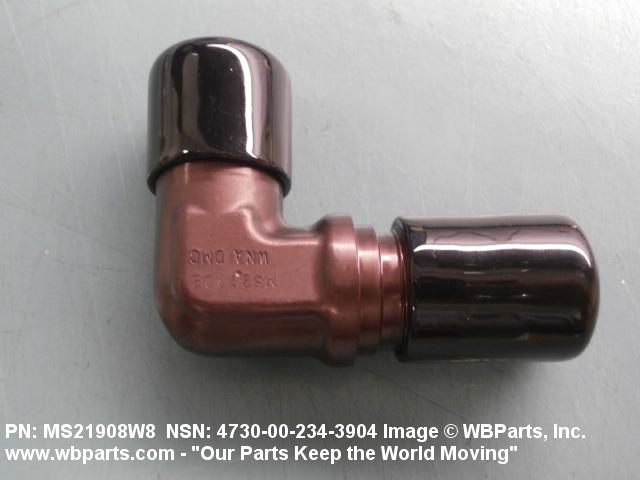

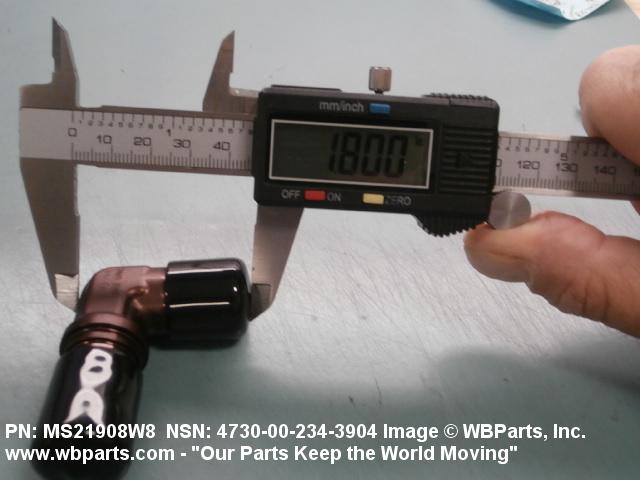

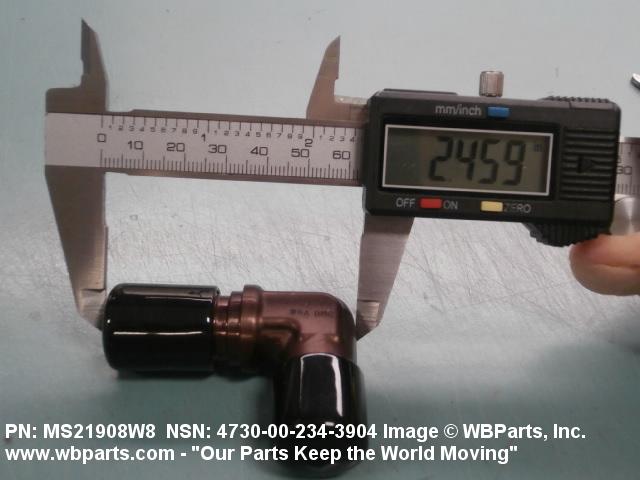

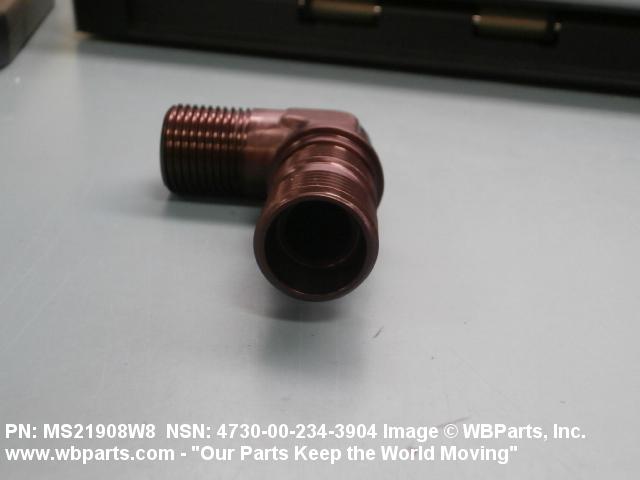

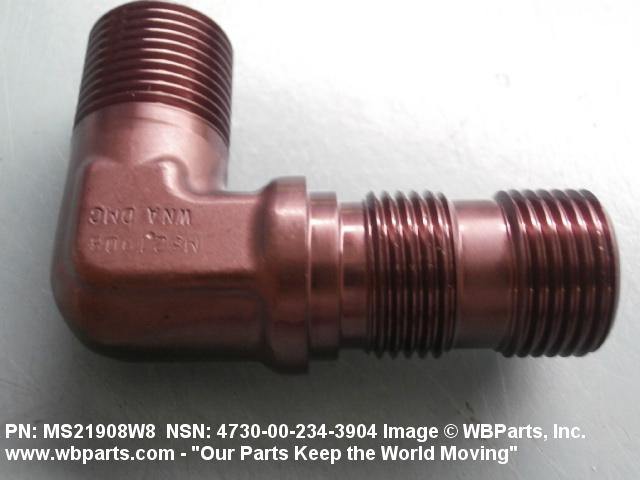

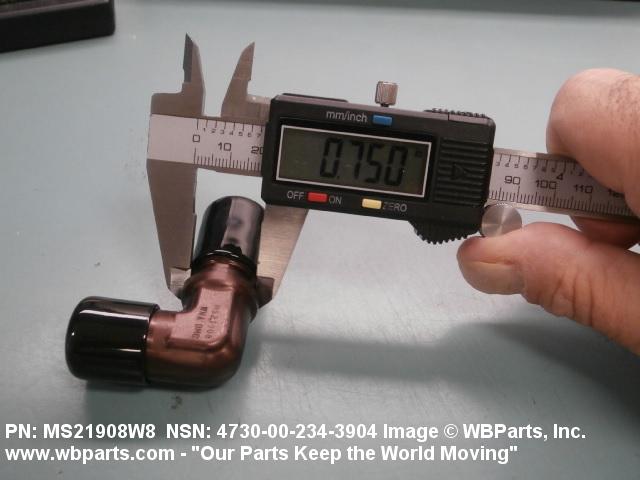

Drawings & Photos | NSN 4730-00-234-3904
Demand History | NSN 4730-00-234-3904
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21908W8 | 2024-09-247 | 3 | ID |
| 4730-00-234-3904 | 2018-09-257 | 4 | AE |
| MS21908W8 | 2016-03-81 | 5 | us |
| 4730-00-234-3904 | 2015-04-111 | 1 | Malaysia |
| MS21908W8 | 2013-12-337 | 10 | Singapore |
| AS21908 | 2013-01-29 | 1 | ID |
| 4730-00-234-3904 | 2009-12-348 | 100 | US |
| 4730-00-234-3904 | 2009-06-161 | 1 | Malaysia |
| 4730-00-234-3904 | 2009-05-142 | 1 | Malaysia |
| 4730-00-234-3904 | 2008-08-218 | 1 | Philippines |
Cross Reference | NSN 4730-00-234-3904
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 3111591 | 001JK | EMBRAER S/A |
| 3111591 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 3111591 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21908 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21908W8 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| ER833-8D | 79470 | DANA CORP WEATHERHEAD DIV |
| ER833D8 | 79470 | DANA CORP WEATHERHEAD DIV |
| MS21098D8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21908D8 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS21908D8 | 03647 | GLOBE AEROSPACE INC |
| MS21908D8 | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| MS21908D8 | 50948 | PARKER HANNIFIN CORP STRATOFLEX DIV AIRCRAFT FITTINGS OPN |
| MS21908D8 | 79470 | DANA CORP WEATHERHEAD DIV |
| MS21908D8 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21908D8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21908D8 | R1120 | SATAIR A/S |
| MS21908W8 | 01677 | HEALY RUFF CORPORATION INC. DBA HEALY RUFF COMPANY |
| MS21908W8 | 0DVW9 | MILITARY STANDARDS CORP |
| MS21908W8 | 14397 | FABER ENTERPRISES, INC. |
| MS21908W8 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| MS21908W8 | 30974 | AEROFIT, LLC |
| MS21908W8 | 50808 | UNITED SUPPLY CO INC |
| MS21908W8 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21908W8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-234-3904
Technical Data | NSN 4730-00-234-3904
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367,T73 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 275.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 2ND END THREADED EXTERNAL TUBE 1ST END BULKHEAD |
| CONNECTION STYLE | B66 FLARELESS ALL ENDS |
| SEAT ANGLE | 12.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.750 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| LEG LENGTH | 1.312 INCHES NOMINAL 2ND END 1.969 INCHES NOMINAL 1ST END BULKHEAD |
| FLOW ANGLE | 90.0 DEGREES |
| SPECIFICATION/STANDARD DATA | 96906-MS21908 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | AIRCRAFT FLUID SYSTEMS |
Restrictions/Controls & Freight Information | NSN 4730-00-234-3904
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
