NSN 4730-00-231-3989 AN8214, AN821-4, AS1034

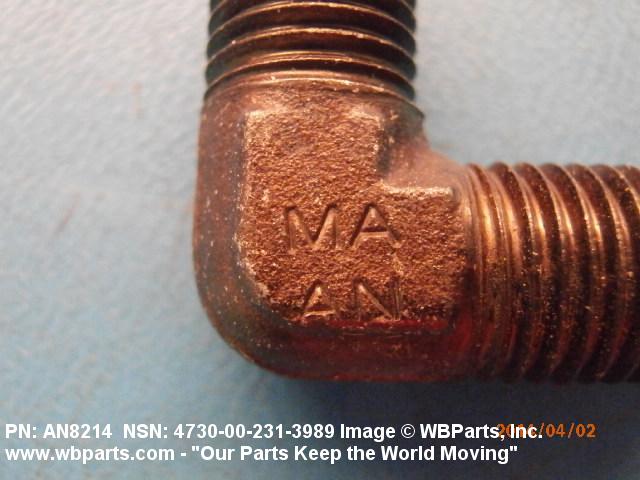

Product Details | TUBE ELBOW

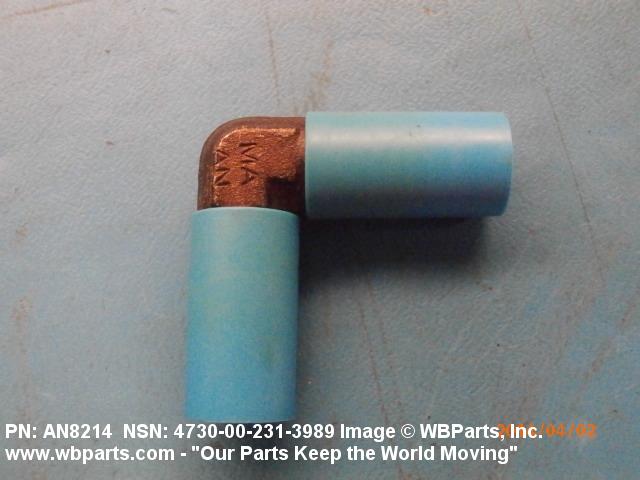

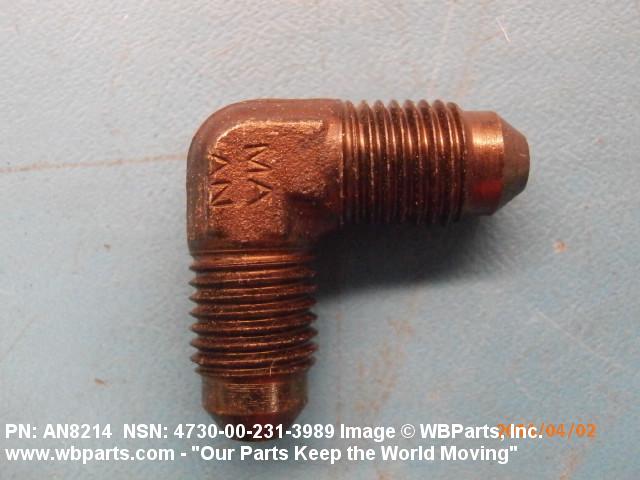

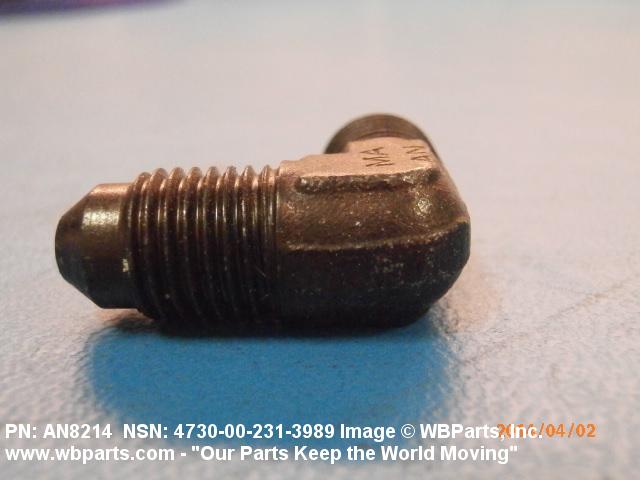

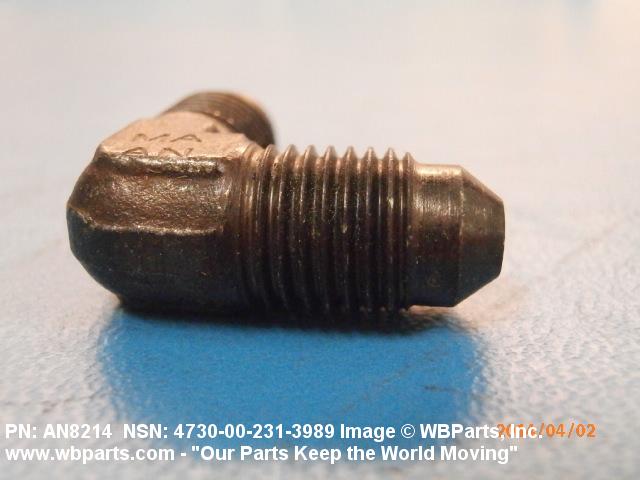

4730-00-231-3989 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AN8214, AN821-4, AS1034, AS10340404, AS1034-0404, AS4841 , 4730-00-231-3989, 00-231-3989, 4730002313989, 002313989
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 10 AUG 1983 | 00-231-3989 | 03771 ( ELBOW, TUBE ) |
Drawings & Photos | NSN 4730-00-231-3989
Demand History | NSN 4730-00-231-3989
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN8214 | 2015-05-126 | 2 | United States |
| 4730-00-231-3989 | 2014-08-226 | 354 | DIBBS |
| 4730-00-231-3989 | 2014-05-131 | 184 | DIBBS |
| AN8214 | 2014-03-84 | 2 | United States |
| AS4841 | 2011-03-69 | 8 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-231-3989
Related Products | NSN 4730-00-231-3989
Technical Data | NSN 4730-00-231-3989
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B64 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |

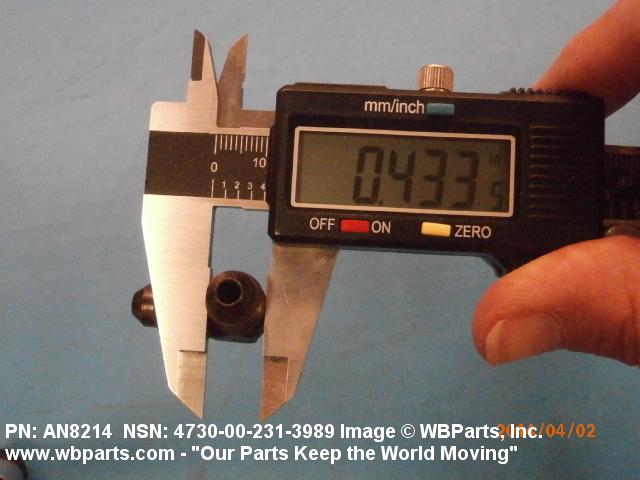

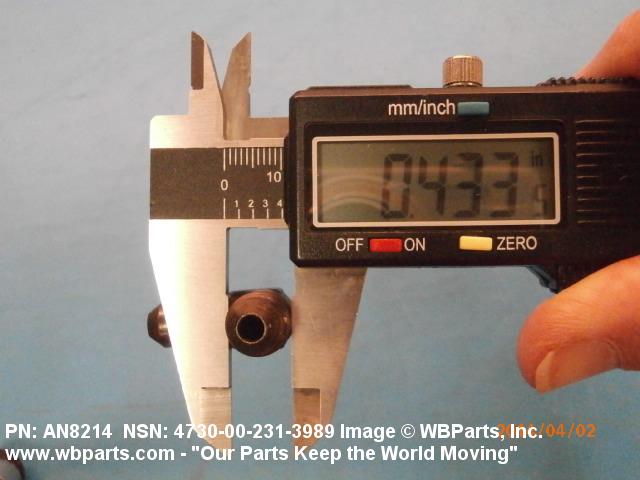

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |

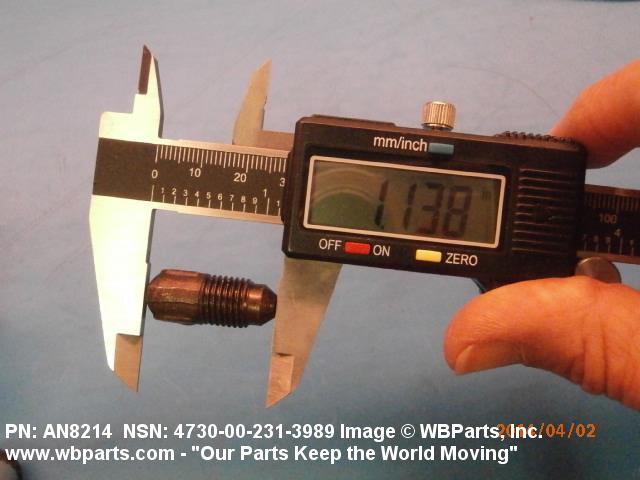

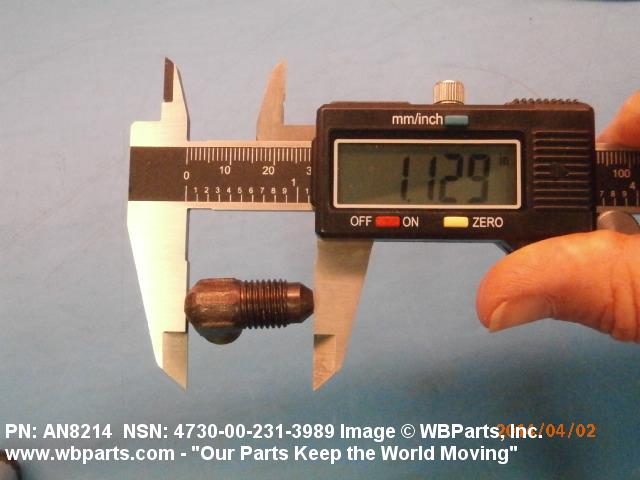

| LEG LENGTH | 1.891 INCHES NOMINAL ALL ENDS |
