NSN 4730-00-231-3964 MS2082312, MS20823-12, A6909

Product Details | PIPE TO TUBE ELBOW

4730-00-231-3964 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: MS2082312, MS20823-12, A6909, AS4842/1, AS48421, AS51961212, AS5196-1212, AS5196C, S375412E, S3754-12E, 12ETM45S, 25031212, 2503-12-12, 31031212, 3103-12-12, 8168677, 4730-00-231-3964, 00-231-3964, 4730005551416, 4730002313964 , 002313964

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-231-3964	03770 ( ELBOW, PIPE TO TUBE )

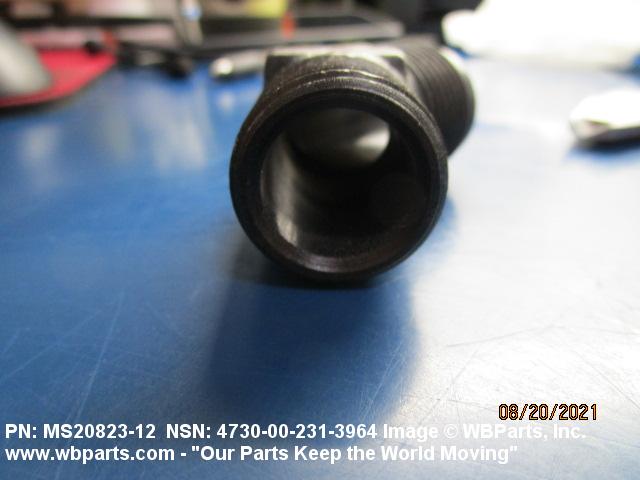

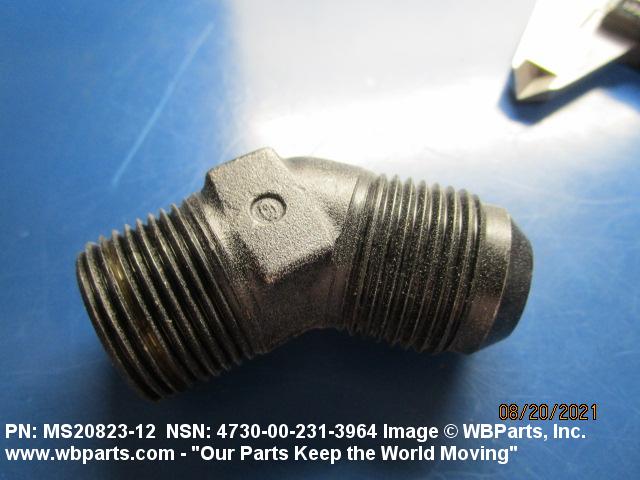

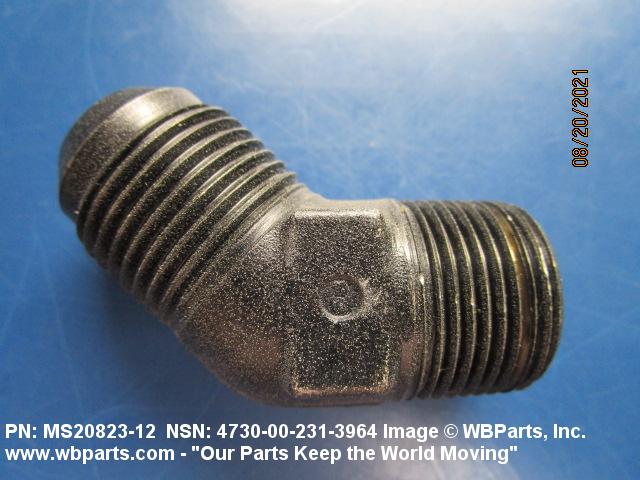

Drawings & Photos | NSN 4730-00-231-3964

Part Number	Request Date	QTY	Origin
4730-00-231-3964	2024-11-318	115	DIBBS
4730-00-231-3964	2024-06-177	4	United States
MS2082312	2024-05-152	5	US
4730-00-231-3964	2023-10-296	115	DIBBS
4730-00-231-3964	2023-09-257	73	DIBBS
4730-00-231-3964	2023-05-151	42	DIBBS
4730-00-231-3964	2022-04-94	3	US
4730-00-231-3964	2022-04-91	3	United States
4730-00-231-3964	2021-08-222	5	United States
4730-00-231-3964	2021-07-195	2	US
4730-00-231-3964	2021-07-195	5	United States
4730-00-231-3964	2021-07-194	9	US
MS2082312	2019-07-189	90	US
4730-00-231-3964	2019-06-171	90	Israel
AS51961212	2019-02-42	1	United States
4730-00-231-3964	2017-07-192	29	MANUAL
MS20823-12	2017-07-192	29	PK
4730-00-231-3964	2017-05-141	72	DIBBS
4730-00-231-3964	2017-04-117	9	ID
4730-00-231-3964	2016-05-133	150	DIBBS
4730-00-231-3964	2016-05-122	150	DIBBS
4730-00-231-3964	2016-02-32	25	United States
AS48421	2015-05-132	1	CA

Cross Reference | NSN 4730-00-231-3964

Part Number	Cage Code	Manufacturer
12ETM45S	17419	DEUTSCH CO THE
2503-12-12	22031	AIR-WAY MANUFACTURING COMPANY
3103-12-12	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
4730002313964	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
4730005551416	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
8168677	18876	U S ARMY AVIATION AND MISSILE COMMAND
A6909	96787	STEWART AVIONICS INC
AS4842/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5196-1212	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5196C	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS20823-12	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
S3754-12E	36655	FAIRVIEW FITTINGS AND MFG LTD

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-231-3964

Compare

Related Products | NSN 4730-00-231-3964

4730-00-231-3979, 4730-00-231-3981, 4730-00-231-3985, 4730-00-231-3987, 4730-00-231-3988

Technical Data | NSN 4730-00-231-3964

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM INSIDE CADMIUM OUTSIDE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE INSIDE QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTSIDE
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END
CONNECTION STYLE	B64 FLARED 1ST END B67B PLAIN 2ND END
SEAT ANGLE	37.0 DEGREES 1ST END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.750 INCHES 1ST END
THREAD SERIES DESIGNATOR	UNJ 1ST END NPT 2ND END

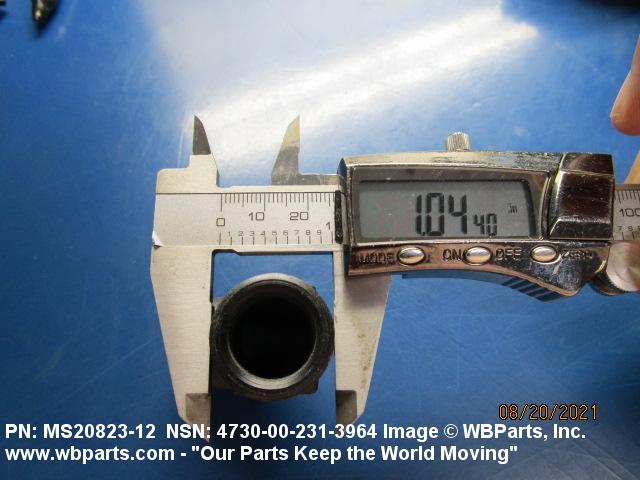

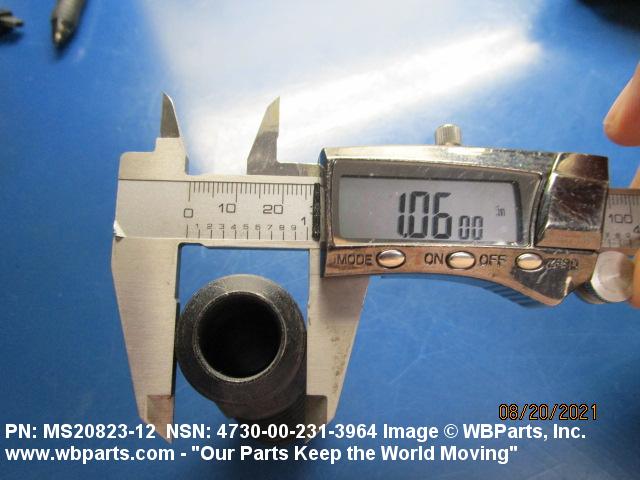

NOMINAL THREAD SIZE	1.062 INCHES 1ST END 0.750 INCHES 2ND END
THREAD QUANTITY PER INCH	12 1ST END
THREAD CLASS	3A 1ST END

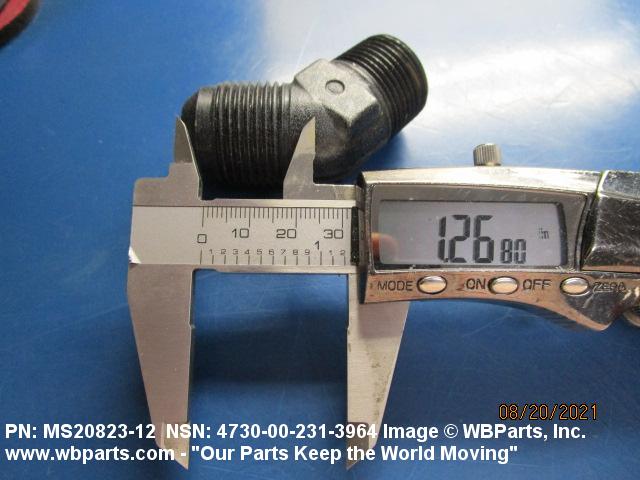

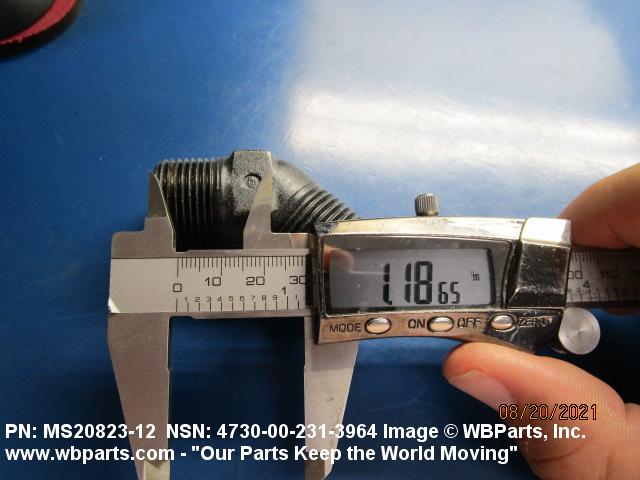

LEG LENGTH	1.266 INCHES NOMINAL 1ST END 1.188 INCHES NOMINAL 2ND END
FLOW ANGLE	45.0 DEGREES
SPECIFICATION/STANDARD DATA	96906-MS20823 GOVERNMENT STANDARD
III END ITEM IDENTIFICATION	AIRCRAFT APPLICATION
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS20823-12

Restrictions/Controls & Freight Information | NSN 4730-00-231-3964

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-231-3964

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
