NSN 4730-00-231-1313 AN80716D, AN807-16D, AN84116D

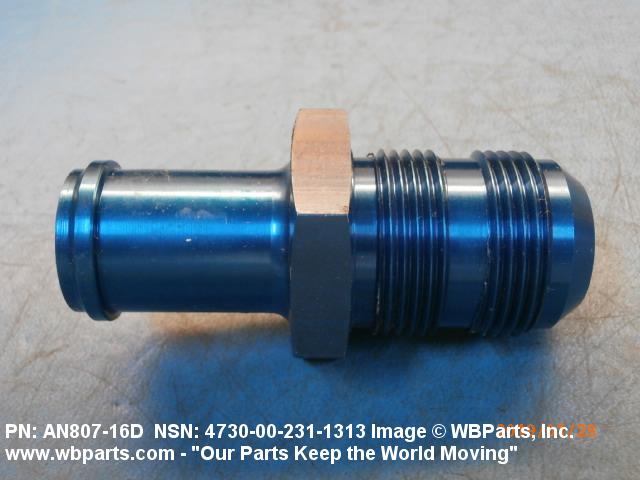

Product Details | TUBE TO HOSE STRAIGHT ADAPTER
4730-00-231-1313 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a tube or tube fitting to a hose or hose fitting.
Part Alternates: AN80716D, AN807-16D, AN84116D, AN841-16D, AS4843/1, AS48431, MILF5509, MIL-F-5509, 8161488, 4730-00-231-1313, 00-231-1313, 4730002311313, 002311313
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-231-1313 | 03777 ( ADAPTER, STRAIGHT, TUBE TO HOSE ) |

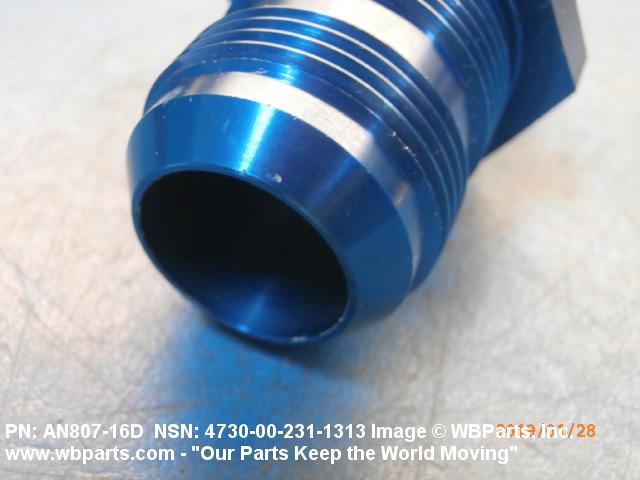

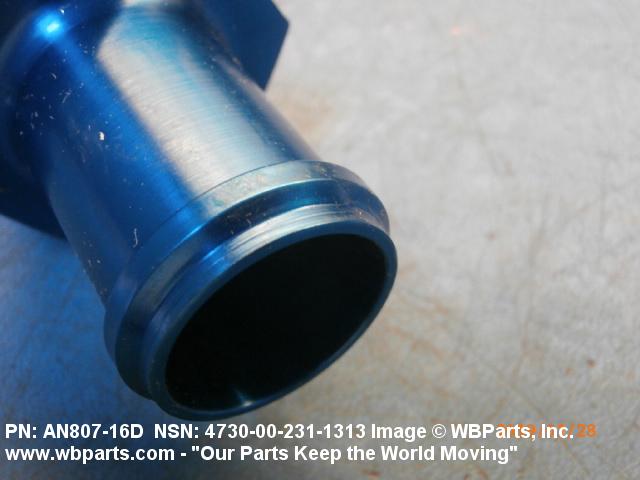

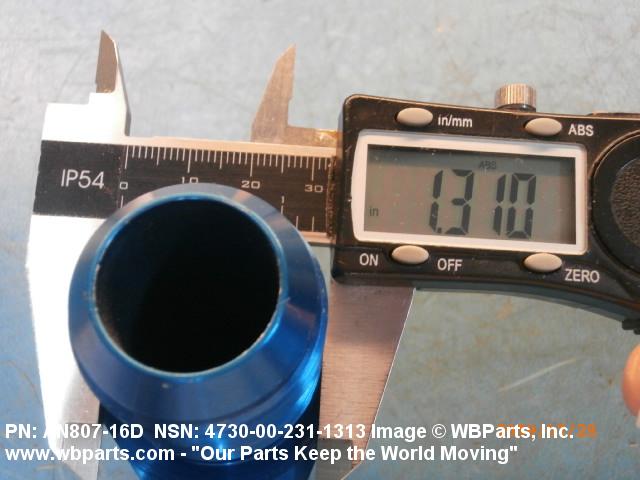

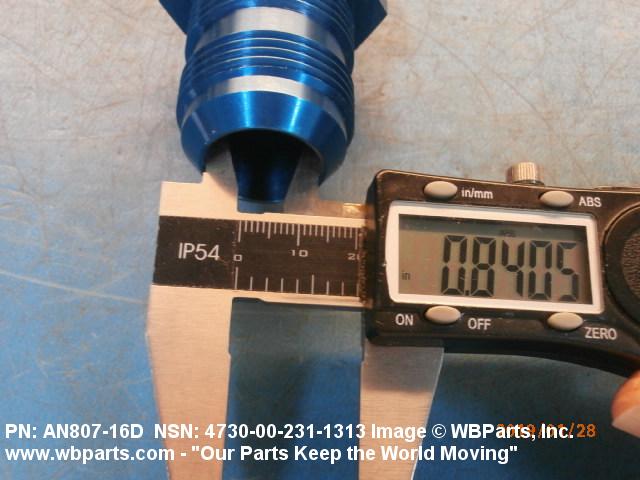

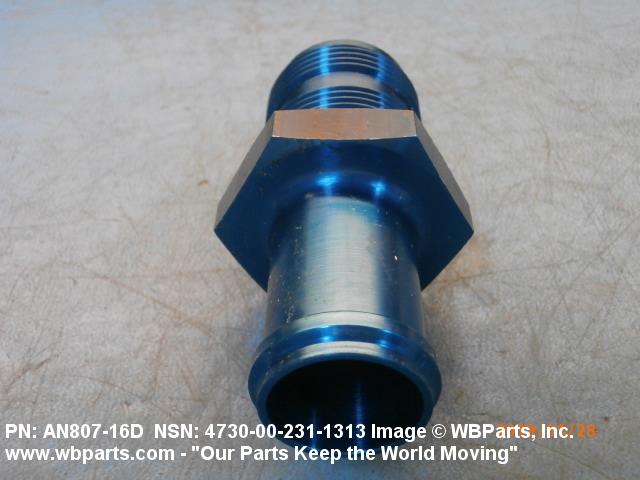

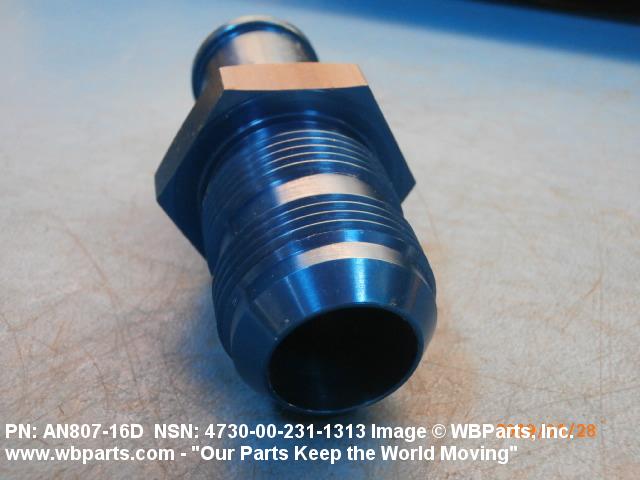

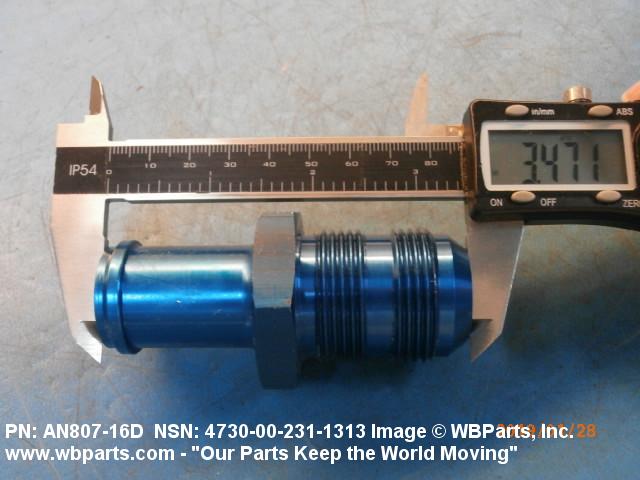

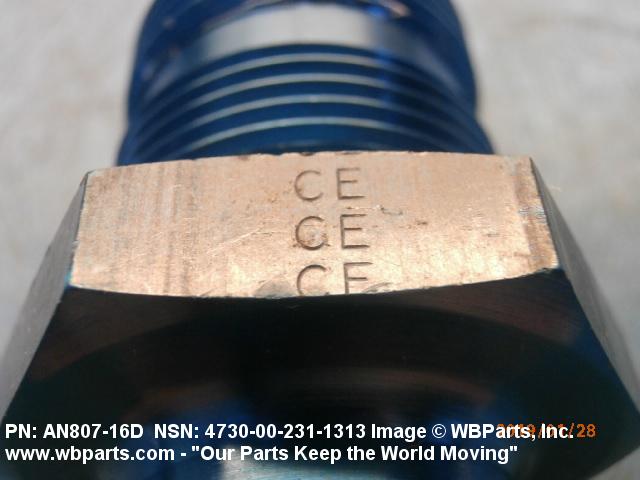

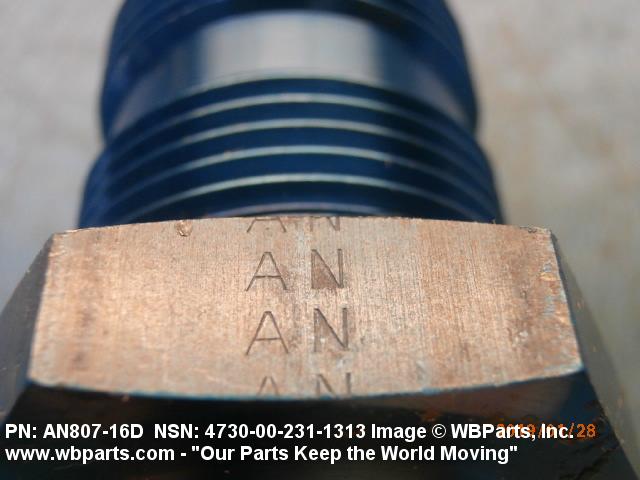

Drawings & Photos | NSN 4730-00-231-1313
Demand History | NSN 4730-00-231-1313
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-231-1313 | 2021-02-46 | 12 | DIBBS |
| 4730-00-231-1313 | 2019-01-16 | 50 | United States |
| MILF5509 | 2018-07-201 | 6 | United States |
| 4730-00-231-1313 | 2013-07-210 | 6 | DIBBS |
| 4730-00-231-1313 | 2013-03-64 | 6 | DIBBS |
| 4730-00-231-1313 | 2013-02-50 | 6 | DIBBS |
| MILF5509 | 2009-10-301 | 1 | PK |
| MILF5509 | 2009-02-55 | 100 | US |
Cross Reference | NSN 4730-00-231-1313
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8161488 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| AN807-16D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN807-16D | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN807-16D | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN807-16D | 14397 | FABER ENTERPRISES, INC. |
| AN807-16D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN807-16D | 22995 | CROWN FITTING CO INC |
| AN807-16D | 30974 | AEROFIT, LLC |
| AN807-16D | 71563 | COLLINS ENGINEERING CORP |
| AN807-16D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN841-16D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4843/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-231-1313
Related Products | NSN 4730-00-231-1313
Technical Data | NSN 4730-00-231-1313
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-A-8625,TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END UNTHREADED EXTERNAL HOSE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B103 BEADED 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 1.000 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJ 1ST END UNJ 1ST END BULKHEAD |
| NOMINAL THREAD SIZE | 1.312 INCHES 1ST END 1.312 INCHES 1ST END BULKHEAD |
| THREAD QUANTITY PER INCH | 12 1ST END 12 1ST END BULKHEAD |
| THREAD CLASS | 3A 1ST END 3A 1ST END BULKHEAD |
| NOMINAL OVERALL LENGTH | 3.484 INCHES |
| SPECIFICATION/STANDARD DATA | 88044-AN807 GOVERNMENT STANDARD AND 81343-AS4843/1 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III END ITEM IDENTIFICATION | BELL HELICOPTER UH-1 AND EH-1 |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN807-16D |
