NSN 4730-00-226-6772 MS51520A8S, MS51520B8S, J8328SS

Product Details | TUBE TO BOSS STRAIGHT ADAPTER

4730-00-226-6772 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.

Part Alternates: MS51520A8S, MS51520B8S, J8328SS, J832-8SS, 1020322, 102-0322, 10503899, 204188C, 2041-8-8C, 204188S, 2041-8-8S, 2041T88S, 2041T-8-8S, 52774AX, 6HA793, 74034978, 7403497-8, 7445080825, 7-445-080825, 8-8 070601SA, 88070601SA, 8WBTXSS, 8WBTX-SS, 8WTXSS, 8WTXWLNSS, 8WTX-WLN-SS, J514, 4730-00-226-6772, 00-226-6772, 4730002266772, 002266772

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-226-6772	22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS )

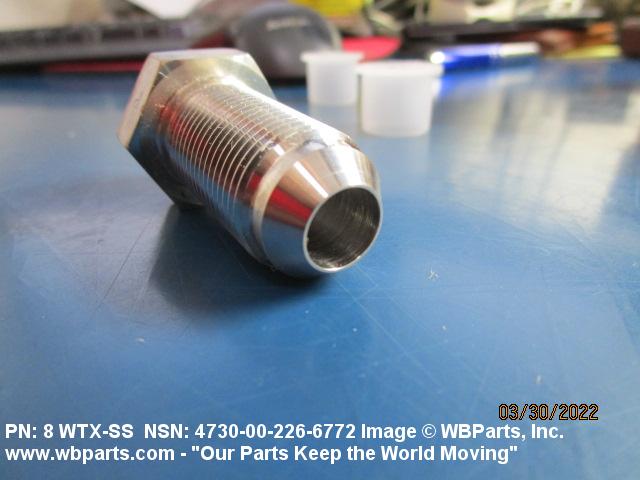

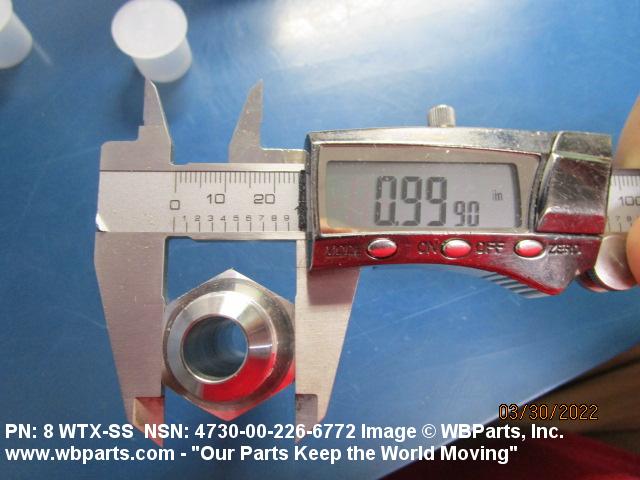

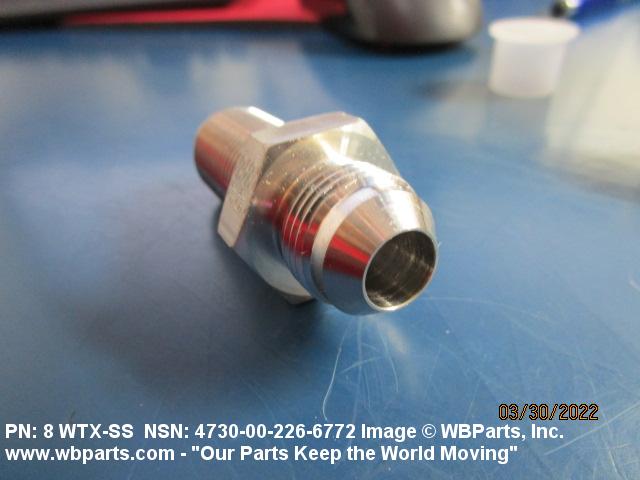

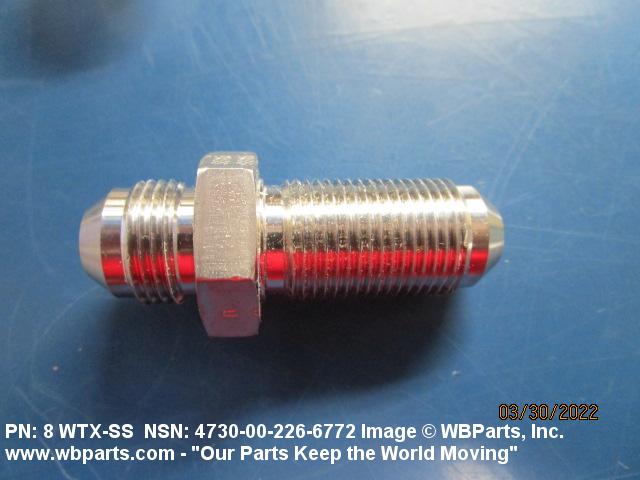

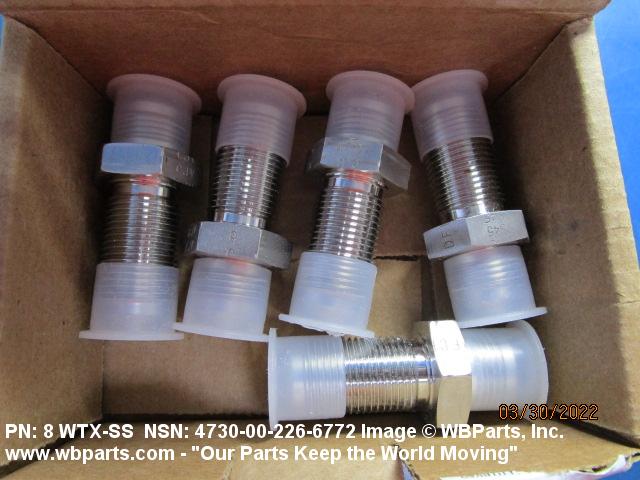

Drawings & Photos | NSN 4730-00-226-6772

Part Number	Request Date	QTY	Origin
4730-00-226-6772	2024-04-109	716	DIBBS
4730-00-226-6772	2024-02-39	551	DIBBS
4730-00-226-6772	2023-06-152	367	DIBBS
4730-00-226-6772	2022-03-75	5	United States
MS51520B8S	2019-03-84	70	US
4730-00-226-6772	2017-06-158	1110	DIBBS
4730-00-226-6772	2017-06-155	576	DIBBS
4730-00-226-6772	2017-03-89	834	DIBBS
4730-00-226-6772	2016-10-298	520	DIBBS
4730-00-226-6772	2016-10-287	520	DIBBS
4730-00-226-6772	2015-12-341	5000	DIBBS
4730-00-226-6772	2015-12-337	2000	DIBBS
4730-00-226-6772	2015-11-330	5000	DIBBS
4730-00-226-6772	2015-11-326	2000	DIBBS
4730-00-226-6772	2015-10-302	1830	DIBBS
4730-00-226-6772	2015-10-301	2800	DIBBS
4730-00-226-6772	2015-07-207	2132	DIBBS
4730-00-226-6772	2015-03-77	382	DIBBS
4730-00-226-6772	2015-02-57	511	DIBBS
J514	2015-02-48	1	us
4730-00-226-6772	2015-01-11	1014	DIBBS
4730-00-226-6772	2014-12-344	954	DIBBS
4730-00-226-6772	2014-01-22	2248	DIBBS
4730-00-226-6772	2014-01-07	2248	DIBBS
4730-00-226-6772	2013-10-304	2248	DIBBS
4730-00-226-6772	2013-07-185	2274	DIBBS
4730-00-226-6772	2013-05-127	1871	DIBBS
4730-00-226-6772	2012-05-143	1200	DIBBS
4730-00-226-6772	2011-06-161	1	DIBBS
4730-00-226-6772	2011-04-91	2	DIBBS
J514	2010-02-47	20	us

Cross Reference | NSN 4730-00-226-6772

Part Number	Cage Code	Manufacturer
102-0322	65459	LANDOLL CORPORATION
10503899	56161	GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION
2041-8-8C	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
2041-8-8S	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
2041T-8-8S	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
52774AX	45152	OSHKOSH CORPORATION
52774AX	75Q65	OSHKOSH DEFENSE, LLC
6HA793	45152	OSHKOSH CORPORATION
7-445-080825	12361	GROVE U.S. L.L.C DBA MANITOWOC CRANE GROUP
7403497-8	53711	NAVAL SEA SYSTEMS COMMAND
8-8 070601SA	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
8WBTX-SS	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
8WBTX-SS	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
8WBTXSS	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
8WTX-WLN-SS	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
8WTX-WLN-SS	45631	LAMPE LUMBER CO INC
8WTX-WLN-SS	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
8WTXSS	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
J514	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
J832-8SS	54214	BOWES MFG INC
MS51520A8S	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
MS51520A8S	22031	AIR-WAY MANUFACTURING COMPANY
MS51520A8S	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
MS51520A8S	54214	BOWES MFG INC
MS51520A8S	79470	DANA CORP WEATHERHEAD DIV
MS51520A8S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51520A8S	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
MS51520A8S	98660	LUBE DEVICES INC FLODAR FLUID POWER FITTINGS DIV
MS51520B8S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-226-6772

Compare

Related Products | NSN 4730-00-226-6772

4730-00-226-6773, 4730-00-226-6774, 4730-00-226-6775, 4730-00-226-6896, 4730-00-226-6902

Technical Data | NSN 4730-00-226-6772

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM A380 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
MEDIA FOR WHICH DESIGNED	HYDRAULIC FLUID SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END
CONNECTION STYLE	B64 FLARED 1ST END B81 FLARED W/GASKET SEAL 2ND END
SEAT ANGLE	37.0 DEGREES 1ST END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.500 INCHES 1ST END
THREAD SERIES DESIGNATOR	UNF ALL ENDS UNF CENTER BULKHEAD

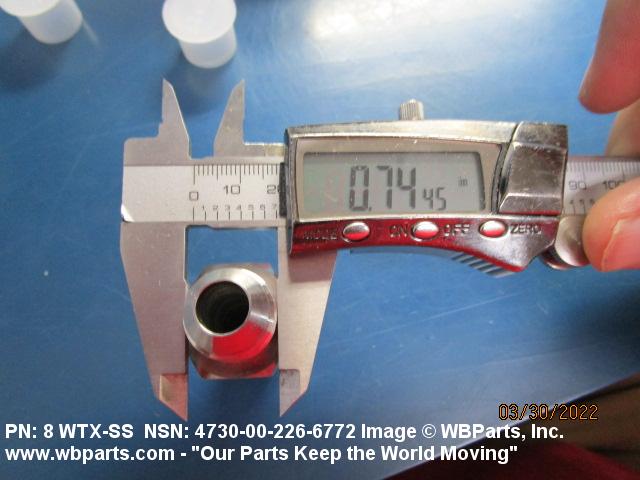

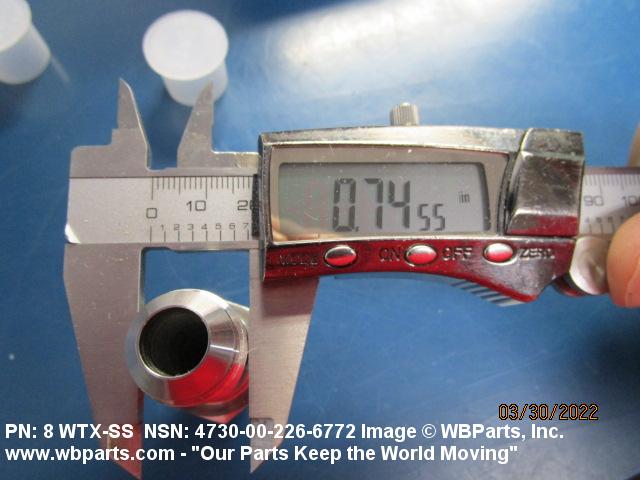

NOMINAL THREAD SIZE	0.750 INCHES ALL ENDS 0.750 INCHES CENTER BULKHEAD
THREAD CLASS	2A ALL ENDS 2A CENTER BULKHEAD

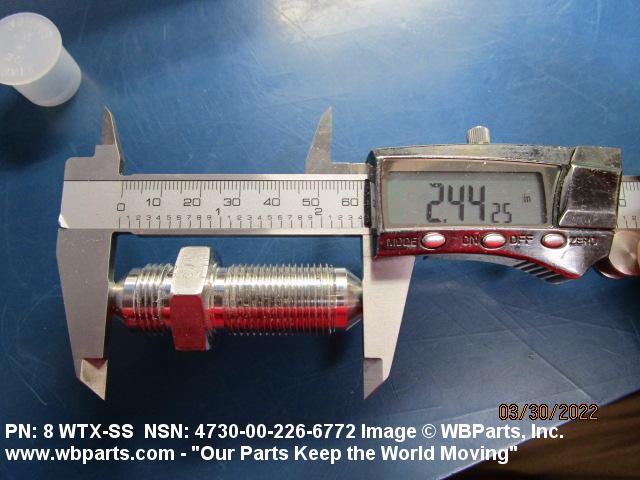

NOMINAL OVERALL LENGTH	2.440 INCHES
FURNISHED ITEMS AND QUANTITY	2 TUBE COUPLING NUT W/SLEEVE AND 1 PREFORMED PACKING AND 1 BULKHEAD NUT
SPECIAL FEATURES	WEAPON SYSTEM ESSENTIAL
SPECIFICATION/STANDARD DATA	96906-MS51520 GOVERNMENT STANDARD AND 81343-J514 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
NONDEFINITIVE SPEC/STD DATA	3A FIGURE
CRITICALITY CODE JUSTIFICATION	FEAT
III END ITEM IDENTIFICATION	BUF ENGINE, AIRCRAFT, F100-PW-200 (F-16A/B/C/D); NSN 2320-01-097-0260 HEMTT (HEAVY EXPANDED MOBILITY TACTICAL TRUCK)
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51520A8S

Restrictions/Controls & Freight Information | NSN 4730-00-226-6772

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-226-6772

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
